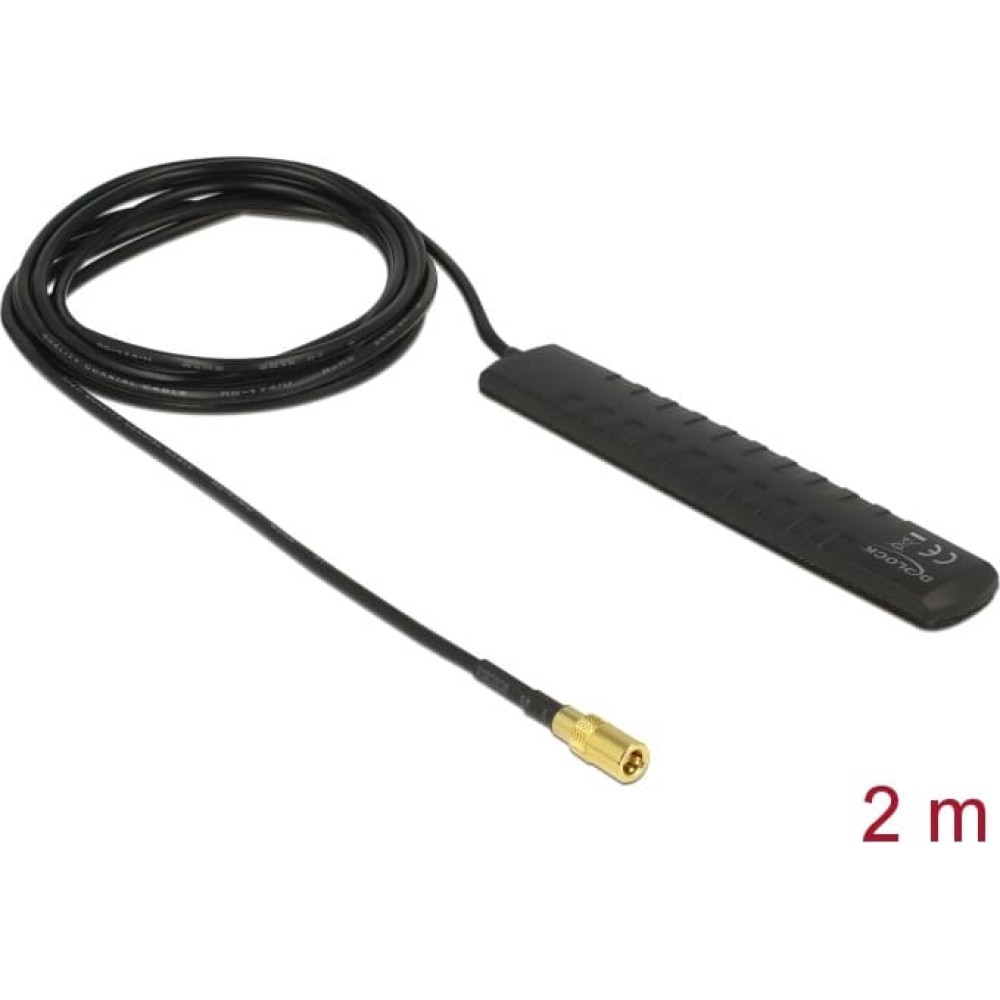

Delock DAB+ DVB-T2 Antenna SMB Plug 20 dBi active omnidirectional black adhesive mounting

Product Code: 89497

Barcode 4043619894970

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.150

height: 0.005

width: 0.210

Description

This active antenna by Delock is designed to receive digital broadcasting DAB+ and digital antenna-based television DVB-T2. The integrated amplifier improves the reception signal.

System requirements:
• DAB+ DVB-T2 receiver with free SMB connector

Specification:
• Connector: 1 x SMB plug
• Frequency range:
DAB+: 174 - 237 MHz
DVB-T2: 470 - 690 MHz
• Gain: 20 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Power supply: 5 V
• Current consumption: 14 - 28 mA
• Operating temperature: -40 °C ~ 85 °C
• Cable type: RG-174
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 2 m
• Dimension (LxWxH): ca. 11.27 x 1.97 x 0.65 cm

Package content:
• DAB+ DVB-T2 antenna

Data sheet:
http://www.delock.de/produkt/89497/pdf.html?sprache=en
