Home Switches / HUB KVM switches Lindy 2 Port Fibre Optic USB 3.0 Extender 300m

Lindy 2 Port Fibre Optic USB 3.0 Extender 300m

Product Code: 43363

Barcode 4002888433631

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable types supported: Fiber

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/df/a4/fc/63/63fca4df31aaaecc7765c0fe/CE_43363.pdf

country of origin: TW

data transfer rate: 5000 Mbit/s

host interface: Micro-USB 3.2 Gen 1 (3.1 Gen 1) Type-B

housing material: Metal

led indicators: Yes

maximum transfer distance: 300 m

operating relative humidity (h-h): 20 - 80%

operating temperature (t-t): 0 - 50 °C

output current: 3 A

output voltage: 5 V

packaging height: 12.7

packaging lenght: 15.1

packaging width: 11.2

plug and play: Yes

product colour: Black

receiver depth: 9.3 cm

receiver height: 2.8 cm

receiver weight: 129 g

receiver width: 5.7 cm

storage temperature (t-t): -20 - 70 °C

transmitter depth: 9.3 cm

transmitter height: 2.8 cm

transmitter weight: 125 g

transmitter width: 5.7 cm

type: Network transmitter & receiver

usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: 1

usb type-c ports quantity (receiver): 1

warranty: 2.0

Description

Specifications

USB Standard: USB 3.2/3.1 Gen 1 / USB 3.0
Supported Bandwidth: 5Gbps
Maximum Distance: 300m (984.24ft)
Transmission Medium:
- 69m (226.38ft) - 1 x Multimode 62.5µm/125µm OM1
- 138m (452.75ft) - 1 x Multimode 50µm/125µm OM2
- 300m (984.24ft) - 1 x Multimode 50µm/125µm OM3
Special Features: -

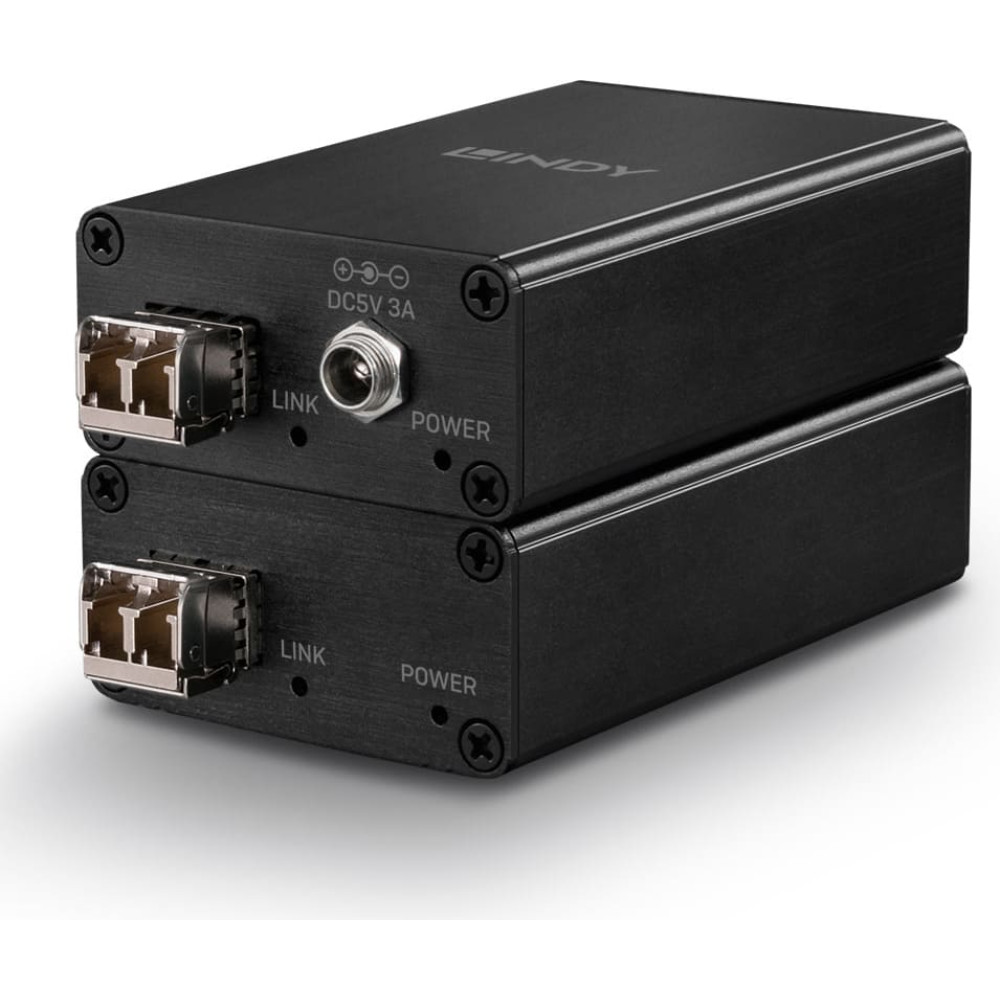

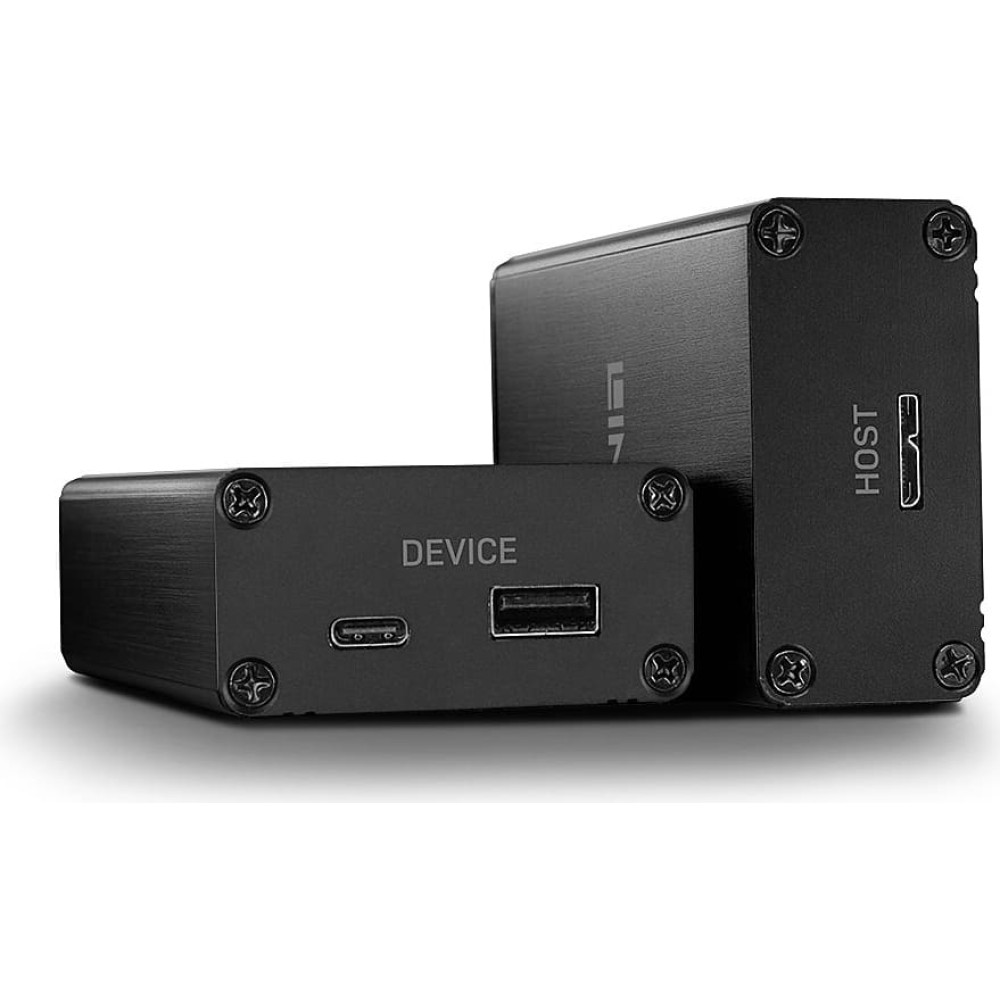

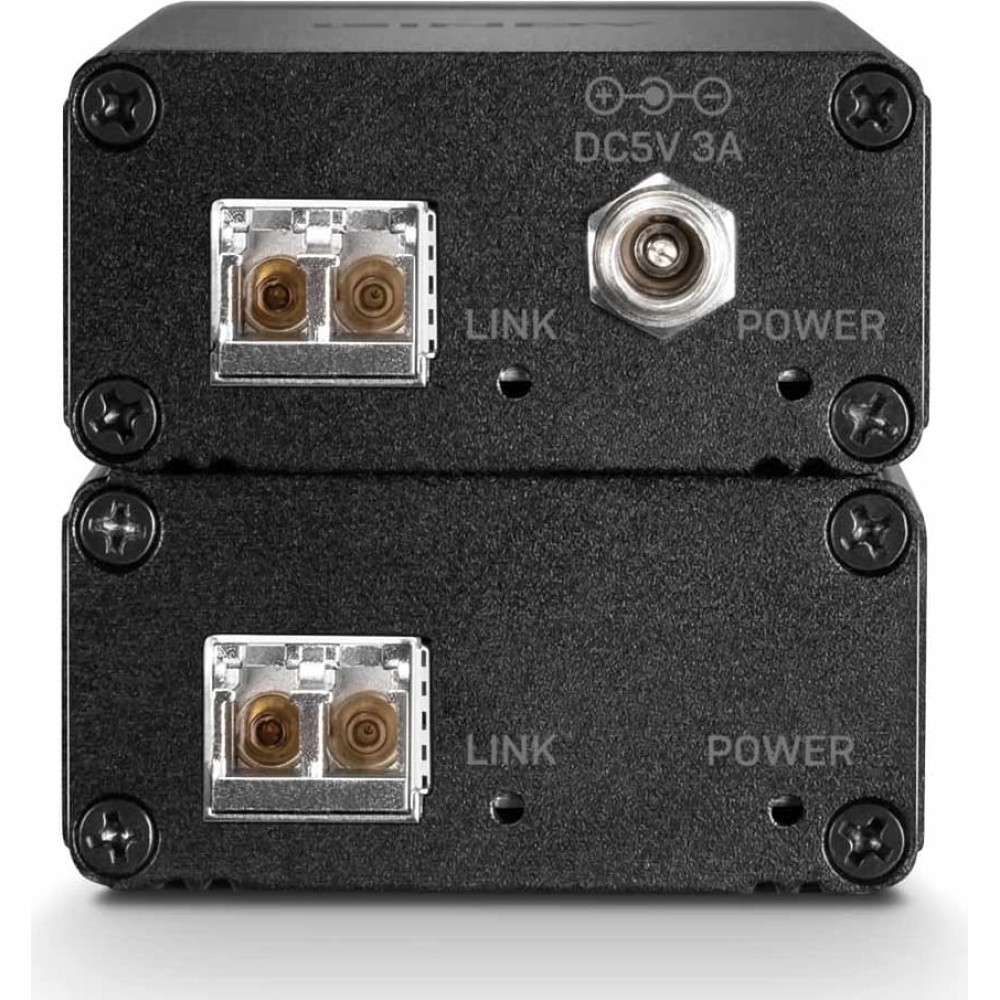

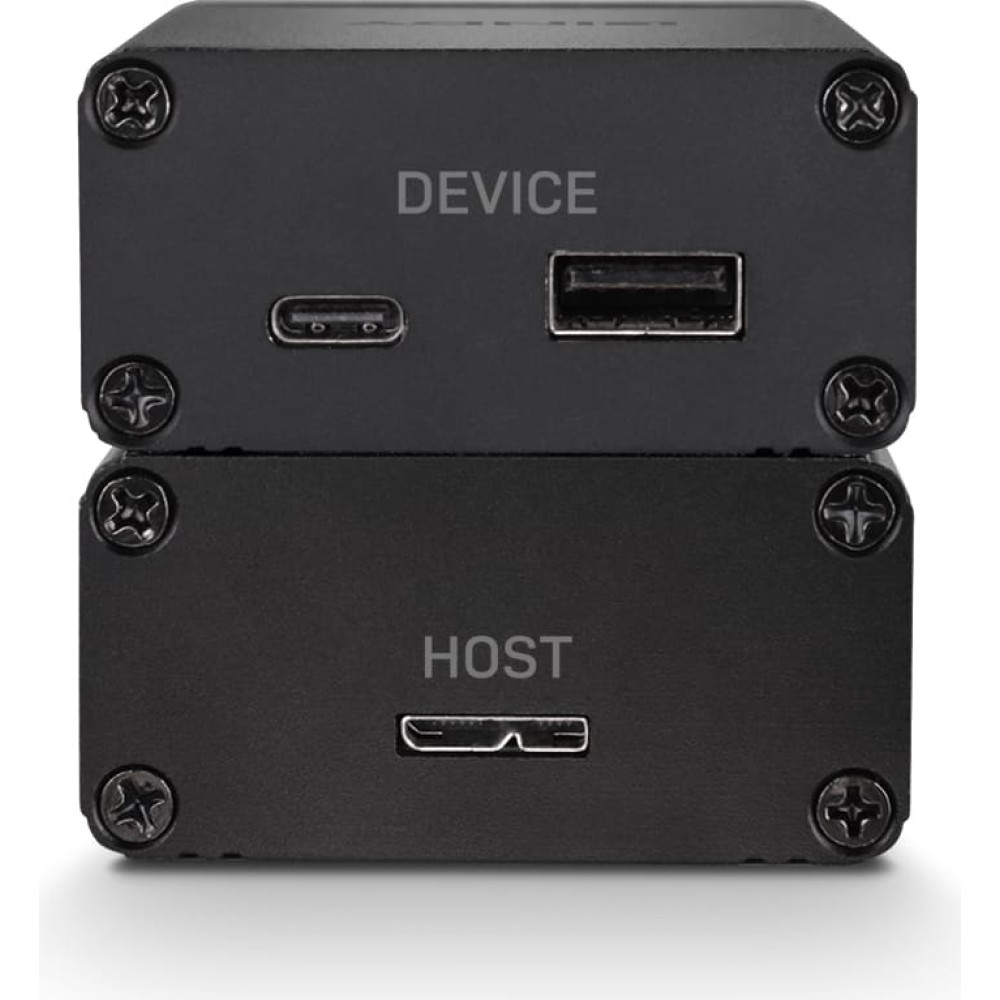

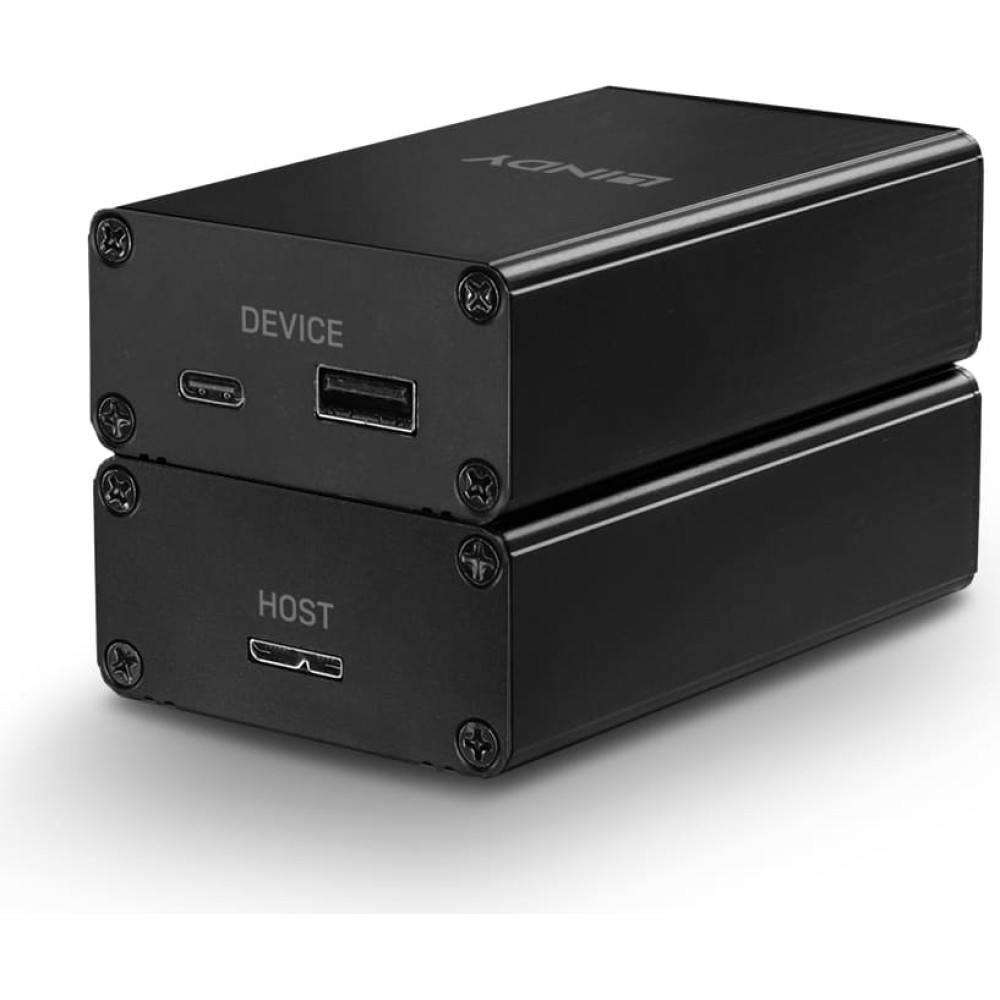

Connectors

Transmitter Input: USB Micro-B (Female)
Transmitter Output: Duplex LC (Female)
Receiver Input: Duplex LC (Female)
Receiver Output: 1x USB Type A (Female), 1x USB Type C (Female)
Power: 5.5/2.1mm DC socket

Physical Properties

Dimensions WxDxH: 57x93x28mm (2.24x3.66x1.1in)
Housing Material: Metal
Net Weight:
- Transmitter: 0.125kg (0.28lb)
- Receiver: 0.129kg (0.28lb)
Operating Temperature: 0° - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Humidity: 20 - 80% RH (non-condensing)
Power Requirements: 5VDC 3A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 151x127x112mm (5.94x5x4.40in)
Gross Weight: 0.63kg (1.41lb)
Warranty (Years): 2
Certificated: CE, FCC, REACH, ROHS, California Proposition 65

Package Contents

1 x Transmitter
1 x Receiver
1 x Multi-Country PSU DC 5V 3A (EU/UK/US/AUS)
Lindy Manual
