Delock Cable Connector RJ45 jack to RJ45 jack Cat.6A waterproof
To purchase this product you must be registered in our system.
Specification
depth: 0.140
height: 0.030
width: 0.140
Description

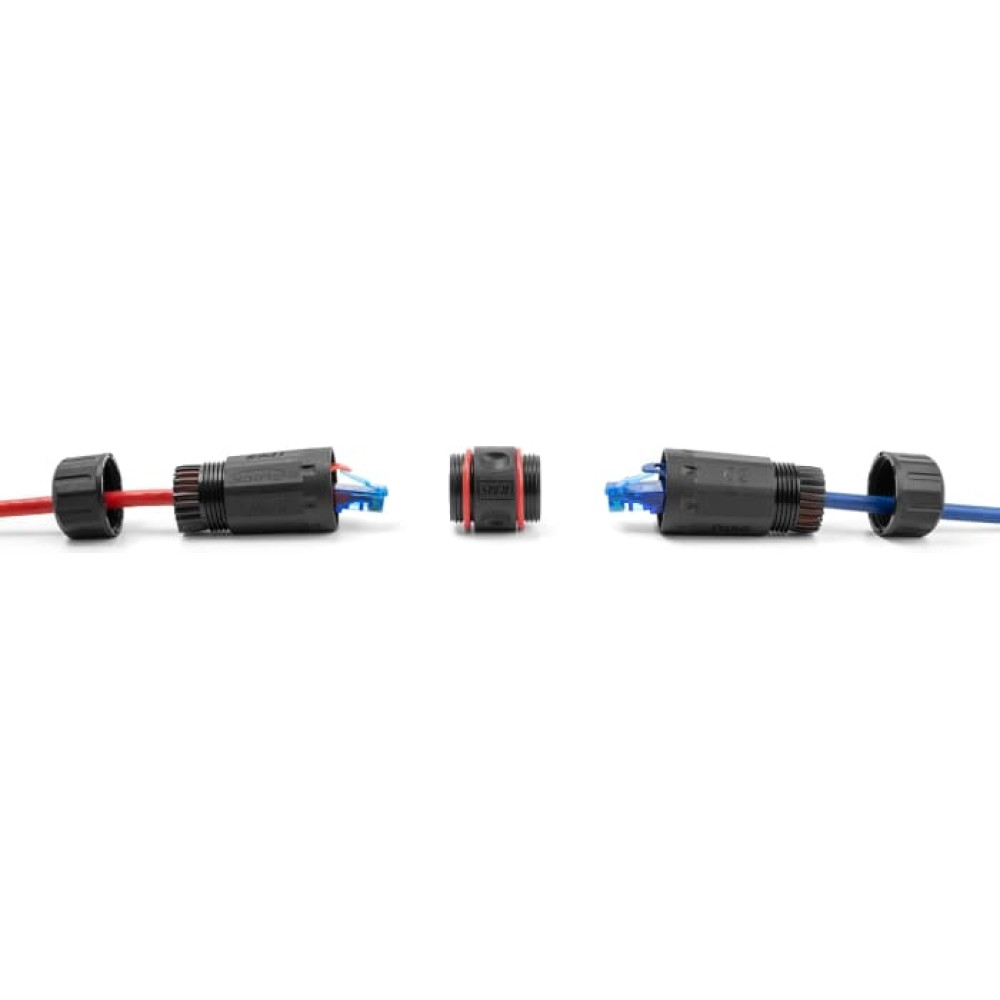

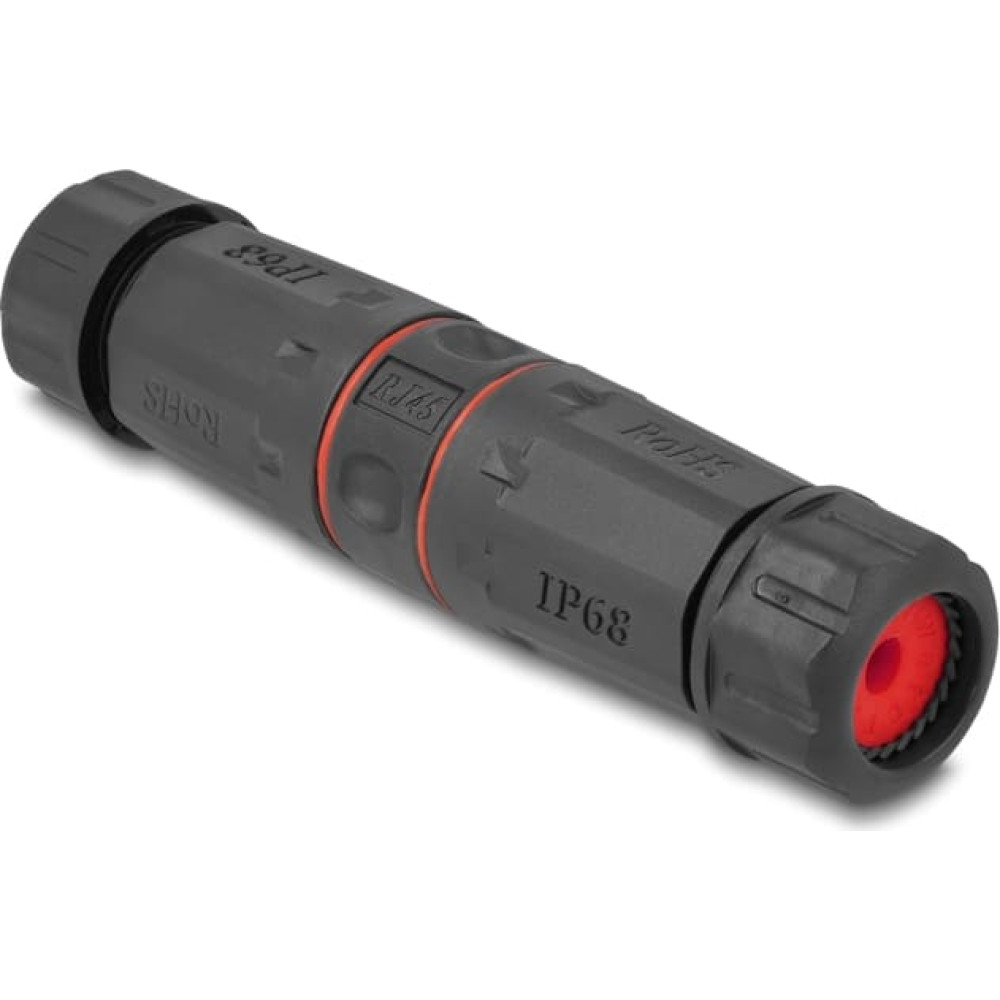

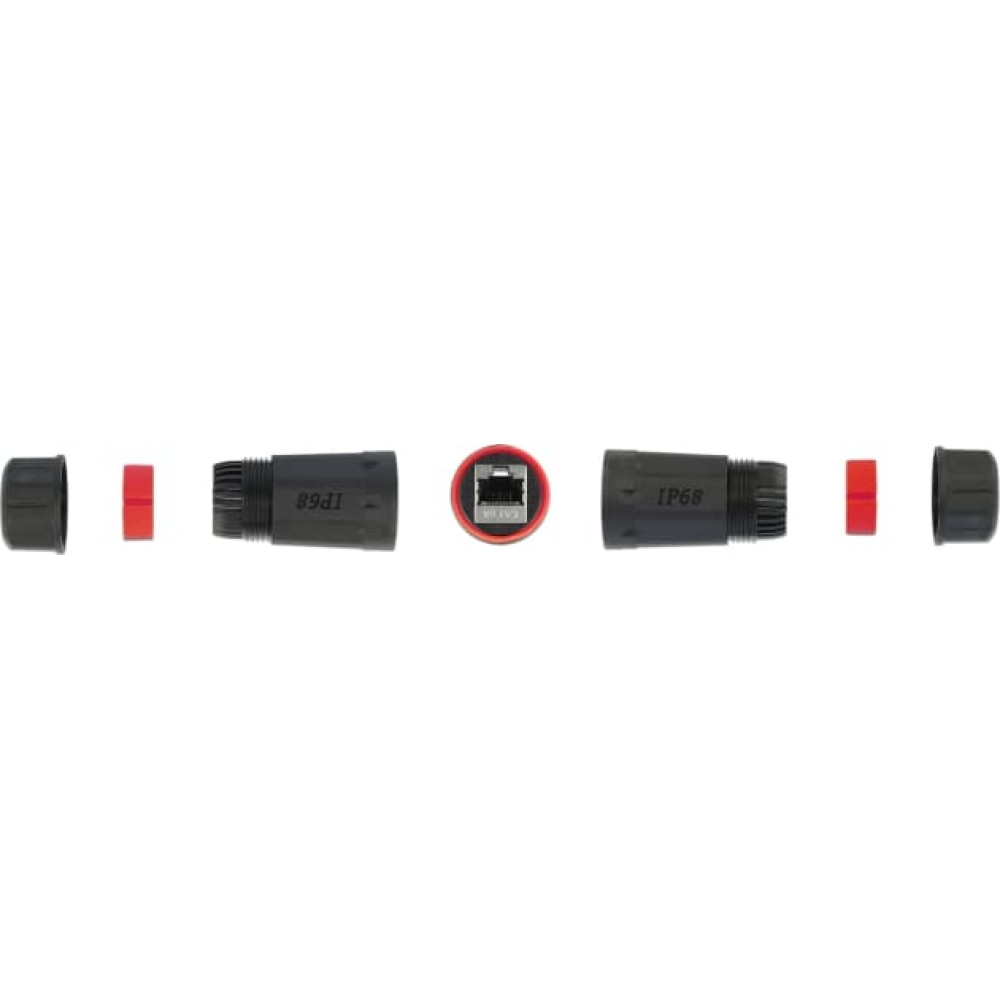

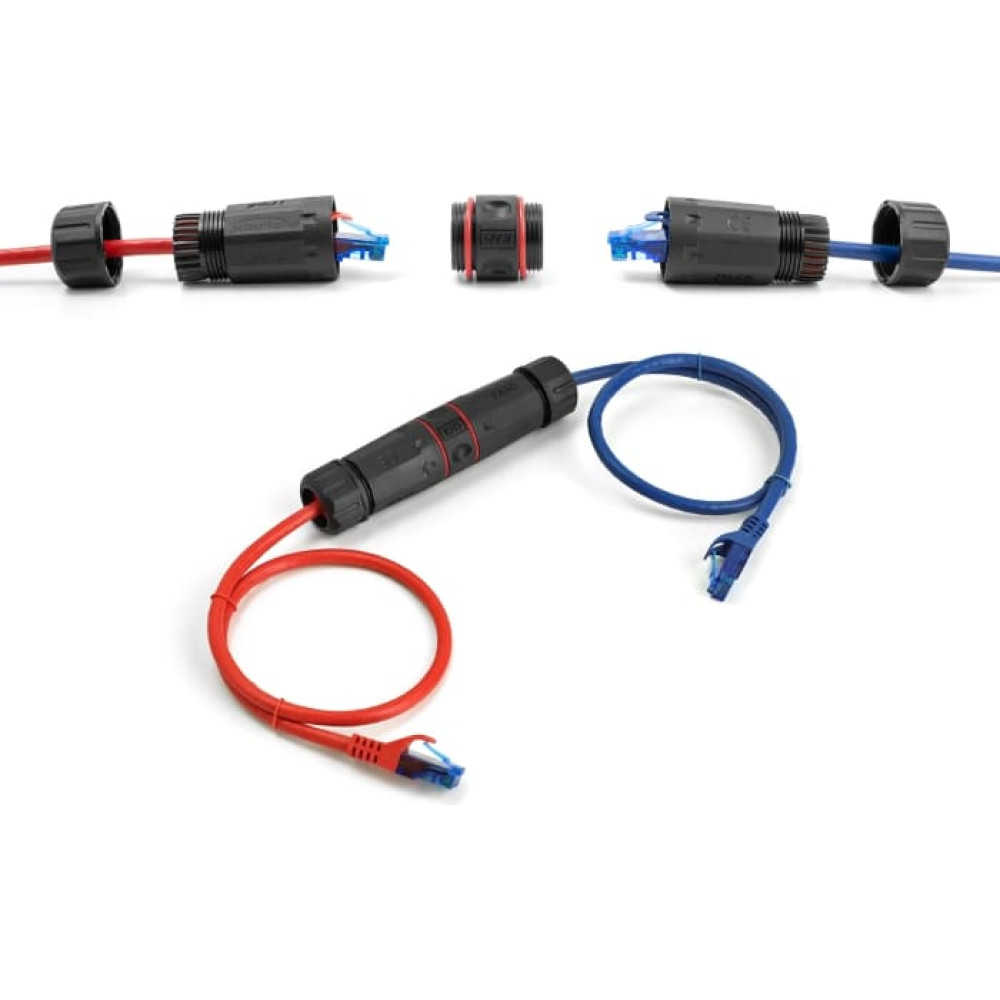

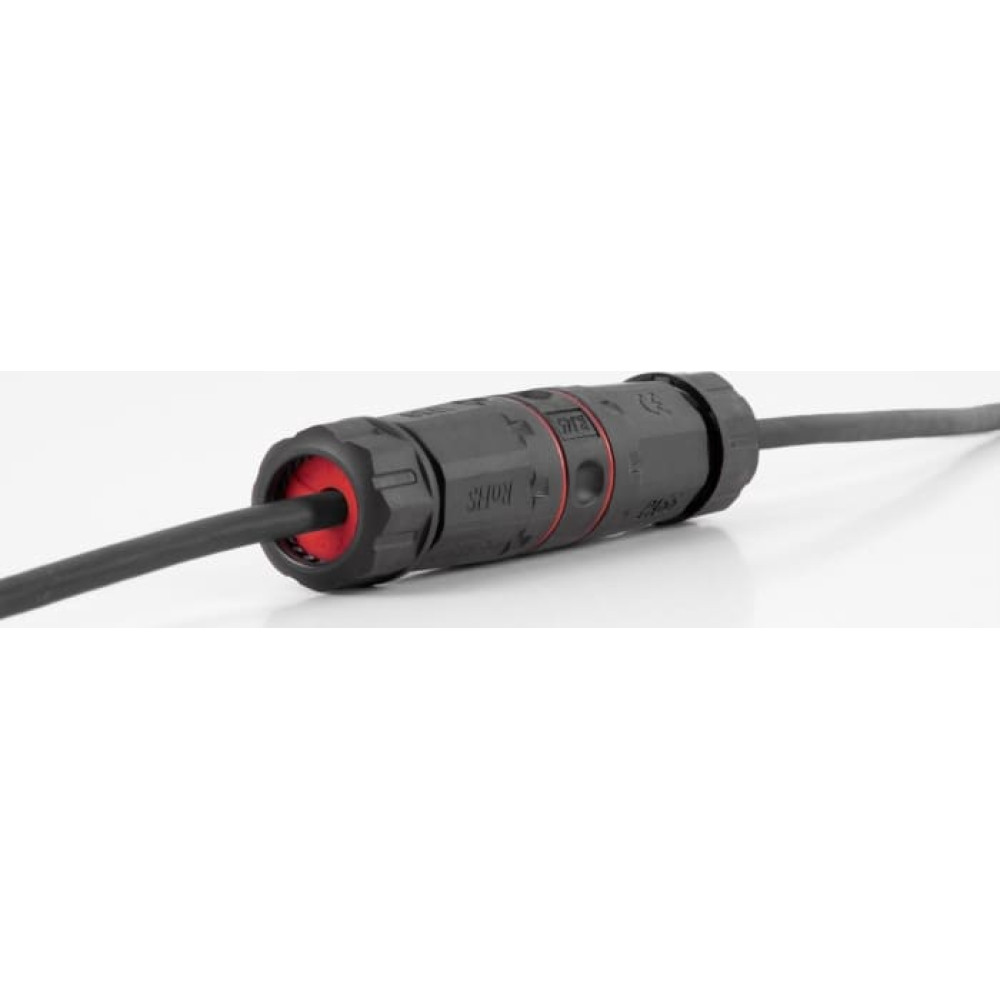

| This cable connector by Delock can be used to connect or extend two RJ45 network cables and is ideal for outdoor use e.g. in the garden. Various components for the perfect installation The cable connector consists of a total of 5 plastic parts (1 x RJ45 coupling, 2 x housing and 2 x screw cap) and 4 rings. The sealing ring at the feed-through hole of the housing seals between cable and housing. It can be opened at the side to allow the cable to be inserted. The two screw threads directly on the RJ45 coupler are each protected by a silicone sealing ring. IP68 dust and waterproof The coupler offers increased protection against dirt and moisture for the connection of the network cables. Specification: • Connectors: 1 x RJ45 jack > 1 x RJ45 jack • 1:1 connected • Cat.6A specification • Shielded (STP) • Silicone sealing ring red • Protection class: IP68 • For cable diameter from 5.0 - 7.5 mm • Operating temperature: -40 °C ~ 85 °C • Material: plastic • Colour: black • Dimensions (LxWxH): ca. 122 x 30 x 23 mm Package content: • Cable connector Data sheet: http://www.delock.de/produkt/86692/pdf.html?sprache=en |
