Delock Connector DC 5.5 x 2.1 mm with 12.0 mm length male

Product Code: 89915

Barcode 4043619899159

To purchase this product you must be registered in our system.

Description

Related products

Description

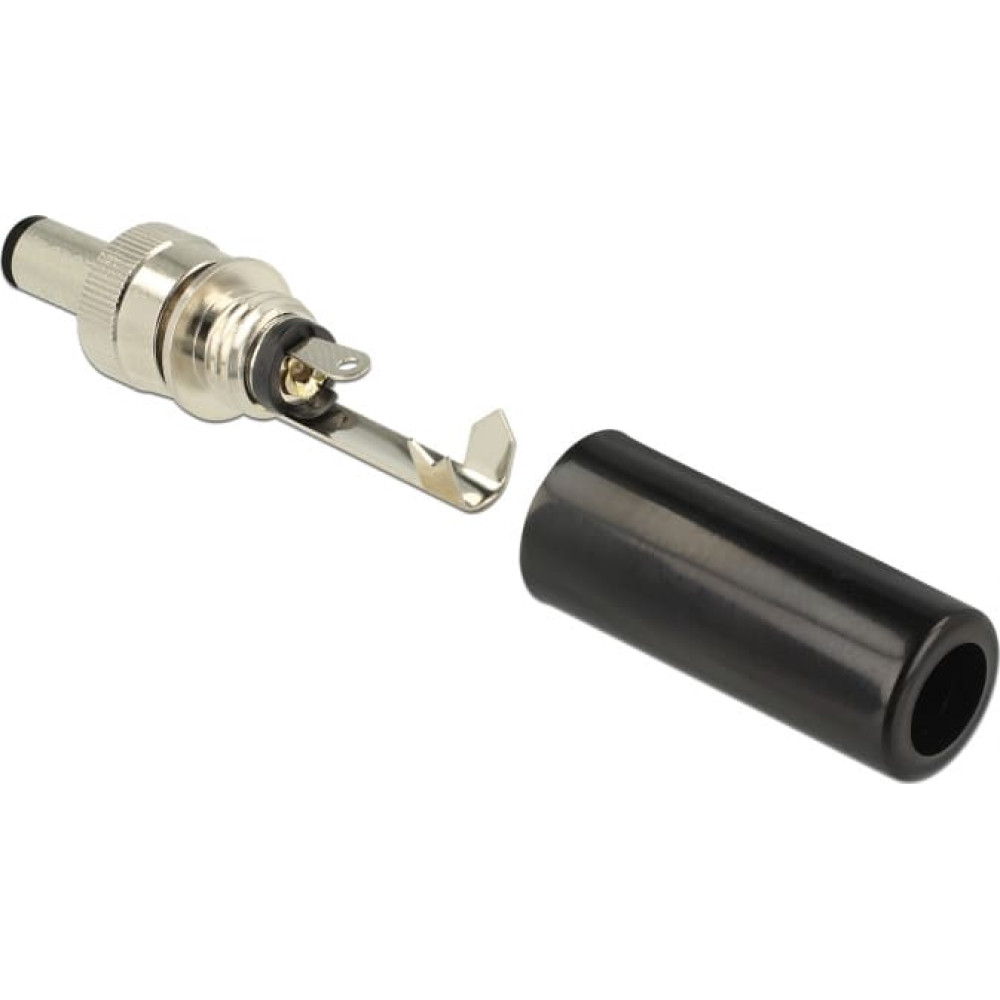

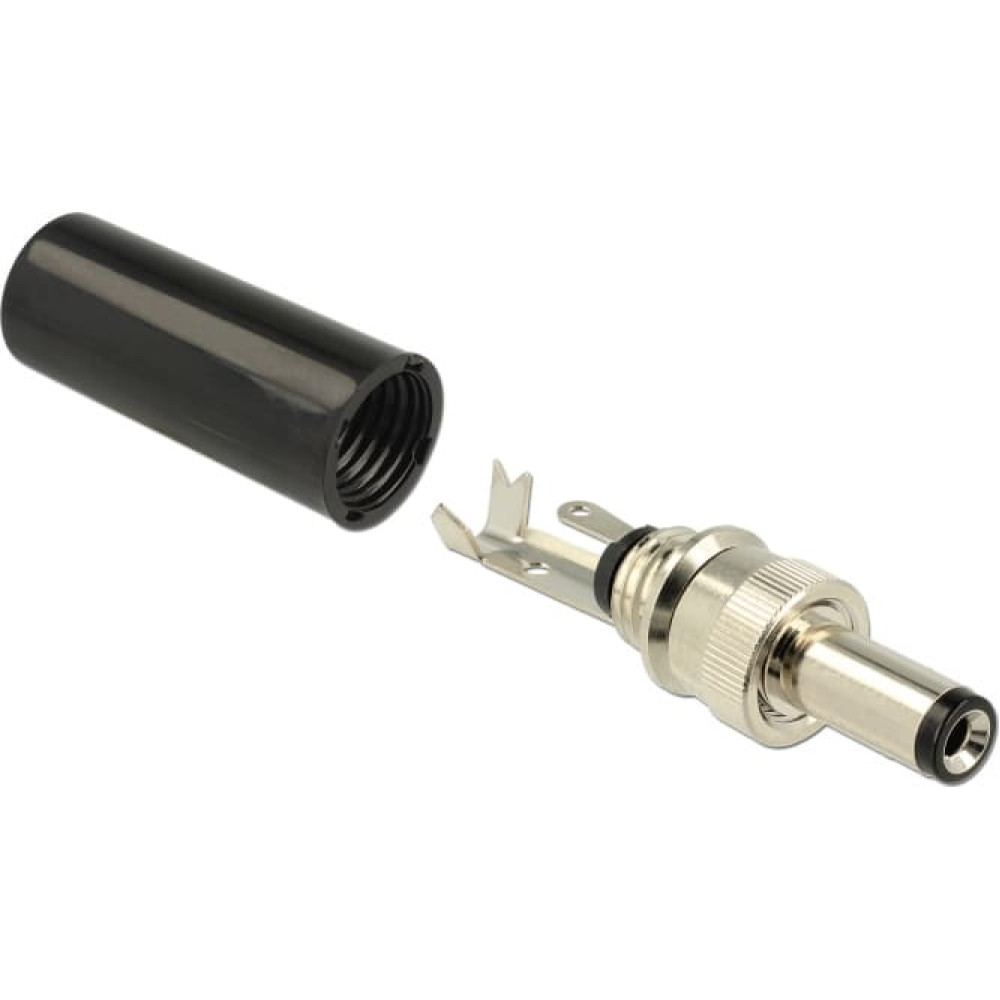

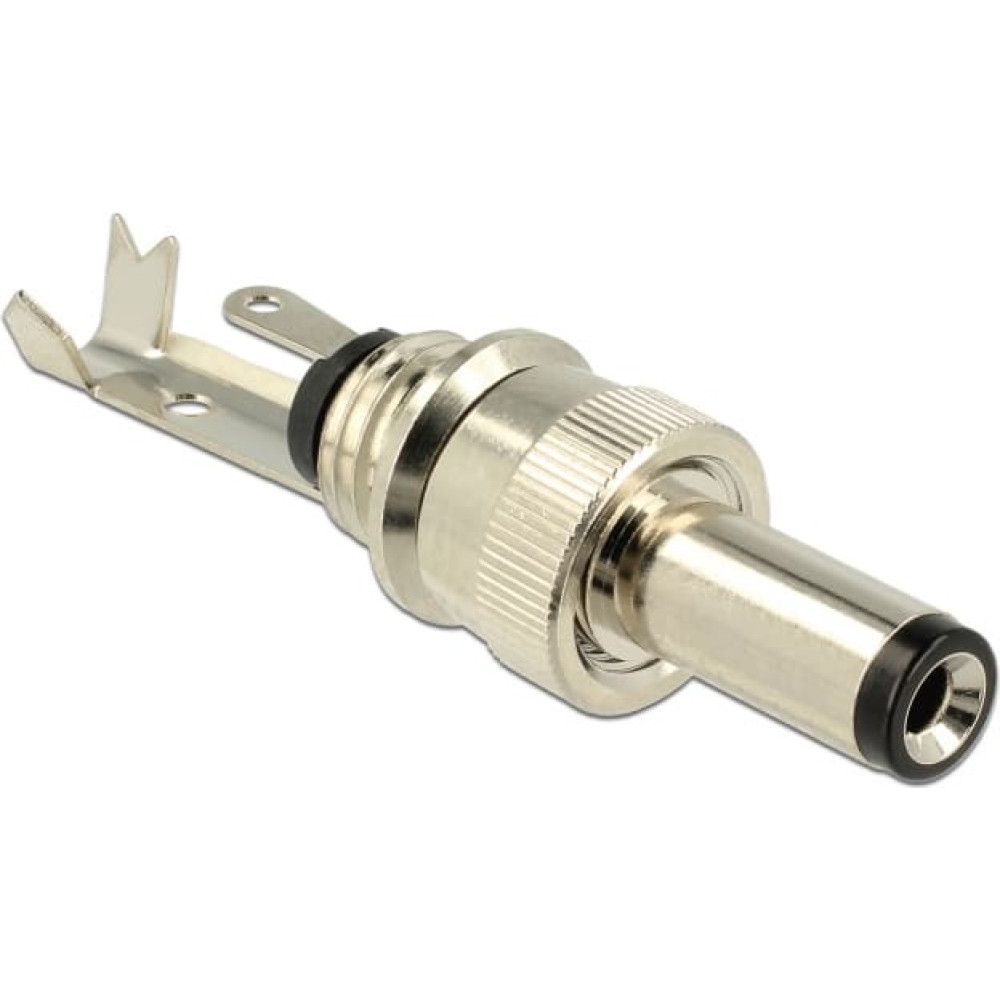

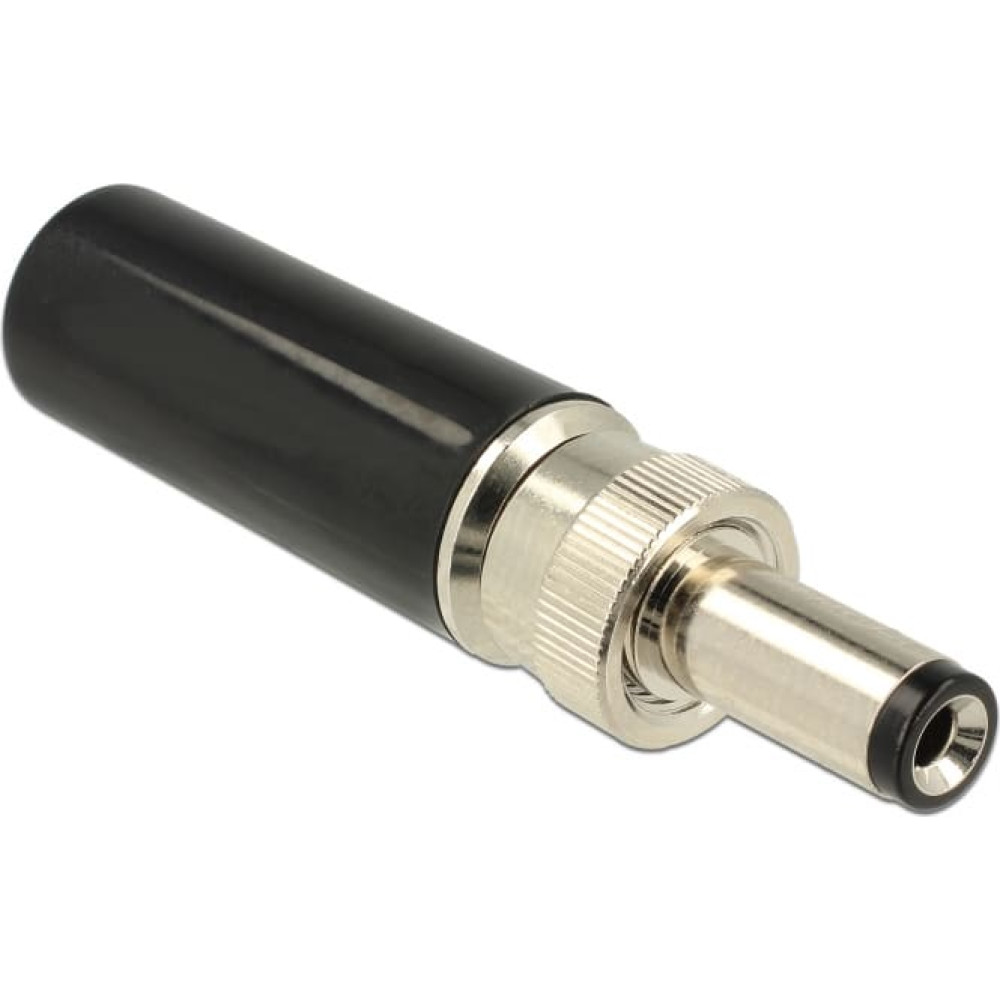

This DC connector by Delock is made for soldering to a cable and can be used for connection of different devices with 5.5 x 2.1 mm DC jack. The screw type connector on the plug supports a tight connection with the suitable DC jacks.

System requirements:
• A free DC female port 5.5 x 2.1 x 12.0 mm

Specification:
• Connectors:
  1 x DC 5.5 x 2.1 x 12.0 mm male >
  1 x solder connection
• Isolation resistance: 100 MΩ / min. (500 V DC)
• Voltage: max. 18 V
• Current: max. 2 A
• Length: ca. 41.0 mm
• Diameter: ca. 10.6 mm

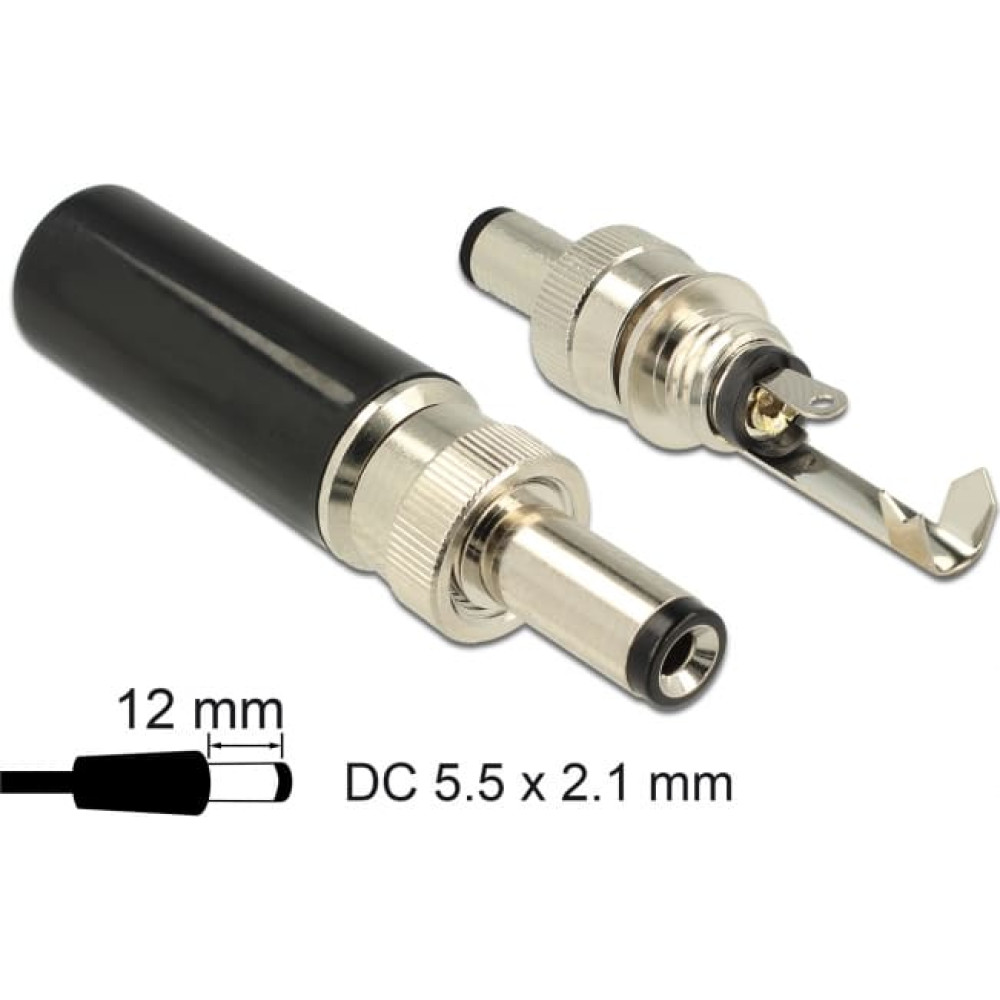

Specification of power connector
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 12.0 mm

Package content:
• DC connector

Data sheet:
http://www.delock.de/produkt/89915/pdf.html?sprache=en
