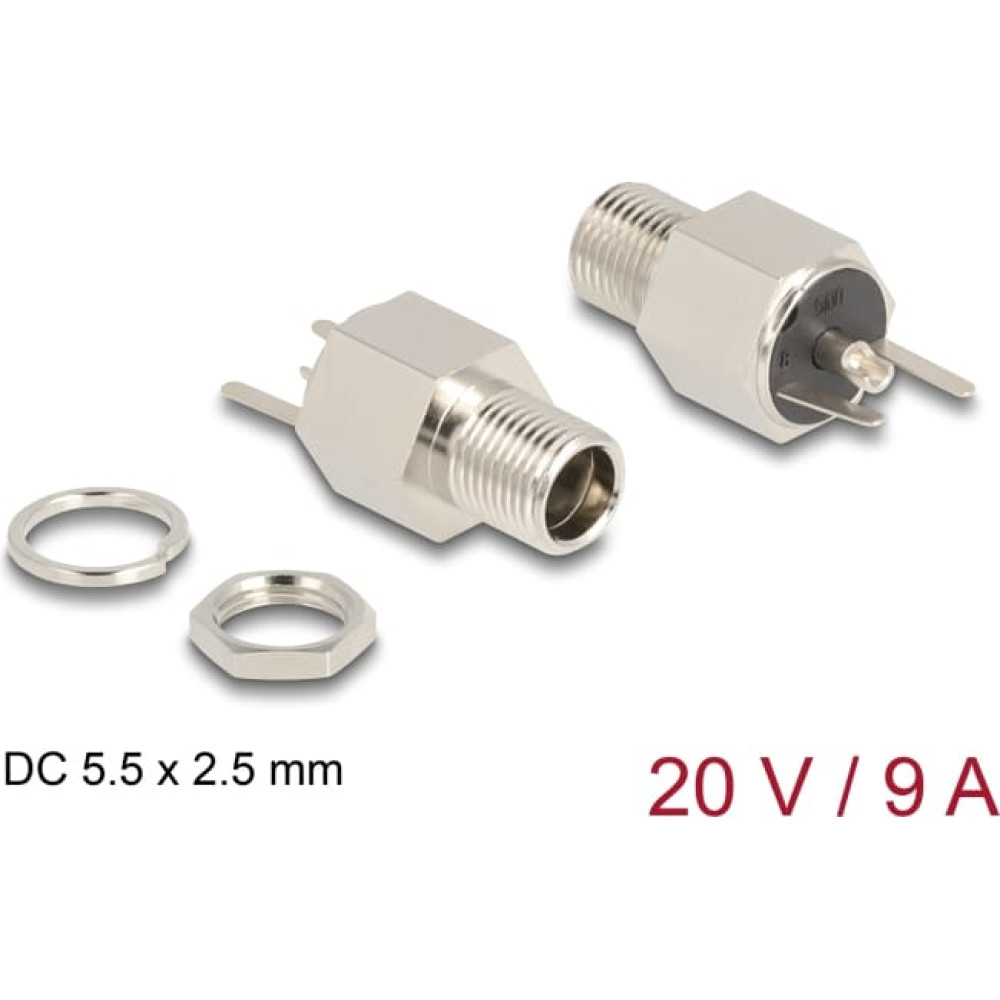

Delock Connector DC 5.5 x 2.5 mm female bulkhead soldering version - Hexagon 20 V / 9 A

Product Code: 90188

Barcode 4043619901883

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.000

height: 0.000

width: 0.000

Description

This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.

Specification:
• Connectors:
  1 x DC 5.5 x 2.5 x 12.0 mm female
  3 x solder connection
• Suitable for DC pin length: 9.5 mm / 12 mm
• Operating voltage: 20 V DC
• Current: max. 9 A
• Hexagon base
• Thread type: M8*P0.75
• Mounting depth: ca. 17.1 mm
• Visible height when installed: ca. 8.5 mm

Specification of power connector
• Dimensions:
  inside: ø ca. 2.5 mm
  outside: ø ca. 5.5 mm
  depth: ca. 12.0 mm

Package content:
• DC female bulkhead

Data sheet:
http://www.delock.de/produkt/90188/pdf.html?sprache=en
