Home UPS / Power features Charging and supplies Lindy USB Typ A & C Charger 30W, weiß

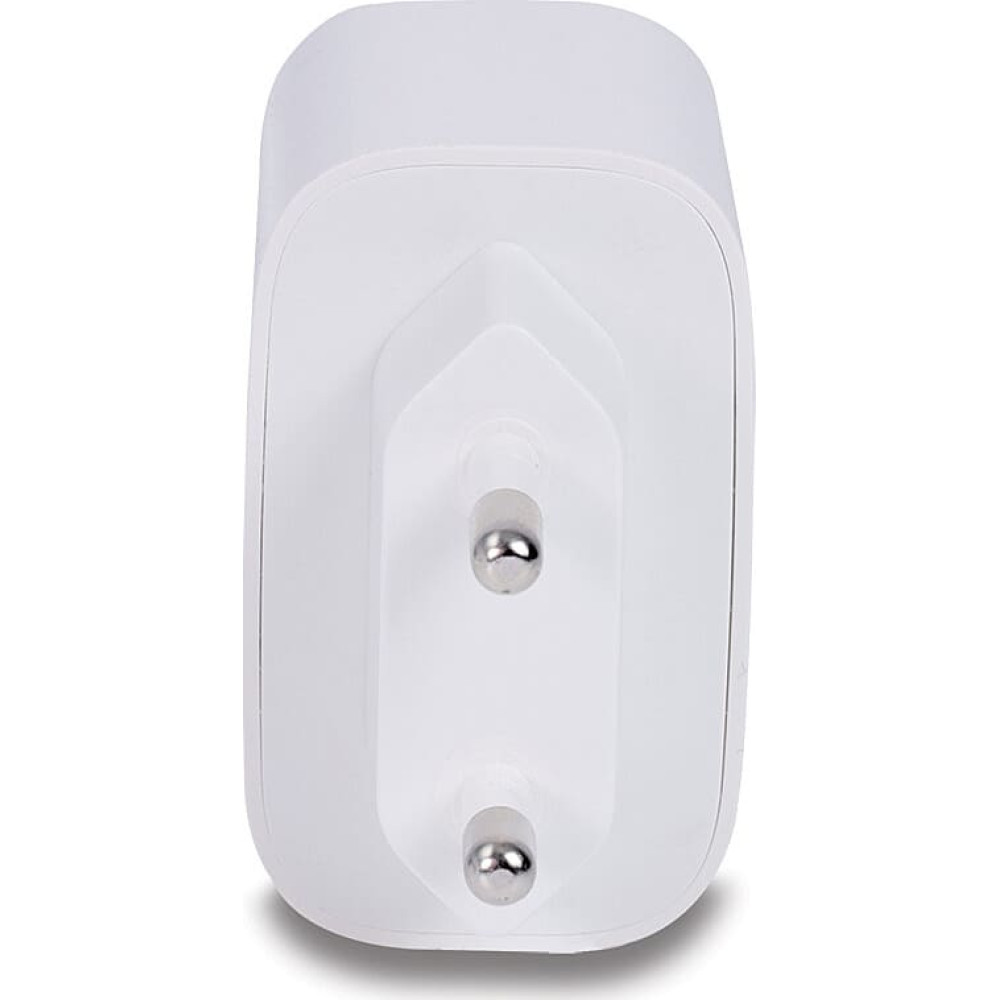

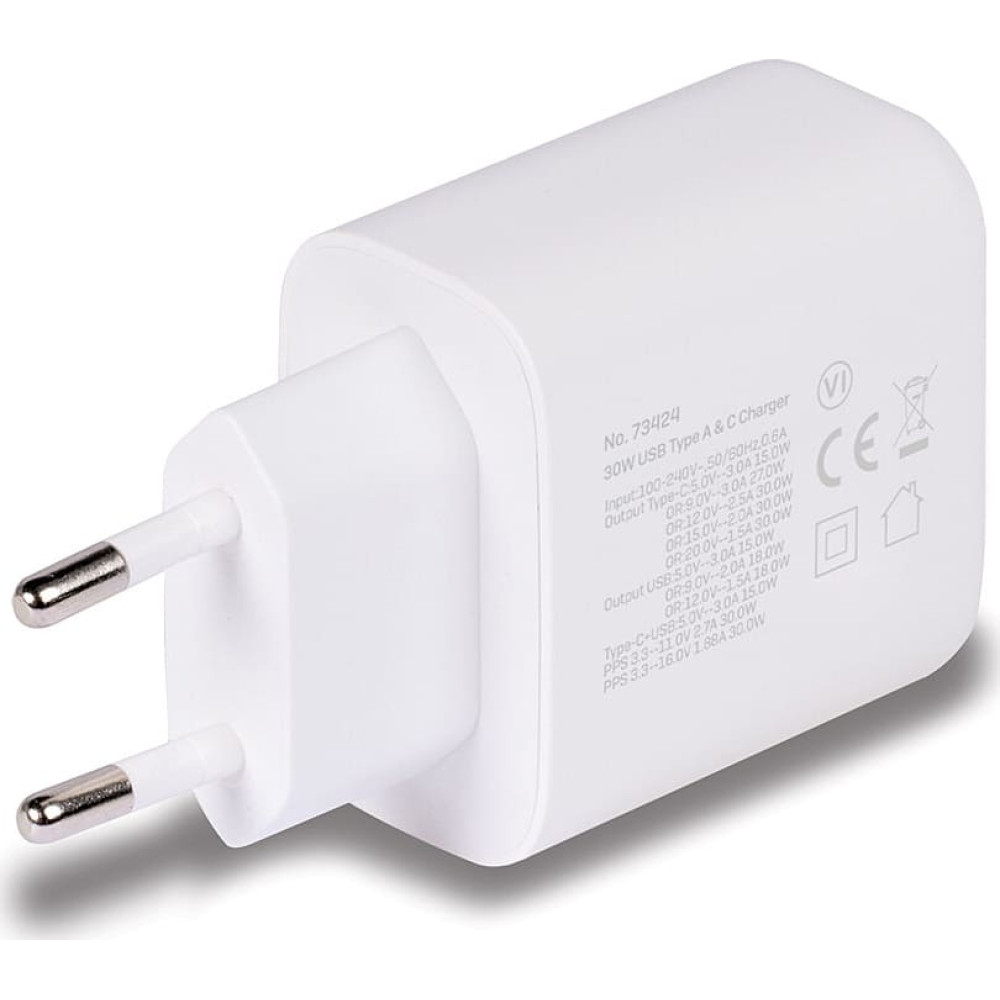

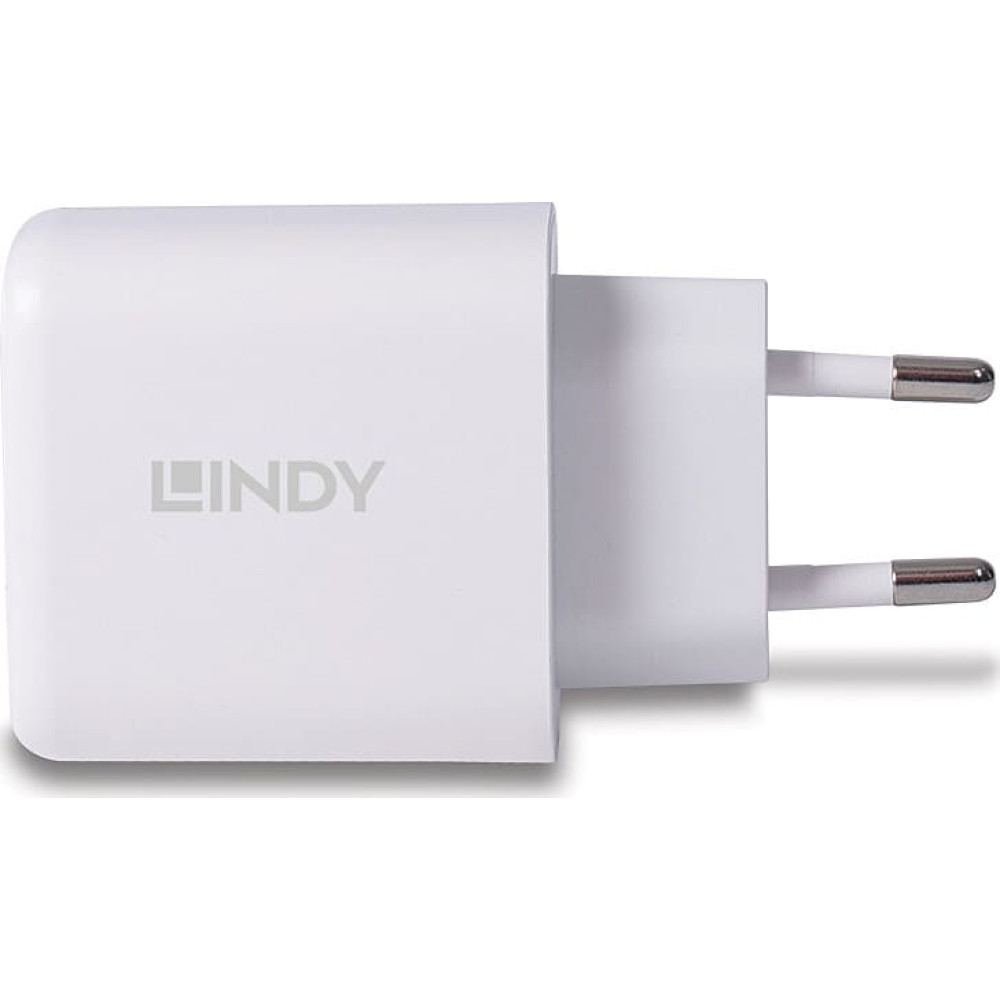

Lindy USB Typ A & C Charger 30W, weiß

Product Code: 73424

Barcode 4002888734240

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

average active efficiency: 81.38%

charger compatibility: Universal

charger type: Indoor

compliance certificates: CE, REACH, RoHS

connector material: Copper

depth: 85.3 mm

efficiency at low load (10%): Yes

fast charging: Yes

fast charging technology: Power Delivery 3.0

height: 41.6 mm

housing material: Polyvinyl chloride (PVC)

input current: 0.6 A

input frequency: 50/60 Hz

input voltage: 100 - 240 V

manual: Yes

maximum output voltage: 20 V

maximum power: 30 W

minimum output voltage: 5 V

number of simultaneously connected devices (max): 2

operating relative humidity (h-h): 20 - 90%

operating temperature (t-t): 0 - 25 °C

output current (12v): 2.5 A

output current (15v): 2 A

output current (20v): 1.5 A

output current (5v): 3 A

output current (9v): 3 A

output voltage accuracy (±): 5%

package depth: 100 mm

package height: 45 mm

package type: Box

package weight: 60 g

package width: 80 mm

power consumption (no load): 0.1 W

power protection features: Over current, Over voltage, Overheating, Short circuit

power source type: AC

product colour: White

quantity per pack: 1 pc(s)

storage relative humidity (h-h): 20 - 90%

storage temperature (t-t): -20 - 70 °C

sustainability certificates: ErP

sustainability compliance: Yes

usb 2.0 ports quantity: 1

usb power delivery (usb pd): Yes

usb power delivery revision: 3.0

usb power delivery up to: 30 W

usb type-c ports quantity: 1

weight: 40 g

width: 26.8 mm

Description

Connectors

Input: Euro Plug
Output: 1x USB Type A Female, 1x USB Type C Female

Specifications

Power Input: 100-240VAC, 50/60Hz 0.6A
Power Output
- USB Type A: 5V 3A, 9V 2A, 12V 1.5A
- USB Type C: V V 3A, 9V 3A, 12V 2.5A, 15V 2A, 20V 1.5A, PPS33 11V 2.7A, PPS33 16V 1.88A
- USB Type A & C: 5V 3A
USB Power Delivery: PD 3.0 (USB Type C port)
Max. Total Power: 30W
Output Voltage Accuracy: ± 5%
Average Active Efficiency: 81.38%
Efficiency at Low Load (10%): 80.06%
No-load Power Consumption: 0.1 W
Additional Features: Overcurrent, overvoltage, overtemperature and short-circuit protection

Physical Properties

Dimensions (approx.) WxDxH: 26.80x85.30x41.60mm (1.05x3.35x1.63in)
Connector Material: Copper
Housing Material: PVC
Net Weight: 0.04kg (0.09lb)
Operating Temperature: 0°C - 25°C (32°F - 77°F)
Operating Humidity: 20 – 90% RH (non-condensing)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Storage Humidity: 20 – 90% RH (non-condensing)
Colour: White

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 80x100x45mm (3.15x5.12x1.77in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Product Compliance: CE, RoHS, REACH, ErP

Package Contents

30W USB Type A & C PD Charger
Lindy Manual

Purchasing Information

No.: 73424
EAN: 4002888734240
