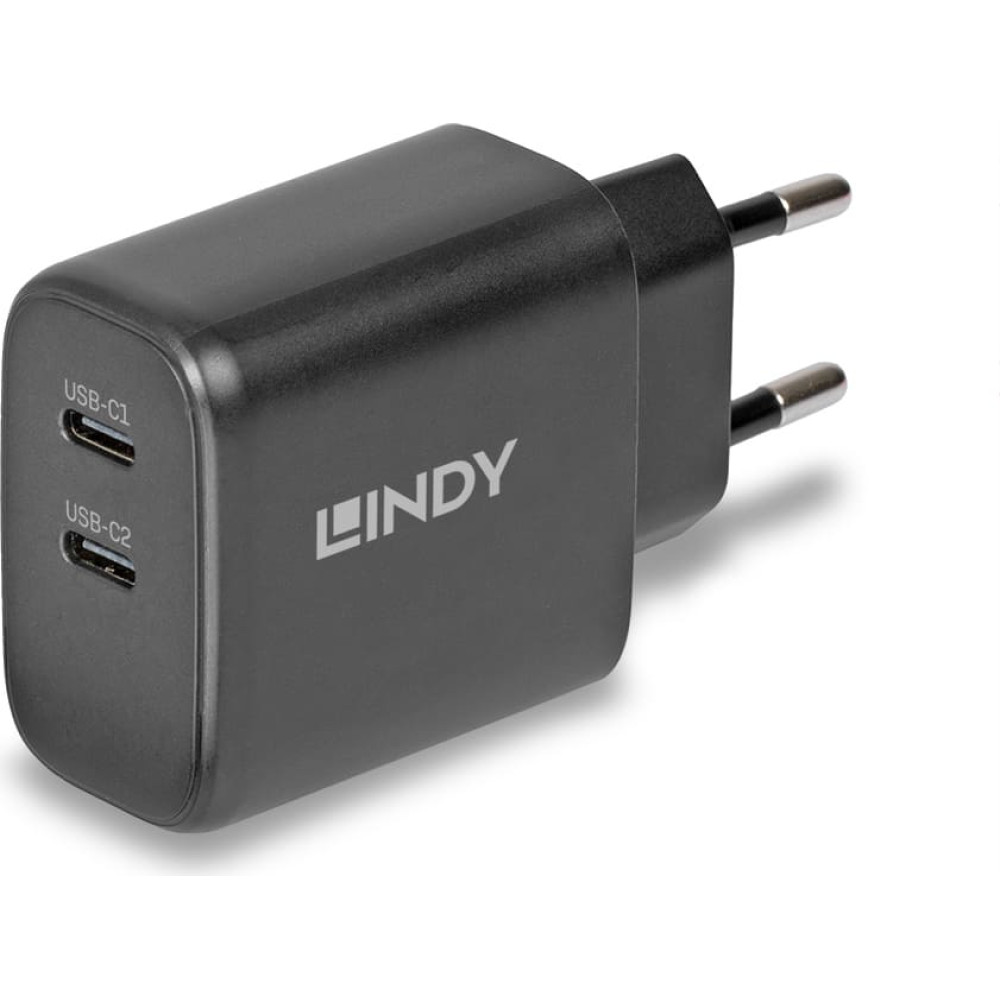

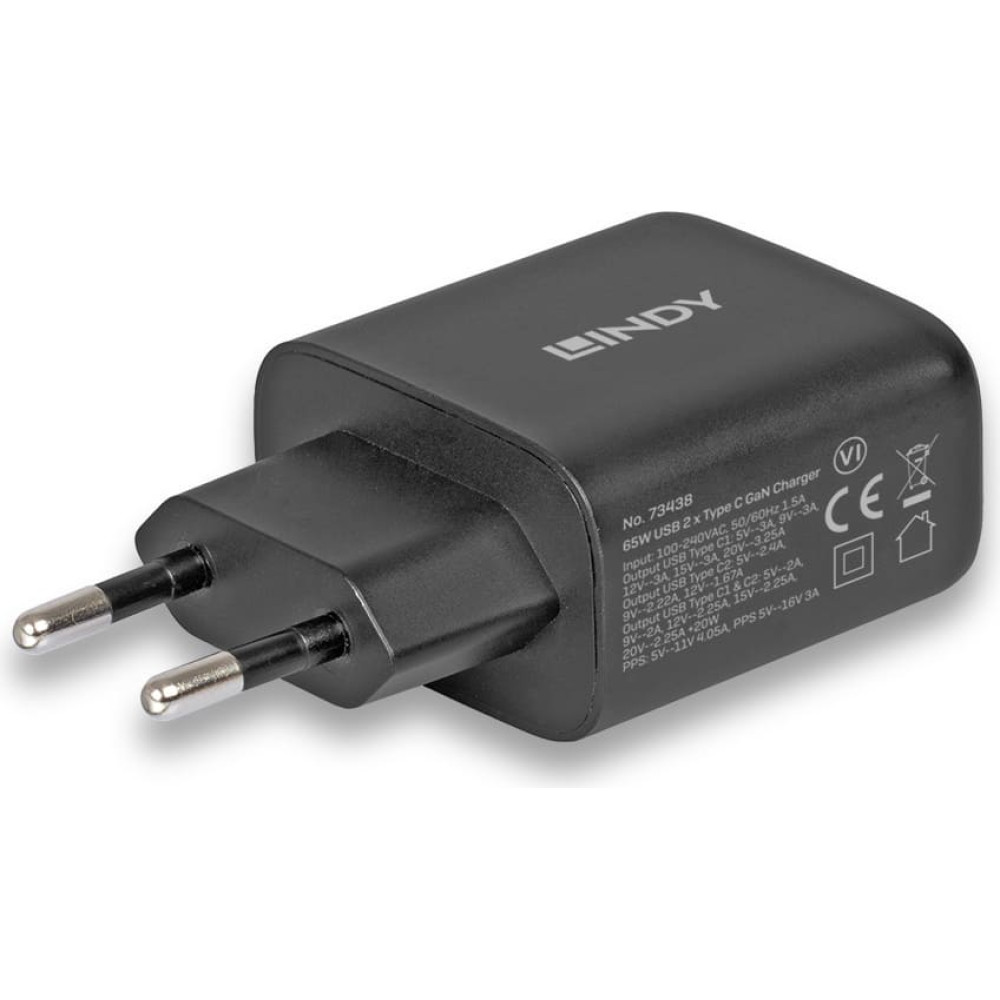

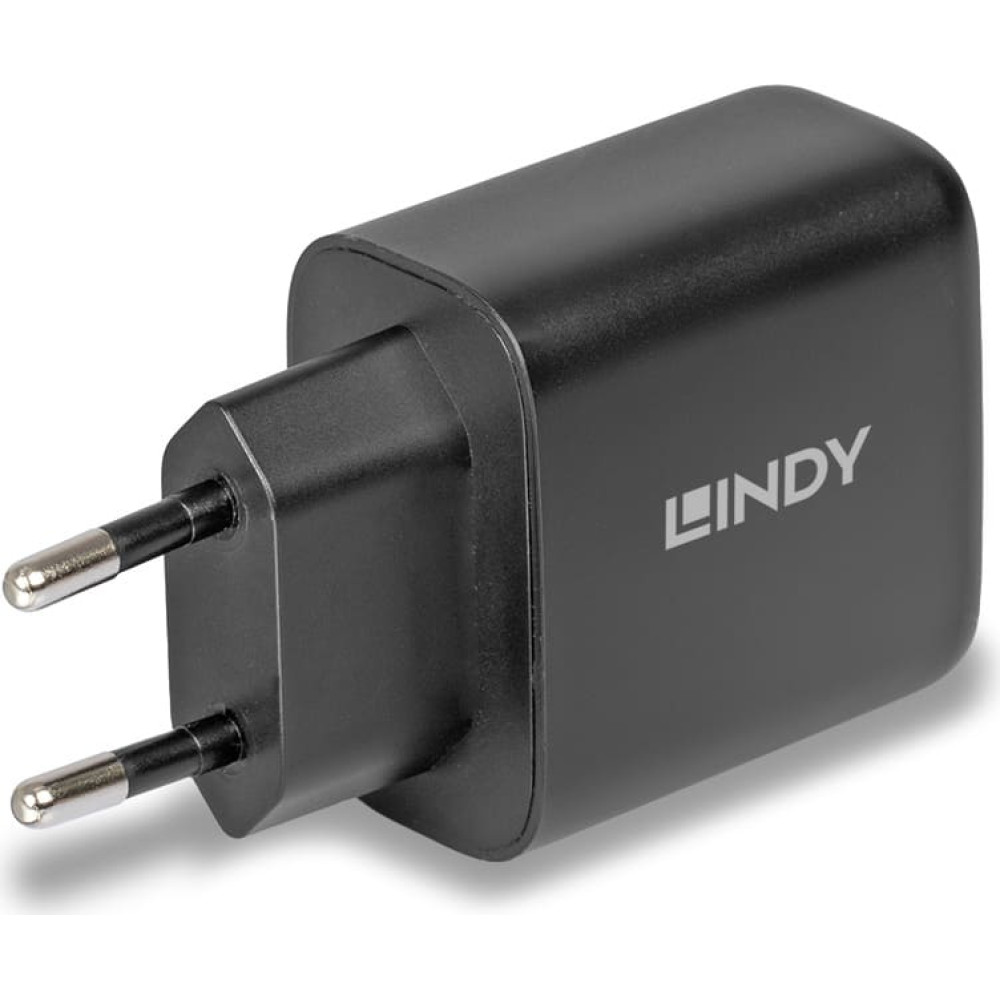

Lindy 65W USB 2 x Type C GaN Charger

Product Code: 73438

Barcode 4002888734387

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f9/13/bb/66/66bb13f9943dae01c97948d4/CE_73438-73439.pdf

ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f9/13/bb/66/66bb13f9943dae01c97948d4/CE_73438-73439.pdf

country of origin: CN

depth: 0.000

gross weight: 0.06

height: 0.000

manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a9/7e/ac/67/67ac7ea92b0f331408398216/Lindy_MAN_73438.pdf

net weight: 0.04

packaging height: 45.00

packaging lenght: 100.00

packaging width: 80.00

tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/eb/5f/d0/66/66d05feba919c1e12191d7e4/73438_TDS_V1.pdf

variations: 73439

warranty: 2

width: 0.000

Description

Connectors

Input: Euro Plug
Output: 2 x USB Type C Female

Specifications

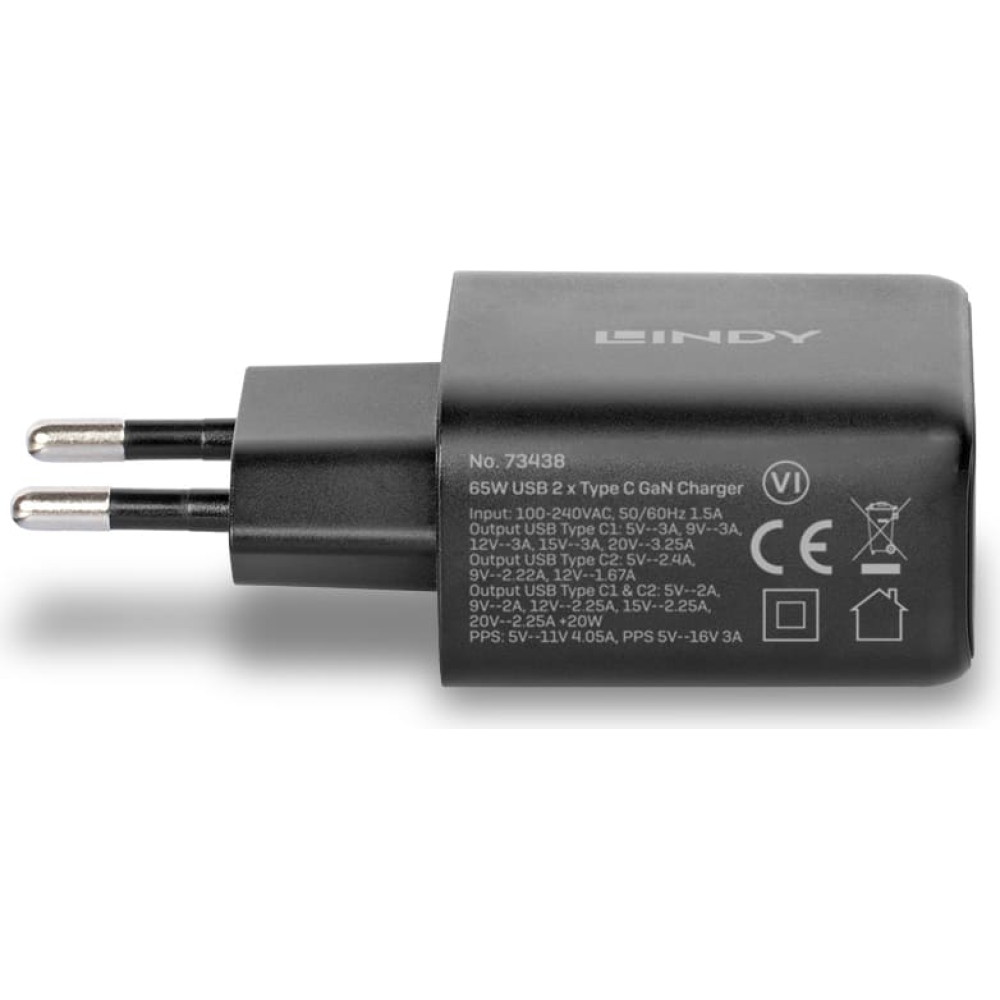

Power Input: 100-240VAC, 50/60Hz 1.5A
Power Output:
- USB Type C1: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A
- USB Type C2: 5V 2.4A, 9V 2.22A, 12V 1.67A
- USB Type C1 & 2: 5V 2A, 9V 2A, 12V 2.25A, 15V 2.25A, 20V 2.25A
- PPS: 5V-11V 4.05A, PPS 5V-16V 3A
USB Power Delivery: PD 3.0 (USB Type C ports)
Max. Total Power: 65W
Output Voltage Accuracy: ± 5%
Average Active Efficiency: 81.38%
Efficiency at Low Load (10%): 80.06%
No-load Power Consumption: 0.1W
Additional Features: Overcurrent, overvoltage, overtemperature and short-circuit protection, QC 4.0

Physical Properties

Dimensions (approx.) WxDxH: 26.80x85.30x41.60mm (1.05x3.35x1.63in)
Connector Material: Copper
Housing Material: PVC
Net Weight: 0.04kg (0.09lb)
Operating Temperature: 0°C - 25°C (32°F - 77°F)
Operating Humidity: 20 - 90% RH (non-condensing)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Storage Humidity: 20 - 90% RH (non-condensing)
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 80x100x45mm (3.15x5.12x1.77in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Product Compliance: CE, RoHS, REACH, ErP

Package Contents

65W 2 x USB Type C GaN Charger
Lindy Manual

Purchasing Information

No.: 73438
EAN: 4002888734387

CE Doc: CE_73438-73439.pdf
Tech Data Sheets: 73438_TDS_V1.pdf
Manuals: Lindy_MAN_73438.pdf
