Home UPS / Power features Charging and supplies Lindy 5VDC 3A Multi-country Power Supply, 5.5/2.5mm
Lindy 5VDC 3A Multi-country Power Supply, 5.5/2.5mm

LINDY

Lindy 5VDC 3A Multi-country Power Supply, 5.5/2.5mm

Product Code: 73813
Barcode 4002888738132

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
adjustable output voltage: Yes
cable length: 1.5 m
country of origin: CN
detachable power connectors: Yes
gross weight: 0.21
harmonized system (hs) code: 85044095
input frequency: 50/60 Hz
input voltage: 100-240 V
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8f/67/97/62/6297678f999c8d635dc13c95/Lindy_73807_13_24_28_32_48-9_Man_0121.pdf
net weight: 0.10
output current: 3 A
output power: 15 W
output voltage: 5 V
packaging height: 9.00
packaging lenght: 10.00
packaging width: 5.80
power current type: AC-to-DC
product colour: Black
supplementary power connectors: 4
warranty: 2
weight: 180 g
Description

Specifications

  • Input Voltage: 100…240VAC
  • Input AC Frequency: 50…60Hz
  • Output Voltage: 5V
  • Output Voltage Accuracy: 4.75~5.25 V
  • Output Current (max.): 3A
  • Output Power: 15W
  • Average active efficiency: 0.8139
  • Efficiency at low load (10%): Yes
  • No-load Power Consumption: 0.1 W

Physical Properties

  • Dimensions (approx.) WxDxH: 70x39x34mm (2.76x1.54x1.34in)
  • DC Cable Length: 1.5m (4.92ft)
  • DC Connector Size: 5.5/2.5mm
  • Housing Material: Plastic
  • Net Weight: 0.18kg (0.4lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Operating Humidity: 0 - 75% RH (non-condensing)
  • Storage Humidity: 0 - 95% RH (non-condensing)
  • Colour: Black

Miscellaneous

  • Manufacturer Name: Powertron
  • Commercial Registration No. : 91441900082613408
  • Manufacturer Address: JinHe Indursty Area, Yufeng GuanLiQu, ZhangMuTou, DongGuan City, 523627, GuangDong China
  • Manufacturer Model No.: PA1015-050IB300
  • Packaging Type: Carton Box
  • Packaging Dimensions: 120x90x60mm (4.72x3.54x2.36in)
  • Gross Weight: 0.213kg (0.47lb)
  • Warranty (Years): 2
  • Product Compliance: EMC, LVD, ErP, UL, CCC ,RCM, PSE, RoHS, REACH, California Proposition 65

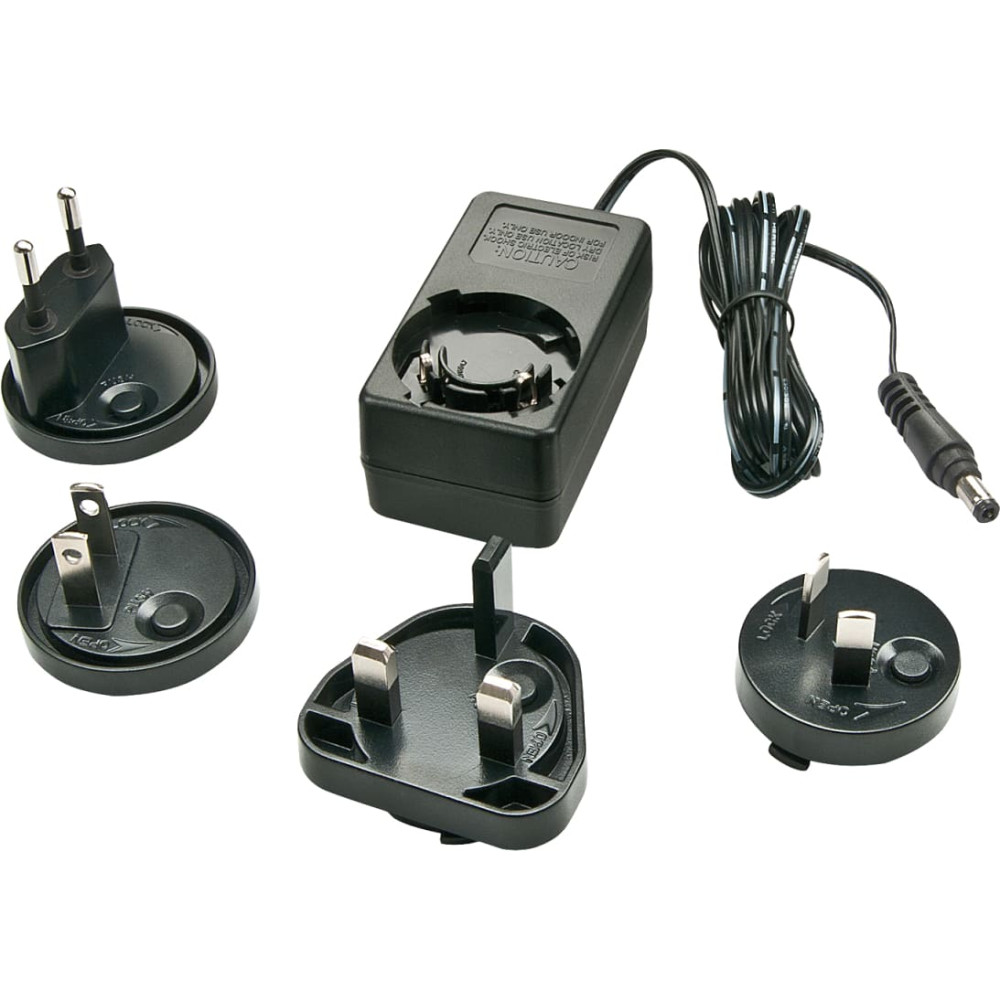

Package Content

  • Multi-country Power Supply
  • UK, EU, US & AUS Adapters
  • Lindy Manual

Purchasing Information

  • No.: 73813
  • EAN: 4002888738132



Manuals: Lindy_73807_13_24_28_32_48-9_Man_0121.pdf
