Bachmann CONI COVER installation frame, Large, black

Product Code: 911.503
Barcode 4016514032082

To purchase this product you must be registered in our system.



Specification
colour: black
current catalog edition: 24.1
depth: 148 mm
depth of packaging (single piece): 460 mm
gross weight: 1.571
height: 23 mm
height of packaging (single piece): 120 mm
manufacturer: BACHMANN
package weight (single piece): 1.571 kg
product group: Power Bars
product type: Integrated unit CONI
regional use: Without restriction
weight: 1625 g
width: 387 mm
width of packaging (single piece): 220 mm

Description

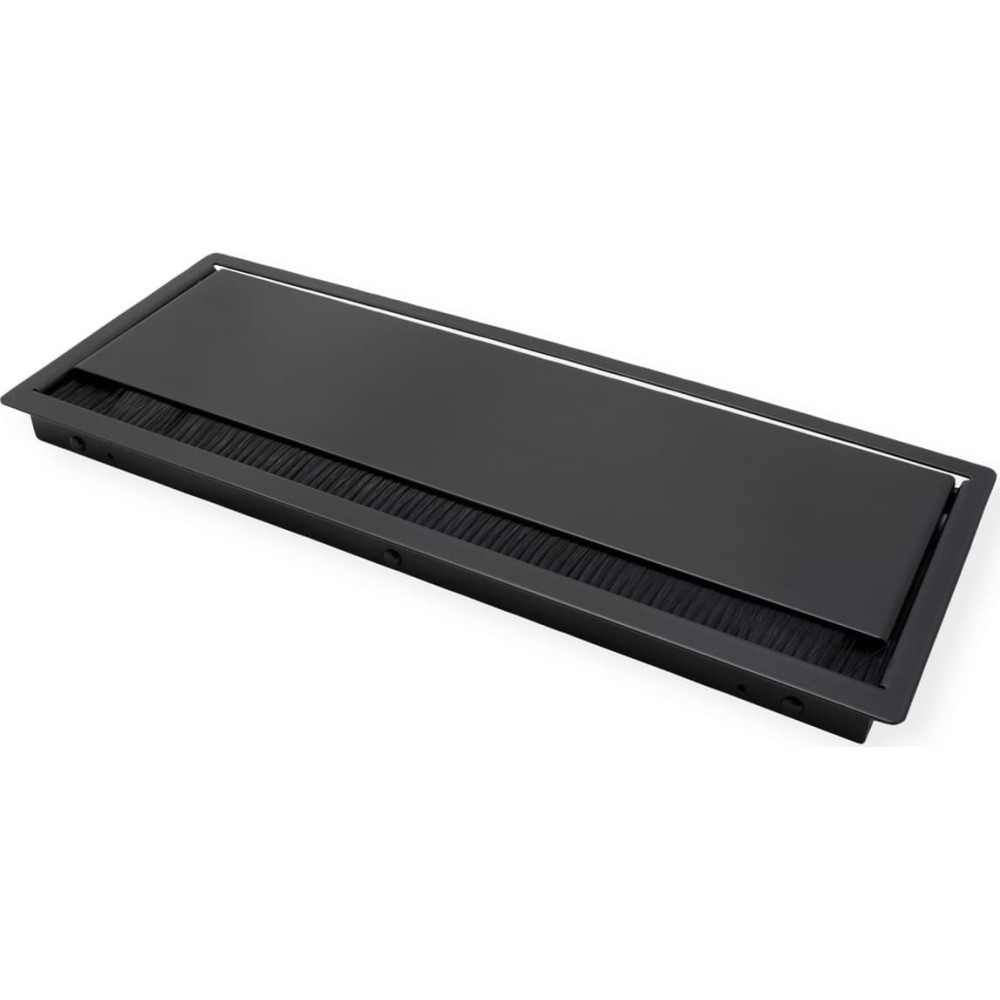

CONI COVER elegant access to separate supply units or standard cable routing systems under the furniture surface

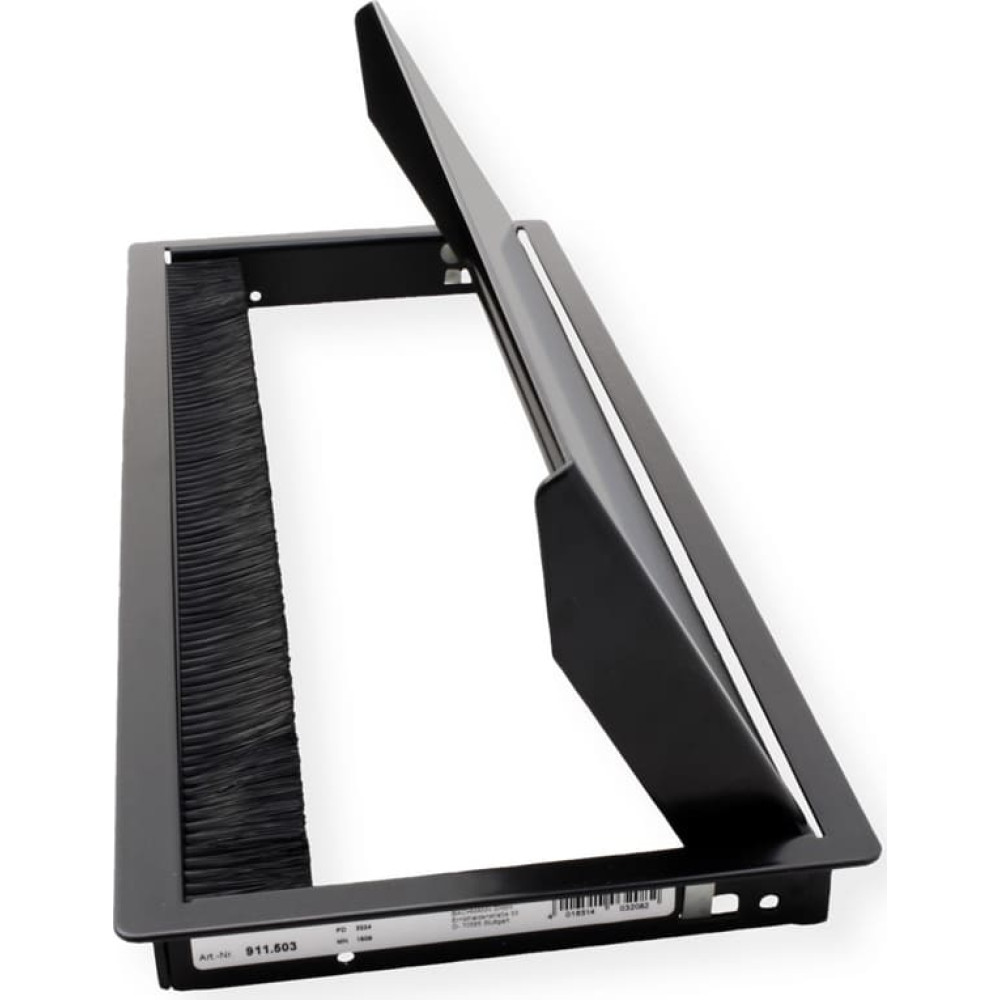

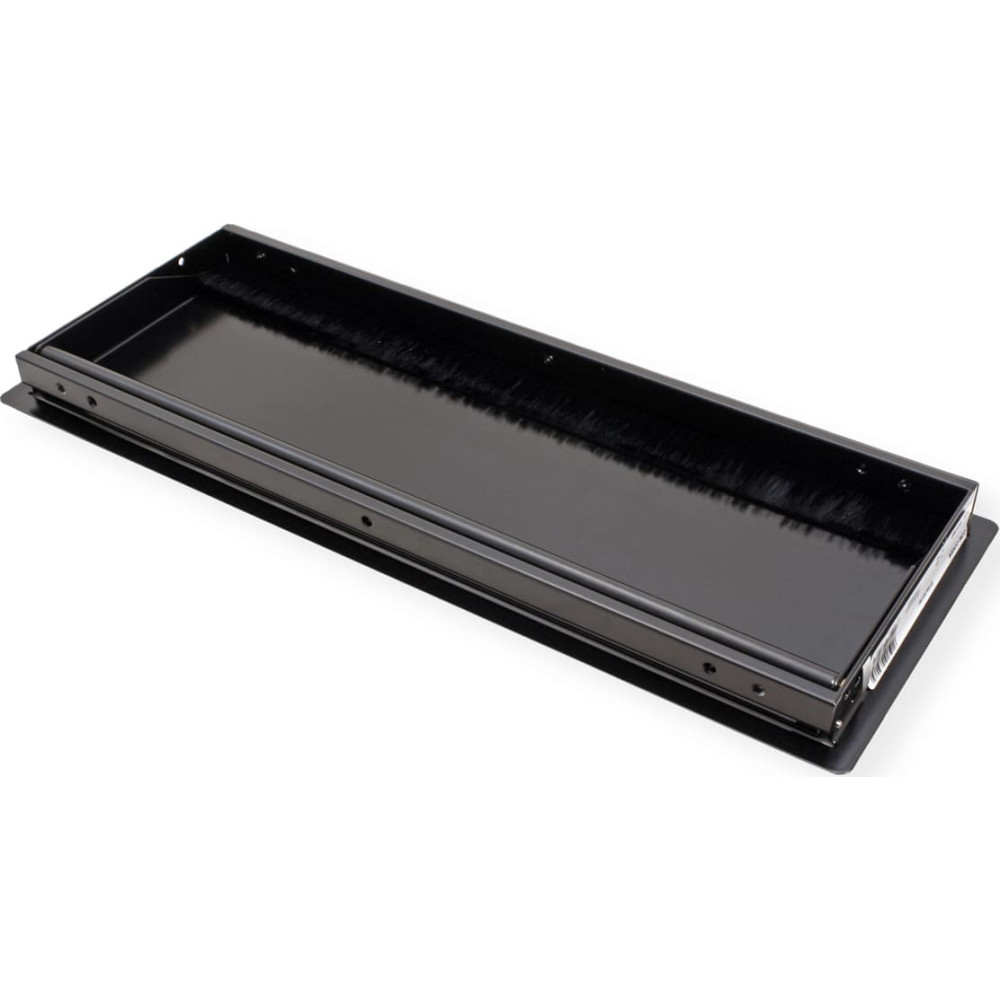

Ideal for desks with installed cable ducts, for example. - CONI COVER can of course also be retrofitted. If access to the connections is required, simply open the lid of CONI COVER. - Thanks to the integrated brush insert, the flap can be closed again even when devices are plugged in. The harmonious appearance of a "flat" furniture surface is maintained. - CONI COVER installation frames are available in small and large versions. The R5 corner radius enables flush installation in the furniture. The installation depth is approx. 24 mm, suitable for panel thicknesses from 16 mm. Fastening is done with 4 screws. These are screwed through corresponding holes on the long sides of the installation frame from the inside. Installation instructions and cut-out dimensions are included in the scope of delivery. -

- Integrated into the furniture surface - Can be used regardless of channel and furniture make - Minimal installation depth - robust frame design - Integrated brush insert for closing when cables are plugged in - Quick replacement of the power strip - Retrofitting possible - Black (powder-coated, similar to RAL9005)
