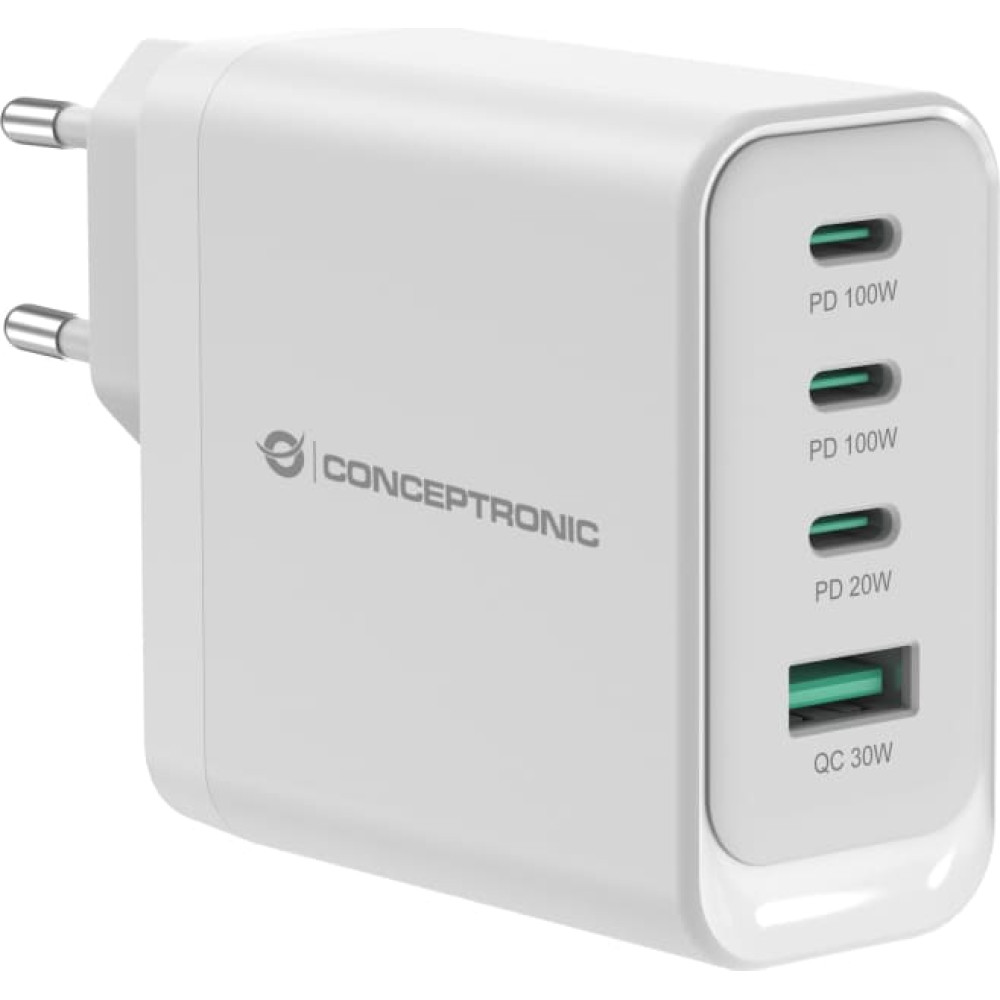

Conceptronic ALTHEA22W100 PDA/mobīlo telefonu lādētājs Universāls Balts AC Ātrā uzlāde Iekštelpas

Product Code: ALTHEA22W100
Barcode 4015867240731

To purchase this product you must be registered in our system.



Specification
charger compatibility: Universal
charger type: Indoor
compliance certificates: CE, RoHS
country of origin: China
customs product code (taric): 8504408390
depth: 65 mm
fast charging: Yes
fast charging technology: Adaptive Fast Charging, Hisilicon FCP, Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
gallium nitride (gan) transistors: Yes
harmonized system (hs) code: 850440
height: 32 mm
housing material: Polycarbonate (PC)
input current: 2.2 A
input frequency: 50 - 60 Hz
input voltage: 100 - 240 V
manual: Yes
master (outer) case gross weight: 10.4 kg
master (outer) case height: 210 mm
master (outer) case length: 272 mm
master (outer) case width: 385 mm
master (outer) cases per pallet: 64 pc(s)
maximum output voltage: 20 V
maximum power: 100 W
minimum output voltage: 3.3 V
number of simultaneously connected devices (max): 4
operating temperature (t-t): 0 - 25 °C
package depth: 94 mm
package height: 35 mm
package type: Hanging box
package weight: 247.4 g
package width: 127 mm
pallet gross height: 183.2 cm
pallet gross length: 80 cm
pallet gross width: 120 cm
port 1 output current: 4.5 A
port 2 output current: 4.5 A
port 3 output current: 3 A
port 4 output current: 3 A
power protection features: Overheating, Overload, Short circuit
power source type: AC
product colour: White
products per master (outer) case: 40 pc(s)
programmable power supply (pps): Yes
quantity per pack: 1 pc(s)
storage relative humidity (h-h): 10 - 90%
usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: 1
usb power delivery (usb pd): Yes
usb power delivery revision: 3.0
usb type-c ports quantity: 3
weight: 191.4 g
width: 68.5 mm

Description

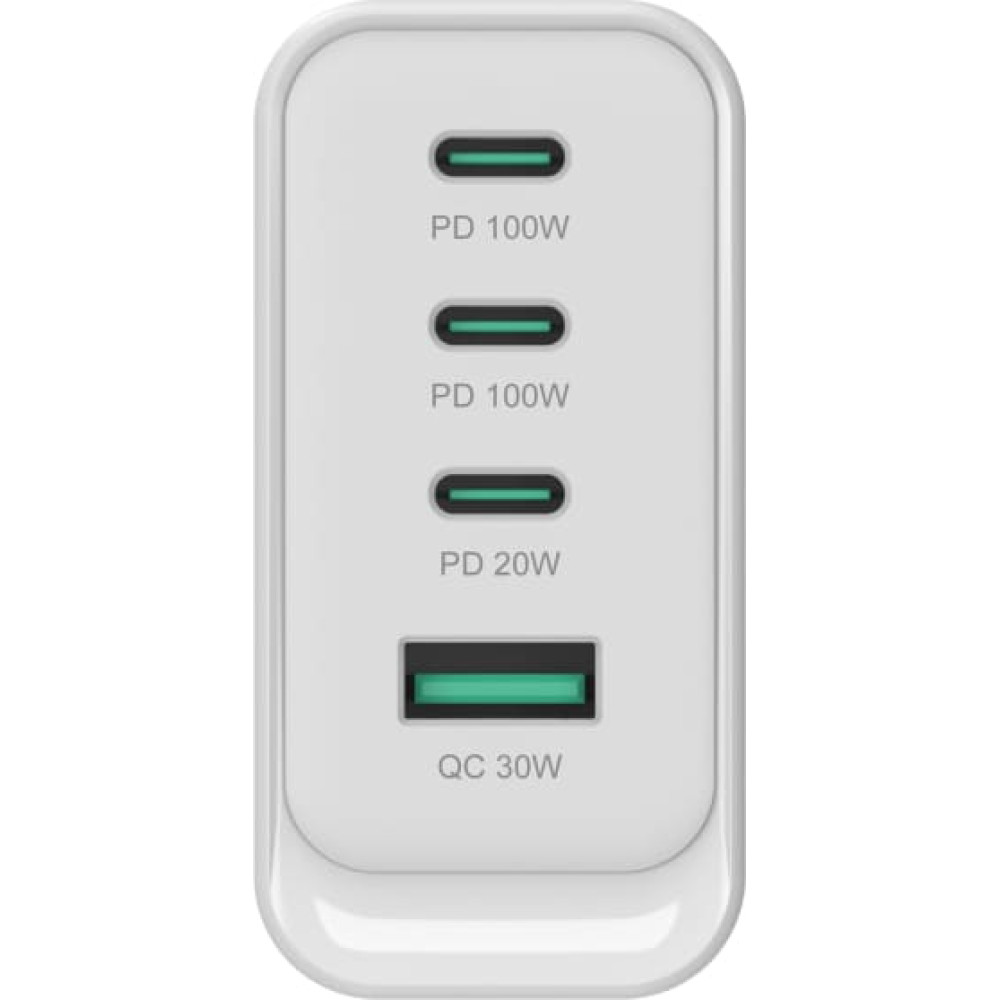

This charger harnesses cutting-edge Gallium Nitride (GaN) technology to deliver up to 100W of total power, ensuring exceptionally fast and efficient charging. It features a versatile port selection with 4 ports: 3 USB-C ports supporting Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0. This configuration allows for simultaneous charging of multiple devices with varying power requirements. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with everything from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and your devices. It incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging and features Programmable Power Supply (PPS) compliance to optimize charging efficiency while minimizing heat generation.
