19" compatible: ja, optional
analogue console: monitor connection: 1x HD 15pol. BU
analogue console: mouse/keyboard connection: 2x 6pol. MiniDIN BU
colour: black
colour (design profile): anthrazit
current catalog edition: 24.1
current catalog page: 3.13
depth: 161 mm
depth of packaging (single piece): 540 mm
dimensions (hxwxd): 44x430x161mm
gross weight: 3.496
height: 44 mm
height of packaging (single piece): 140 mm
hot plug compatible: ja
mains connection: Kaltgeräte-Anschluss
manufacturer: ATEN
material (casing): Metall
max. resolution (nominal): 1600x1200 à 60Hz
package weight (single piece): 3.496 kg

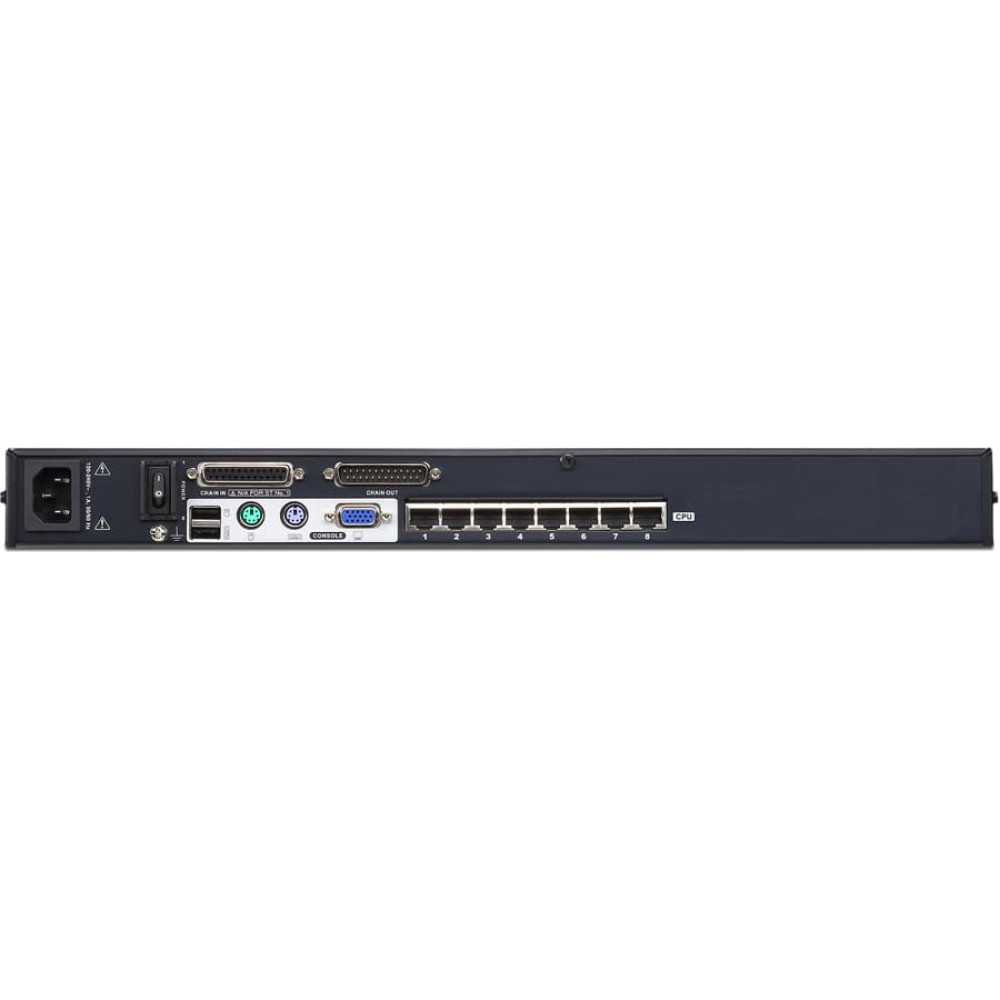

pc: connection over tp: 8x RJ45
product group: KVM-Switches / PC-Shares

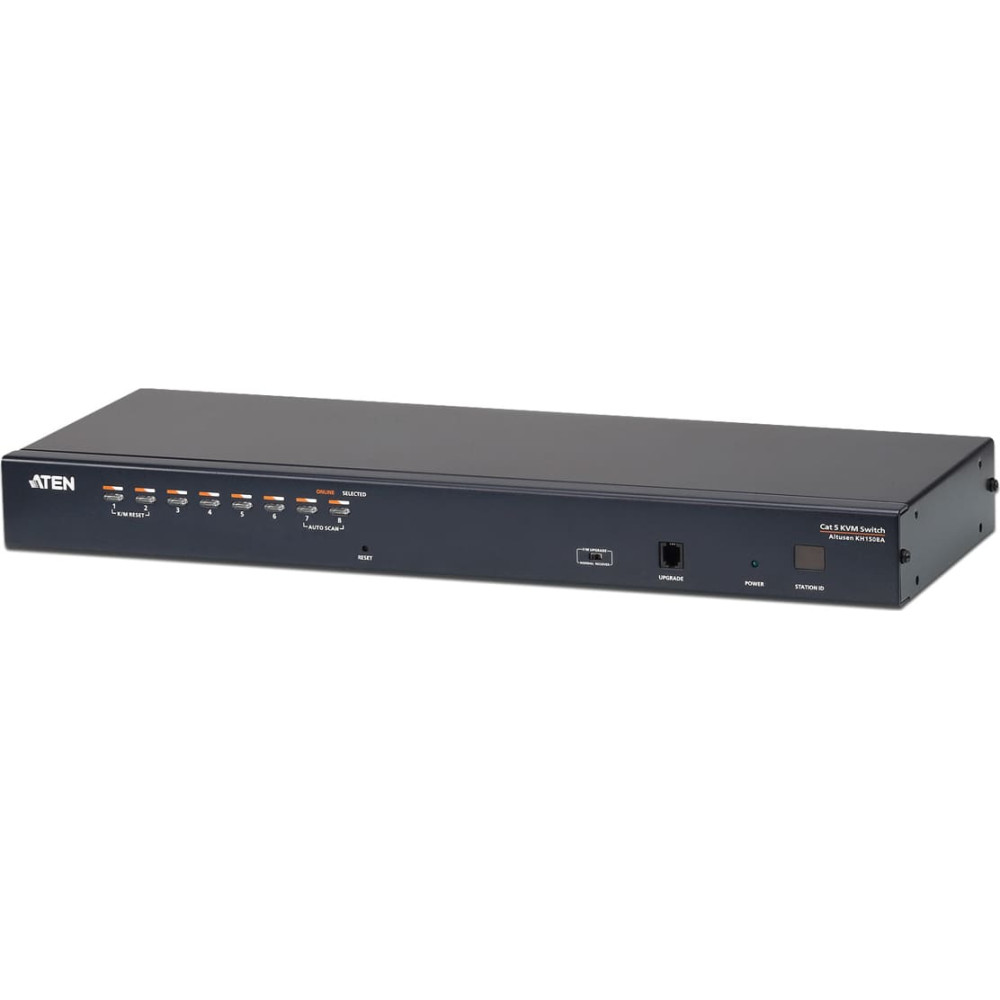

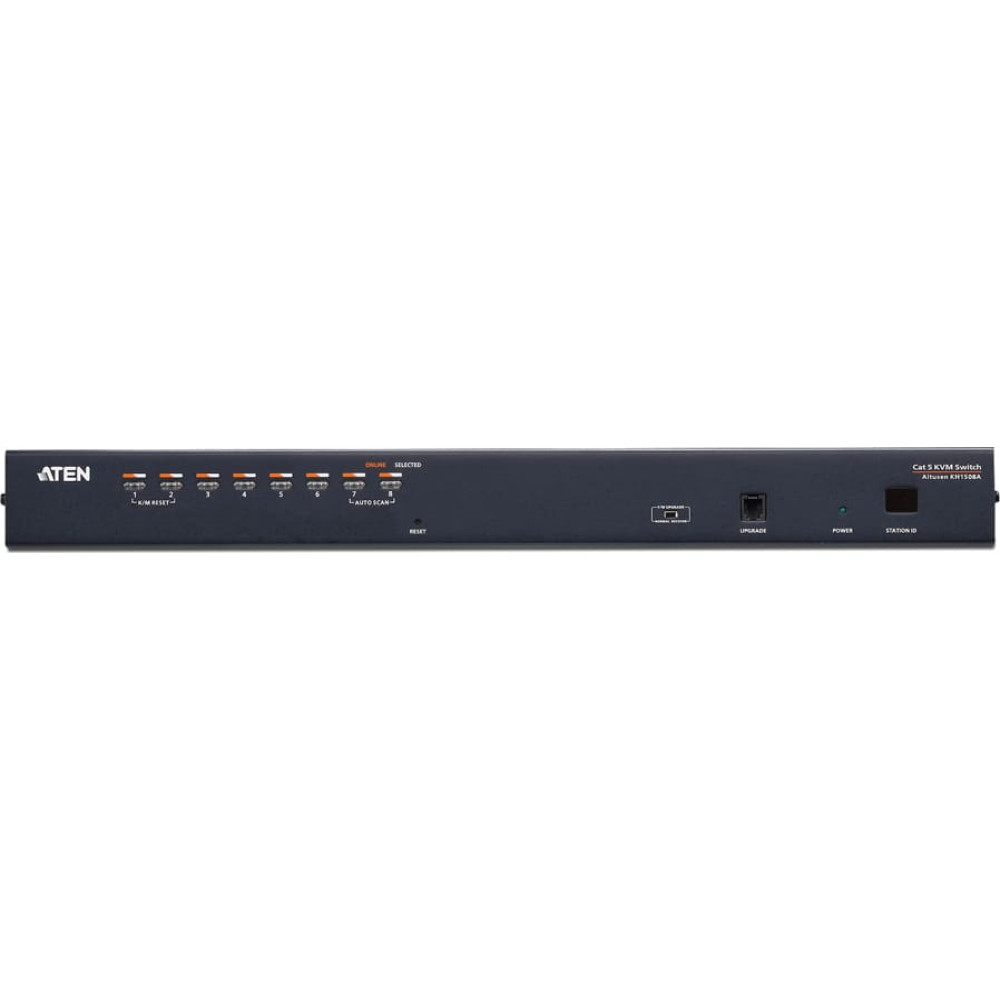

product type: Cat 5 KVM Switch
quantity of analogue consoles: 1
quantity of pcs: 8
scope of delivery: 1x KH1508A High-Density-KVM-Switch mit 8 Ports für Kat. 5...
supported pc-systems: PS/2, USB, SUN
switching over hot keys: Tastatur
switching over osd: ja
technical particularity: Anschluss der PCs über Module (14.01.6022 und14.01.6023)
weight: 2.75 kg
width: 430 mm
width of packaging (single piece): 250 mm
