19" compatible: no
analogue console: monitor connection: 1x HD 15pol. BU
analogue console: mouse/keyboard connection: 2x 6pol. MiniDIN BU
audio switching: Loudspeakers
audio switching separately: no
cascadable: no
colour: black
current catalog edition: 24.1
current catalog page: 3.06
depth: 110 mm
depth of packaging (single piece): 250 mm
dimensions (hxwxd): 25x78x110mm
gross weight: 0.59
height: 25 mm
height of packaging (single piece): 70 mm
hot plug compatible: no
integrated console: no
integrated hub: no
keyboard/mouse emulation: yes
manufacturer: ATEN
material (casing): Plastic
max. resolution (nominal): 1920x1200
package weight (single piece): 0.59 kg
pc: connection on moulded cables: yes
pc: monitor connection: 2x HD 15pol. ST
pc: mouse/keyboard connection: 2x 2x 6pol. MiniDIN ST
power supply unit required: no
print button on device: no
product group: KVM switches / PC shares
product type: KVM-Switch, DVI
quantity of analogue consoles: 1
quantity of pcs: 2

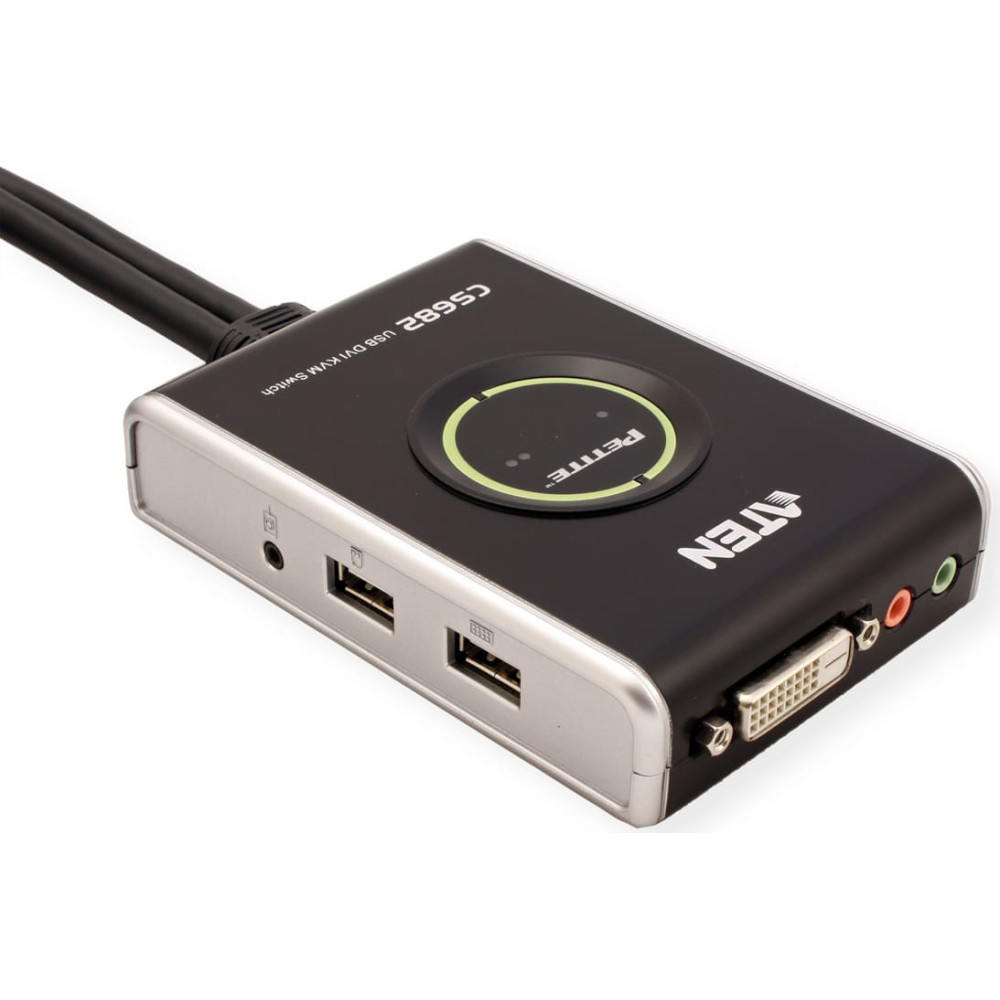

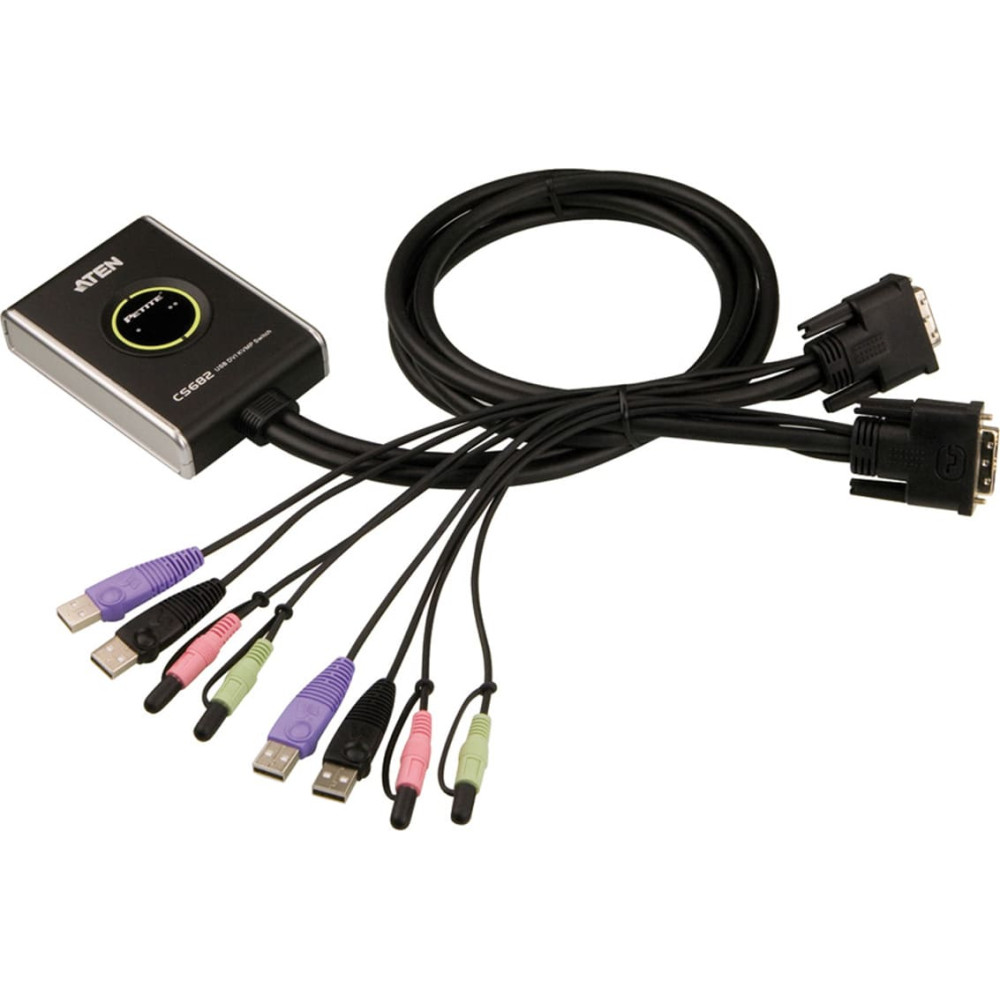

scope of delivery: 1x CS682 2-Port USB 2.0 DVI KVM Switch, 1x Remote Port Se...
supported pc-systems: USB
switching over hot keys: Keyboard
switching over osd: no
switching over scan run: yes
technical particularity: LED display for easy status monitoring
weight: 0.5 kg
width: 78 mm
width of packaging (single piece): 170 mm
