19" compatible: no
analogue console: monitor connection: 1x HD 15pin F
analogue console: mouse/keyboard connection: 2x USB Type A F
cascadable: no
colour: black
current catalog edition: 24.1
current catalog page: 3.06
depth: 8.24 mm
depth of packaging (single piece): 230 mm
gross weight: 0.374
height: 2.46 cm
height of packaging (single piece): 60 mm
hot plug compatible: no
integrated console: no
integrated hub: no
keyboard layout: not applicable
keyboard/mouse emulation: no
manufacturer: ATEN
material (casing): Plastic
max. resolution (nominal): 2048 x 1536
monitor size of integrated console: not applicable
package weight (single piece): 0.374 kg
pc: monitor connection: 2x HD 15pin M
pc: mouse/keyboard connection: 2x USB Type A M
power supply unit required: no
print button on device: yes
product group: KVM switches / PC shares
product type: KVM-Switch, VGA
quantity of analogue consoles: 1
quantity of pcs: 2

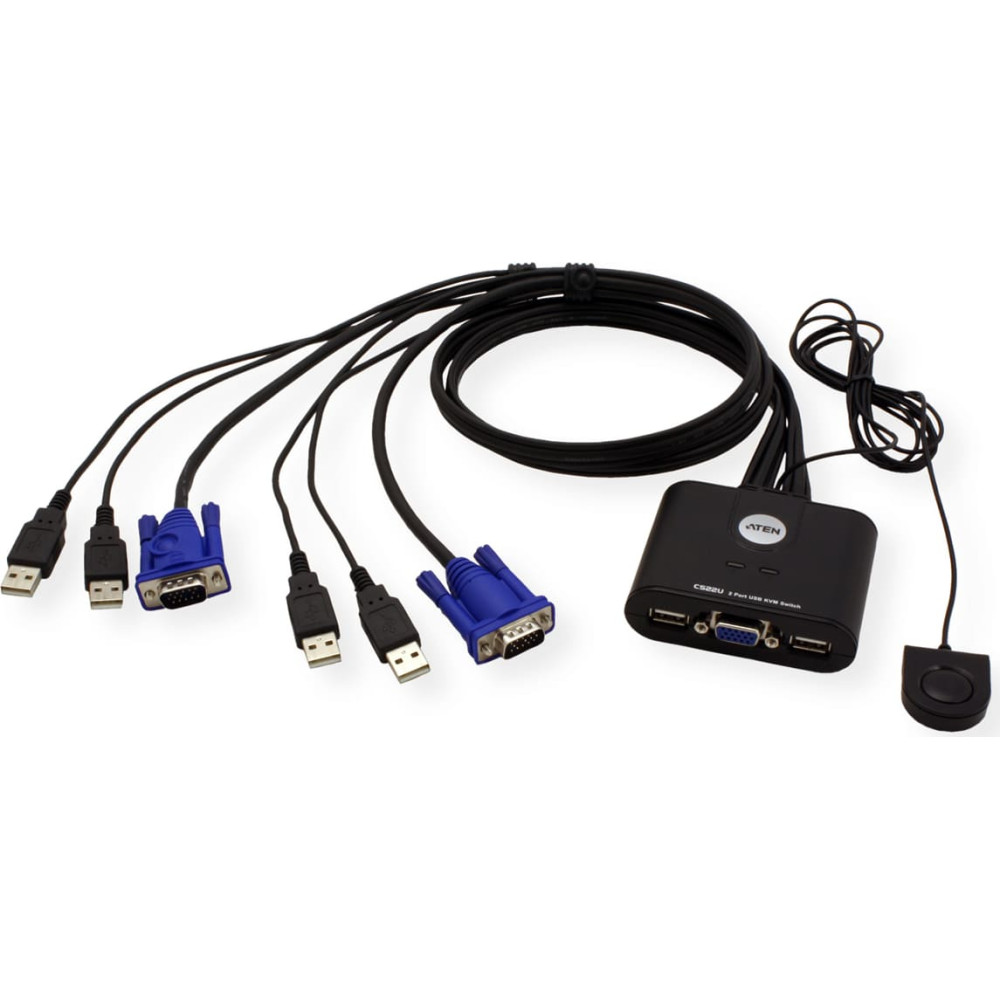

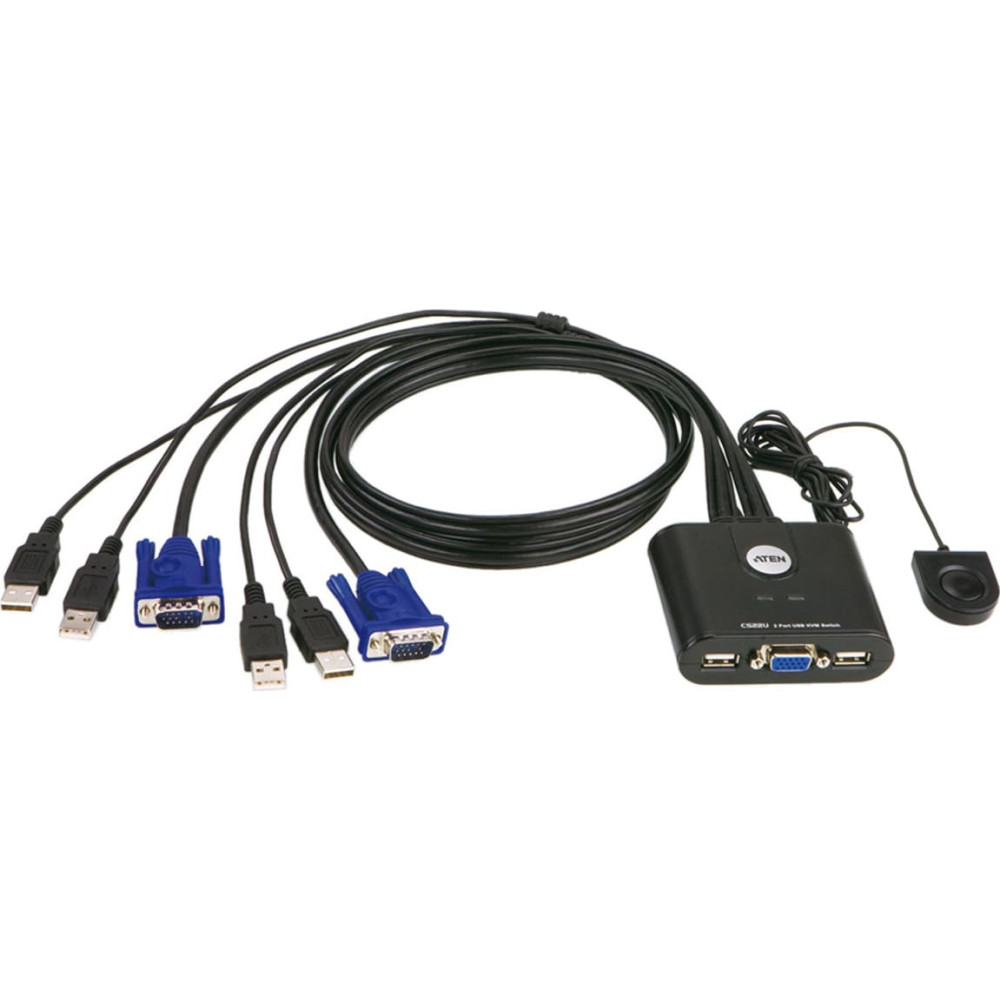

scope of delivery: 1x CS22U 2-Port USB Cable KVM Switch with Remote Port Sel...
supported pc-systems: USB
switching over hot keys: Keyboard
switching over osd: no
switching over scan run: yes
technical particularity: LED display for easy status monitoring
trackball/touchpad integrated console: not applicable
weight: 0.3 kg
width: 7.01 mm
width of packaging (single piece): 160 mm
