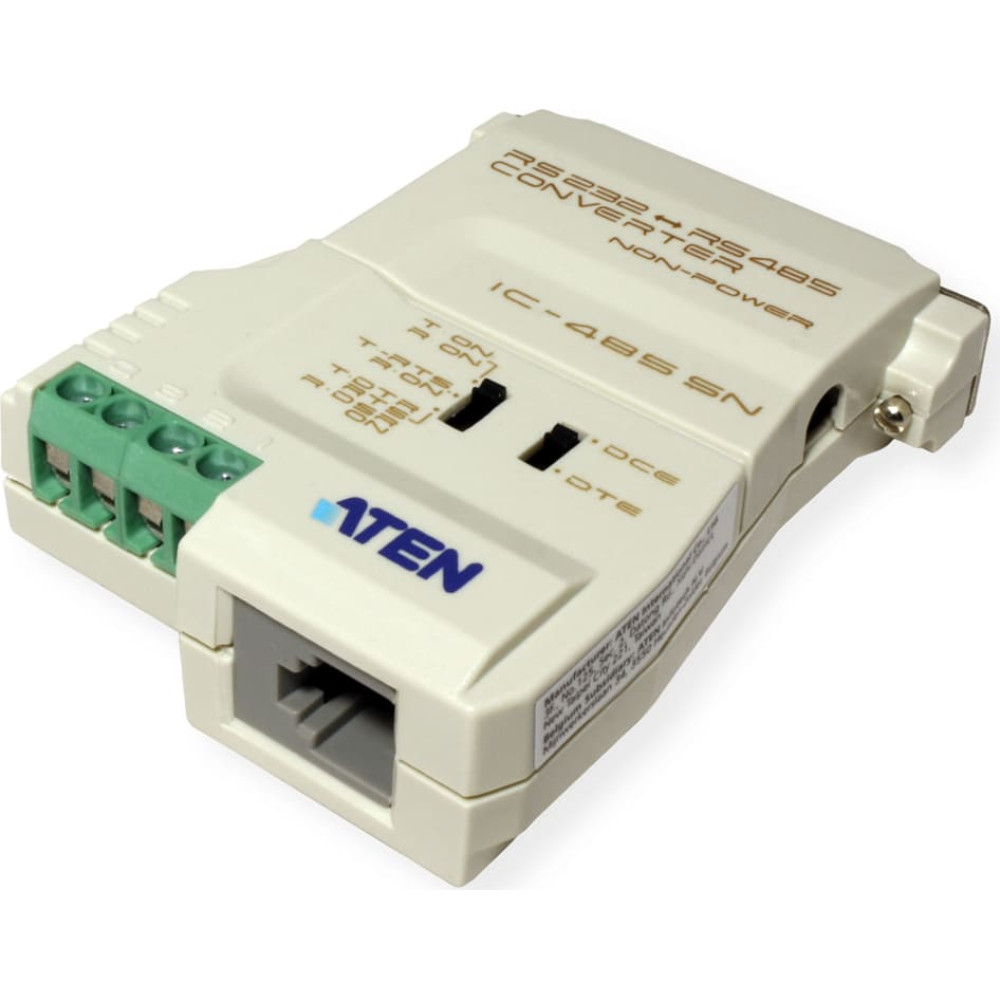

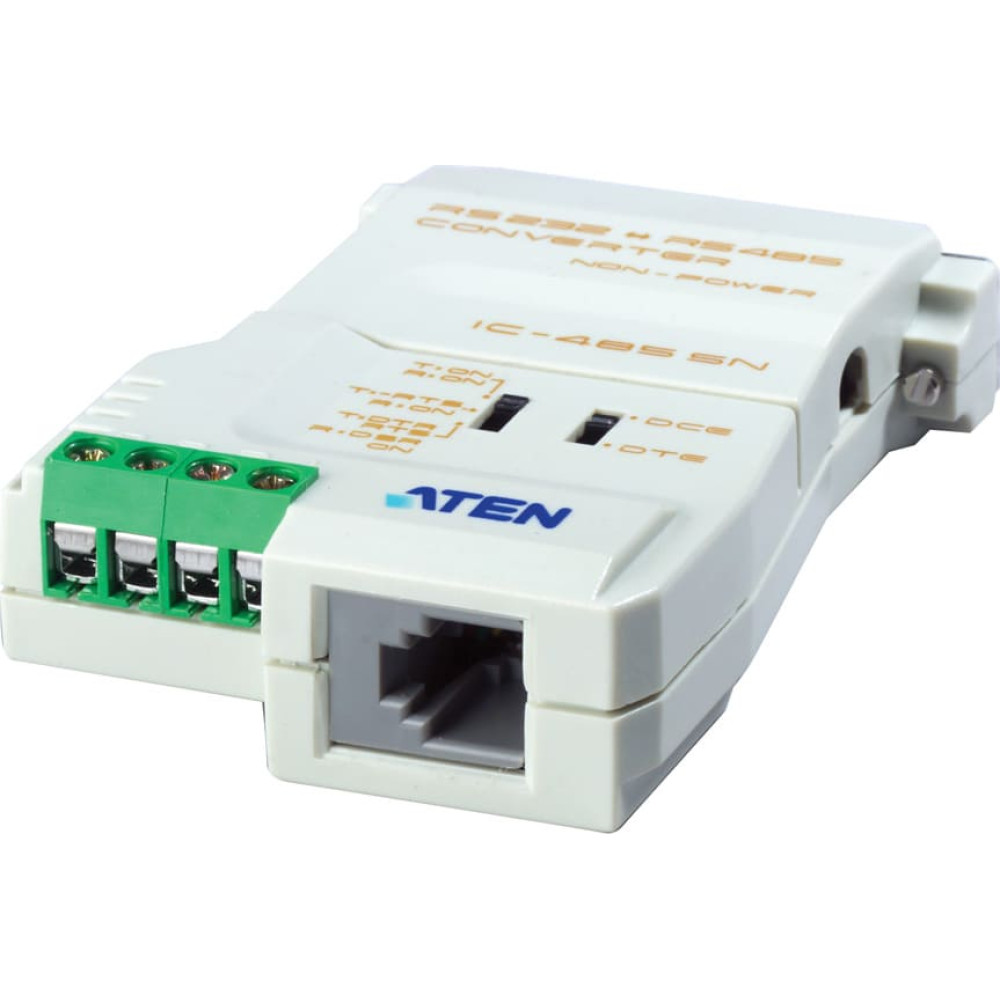

Aten IC485SN RS-232 to RS-485 Interface Konverter

ATEN

Aten IC485SN RS-232 to RS-485 Interface Konverter

Produkta kods: IC485SN-AT
Svītrkods: 4710423772007

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
area of application: extern
colour: grey
conversion direction: RS232 RS485
current catalog edition: 24.1
depth: 79 mm
depth of packaging (single piece): 160 mm
dimensions (hxwxd): 21 x 55 x 79 mm
gross weight: 0.139
height: 21 mm
height of packaging (single piece): 60 mm
manufacturer: ATEN
package weight (single piece): 0.139 kg
product group: Adapter, Terminatoren, Konverter
product type: Serieller Schnittstellenkonverter
scope of delivery: 1x bidirektionaler Konverter, 1x Benutzerhandbuch
side 1 connection (pc): Terminal Block 4 fach
side 1 connector gender: Weiblich (Buchse)
side 1 connector type: Terminalblock
side 2 connection (peripherals): DB25 Buchse
side 2 connector gender: Weiblich (Buchse)
side 2 connector type: D-Sub 25-polig (DB-25)
width: 55 mm
width of packaging (single piece): 130 mm
