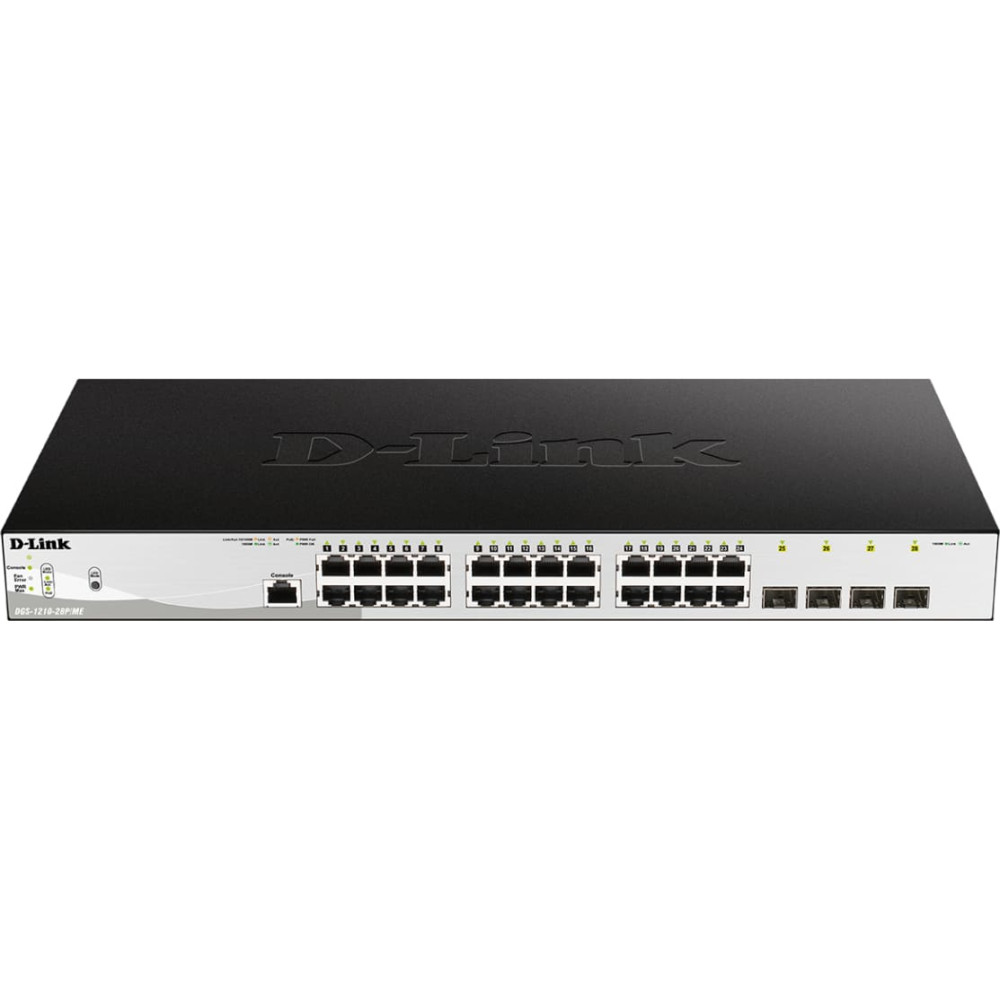

D-Link DGS-1210-28P/ME/E tīkla pārslēgs Vadīts L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Produkta kods: DGS-1210-28P/ME/E
Svītrkods: 0790069467585

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
ac input frequency: 50/60 Hz
ac input voltage: 100 - 240 V
access control list (acl): Yes
access control list (acl) ingress: 256
access control list (acl) rules: 256
active link detection: Yes
arp inspection: Yes
authentication type: AAA, RADIUS, TACACS+
auto mdi/mdi-x: Yes
auto-negotiation: Yes
basic switching rj-45 ethernet ports quantity: 24
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
bpdu filtering/protection: Yes
broadcast storm control: Yes
cable types supported: Cat5, Cat5e
compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
configuring location settings (cli): Yes
console port: RJ-45
copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
depth: 210 mm
dhcp features: DHCP client, DHCP relay, DHCP server, DHCP snooping
ethernet lan data rates: 1000 Mbit/s
fanless: No
fiber ethernet cabling technology: 1000BASE-X
flash memory: 32 MB
flow control support: Yes
form factor: 1U
forwarding rate: 41.7 Mpps
full duplex: Yes
garp vlan registration protocol (gvrp): Yes
half duplex: Yes
heat dissipation: 857.98 BTU/h
height: 44 mm
igmp snooping: Yes
input voltage: 100 - 240 V
installed sfp modules quantity: 4
internal memory: 256 MB
ip-mac-port binding: Yes
ipv4 & ipv6 features: Dual stack IPv4/IPv6, ICMPv6, IPv4/IPv6 access-control list (ACL), IPv6 Path MTU Discovery, IPv6 Telnet
ipv4 routes: 64
ipv6 routes: 32
led indicators: Activity, Fan fail, Link, Power, Speed
link aggregation: Yes
loop protection: Yes
mac address table: 16000 entries
mean time between failures (mtbf): 331669 h
memory type: DDR3-SDRAM
mib support: • RFC1212 Concise MIB Definitions • RFC1213 MIB II • RFC1215 MIB Traps Convention • RFC1065, 1151, 2578 MIB Structure • RFC1493 Bridge MIB • RFC1157, 2573, 2575, 2576 SNMP MIB • RFC3418 SNMPv2 MIB • RFC2819 RMON MIB • RFC2021 RMONv2 MIB • RFC1643, 1650, 2665 Ether-like MIB • RFC2674 802.1p MIB • RFC 2233 Interface Group MIB • RFC 2618 RADIUS authentication client MIB • RFC 2620 RADIUS accounting client MIB • RFC3289 D-Link Zone Defense MIB • RFC4022 MIB for TCP • RFC4113 MIB for UDP • PoE MIB • DDP MIB • LLDP-MED MIB
multicast features: Controllable multicast
multicast listener discovery (mld) snooping: MLD v1, MLD v2
multicast support: Yes
networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
noise level: 52.9 dB
number of fans: 2 fan(s)
number of ip interfaces: 4
number of multicast groups filtered: 256
number of queues: 8
number of static routes: 96
number of vlans: 4094
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): -5 - 50 °C
packet buffer memory: 1.5 MB
password protection: Yes
port mirroring: Yes
power consumption (max): 251.5 W
power over ethernet (poe): Yes
power over ethernet (poe) ports quantity: 24
power protection features: Surge protection
power source: AC
quality of service (qos) support: Yes
queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
security algorithms: EAP, SNMP, SNMPv2, SNMPv3
spanning tree protocol: Yes
ssh/ssl support: Yes
static route: Yes
storage relative humidity (h-h): 0 - 95%
storage temperature (t-t): -40 - 70 °C
store-and-forward: Yes
sustainability certificates: UL ECOLOGO
sustainability compliance: Yes
switch layer: L2/L3
switch type: Managed
switching capacity: 56 Gbit/s
system event log: Yes
total power over ethernet (poe) budget: 193 W
traffic classification: Yes
virtual lan features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN
vlan support: Yes
web-based management: Yes
weight: 3.34 kg
width: 440 mm

Preces apraksts
D-Link DGS-1210-28P/ME/E. Slēdža tips: Vadīts, Slēdža līmenis: L2/L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, Instalēto SFP moduļu skaits: 4, Konsoles pieslēgvieta: RJ-45. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 56 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Formas faktors: 1U
