Level One LevelOne IGS-2108P tīkla pārslēgs Vadīts L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Melns

Produkta kods: IGS-2108P
Svītrkods: 4015867236192

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
10g support: No
auto mdi/mdi-x: Yes
auto-negotiation: Yes
basic switching rj-45 ethernet ports quantity: 8
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
broadcast storm control: Yes
compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
country of origin: China

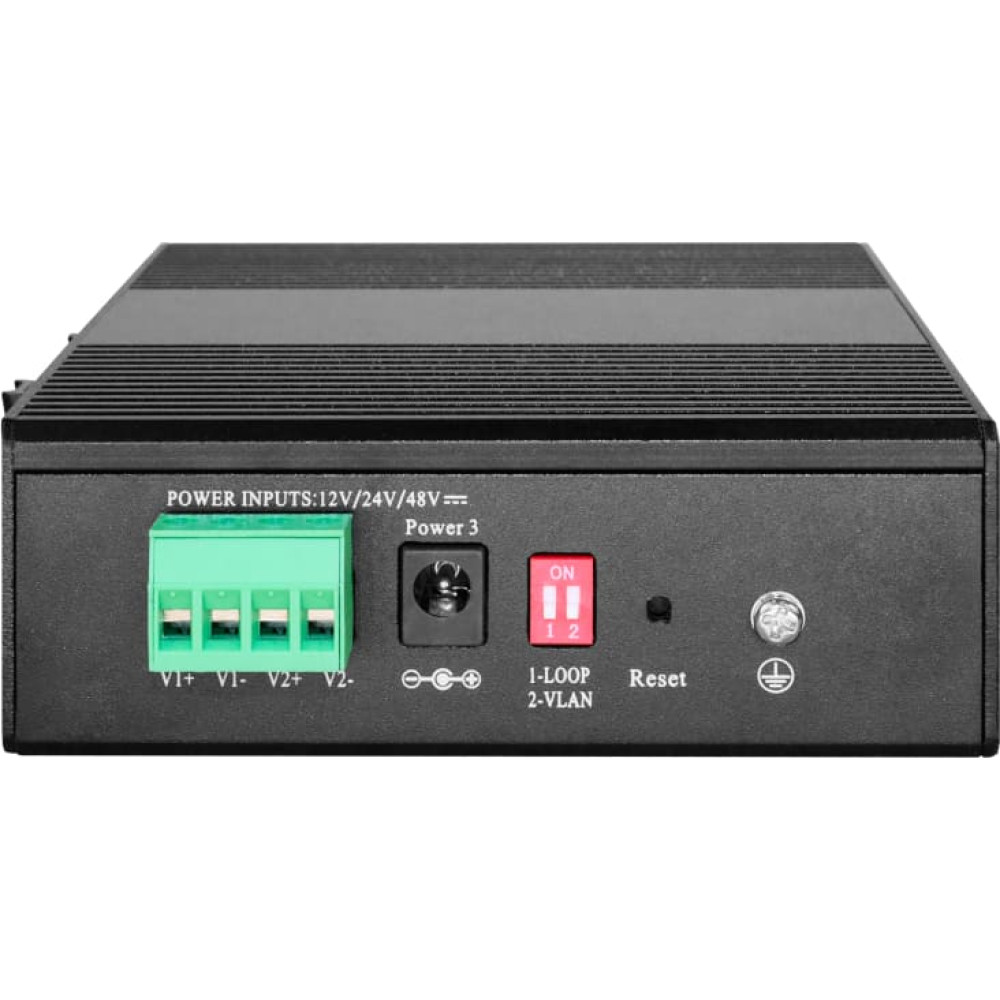

dc input voltage: 44 - 57 V
depth: 114 mm

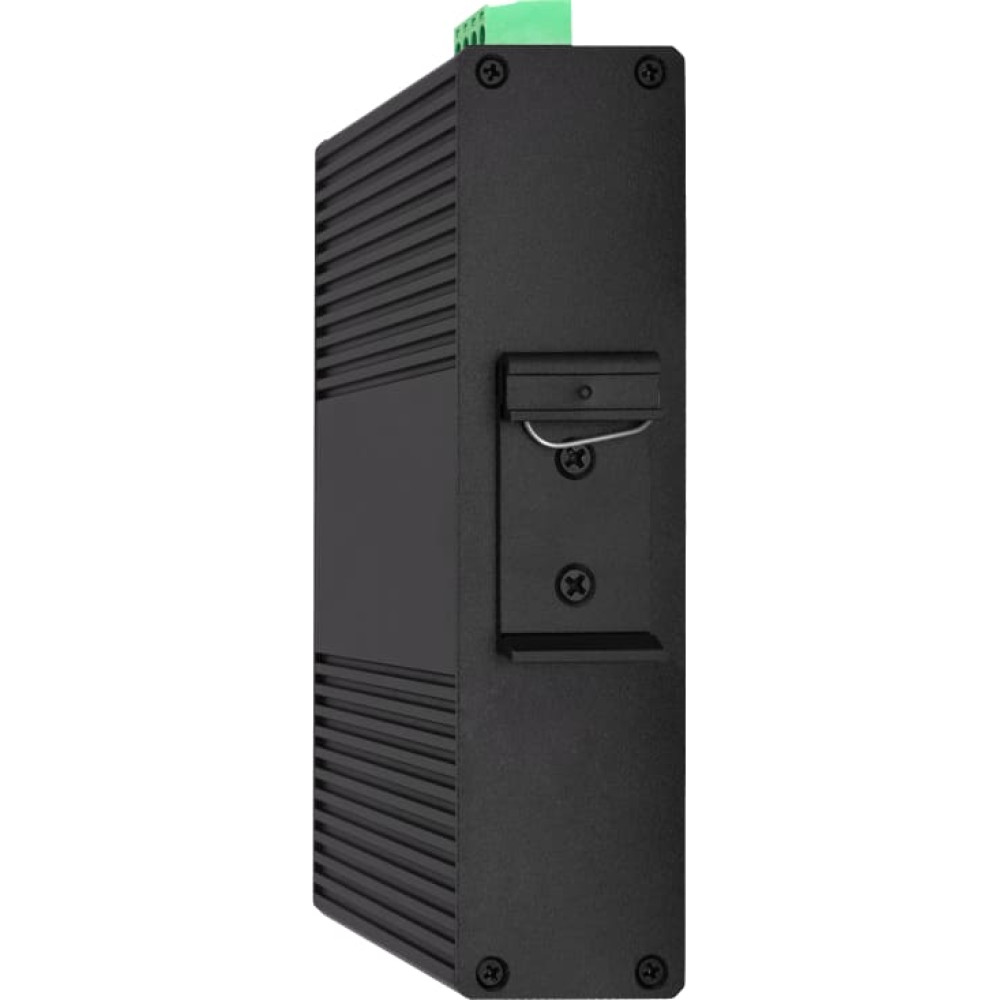

din rail included: Yes

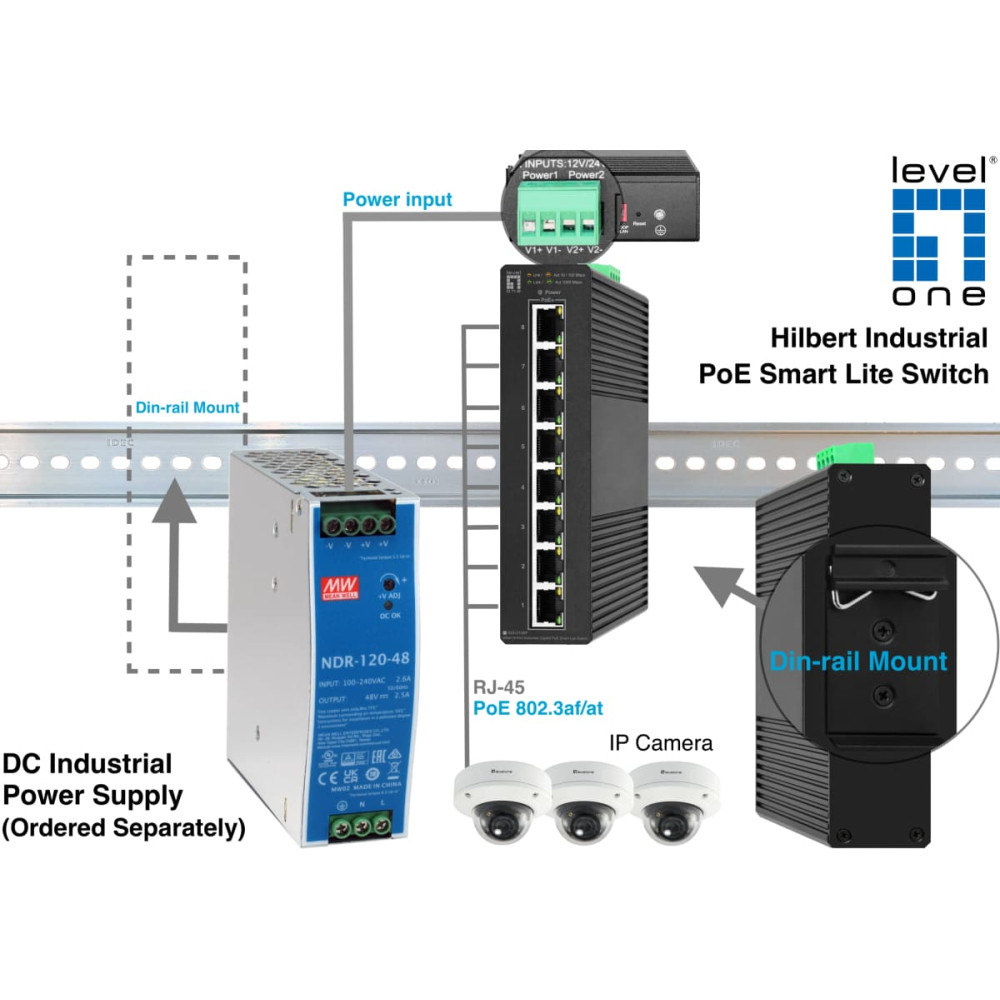

din rail mounting: Yes
fanless: Yes
flash memory: 2 MB
flow control support: Yes
forwarding rate: 11.904 Mpps
full duplex: Yes
gigabit ethernet (copper) ports quantity: 8
half duplex: Yes
harmonized system (hs) code: 8517620090
heat dissipation: 40.94 BTU/h
height: 38 mm
igmp snooping: Yes
international protection (ip) code: IP30
jumbo frames: 9000
jumbo frames support: Yes
layers per pallet (air): 16 pc(s)
led indicators: Power, Link, Activity
link aggregation: Yes
mac address auto-aging supported: Yes
mac address auto-learning supported: Yes
mac address table: 4000 entries
master (outer) case gross weight: 16 kg
master (outer) case height: 350 mm
master (outer) case length: 395 mm
master (outer) case width: 480 mm
mean time between failures (mtbf): 43800 h
multicast support: Yes
networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
noise level: 0 dB
number of vlans: 32
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): -40 - 75 °C
package depth: 160 mm
package height: 73 mm
package type: Box
package weight: 780 g
package width: 230 mm
packet buffer memory: 1.5 MB
pallet gross height: 154.4 cm
pallet gross length: 80 cm
pallet gross width: 120 cm
port mirroring: Yes
power consumption (typical): 120 W
power over ethernet (poe): Yes
power over ethernet plus (poe+) ports quantity: 8
power protection features: Surge protection
power source: DC/PoE
power supply included: No
product colour: Black
products per master (outer) case: 20 pc(s)
quality of service (qos) support: Yes
queue scheduling algorithms: Priority queuing (PQ)
quick start guide: Yes
rate limiting: Yes
redundant fans support: Yes
redundant power supply (rps) support: Yes
spanning tree protocol: Yes
stackable: No
storage relative humidity (h-h): 5 - 95%
storage temperature (t-t): -40 - 85 °C
surge protection: Yes
surge protection voltage: 4 kV
sustainability compliance: Yes
switch layer: L2
switch type: Managed
switching capacity: 16 Gbit/s
terminal block included: Yes
total power over ethernet (poe) budget: 112 W
virtual lan features: Port-based VLAN, Tagged VLAN
vlan support: Yes
web-based management: Yes
weight: 550 g
width: 153 mm

Preces apraksts
LevelOne IGS-2108P. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8. Pilns duplekss. Adrešu tabulas izmērs: 4000 ieraksti, Komutācijas ietilpība: 16 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... DC ievades spriegums: 44 - 57 V. Power over Ethernet (PoE)
