Delock PCI Express x16 Card to 4 x internal NVMe M.2 Key M 110 mm - Bifurcation

DELOCK

Delock PCI Express x16 Card to 4 x internal NVMe M.2 Key M 110 mm - Bifurcation

Product Code: 90617
Barcode 4043619906178

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.000
height: 0.000
width: 0.000
Description

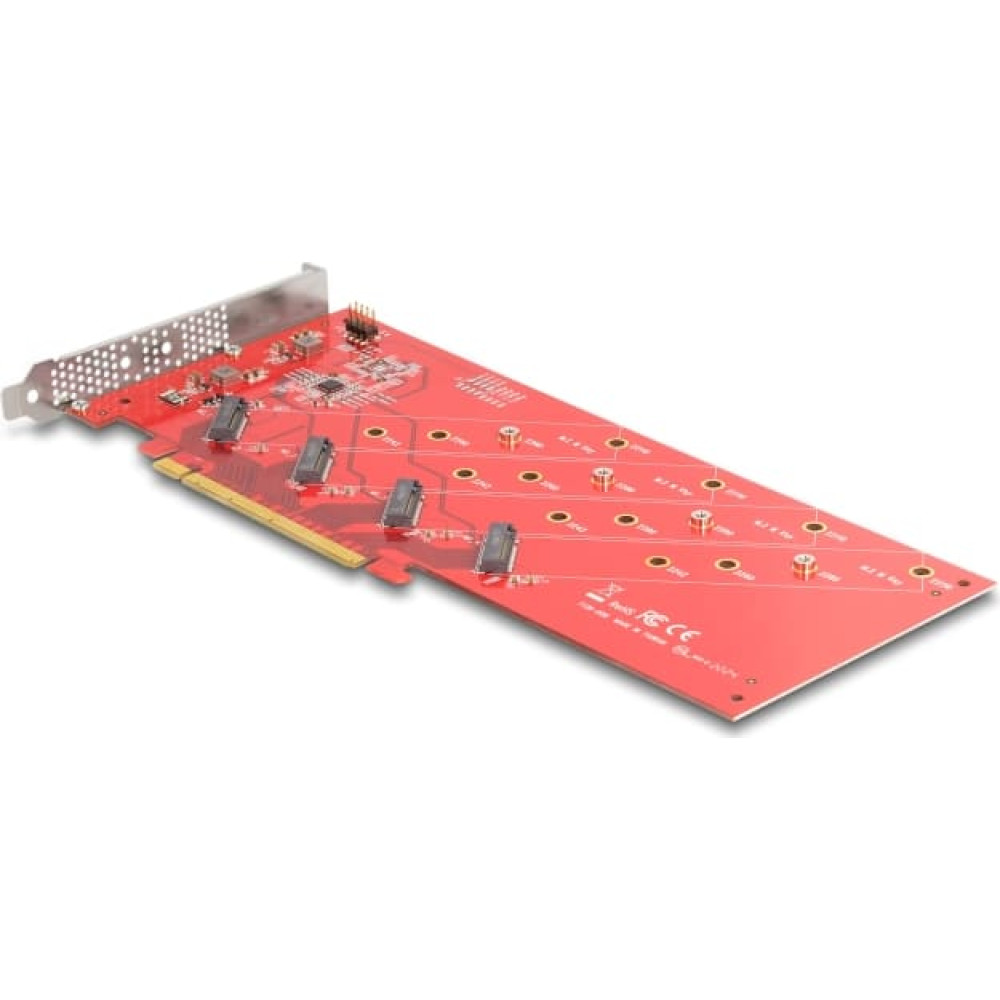

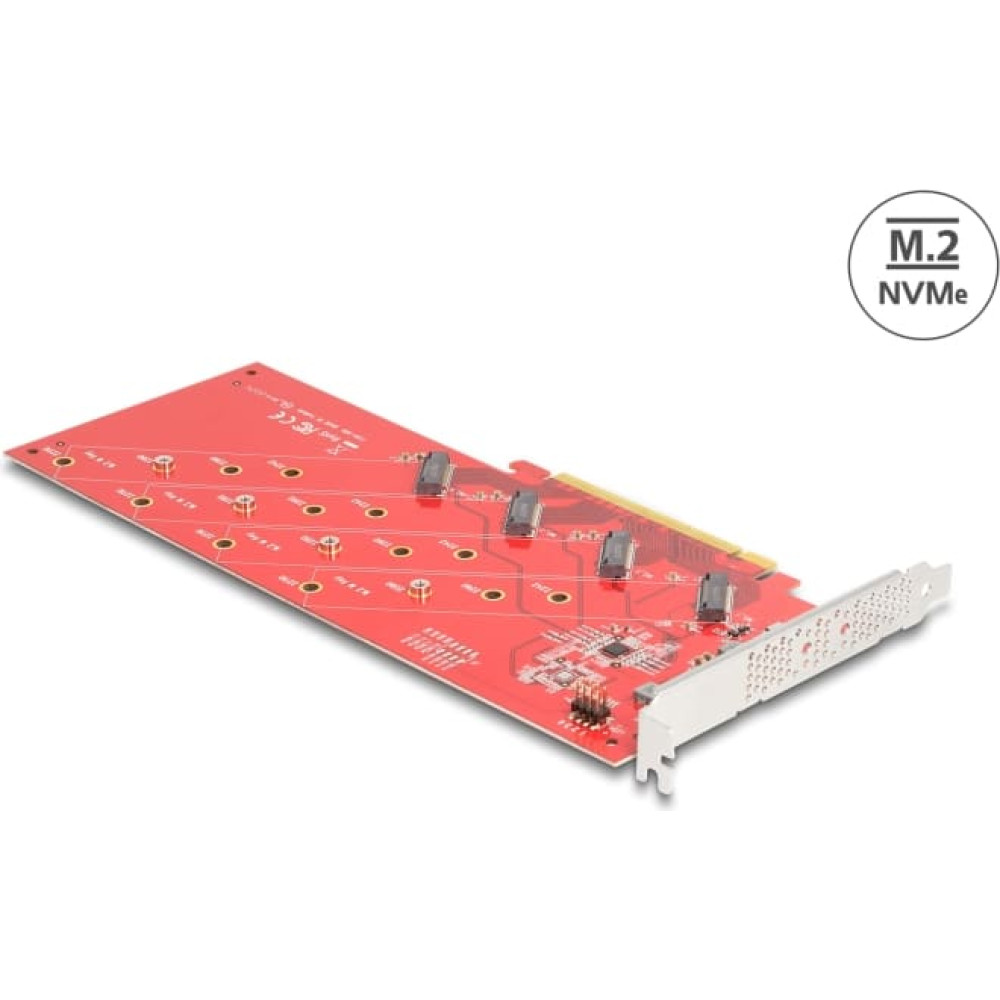

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 22110, 2280, 2260 and 2242 can be connected.

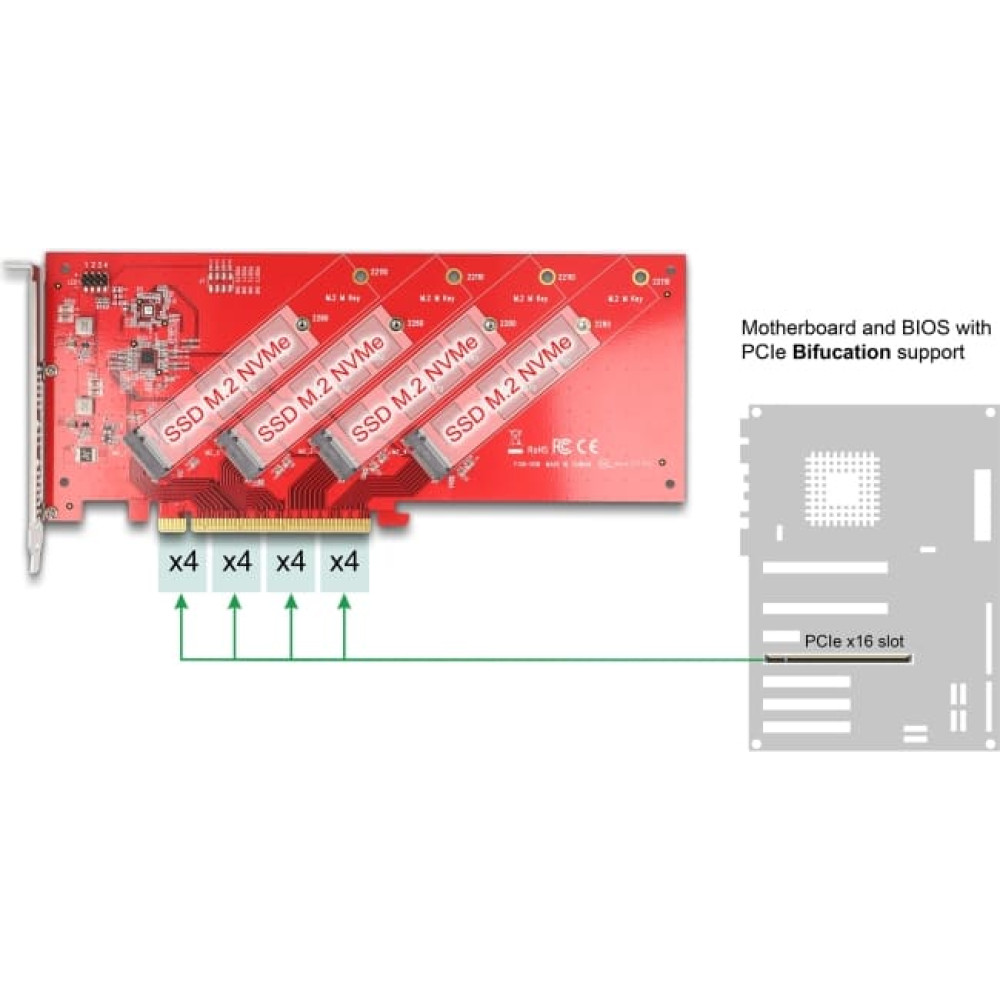

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Please Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.
System requirements:
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Specification:
• Connectors:
  internal:
  4 x M.2 key M slot
  1 x PCI Express x16, V4.0
  4 x 2 pin pin header for LED
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
Package content:
• PCI Express card
• 4 x screw
• User manual
Data sheet:
http://www.delock.de/produkt/90617/pdf.html?sprache=en
