Roline 19-inch shelf 1 U, 250 T 15 kg black

Product Code: 26.21.0121
Barcode 7630049601246

To purchase this product you must be registered in our system.



Specification
colour: black
depth: 250 mm
depth of packaging (single piece): 280 mm
gross weight: 1.28
height: 45 mm
height of packaging (single piece): 52 mm
height units: 1 U
manufacturer: ROLINE
material group: Steel
maximum weight capacity: 30 kg
modular spacing: 482.6 mm (19 inch)
package weight (single piece): 1.28 kg
product group: 19"- / 10" technology
product type: 19"-fold bottom
ral colour: RAL 9005 Jet black

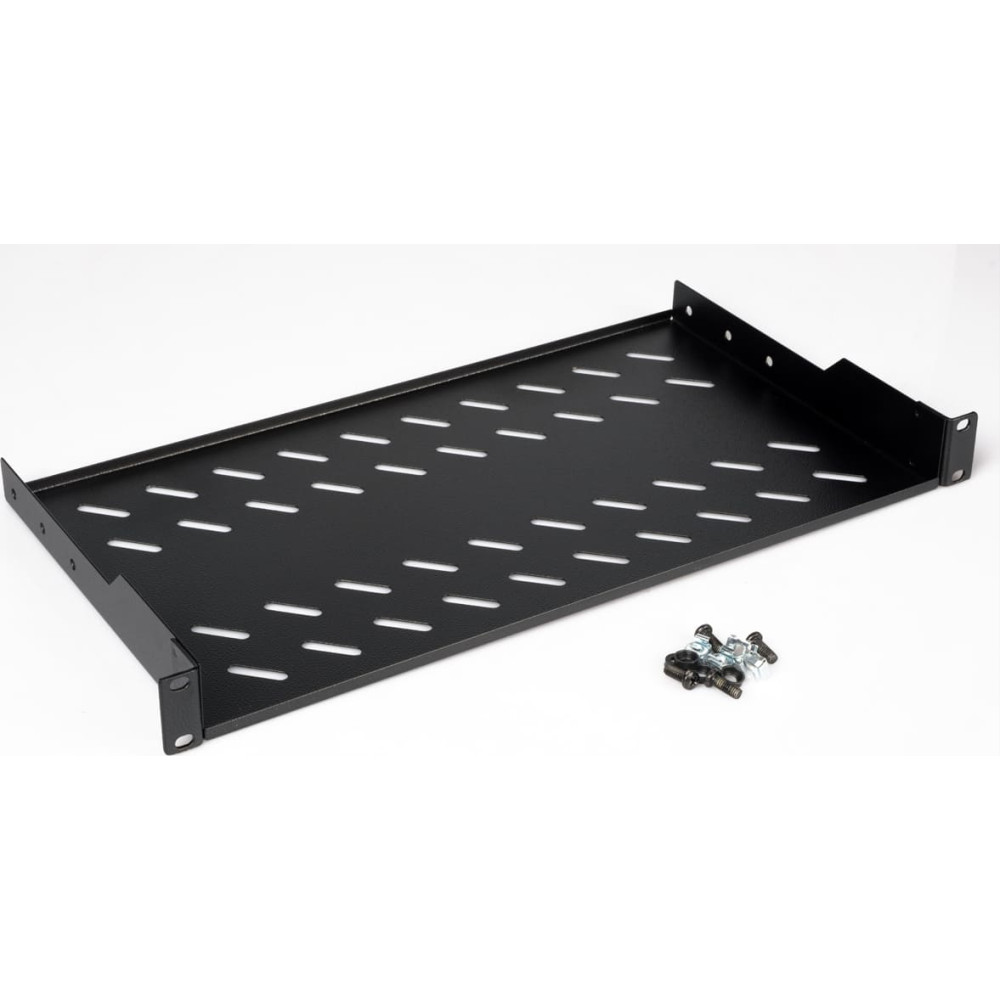

scope of delivery: Shelf, installation set (screws, cage nuts, washers), handle
weight: 1003 g
width: 485 mm
width of packaging (single piece): 520 mm

Description

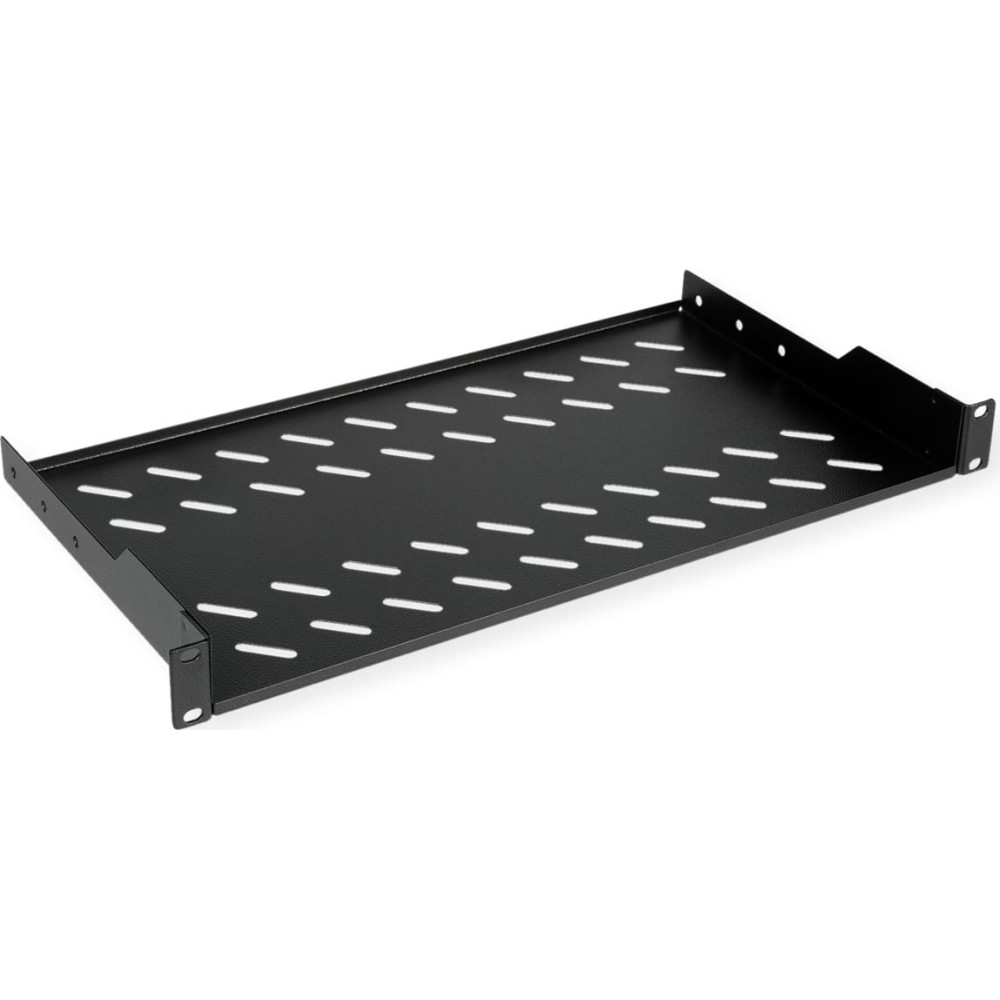

ROLINE 19 inch shelf 1 U 250 T 15 kg black

The shelves can be easily integrated into the front 19" profile rails of your 19" network or server enclosure. Thanks to the sturdy, perforated perforated plate with a high load capacity, they provide an ideal storage surface for components that cannot normally be installed in a 19" rack.

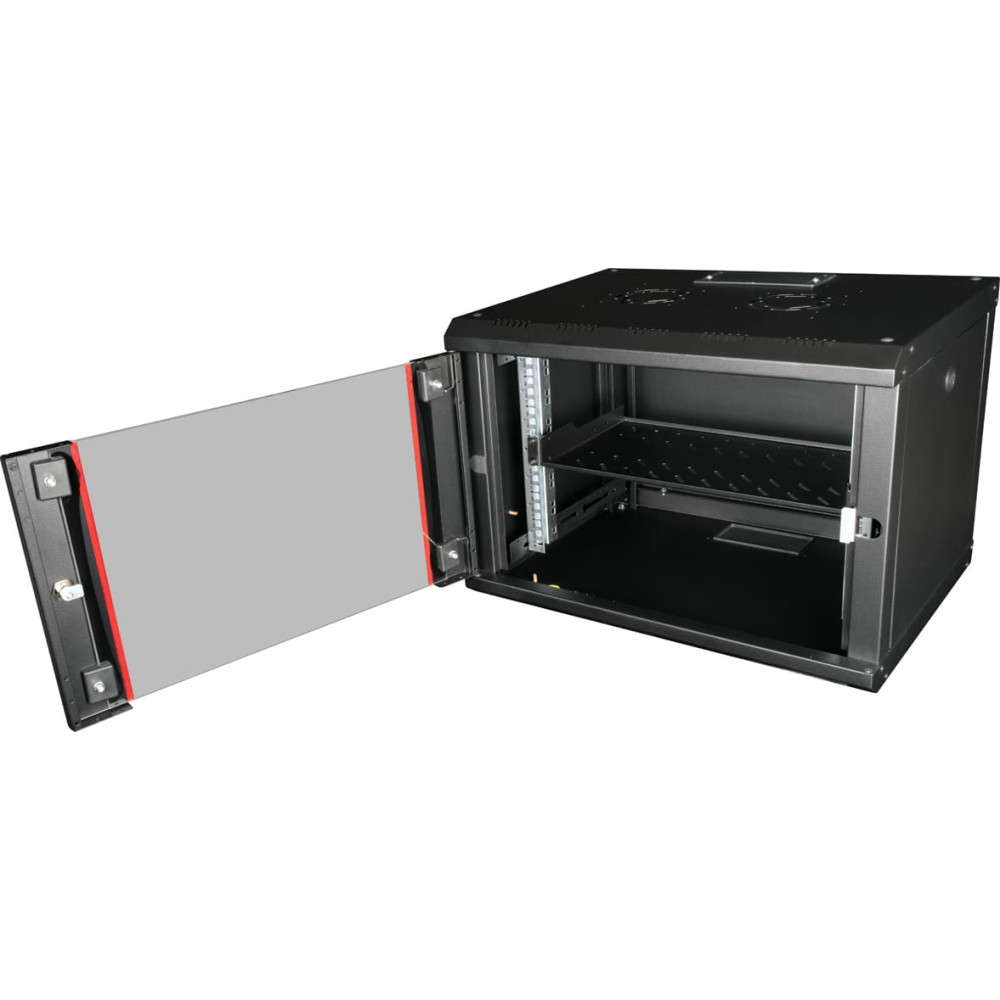

Two pairs of galvanised 19" profile rails are mounted inside the enclosure, which are equipped with height units that can be read in both directions and are adjustable in depth. They are also connected with depth braces. Each cabinet consists of a robust steel construction with a material thickness of up to 2.0 mm. The cabinets are electrostatically powder-coated and available in the standard colours grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels (horizontally divided from 42U) and doors improve accessibility. The door hinges can also be changed. The entire construction can be dismantled, meaning that the cabinets can be completely removed if required.
