Roline USB4 Gen 3x2 NVMe M.2 SSD Enclosure

ROLINE

Roline USB4 Gen 3x2 NVMe M.2 SSD Enclosure

Product Code: 16.01.4149
Barcode 7630049674318

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: anthracite
current catalog edition: C25-04.07
depth: 124 mm
depth of packaging (single piece): 150 mm
dimensions (hxwxd): 15 x 46 x 124 mm
drive connection: NVME
drive form: M.2
external connections: USB4 Gen3x2, Type C
gross weight: 0.3
height: 15 mm
height of packaging (single piece): 30 mm
manufacturer: ROLINE
material (casing): Aluminum
package weight (single piece): 0.3 kg
power supply: Over USB port
product group: Drive housing
product type: M.2 SSD Enclosure
quantity of drives: 1
scope of delivery: SSD Enclosure, USB Type-C Cable (ca. 30 cm), Thermal Pad,...
storage temperature max.: 70 °C
storage temperature min.: -10 °C
weight: 105 g
width: 46 mm
width of packaging (single piece): 100 mm
Description

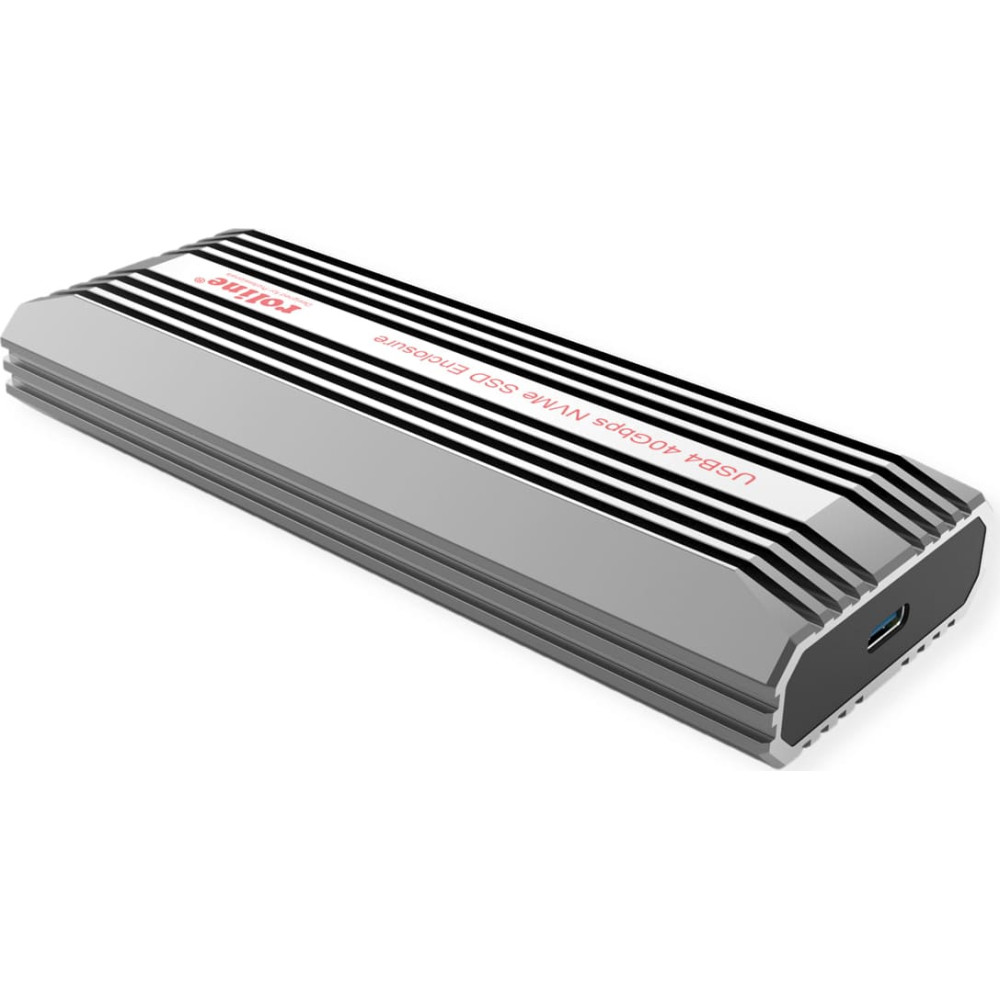

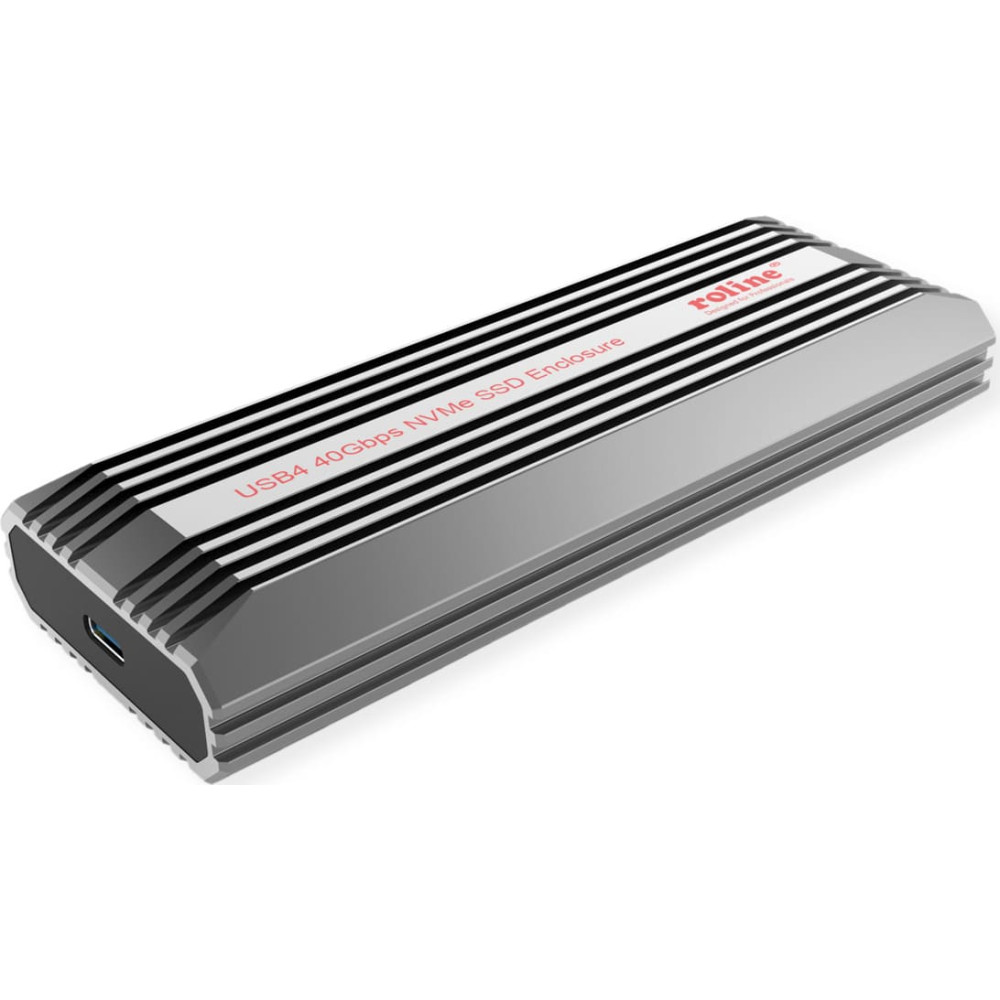

Extra narrow empty SSD enclosure, made of aluminium, with USB4 Gen3x2 host connection for M.2 NVMe SSDs.

  • Empty housing for M.2 NVMe SSDs
  • External interface: USB Type-C
  • Supports USB4 Gen 3x2 Type-C host connection of up to 40 Gbps
  • Bus-powered
  • Supports PCIe Gen4x4 NVMe SSD with 2280, 2260, 2242 or 2230 M.2 form factors
  • Toolless design for easy installation of NVME M.2 SSDs
  • Plug & Play, no installation of software driver needed
  • Aluminium housing

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
