LINDY

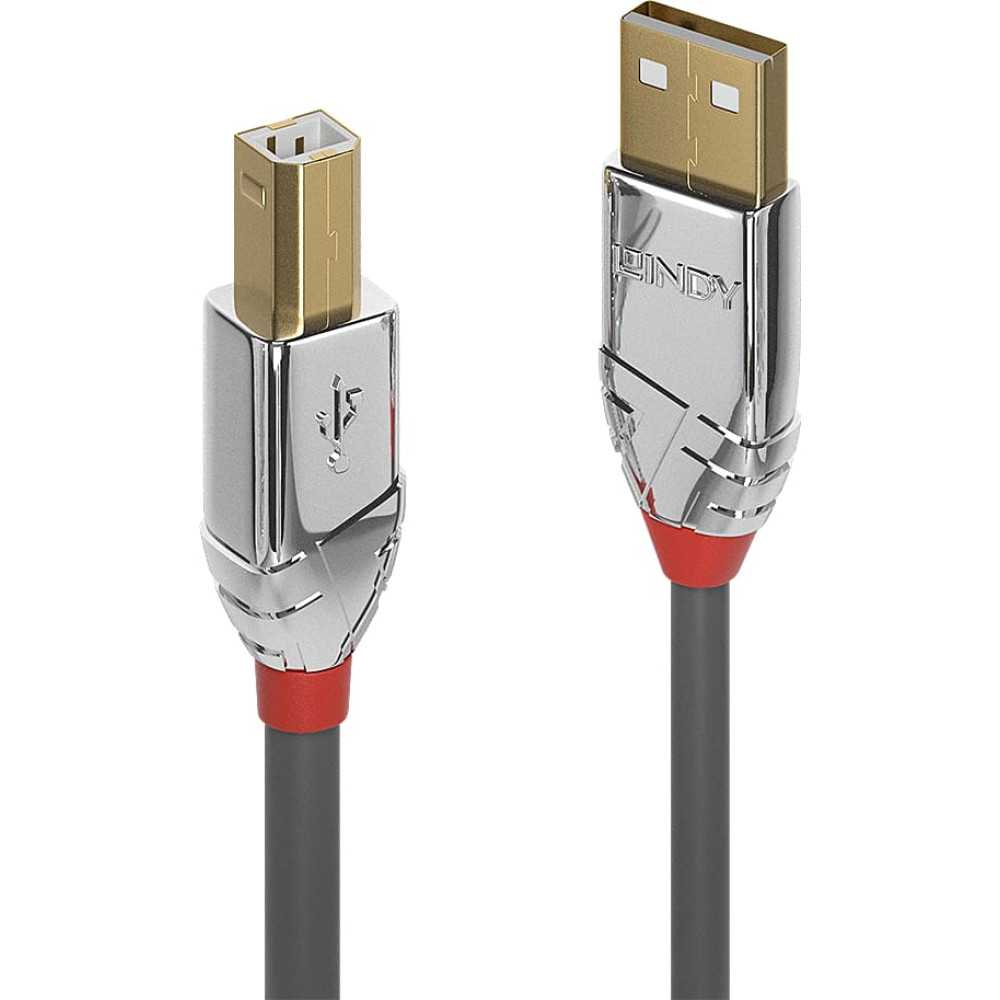

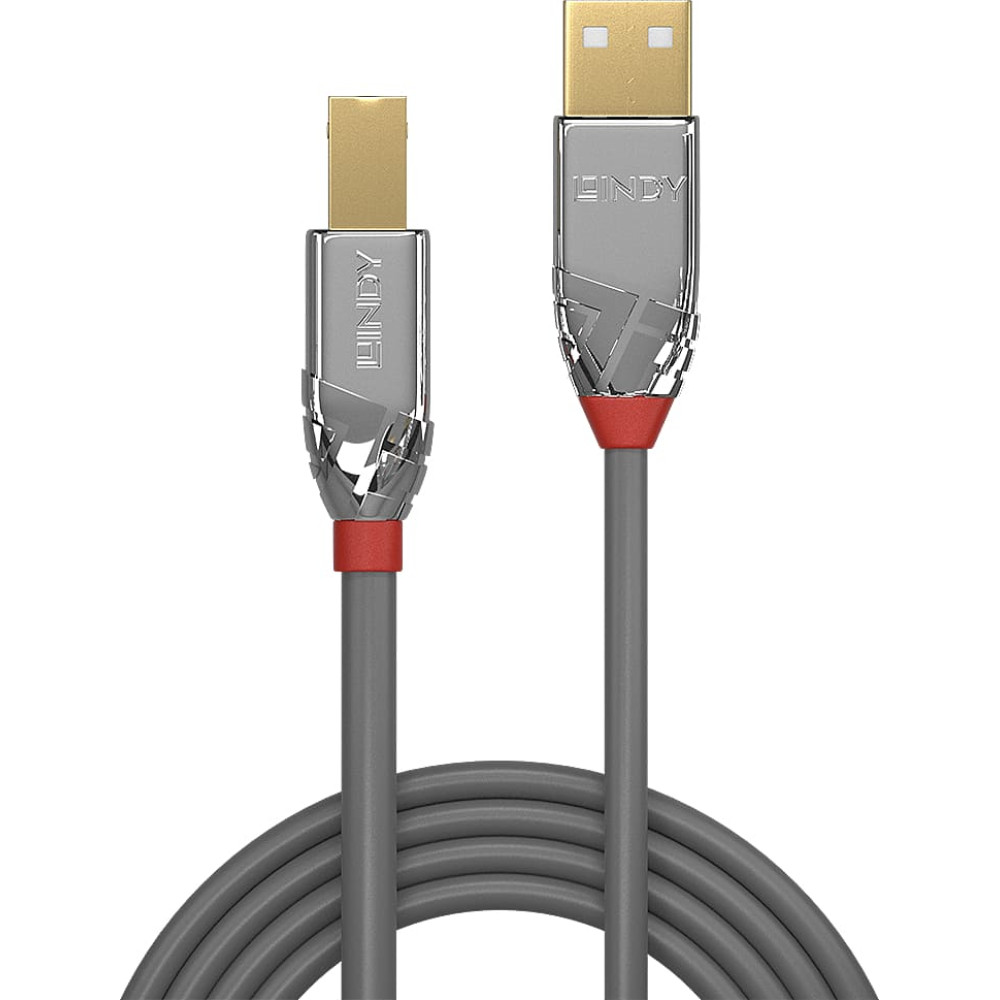

Lindy USB 2.0 Kabel Typ A/B Cromo Line M/M 1m

Product Code: 36641
Barcode 4002888366410

To purchase this product you must be registered in our system.



Specification
awg wire size: 20/24
cable colour: Grey
cable jacket material: ABS synthetics, Polyvinyl chloride (PVC)
cable length: 1 m
certification: REACH, UL
compliance certificates: RoHS
conductor material: Copper
connector 1: USB A
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB B
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
harmonized system (hs) code: 84733080
maximum data transfer rate: 0.48 Gbit/s
package type: Polybag
plug and play: Yes
product colour: Grey
quantity per pack: 1 pc(s)
usb version: USB 2.0

Description

Connectors

  • Connector A: USB 2.0 Type A Male
  • Connector B: USB 2.0 Type B Male
  • Housing Material: Chrome Plated, ABS
  • Connector Plating: Gold 1µm
  • Pin Construction: Phosphor Bronze
  • Pin Plating: Gold 3µm
  • Dimensions (approx.) WxDxH:
    • A: 16x35x8.3mm (0.63x1.38x0.34in)
    • B: 11.8x35x10.2mm (0.47x1.38x0.40in)
  •

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: USB 2.0
  • Colour: Grey
  • Type: Round
  • Jacket Diameter: 4.6mm (0.18in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/28AWG
  • Shielding: Copper Braid 85%



Specifications

  • Supported Bandwidth: 480Mbps
  • Maximum Resolution: -
  • Maximum Colour depth: -
  • Nominal Attenuation:
    • 0.5-5m: 0.5-400MHz < 5.8db
    • 7.5m: 0.5-400MHz < 7.0db
  • Minimum Bend Radius: 55mm (2.2in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)
  • ATC Approved: -



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL



Purchasing Information

  • No.: 36641
  • EAN: 4002888366410



This product is also available in other lengths

  • 36640 - 0.5m (1.64ft)
  • 36641 - 1m (3.28ft)
  • 36642 - 2m (6.56ft)
  • 36643 - 3m (9.84ft)
  • 36644 - 5m (16.44ft)
  • 36645 - 7.5m (24.61ft)
