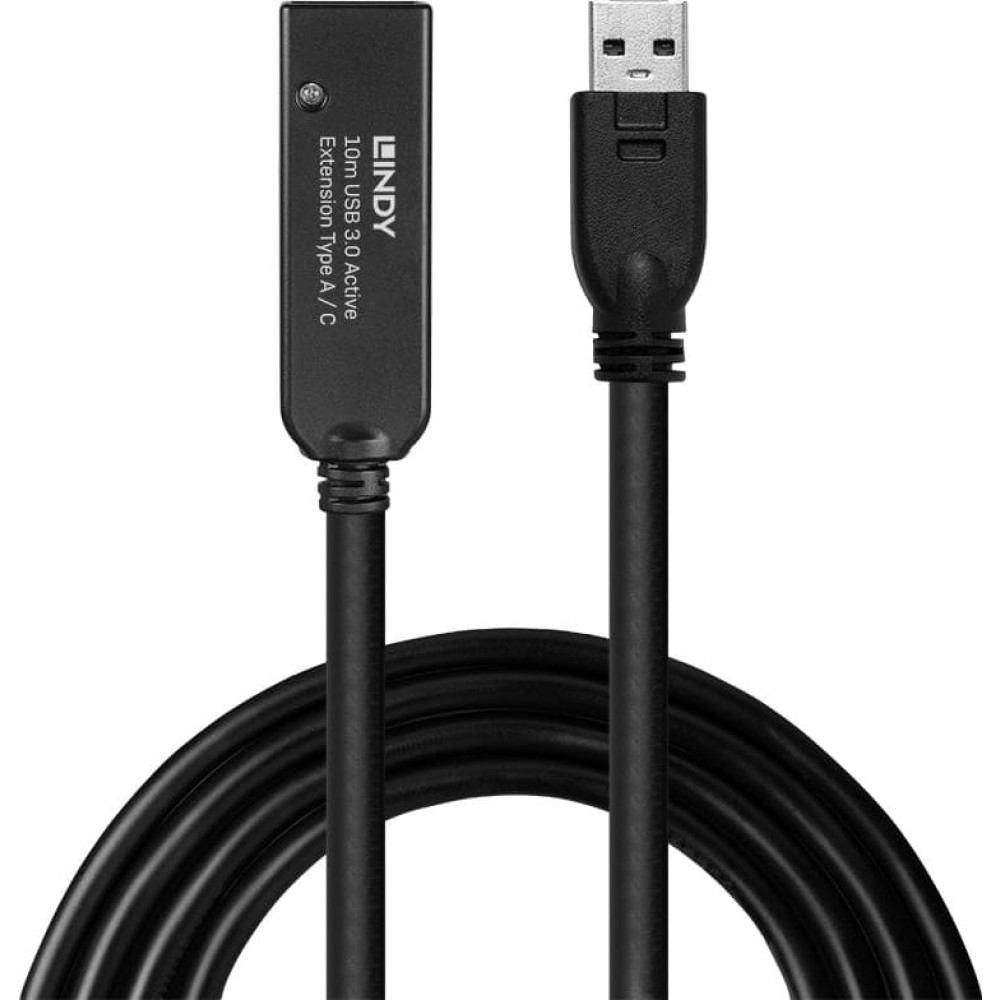

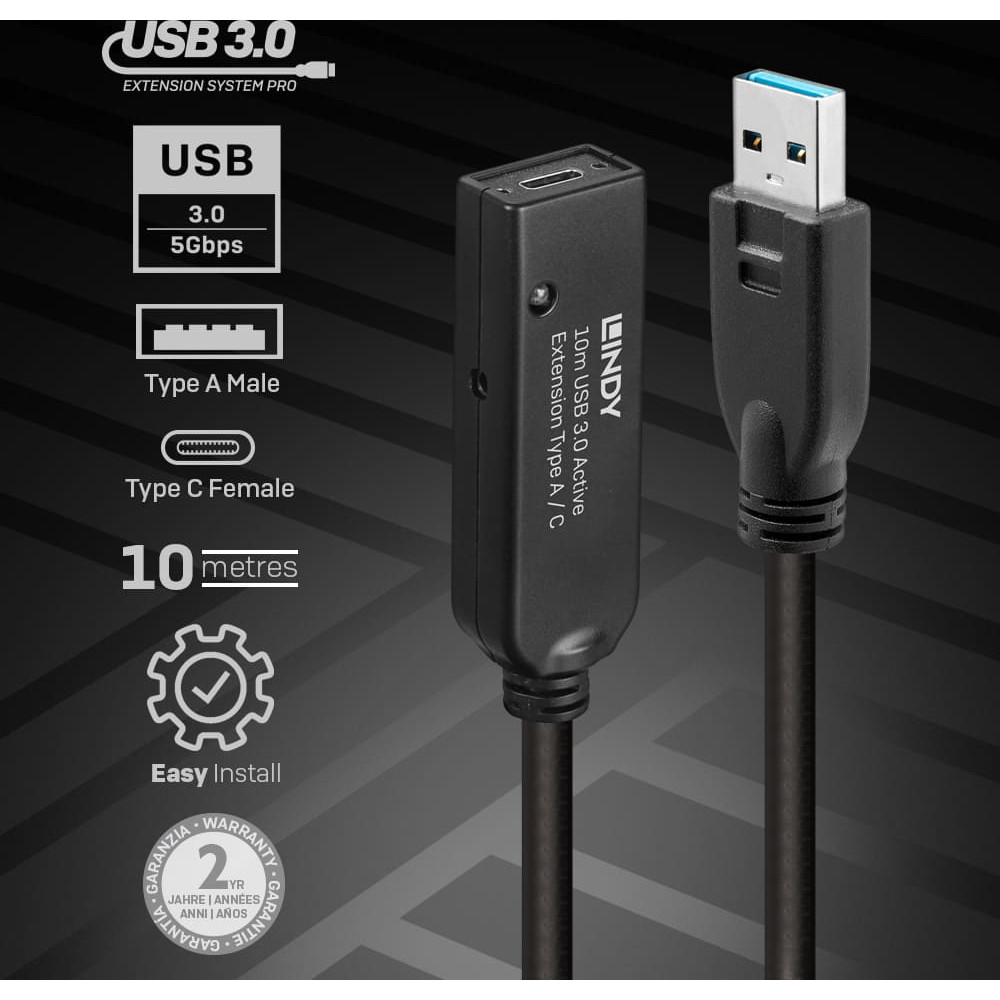

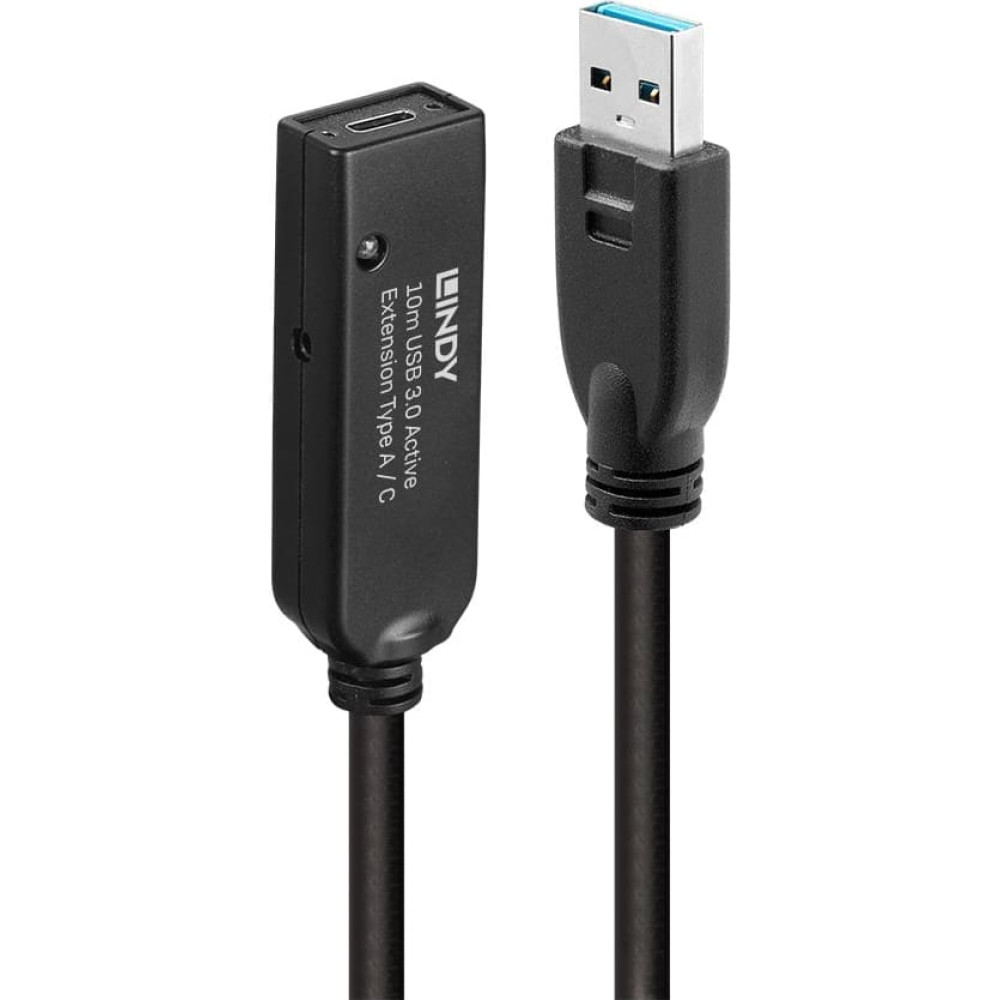

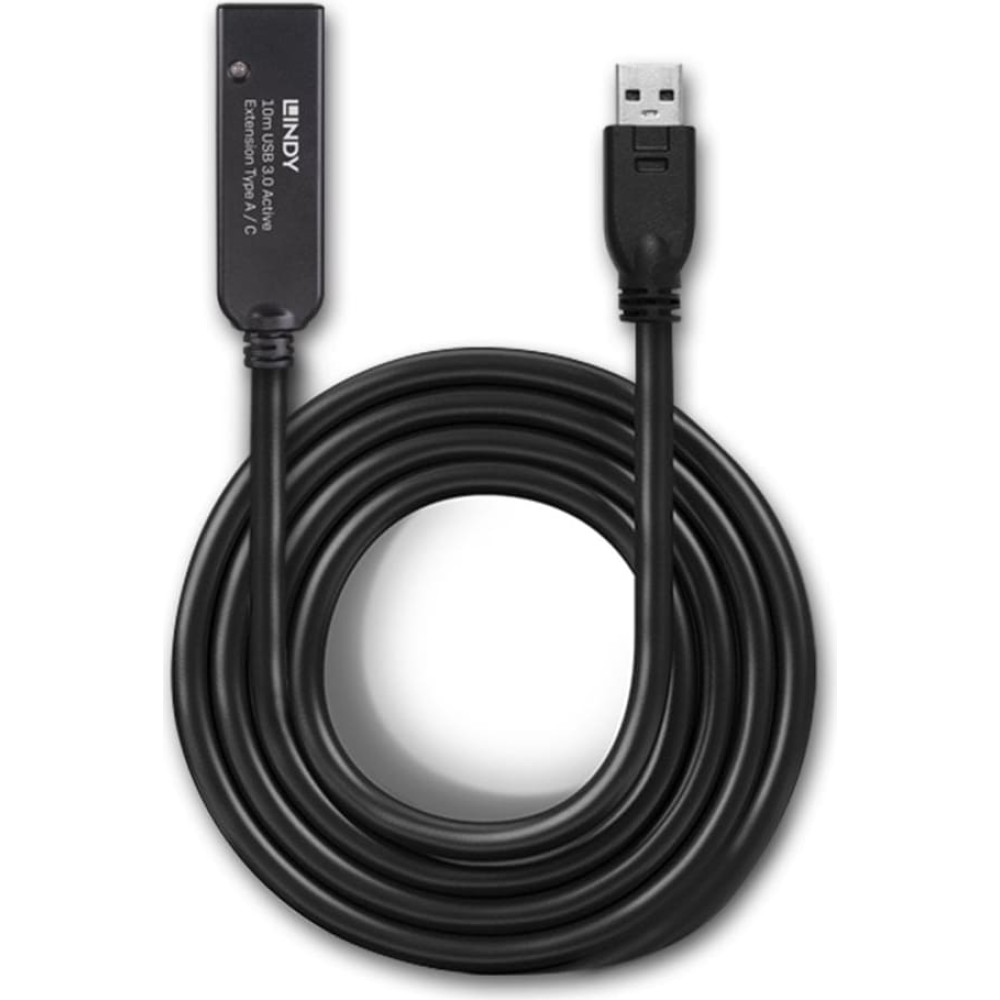

Lindy 10m USB 3.0 Active Extension Type A to C

LINDY

Lindy 10m USB 3.0 Active Extension Type A to C

Produkta kods: 43376
Svītrkods: 4002888433761

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
awg wire size: 24/24/20
cable diameter: 7 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 10 m
cable type: Round cable
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/69/b1/b2/63/63b2b169b4d1c4f4e8f470e1/CE_DoC_DE_43375_43376.pdf
certification: California Proposition 65
compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
conductor material: Tinned copper
connector 1: USB A
connector 1 dimensions (wxdxh): 15 x 49 x 8 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB C
connector 2 dimensions (wxdxh): 9.86 x 9.15 x 2.96 mm
connector 2 form factor: Straight
connector 2 gender: Female
connector contacts plating: Nickel
connector housing material: Plastic
connector shielding: Yes
country of origin: TW
maximum data transfer rate: 5 Gbit/s
operating temperature (t-t): 0 - 50 °C
package depth: 198 mm
package height: 63 mm
package type: Box
package weight: 1 kg
package width: 230 mm
packaging height: 6.5
packaging lenght: 23.5
packaging width: 20.0
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 60 °C
usb version: USB 3.2 Gen 1 (3.1 Gen 1)
warranty: 2.0
warranty period: 2 year(s)
weight: 800 g
Preces apraksts

Connectors

  • Connector A: USB Type A Male
  • Connector B: USB Type C Female
  • Power: 2.5/0.7mm DC Connector
  • Housing Material: Plastic
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold Flash
  • Dimensions (approx.) WxDxH:
    • USB A Male: 15x49x8mm (0.59x1.93x0.31in)
    • USB C Female: 22x65.6x13.7mm (0.87x2.58x0.54in)


    Cable Construction

  • Length: 10m (32.81ft)
  • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
  • Jacket Material: Half matt PVC low toxic
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/24/20AWG
  • Shielding: AL Mylar and braid


    • Specifications

  • Supported Bandwidth: 5 Gbps
  • Nominal Attenuation:
    • 0.064MHz - <0.08dB
    • 0.256MHz - <0.11dB
    • 0.512MHz - <0.13dB
    • 0.772MHz - <0.15dB
    • 1.0MHz - <0.20dB
    • 4MHz - <0.39dB
    • 8MHz - <0.57dB
    • 12MHz - <0.76dB
    • 24MHz - <0.95dB
    • 48MHz - <1.35dB
    • 96MHz - <1.90dB
    • 200MHz - <3.20dB
    • 400MHz - <5.80dB
  • Minimum Bend Radius: 36mm (1.42in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.2 / 3.1 Gen 1 /  3.0


    • Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 235x200x65mm (9.25x7.87x2.56in)
  • Net Weight: 0.8kg (1.76lb)
  • Gross Weight: 1kg (2.2lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65, TAA


    • Packaging Contents

  • USB 3.0 Active Extension 10m
  • Power Adapter Cable Nr. 70265
  • Lindy Manual


    • Purchasing Information

  • No.: 43376
  • EAN: 4002888433761
