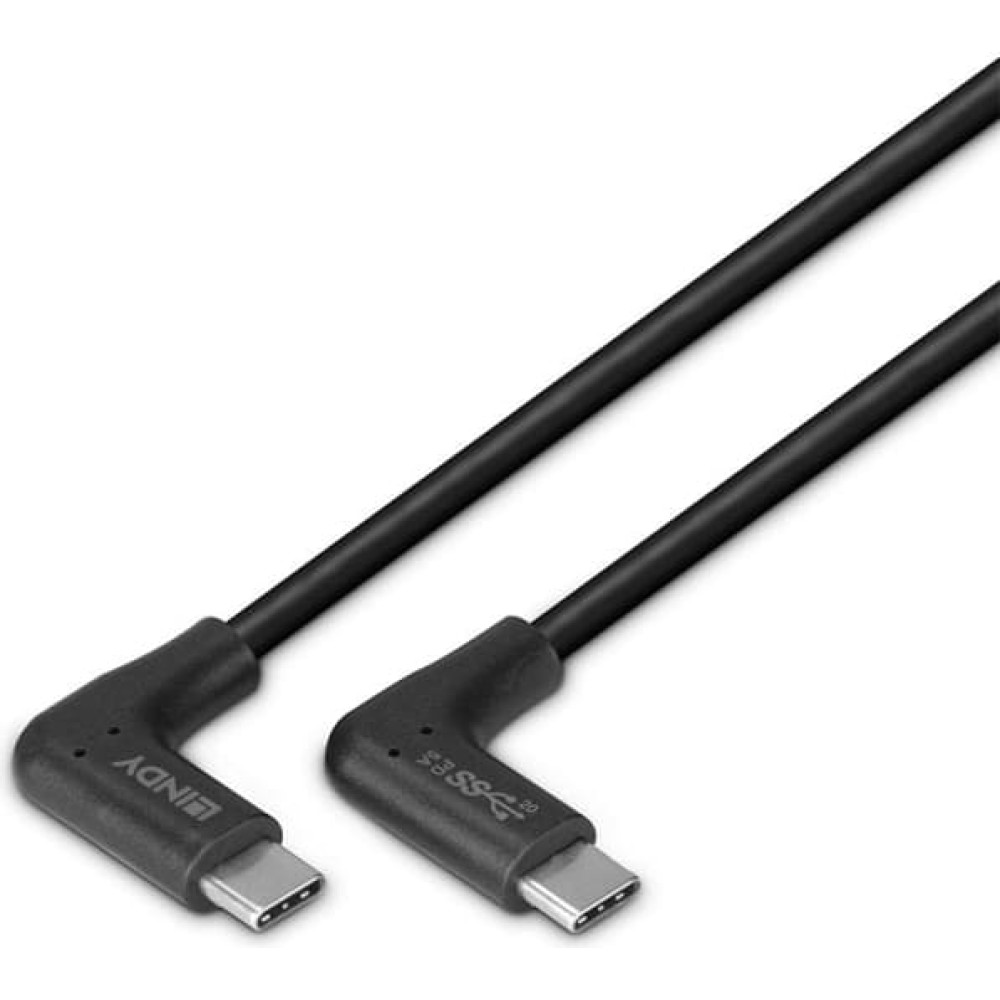

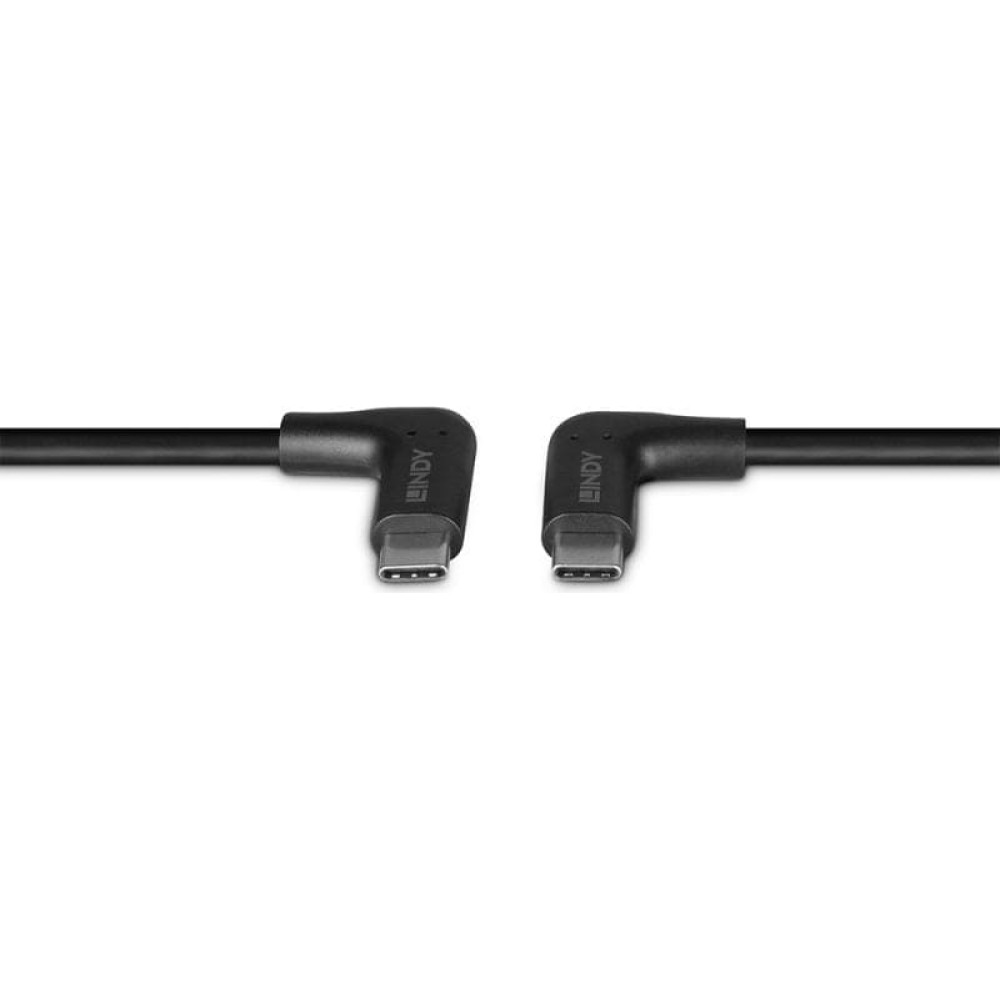

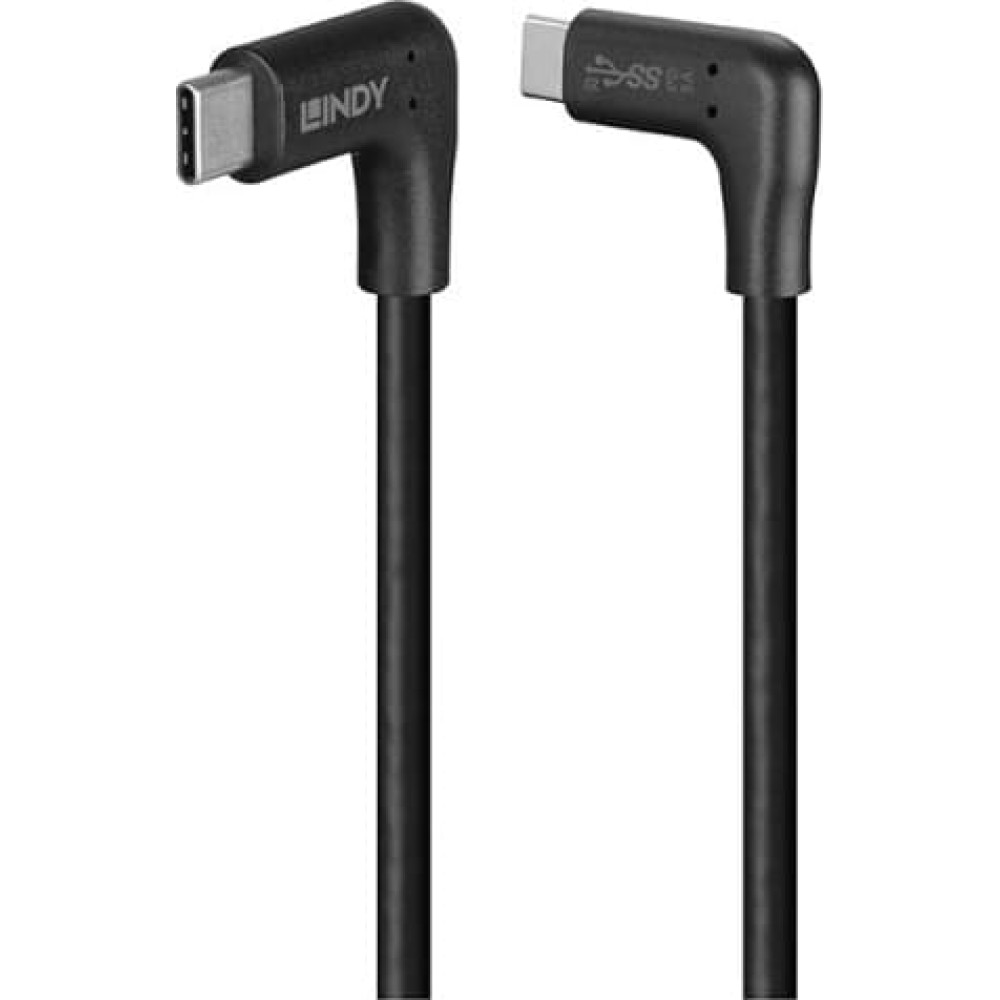

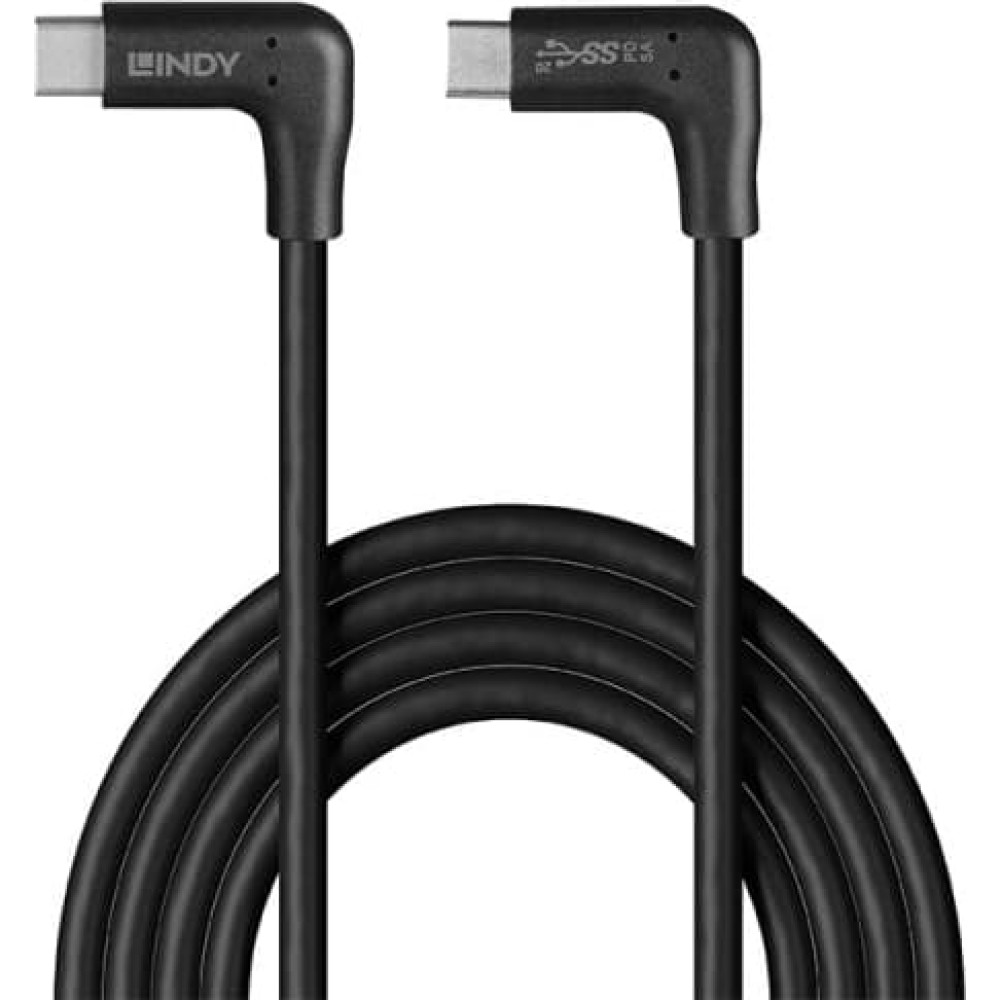

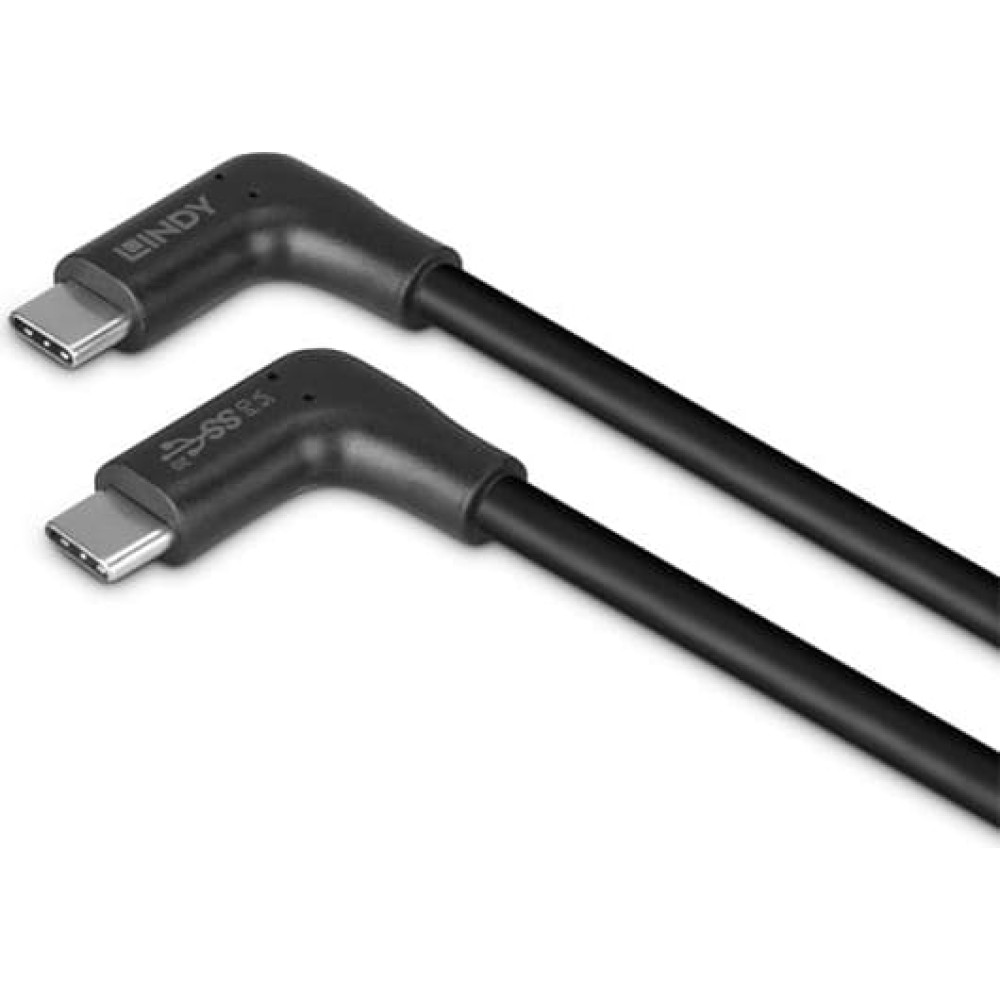

Lindy 0.5m USB 3.2 Typ C Kabel 2 x 90 Grad gewinkelt

Product Code: 32022

Barcode 4002888320221

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

awg wire size: 22/28

bend radius (min): 5 cm

cable diameter: 5 mm

cable jacket material: Nylon/Polyvinyl Chloride (PVC)

cable length: 0.5 m

cable type: Round cable

certification: RoHS, REACH, California Proposition 65

compliance certificates: REACH, RoHS

conductor material: Copper

connector 1: USB C

connector 1 dimensions (wxdxh): 11.1 x 25.8 x 24.2 mm

connector 1 form factor: Angled

connector 1 gender: Male

connector 2: USB C

connector 2 dimensions (wxdxh): 11.1 x 25.8 x 24.2 mm

connector 2 form factor: Angled

connector 2 gender: Male

connector contacts plating: Nickel

connector material: Gold

connector shield material: Aluminium

connector shielding: Yes

maximum data transfer rate: 10 Gbit/s

nominal attenuation: 0.5Mhz- 400Mhz < 5.8db

operating temperature (t-t): 0 - 40 °C

package type: Polybag

product colour: Black

quantity per pack: 1 pc(s)

storage temperature (t-t): 0 - 70 °C

usb power delivery (usb pd): Yes

usb power delivery revision: 2.0

usb power delivery up to: 60 W

usb version: USB 3.2 Gen 2 (3.1 Gen 2)

warranty period: 10 year(s)

Description

Lindy USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.

Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

USB 3.2 Type C, 2 x 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
