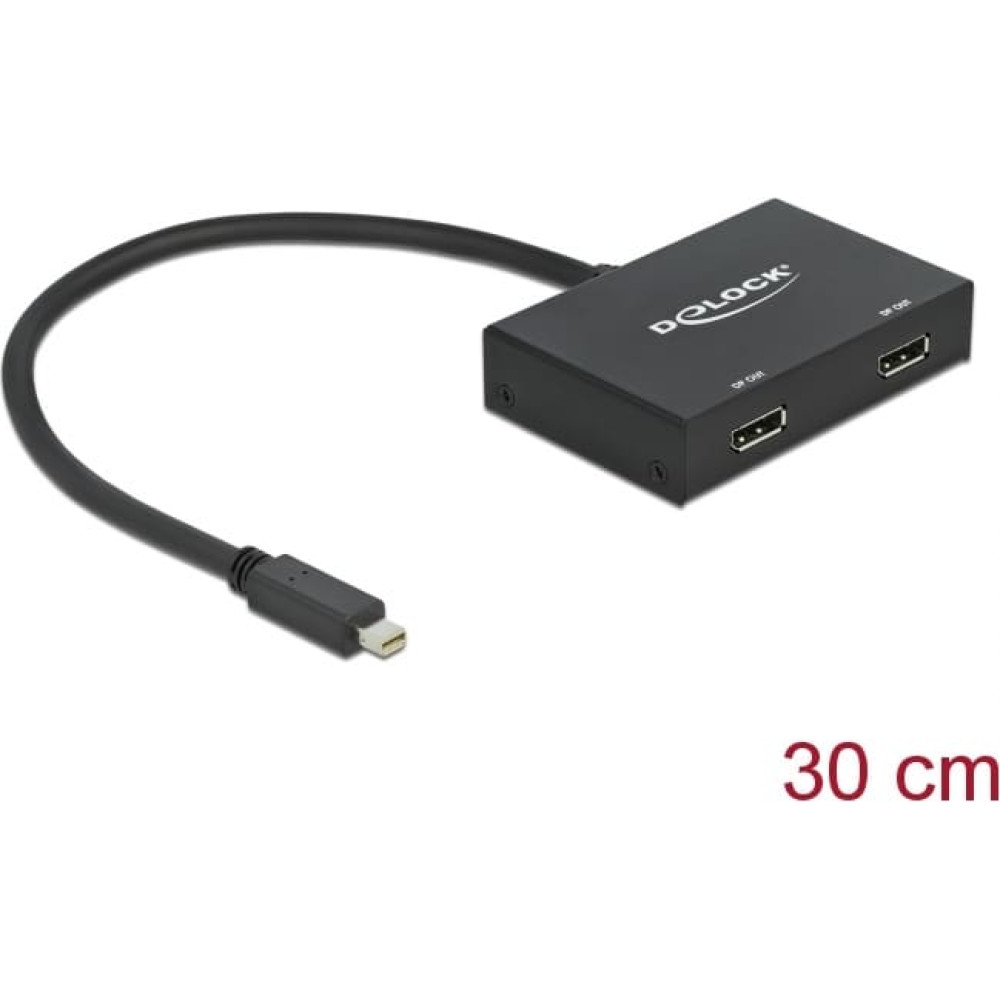

Delock Displayport 1.2 Splitter 1 x mini Displayport in 2 x Displayport out 4K
To purchase this product you must be registered in our system.
Specification
depth: 0.208
height: 0.032
width: 0.155
Description
| This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to two connected displays. Thereby one mini DisplayPort connection can be used to operate two DisplayPort monitors. Both outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters. Please Note The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort 1.2. When Mac OS is used, the same image is displayed on both ports (mirrored), it is not possible to use both ports independently of each other. System requirements: • Mac OS 10.12 or above • Windows 7/7-64/8.1/8.1-64/10/10-64 • A free mini DisplayPort female Specification: • Connectors: Input: 1 x mini DisplayPort 20 pin male Output: 2 x DisplayPort 20 pin female • Chipset: STDP4320 • DisplayPort 1.2a specification • Active converter, Single- / Multi-Stream Transport Hub (SST / MST) • Functions: Mirrored or Extended (Windows only) • Maximum resolution (depending on the system and the connected hardware): DisplayPort 1.1 or 1.2 Single-Stream Transport (SST): up to 1920 x 1080 @ 60 Hz (mirror) DisplayPort 1.2 Multi-Stream Transport (MST): up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirror or extended) • DisplayPort output supports Dual Mode DP++ • Supports Eyefinity / Single Large Surface (SLS) • Audio input formats: 7.1 channel up to 192 kHz sample rate • Metal housing • Colour: black • Cable length without connectors: ca. 30 cm • Dimensions (LxWxH): ca. 100 x 67 x 23 mm Package content: • DisplayPort Splitter • User manual Data sheet: http://www.delock.de/produkt/87695/pdf.html?sprache=en |
