Home Computer Components I/O Cards PCI Express Delock PCI Express Card 2 x external USB 3.0 + 2 x internal SATA 6 Gbs
Delock PCI Express Card 2 x external USB 3.0 + 2 x internal SATA 6 Gbs

DELOCK

Delock PCI Express Card 2 x external USB 3.0 + 2 x internal SATA 6 Gbs

Product Code: 89359
Barcode 4043619893591

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.184
height: 0.030
width: 0.157
Description

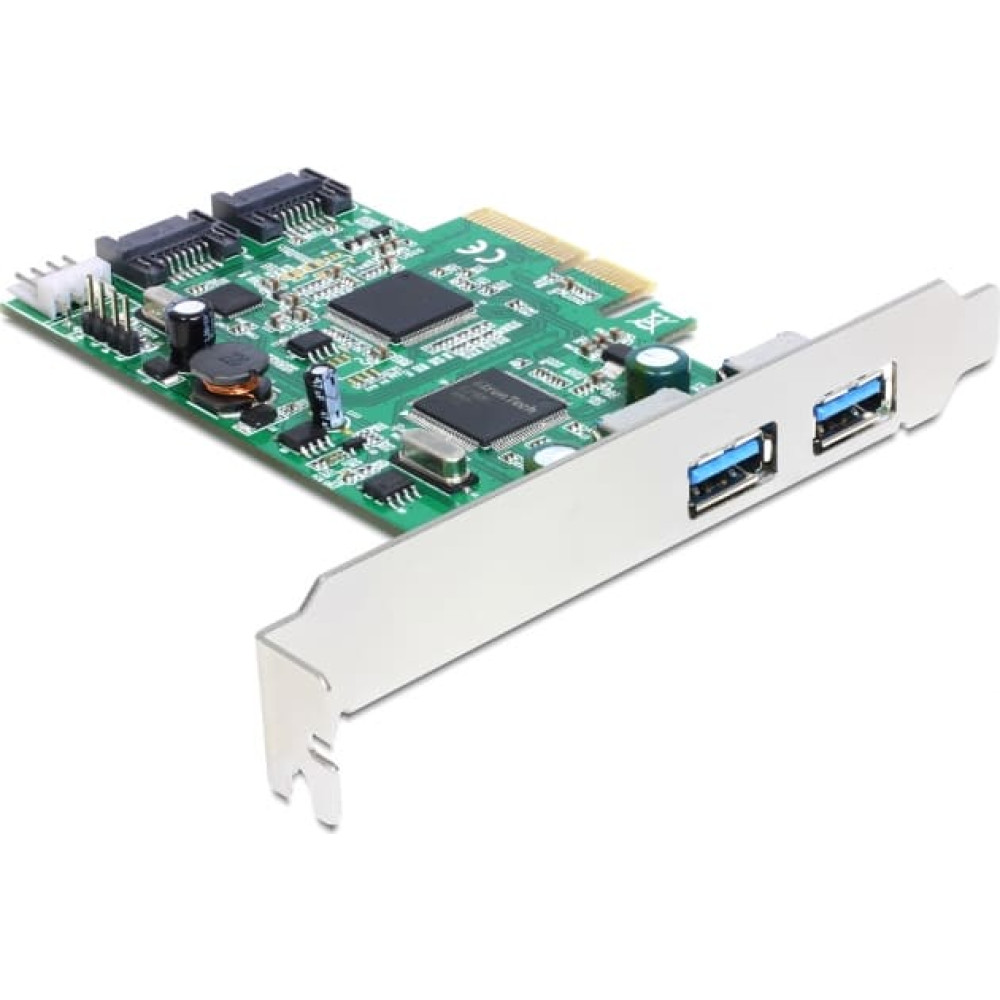

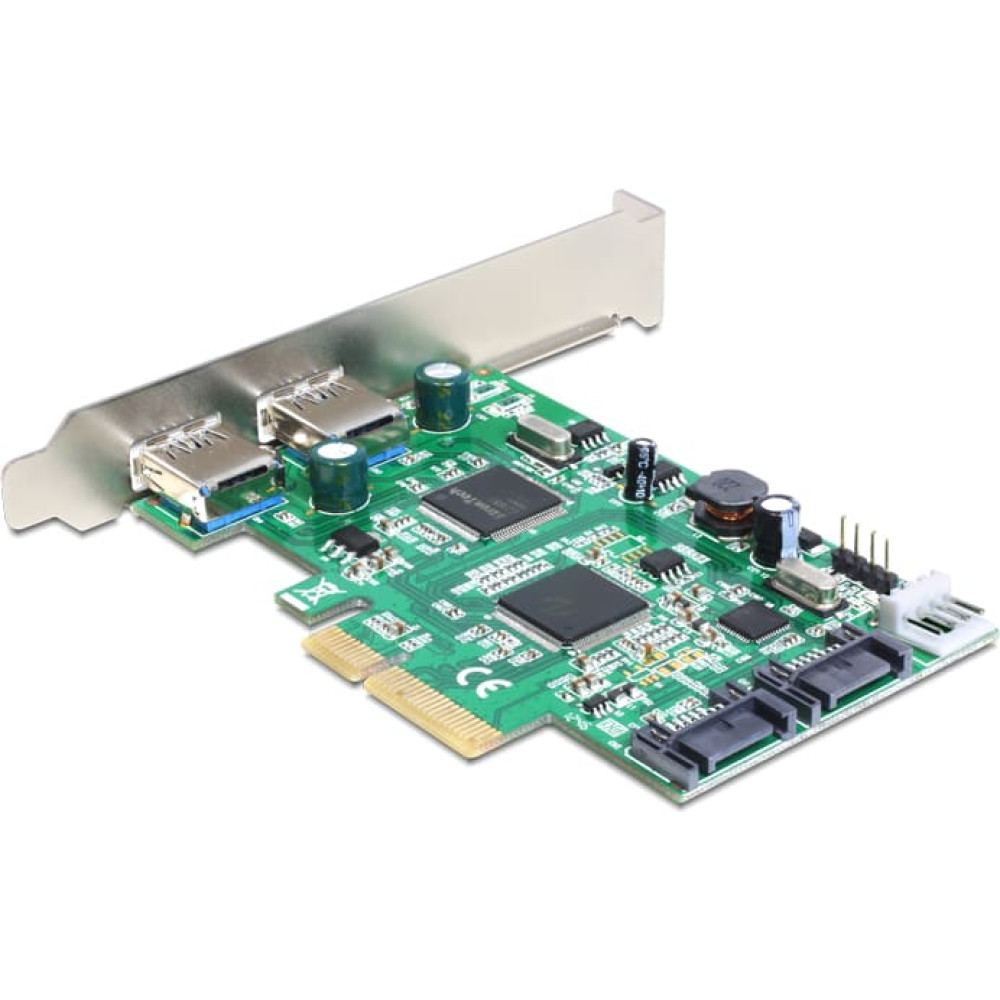

This PCI Express card by Delock expands the PC by two external USB 3.0 ports as well as two internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.
System requirements:
• Linux Kernel 3.2 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Power supply with a free 4 pin power connector
Specification:
• Connectors:
  external:
  2 x USB 3.0 Type-A female
  internal:
  2 x SATA 6 Gb/s 7 pin plug
  1 x 4 pin power connector
  1 x PCI Express x4, V2.0
• Chipset: Asmedia (SATA), Etron (USB 3.0)
• Data transfer rate:
  USB 3.0 up to 5 Gb/s
  SATA up to 6 Gb/s
• Supports Battery Charging 1.2 and Apple Fast Charging
Package content:
• PCI Express card
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/89359/pdf.html?sprache=en
