Lindy HDMI an DVI-D Single Link Kabel Gold Line 1m

LINDY

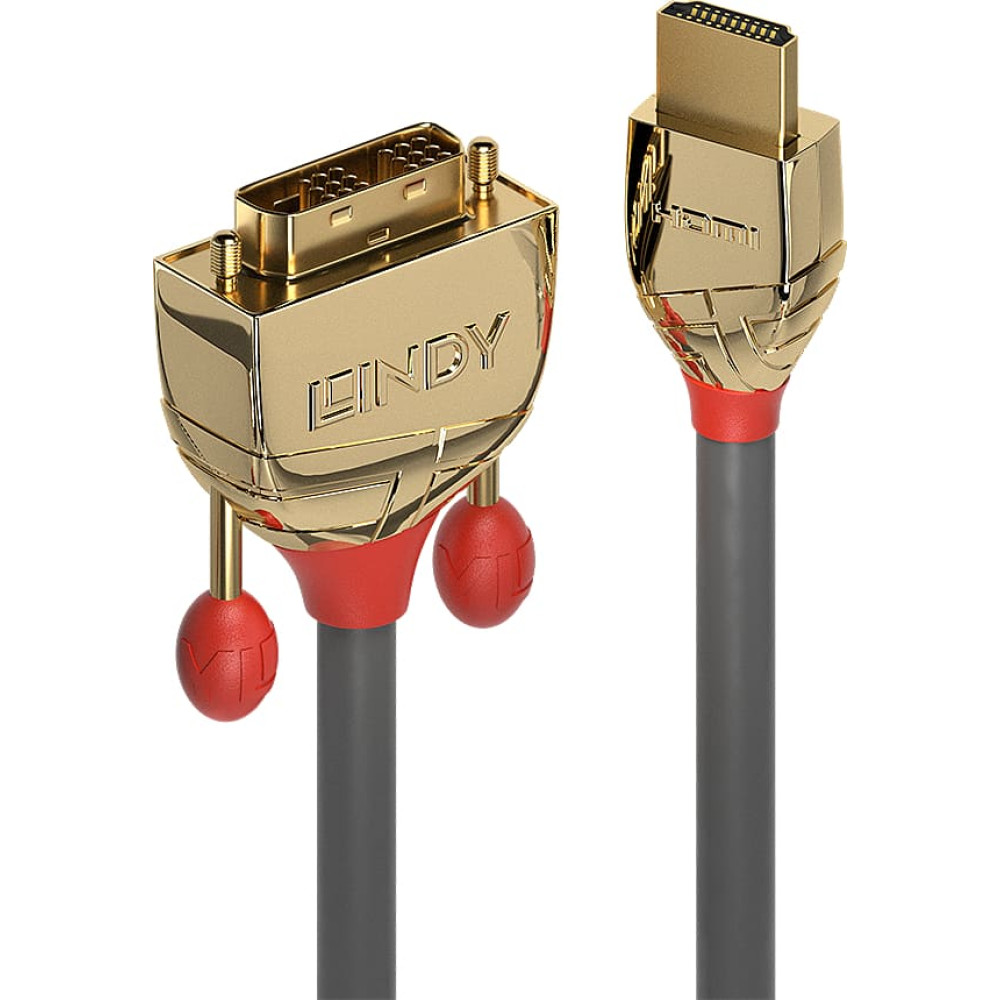

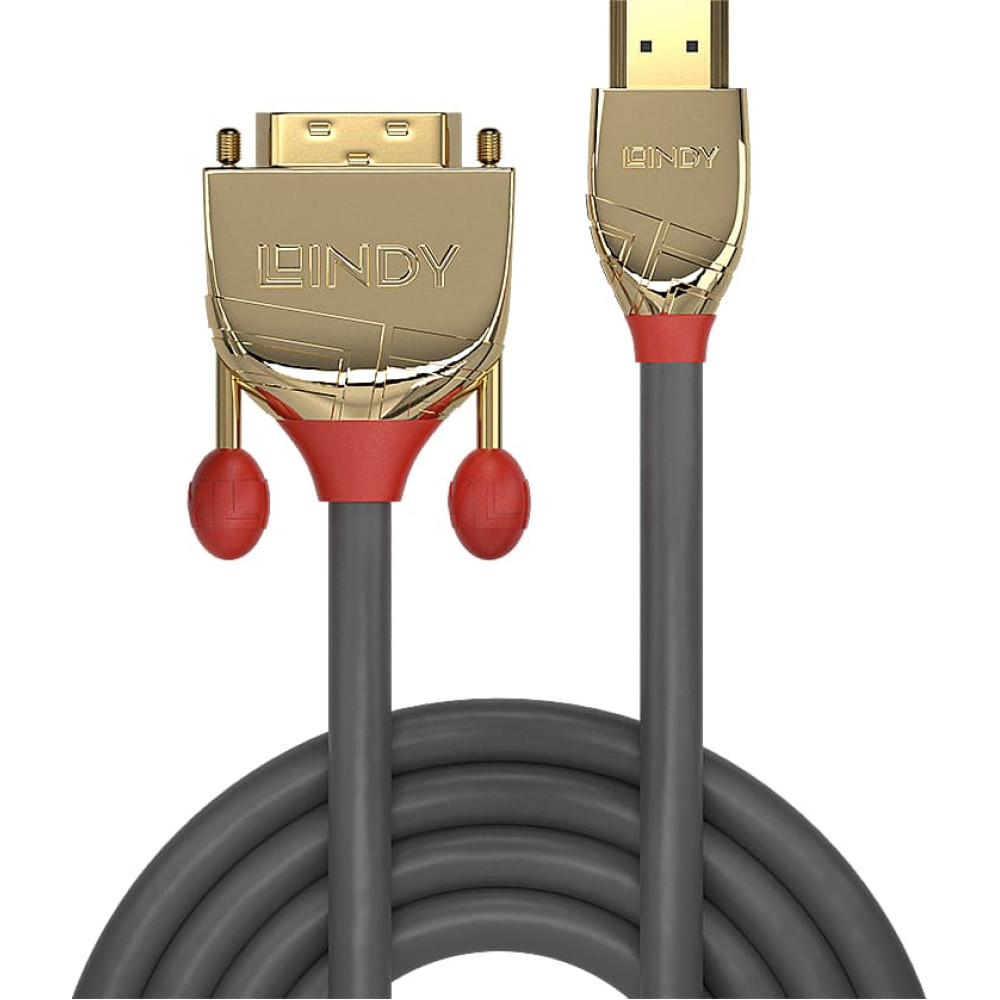

Lindy HDMI an DVI-D Single Link Kabel Gold Line 1m

Product Code: 36194
Barcode 4002888361941

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 24
cable length: 1 m
certification: REACH, UL
compliance certificates: RoHS
connector 1: HDMI Type A (Standard)
connector 1 gender: Male
connector 2: DVI-D
connector 2 gender: Male
connector contacts plating: Gold
data transfer rate: 4.95 Gbit/s
harmonized system (hs) code: 84733080
operating temperature (t-t): -20 - 80 °C
product colour: Grey
storage temperature (t-t): -25 - 85 °C
Description

Connectors

  • Connector A: HDMI Typ A Male
  • Connector B: DVI-D Male (Single Link)
  • Housing Material: 24K Gold Plated Metal
  • Connector Plating: 24K Gold 3μm
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold 15μm
  • Dimensions (approx.) WxDxH:
    • HDMI: 20x39x11.2mm (0.78x1.42x0.44in)
    • DVI: 39.5x44.5x16.5mm (1.55x1.73x0.65in)

    •

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: DVI-D Single Link
  • Colour: Grey
  • Type: Round
  • Jacket Diameter: 9mm (0.35in)
  • Jacket Material: PVC
  • Conductor Material: OFC Copper
  • Conductor Gauge: 24AWG
  • Shielding: Copper Braid 85%



Specifications

  • Supported Bandwidth: 4.95 Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation: 1 - 825Mhz < 8db
  • Minimum Bend Radius: 126mm (4.96in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 25
  • Certificated: RoHS, REACH, UL



Purchasing Information

  • No. 36194
  • EAN: 4002888361941



This product is also available in other lengths

  • 36193 - 0.5m (1.64ft)
  • 36195 - 2m (6.56ft)
  • 36196 - 3m (9.84ft)
  • 36197 - 5m (16.40ft)
  • 36198 - 10m (32.81ft)
  • 36199 - 15m (49.21ft)
