Delock PCI Express Card 8 x Serial RS-232 High Speed 921K
To purchase this product you must be registered in our system.
Specification
depth: 0.158
height: 0.081
width: 0.192
Description

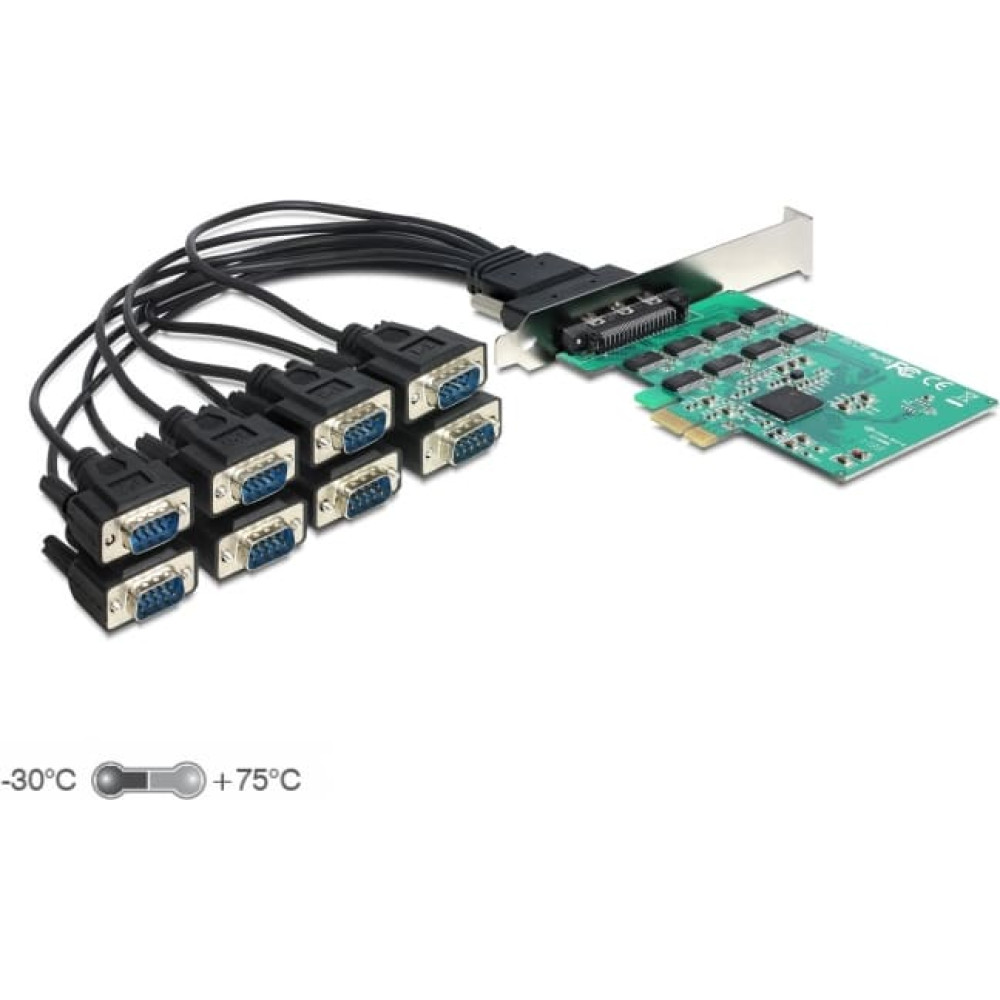

| The Delock PCI Express card expands your system by eight High Speed RS-232 ports. Use this card for applications like data logging, machine control systems, automation, development or communication. By the extensive surge protection and the wide temperature range this card can be used in the industrial area. System requirements: • Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1-64/10/10-64/11, Linux ex Kernel 2.6 • PC with a free PCI Express slot Specification: • Chipset: Exar 17V358 • Connector: external: 1 x VHDCI 68 Pin female connecting cable: VHDCI 68 Pin male > 8 x Serial RS-232 D-Sub 9 pin male internal: 1 x PCI Express x1, V2.0 • Baud rate: up to 921.6 Kb/s • Compatible to 16C550 UART • FIFO 256 Byte • Data bit: 5, 6, 7, 8 • Stop bit: 1, 1.5, 2 • Parity: None, Even, Odd, Space, Mark • Flow Control: RTS / CTS, XON / XOFF • Operating temperature: -30 °C ~ +75 °C • Storage temperature: -40 °C ~ +85 °C • Ambient relative humidity max. 95 % (non-condensing) • 15 kV ESD protection for all signals • I/O address and IRQ assigned by the system Package content: • PCI Express card • Low profile bracket • 1 serial connecting cable (ca. 30 cm) • Driver CD • User manual Data sheet: http://www.delock.de/produkt/89336/pdf.html?sprache=en |
