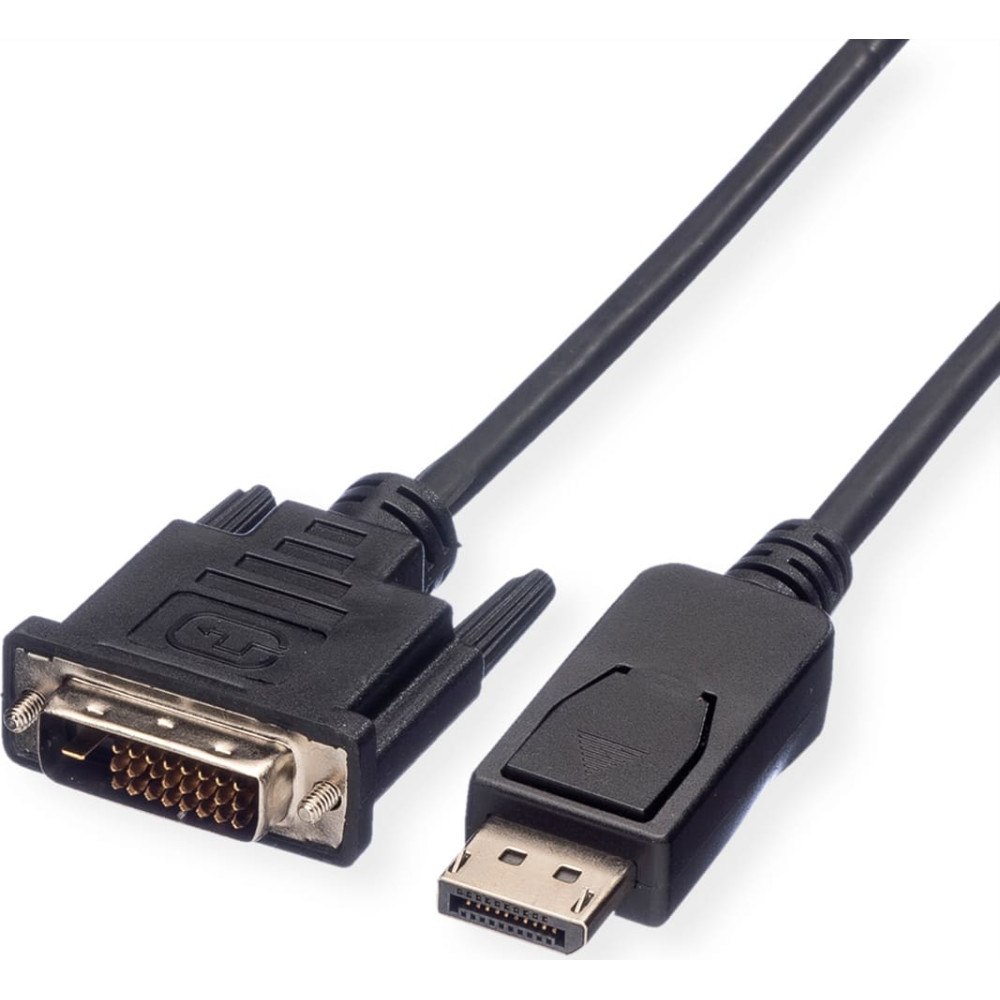

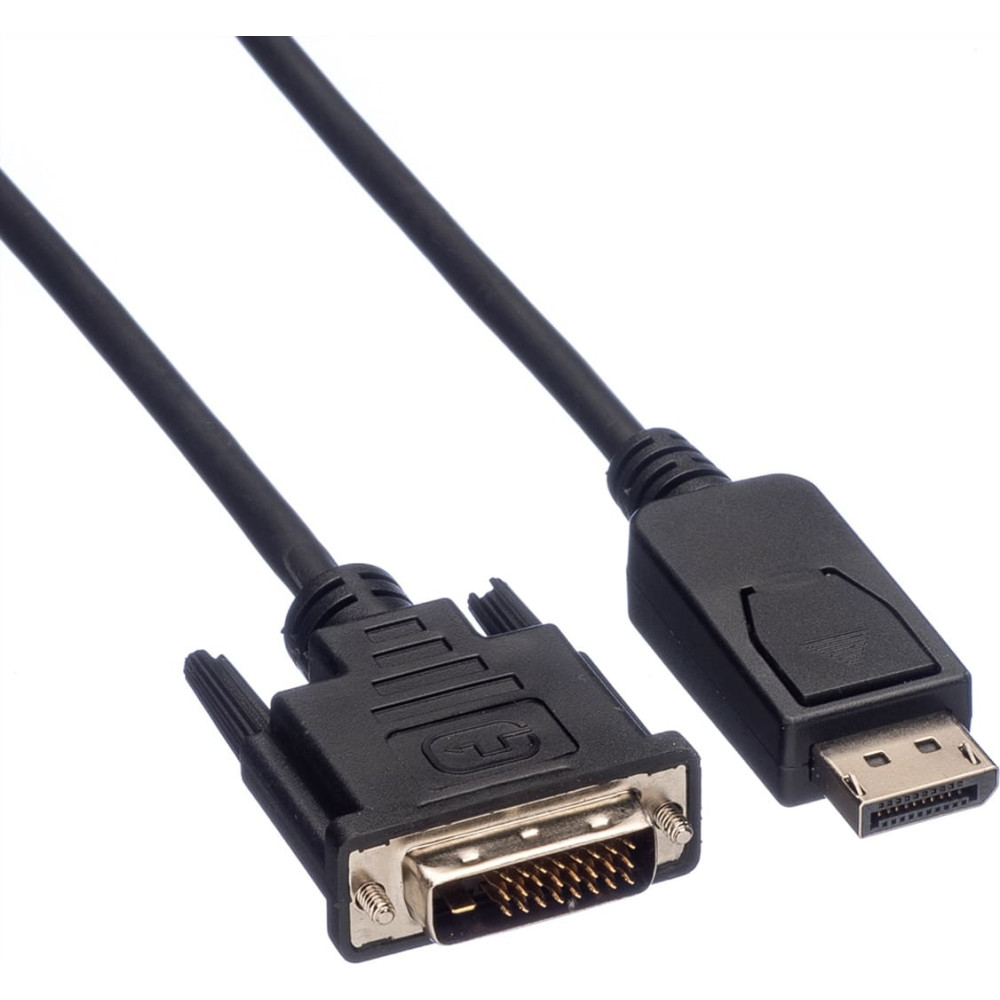

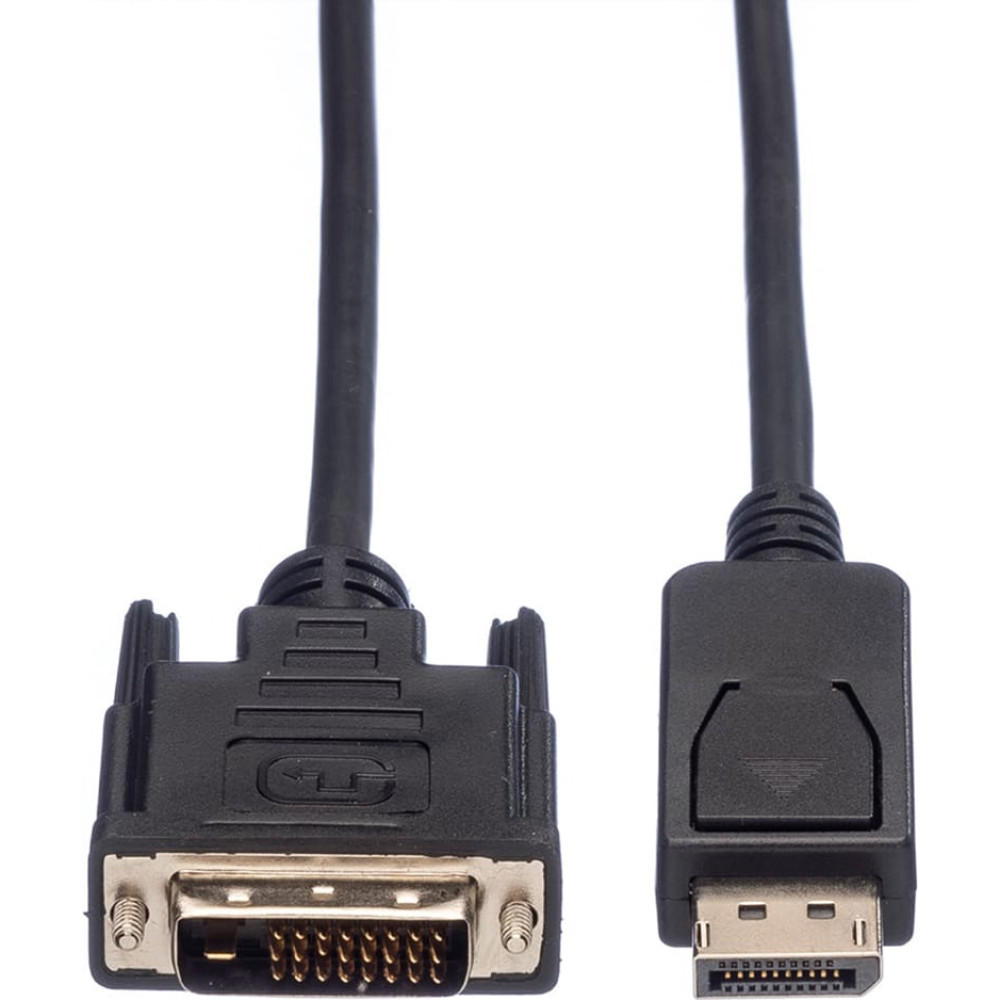

Value DisplayPort Cable, DP-DVI (24+1), LSOH, M/M, 1.5 m

Product Code: 11.99.5608
Barcode 7611990997220

To purchase this product you must be registered in our system.



Specification
area of application: External
cable lsoh: yes
cable shielding: Screened
colour: black
current catalog edition: C25-03.44
current catalog page: 4.26
depth of packaging (single piece): 170 mm
gross weight: 0.13
hand locking screws: yes
height of packaging (single piece): 20 mm
length: 1.5 m
length: 1.5 m
manufacturer: VALUE
material (external cable mantle): LSOH
max. resolution: 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
package weight (single piece): 0.13 kg
product group: Cable
product type: DP-DVI cable
side 1 connector gender: Male
side 1 connector type: DisplayPort
side 2 connector gender: Male
side 2 connector type: DVI-D 24+1, Dual-Link
transfer quality: DisplayPort v1.1
weight: 90.3 g
width of packaging (single piece): 170 mm

Description
  • DisplayPort is a digital display interface standard that defines a new digital audio/video interconnection. The intention of the DisplayPort is to be used primarily between a computer and its display monitor, or a computer and a home-theater.
  • Compliant DP v1.1 (max. 2560 x 1600 @60Hz)

Halogen-free, flame retardant, low smoke.

Remark: The DisplayPort to DVI cable is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)
