Home Network products Keystone Roline Keystone Jack, Cat.6a, RJ-45, shielded, toolless, silver
Roline Keystone Jack, Cat.6a, RJ-45, shielded, toolless, silver

ROLINE

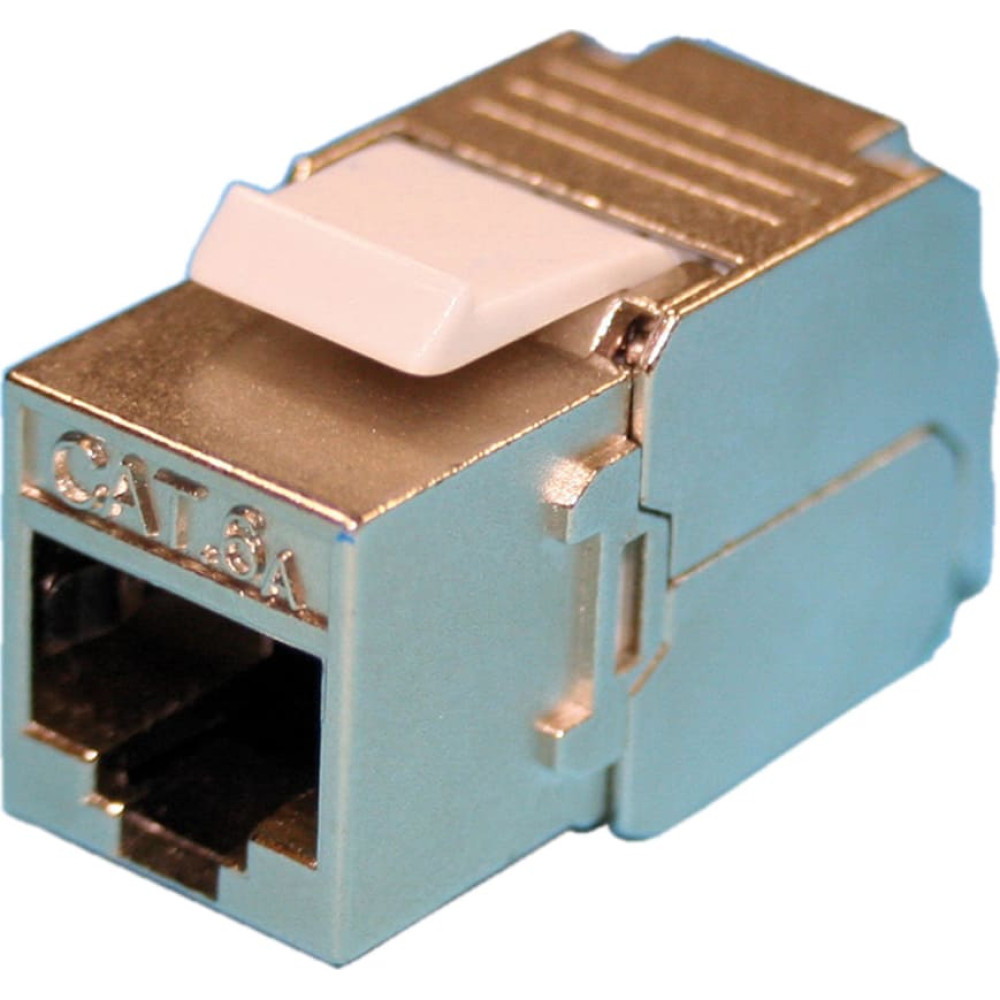

Roline Keystone Jack, Cat.6a, RJ-45, shielded, toolless, silver

Product Code: 26.11.0367
Barcode 7611990998494

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
assembly cable connection: Krone LSAplus
assignment: EIA/TIA 568A & 568B
colour: silver
connection direction: Straight
current catalog edition: C25-01.47
current catalog page: 1.56
depth: 38 mm
depth of packaging (single piece): 60 mm
gross weight: 0.023
height: 21 mm
height of packaging (single piece): 40 mm
manufacturer: ROLINE
package weight (single piece): 0.023 kg
product group: Connection technology TP
product type: RJ45 Keystone Jack
quantity of ports: 1
shield type: Screened
transfer quality: Cat6A / Class EA
weight: 21.3 g
width: 12 mm
width of packaging (single piece): 60 mm
Description
Keystone in proven ROLINE quality!
  • The ROLINE Cat.6A Keystones are ideal for use in Gigabit Ethernet networks
They support data transfer rates up to 10 Gbit/s with a bandwidth of 500 MHz
  • Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
  • The Keystone modules can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.00360) or light gray (26.11.0359).
Or in combination with a module receptacle (25.16.8579) you can realise a junction box.
  • The Keystones are coded according to EIA/TIA 568
