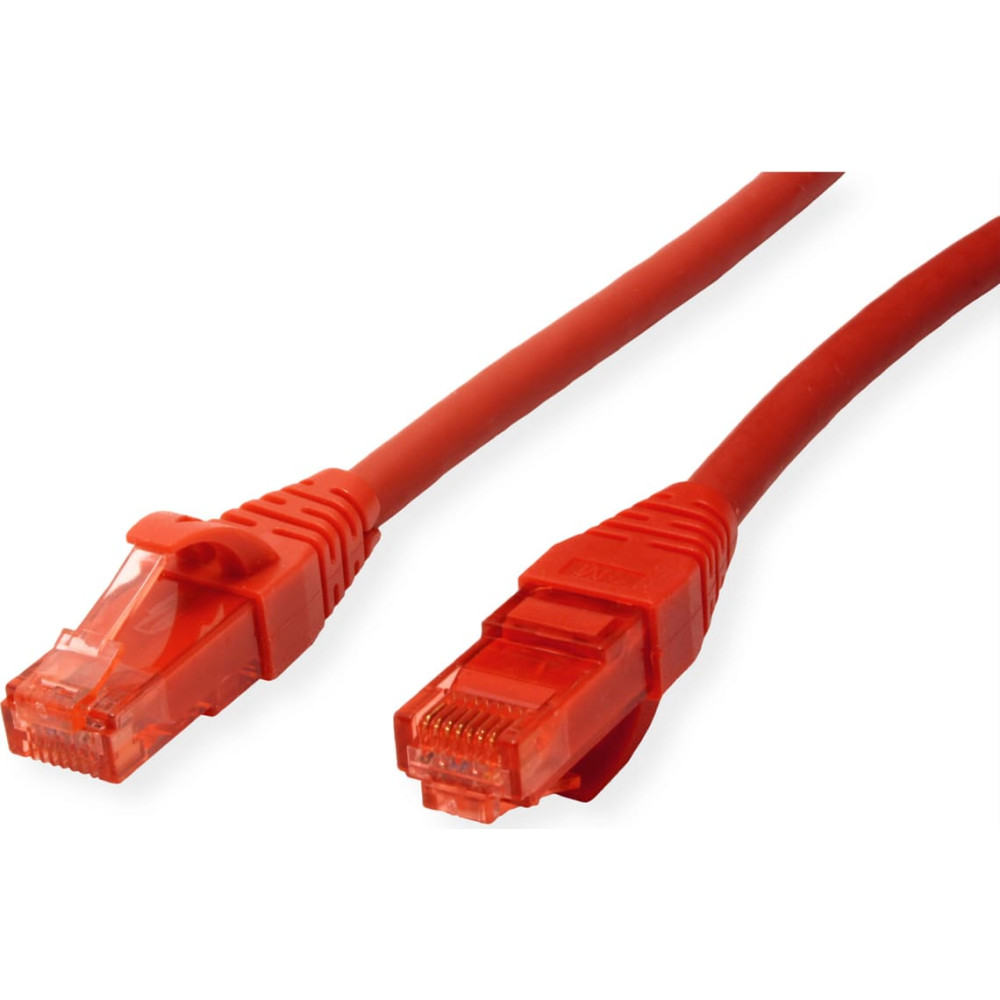

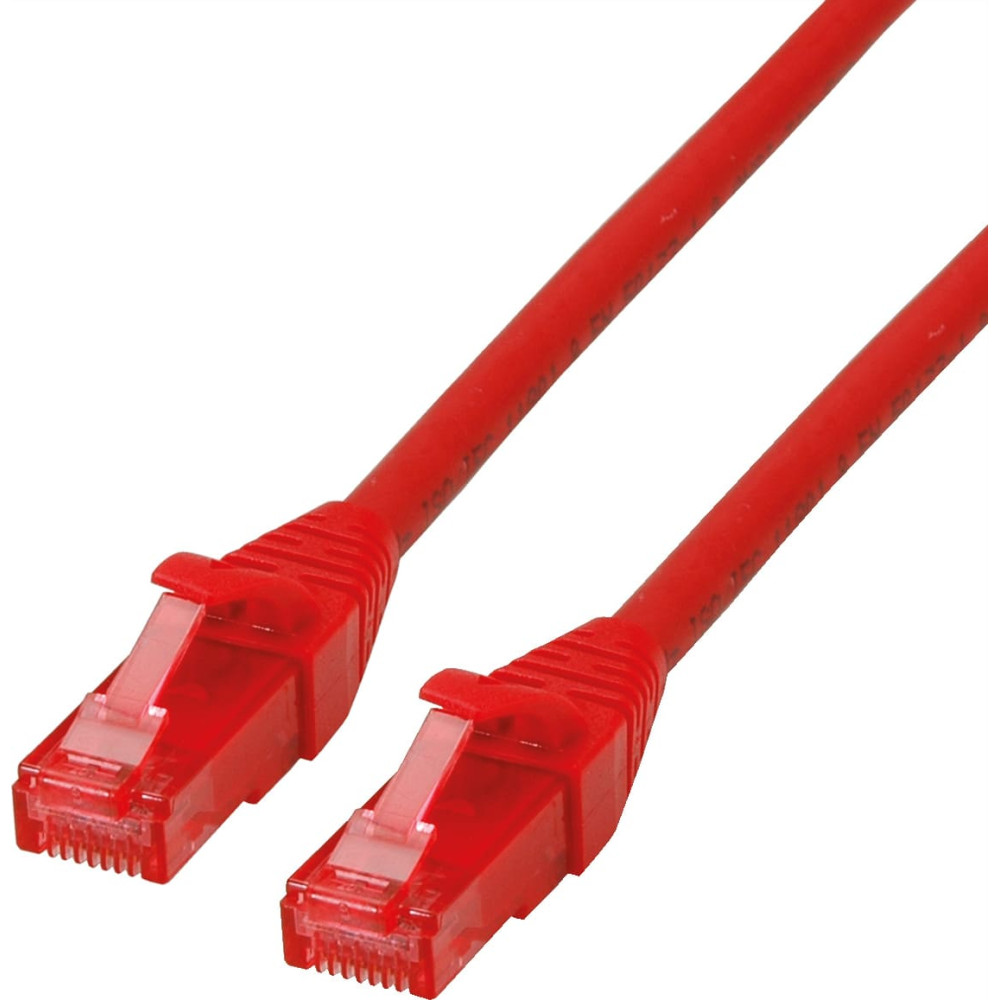

Roline UTP Cable Cat.6 Component Level, LSOH, red, 1.5 m

Product Code: 21.15.2514
Barcode 7611990967780

To purchase this product you must be registered in our system.



Specification
anti-kink sleeve: Moulded-on
cable lsoh: yes
colour: red
colour (spout): red
component-level certified: yes
conductor cross section (awg): AWG 24
conductor type: Stranded
connector type rj45: Standard
crossed: no
current catalog edition: C25-01.34
current catalog page: 1.36
depth of packaging (single piece): 200 mm
gross weight: 0.088
height of packaging (single piece): 20 mm
impedance: 100 Ohm
length: 1.5 m
length: 1.5 m
locking lever: yes
manufacturer: ROLINE
package weight (single piece): 0.088 kg
product group: Twisted Pair Cable
product type: UTP Patch Cables
quantity of wires: 8
shield type: UTP
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
technical particularity: Component Level
transfer quality: Cat6 / Class E
weight: 62.9 g
width of packaging (single piece): 170 mm

Description

Patch cable for networking connections between devices. Prepared unshielded Twisted Pair cable with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire. Halogen-free, flame retardant, low smoke.

100 % Component level testing
