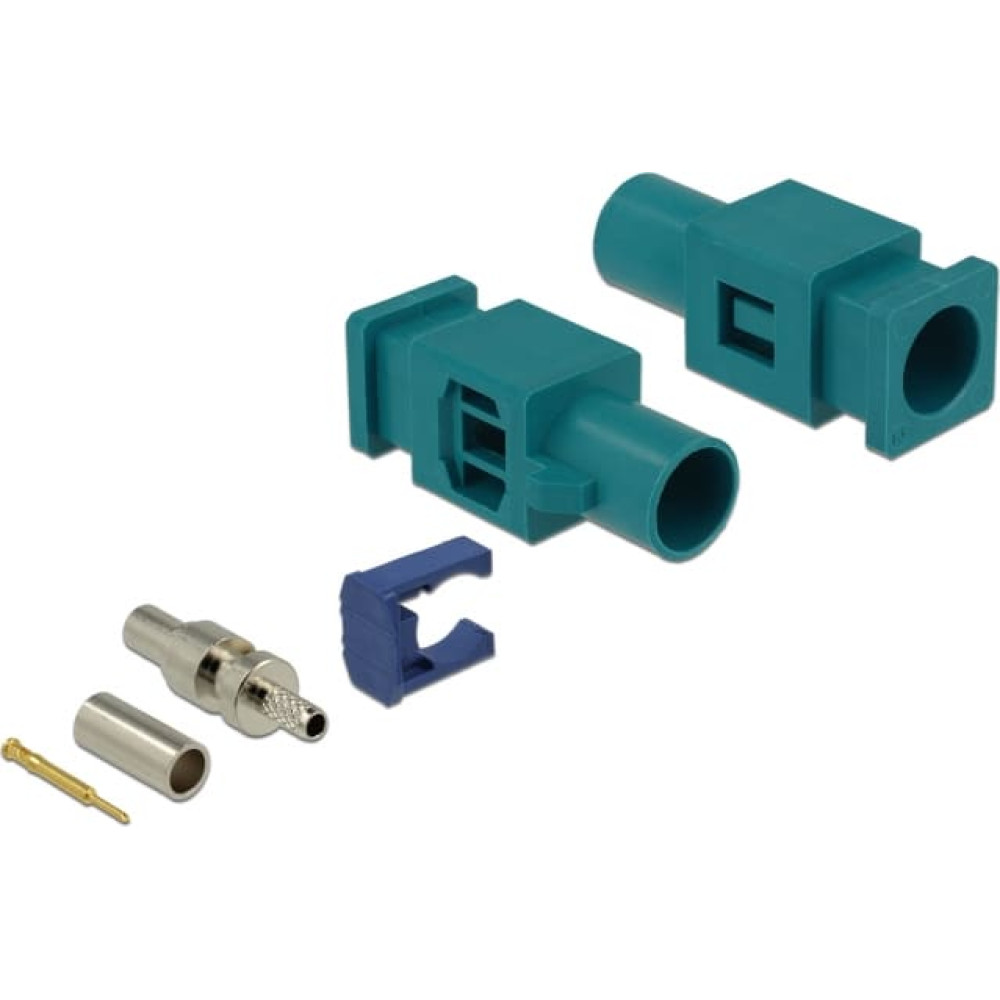

Delock FAKRA Z plug spring pin for crimping

DELOCK

Delock FAKRA Z plug spring pin for crimping

Product Code: 89765
Barcode 4043619897650

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.136
height: 0.005
width: 0.080
Description
This plug by Delock is suitable for connecting components of radio frequency technology.
System requirements:
• Coaxial cable suitable for crimping
Specification:
• Connector: 1 x FAKRA Z plug
• FAKRA Z: RAL 5021 Water blue
• Pin: brass gold plated
• Snap ring: PA66 GF30
• Insulator: PTFE
• Housing: brass nickel plated
• Plastic shell: PA66 GF30
• Useable cable: RG-174, RG-316
• Dimensions (LxWxH): ca. 25.6 x 9.4 x 7.4 mm
Package content:
• FAKRA plug
Data sheet:
http://www.delock.de/produkt/89765/pdf.html?sprache=en
