bend radius (min): 6.5 cm
cable diameter: 6.5 mm
cable length: 0.15 m
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c6/a0/c7/64/64c7a0c606dc2df550b17d50/CE_41004-06_V2_2023.pdf
certification: CE, UKCA, FCC, RoHS, REACH
chipset: NXP PTN3361

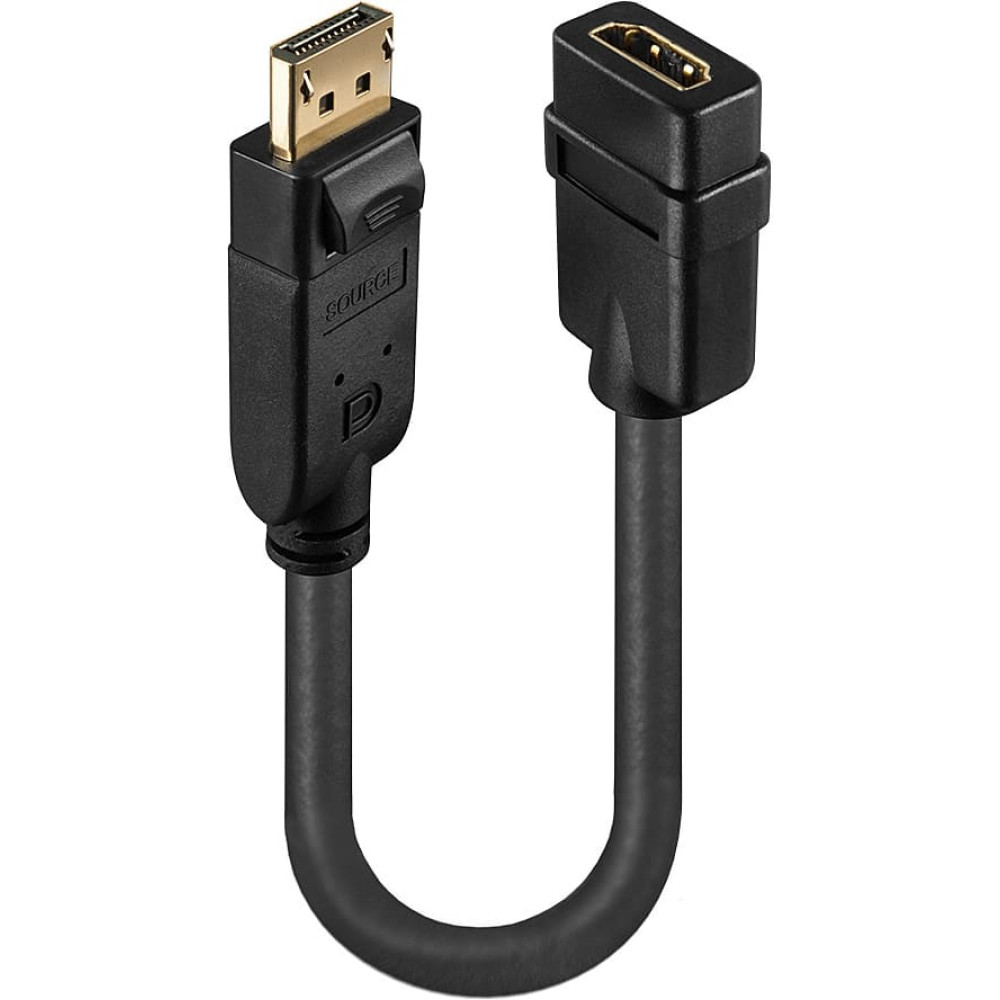

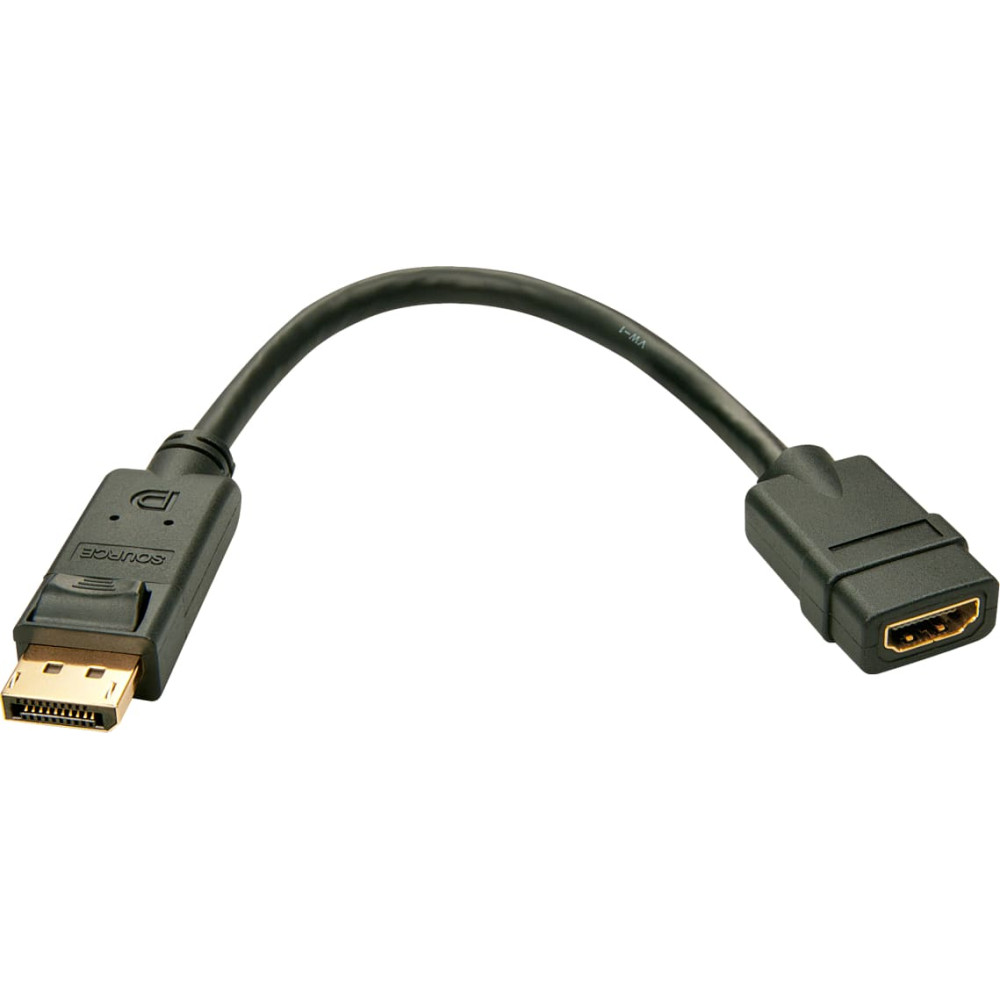

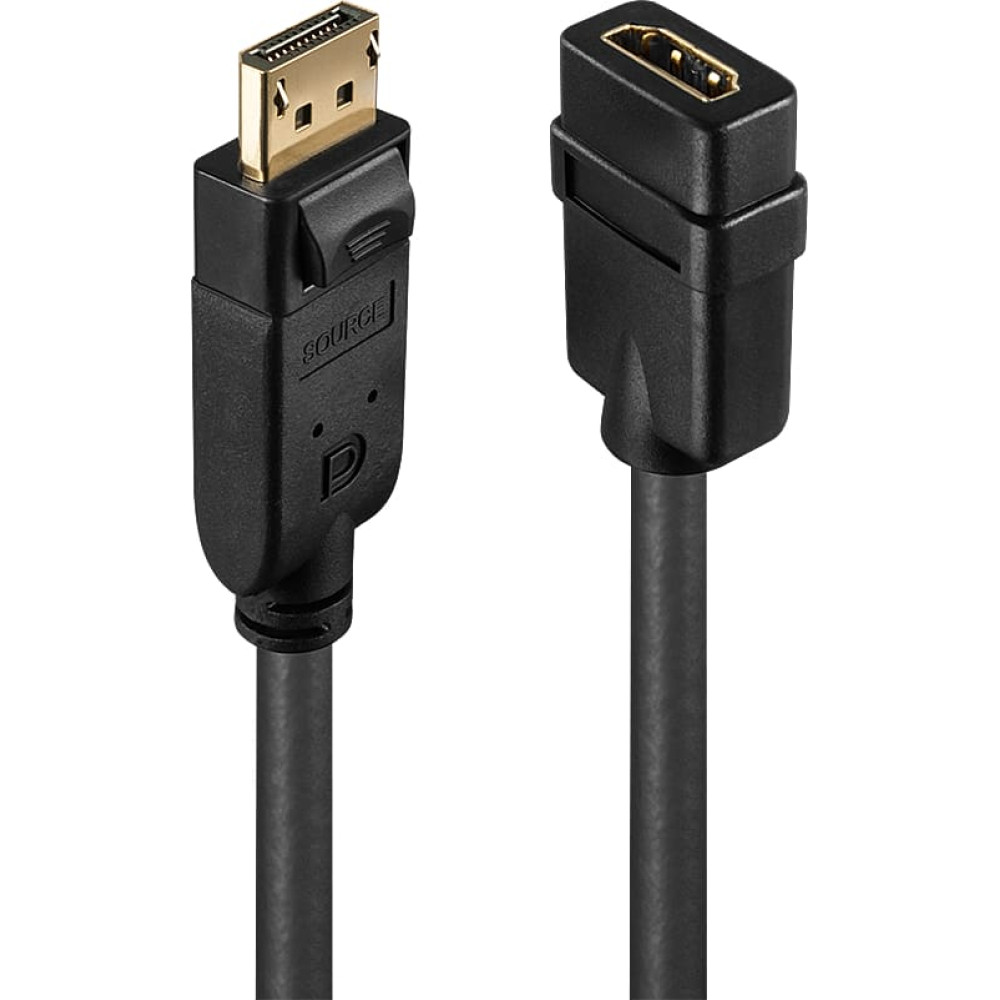

connector 1: DisplayPort
connector 1 dimensions (wxdxh): 21.9 x 40 x 11.4 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: HDMI
connector 2 dimensions (wxdxh): 20 x 36 x 11 mm
connector 2 form factor: Straight
connector 2 gender: Female
connector housing material: Thermoplastic elastomer (TPE)
country of origin: CN
data transfer rate: 4.45 Gbit/s
displayport version: 1.1
harmonized system (hs) code: 84733080
hdcp: Yes
hdcp version: 1.4
hdmi version: 1.3a
jacket material: Polyvinyl chloride (PVC)
manual: Yes
maximum resolution: 1920 x 1080 pixels
operating relative humidity (h-h): 20 - 90%
operating temperature (t-t): -20 - 80 °C
package depth: 20 mm
package height: 160 mm
package type: Polybag
package weight: 44 g
package width: 160 mm
packaging height: 19.4
packaging lenght: 17.4
packaging width: 1.0
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 70 °C
supported graphics resolutions: 1920 x 1080 (HD 1080)
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f4/67/97/62/629767f4d0ebe20d37a65f2d/41005_TDS_v1.pdf
warranty: 2.0
weight: 36 g
