Specifikācija
auto mdi/mdi-x: Yes
auto-negotiation: Yes
certification: FCC Part 15 Subpart B Class A
CE EN 55022 Class A
FCC Part 15 Subpart B Class A,
CE EN 55022 Class A
EN61000-4-2 (ESD) Level 3
EN61000-4-3 (RS) Level 2
EN61000-4-4 (EFT) Level 2
EN61000-4-5 (Surge) Level 2
EN61000-4-6 (CS) Level 2
EN 61000-4-8 (PFMF) Level 1
UL508 (Pending)
EN 50121-4 (Pending)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
compliance certificates: RoHS
connectivity technology: Wired
converter input interface: 10Base-T, 100Base-TX
converter output interface: 100Base-FX
country of origin: Taiwan
depth: 49 mm
duplex system: Full, Half
ethernet lan (rj-45) ports: 1
fiber mode structure: Multi-mode
fiber optic connector: ST
fiber ports quantity: 1
flow control support: Yes
harmonized system (hs) code: 85176990
height: 36 mm
housing material: Aluminium
input voltage: 12 - 60 V
internal: No
led indicators: Activity, Link, Power
maximum data transfer rate: 100 Mbit/s
maximum transfer distance: 2000 m
networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
operating relative humidity (h-h): 5 - 95%
operating temperature (t-t): -40 - 75 °C
package depth: 105 mm
package height: 65 mm
package type: Box
package weight: 260 g
package width: 160 mm
power consumption (typical): 1.44 W
product colour: Black
quick installation guide: Yes
storage temperature (t-t): -40 - 75 °C
weight: 90 g
width: 59 mm
Preces apraksts

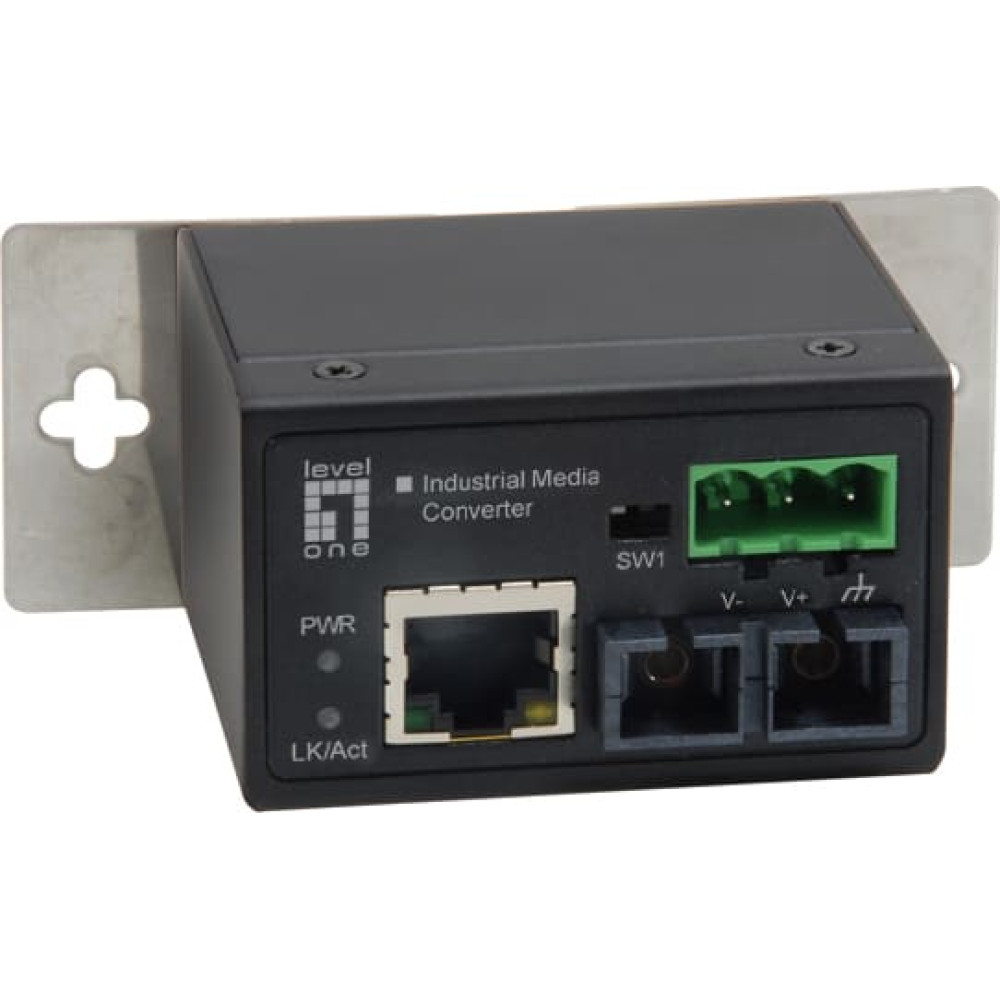

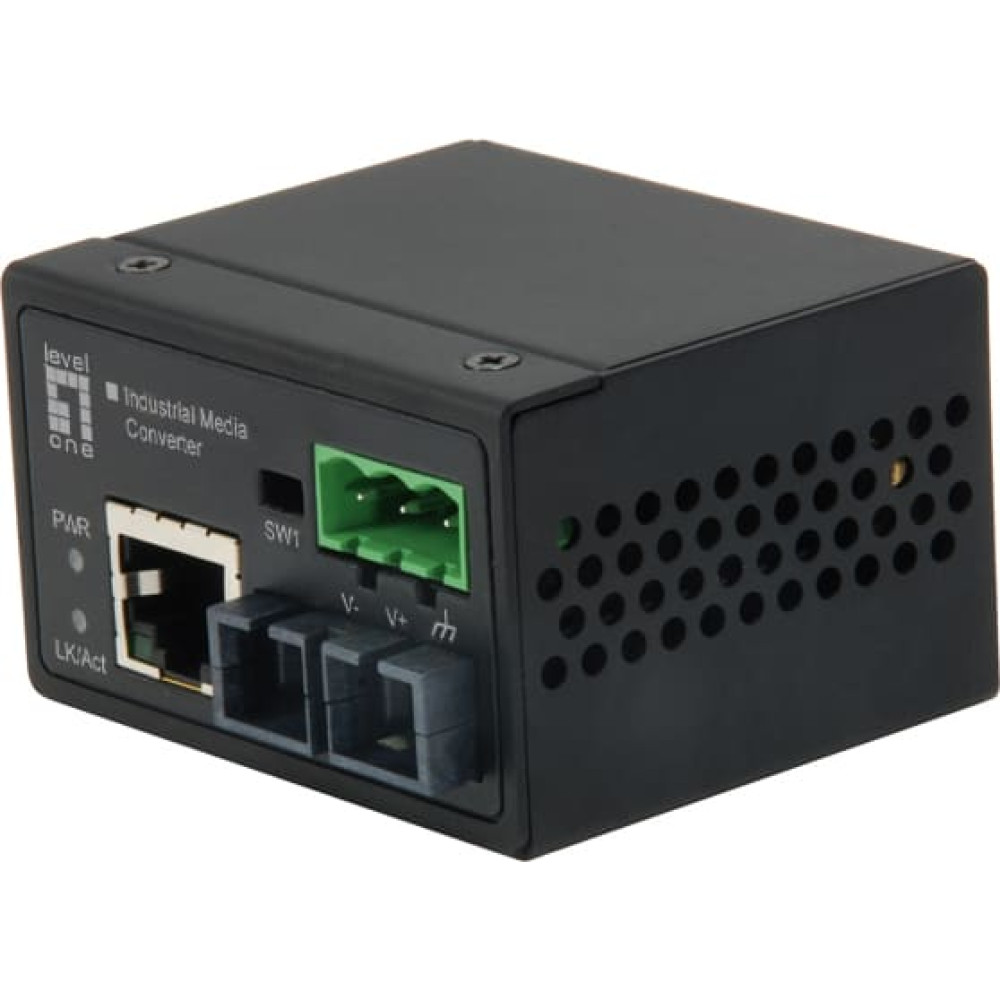

| LevelOne IEC-4002. Maksimālais datu pārraides ātrums: 100 Mbit/s, Konvertora ievades interfeiss: 10Base-T, 100Base-TX, Konvertora izvades interfeiss: 100Base-FX. Maksimālais pārskaitījums attālums: 2000 m, Šķiedras režīma struktūra: Multi režīms. LED indikatori: Aktivitāte, Link, Jauda, Produkta krāsa: Melns, Apvalka materiāls: Alumīnijs. Optiskās šķiedras konektors: ST, Savienojamības tehnoloģija: Vadu. Ieejas spriegums: 12 - 60 V, Enerģija patēriņš: 1,44 W |
