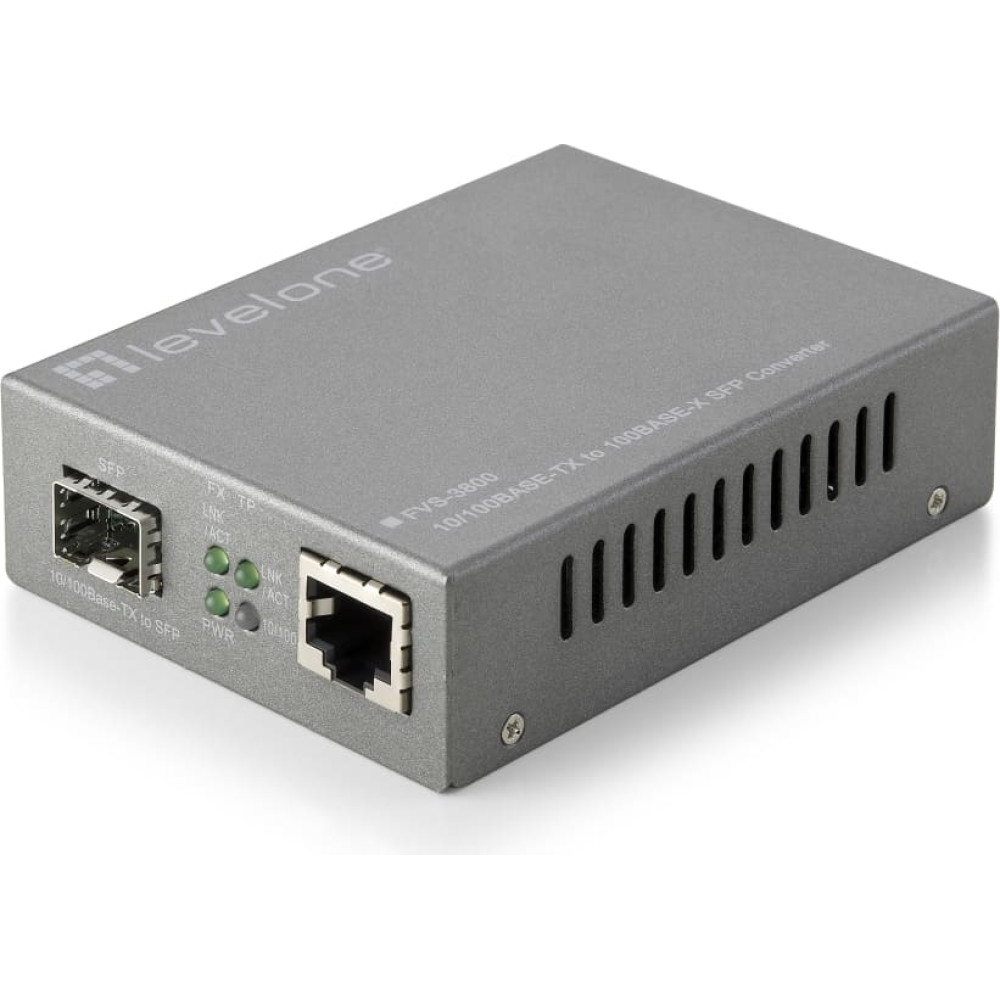

Level One LevelOne Konverter FVS-3800 10/100TX>100 X SFP

Product Code: FVS-3800
Barcode 4015867160169

To purchase this product you must be registered in our system.



Specification
certification: FCC Part 15 Class A, CE
connectivity technology: Wired
converter input interface: 10Base-T, 100Base-TX
country of origin: Taiwan
dc-in jack: Yes
depth: 26.2 mm
ethernet interface type: Fast Ethernet
ethernet lan (rj-45) ports: 1
ethernet lan data rates: 10,100 Mbit/s
external power adapter: Yes
fiber optic connector: SFP
fiber ports quantity: 1
flow control support: Yes
harmonized system (hs) code: 85176990
height: 94 mm
input current: 1 A
input voltage: 5 V
internal: No
jumbo frames support: Yes
led indicators: Yes
manual: Yes
maximum data transfer rate: 100 Mbit/s
networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
operating relative humidity (h-h): 5 - 90%
operating temperature (t-t): 0 - 50 °C
package depth: 220 mm
package height: 60 mm
package weight: 470 g
package width: 160 mm
power consumption (typical): 1.5 W
product colour: Grey
width: 70.3 mm

Description
The LevelOne Web Smart Media Converter FVS-3800 is designed to make conversion between
10/100BASE-TX and 100BASE-X SFP Ethernet.

With web-based management, the network administrator can logon to the converter remotely to monitor, configure and control the status of each unit. The overall network reliability is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.

- HTTP Management with remote firmware upgrade supported
- ICMP and ARP protocols supported
- DHCP Client for easy IP address setup
- LLR (Link Loss Return) supported
- IEEE 802.1Q VLAN and Double VLAN (Q-in-Q) supported
- Support 802.3x Flow Control to prevent lost data by controlling the device flow loading
