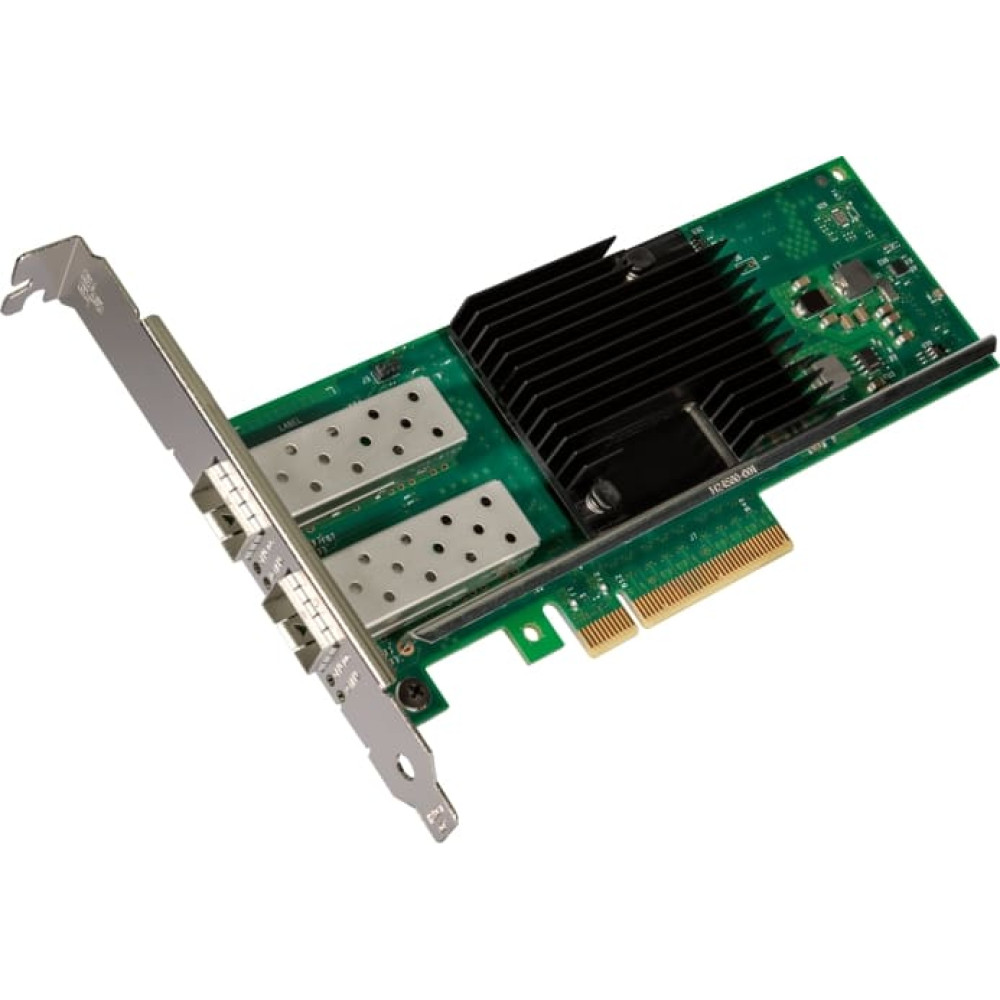

Intel NEK PCI-Express X710-DA2 2x SFP+ 2x 10Gb bulk

Produkta kods: X710DA2BLK
Svītrkods: 5032037063456

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
depth: 0.137
height: 0.028
width: 0.182

Preces apraksts
Flexible Port Partitioning Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth. Virtual Machine Device Queues (VMDq) Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance PCI-SIG* SR-IOV Capable Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices. Intel® Ethernet Power Management Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Connectivity technology Wired
Host interface PCI Express
Interface Fiber
Ethernet LAN (RJ-45) ports 2
Fiber ports quantity 2
Fiber optic connector SFP+
PCI version 3.0
Maximum data transfer rate 10000 Mbit/s
Ethernet LAN data rates 10,1000 Mbit/s
Fiber ethernet cabling technology 10GBASE-LR, 10GBASE-SR
Quality of Service (QoS) support Y
Maximum operating distance 10 m
LAN controller Intel® X710
Internal Y
Product colour Black, Green, Stainless steel
LED indicators Y
Certification FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Compatible operating systems https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Width 167 mm
Depth 69 mm
Quantity 1
Harmonized System (HS) code 85176990
Data transfer rate 8 GT/s
Cable type SFP+ Direct Attached Twinaxial Cabling up to 10m
Market segment Server
Intel Virtual Machine Device Queues (VMDq) Y
PCI-SIG* SR-IOV Capable Y
On-chip QoS and Traffic Management Y
Intel Flexible Port Partitioning Y
Storage-over-ethernet Y
Speed & slot width 8.0 GT/s, x8 Lane
Low halogen options available N
Intelligent Offloads Y
iWARP/RDMA N
Fiber Channel over Ethernet N
Intel Ethernet Power Management Y
Intel Data Direct I/O Technology Y
Intel Virtualization Technology for Connectivity (VT-c) Y
Interface type PCIe v3.0 (8.0 GT/s)
Conflict-Free Y
Product type Network Interface Card
Processor family 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Ethernet adapter ARK ID 83964
Export Control Classification Number (ECCN) 5A991
Commodity Classification Automated Tracking System (CCATS) NA
Controller type Intel® Ethernet Controller X710
Cabling type SFP+ Direct Attached Twinaxial Cabling up to 10m
Bracket height Low-Profile (LP) / Full-Height (FH)
Target market Artificial Intelligence, High Performance Computing
Storage Over Ethernet iSCSI, NFS
Launch date Q4'14
Network interface card cable medium Copper
Network interface card type Server
Product brief URL http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-x710-brief.pdf
Status Launched
Last change 64826824
Product family Intel 10 Gigabit server adapter
Product series 700 Series Network Adapters (up to 40GbE)
Product codename Fortville
