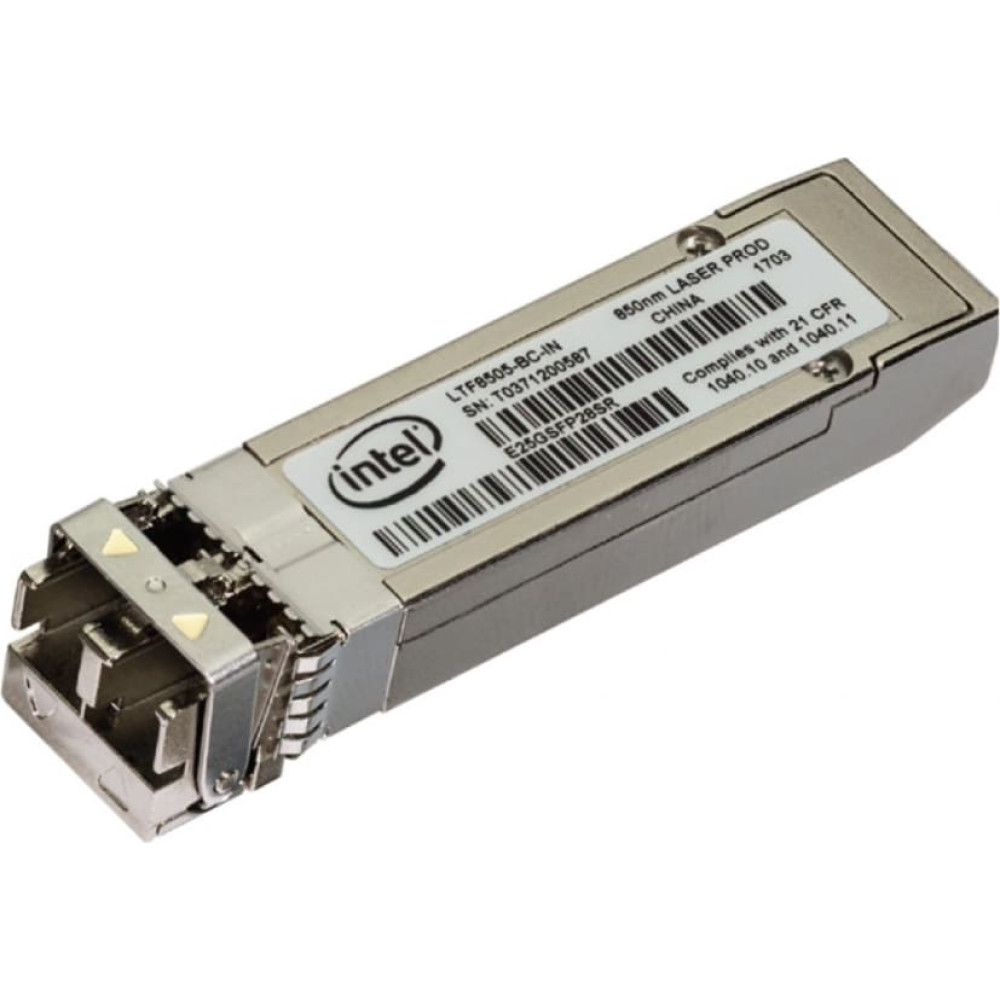

Intel NEK SFP28 Transceiver-Modul

Produkta kods: E25GSFP28SR
Svītrkods: 5032037097420

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
depth: 0.120
height: 0.020
width: 0.066

Preces apraksts
Intel® Ethernet SFP28 Optics are available for customers who would like to deploy Intel® Ethernet Network Adapters with an SFP28 optic. The Intel® Ethernet Network Adapter XXV710 with SFP28 connectivity delivers a proven, reliable solution for deployments of high density Ethernet. The Intel® Ethernet Network Adapter XXV710 supports SFP28 connectors enabling customers to have network connections via either direct attach Twinax copper cables, or SR and LR optical modules. The Intel® Ethernet Network Adapter XXV710 has all the server and network virtualization capabilities of the Intel® Ethernet 700 Series adapters but at 25GbE speed. With 25GbE backward compatibility to 10GbE, it provides a natural upgrade migration path for those customers who need more bandwidth. Intel supports the ability to use Intel® Ethernet SFP28 Optics, Intel® Ethernet SFP28 Twinaxial Cables, or Intel® Ethernet QSFP28-to-SFP28 Twinaxial Breakout Cables. This helps customers create the configuration that best meets the needs of their data center environment, while ensuring compatibility.

SFP transceiver type Fiber optic
Maximum data transfer rate 25000 Mbit/s
Interface type SFP28
Multi-mode fiber (MMF) supported Y
SFP transceiver standard SR
Wavelength 850 nm
Export Control Classification Number (ECCN) 5A991
Commodity Classification Automated Tracking System (CCATS) NA
Product colour Silver
ARK ID 121506
Power consumption (typical) 1.2 W
Operating temperature (T-T) 0 - 70 °C
Number of products included 1 pc(s)
Sustainability certificates RoHS
Harmonized System (HS) code 85369010
Status Launched
Launch date Q1'17
Product series Intel® Ethernet SFP28 Optics
