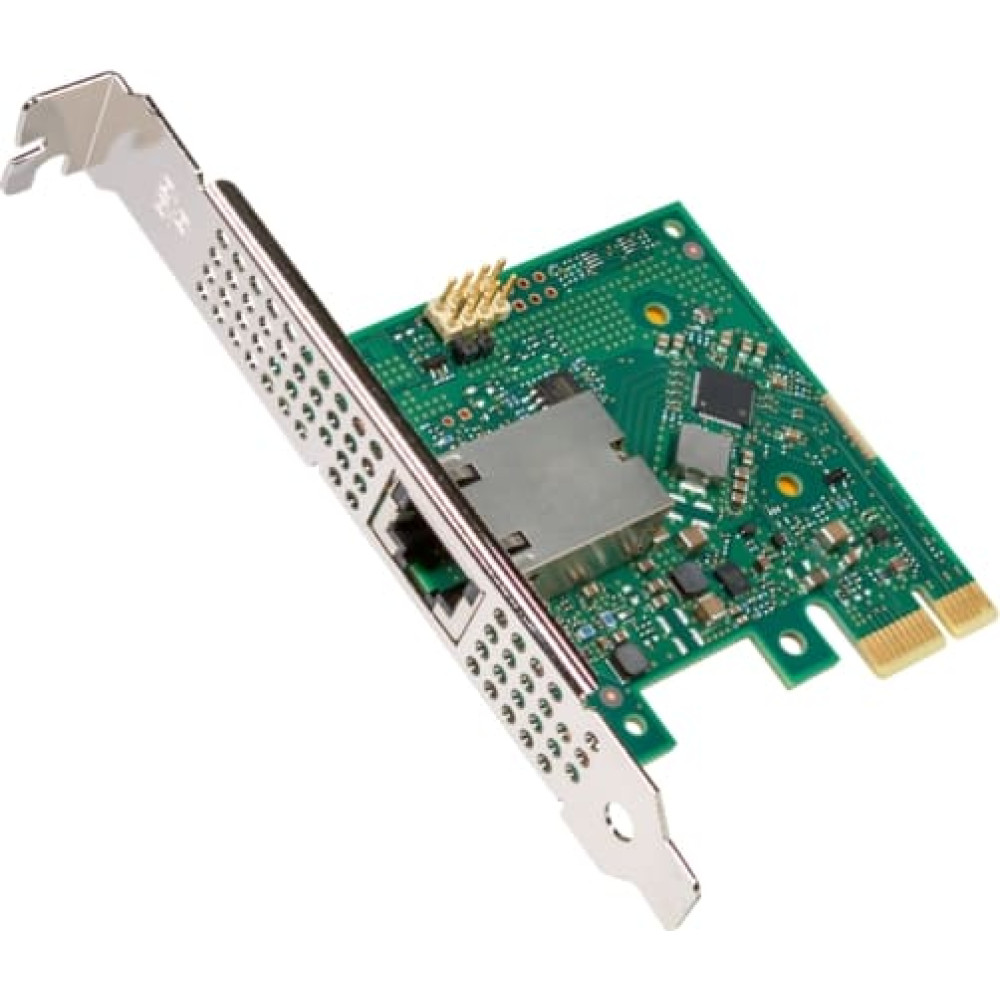

The Intel® Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel® Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
| | Connectivity technology | Wired | | Host interface | PCI Express | | Interface | Ethernet | | Ethernet LAN (RJ-45) ports | 1 | | PCI version | 3.1 | | PCI Card form factor | Full-height (low-profile) | | Maximum data transfer rate | 25000 Mbit/s | | Networking standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3z | | Ethernet LAN | Jā | | Ethernet interface type | 2.5 Gigabit Ethernet | | Ethernet LAN data rates | 10,100,1000,2500 Mbit/s | | Wi-Fi | Nē | | Jumbo frames support | Jā | | Maximum operating distance | 100 m | | Internal | Jā | | Component for | PC/Server | | Product colour | Green, Silver | | LED indicators | Activity, Link | | Power consumption (typical) | 1.4 W | | Operating temperature (T-T) | 0 - 55 °C | | Storage temperature (T-T) | -40 - 70 °C | | Sustainability compliance | Jā | | Sustainability certificates | BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI | | Width | 68.7 mm | | Depth | 65.3 mm | | Harmonized System (HS) code | 8517620090 | | Market segment | Desktop | | Ethernet adapter ARK ID | 225771 | | Export Control Classification Number (ECCN) | 5A991.B.4.A | | Cabling type | CAT5e, CAT6, CAT6A | | Launch date | Q3'23 | | Network interface card cable medium | Copper |
|
|
