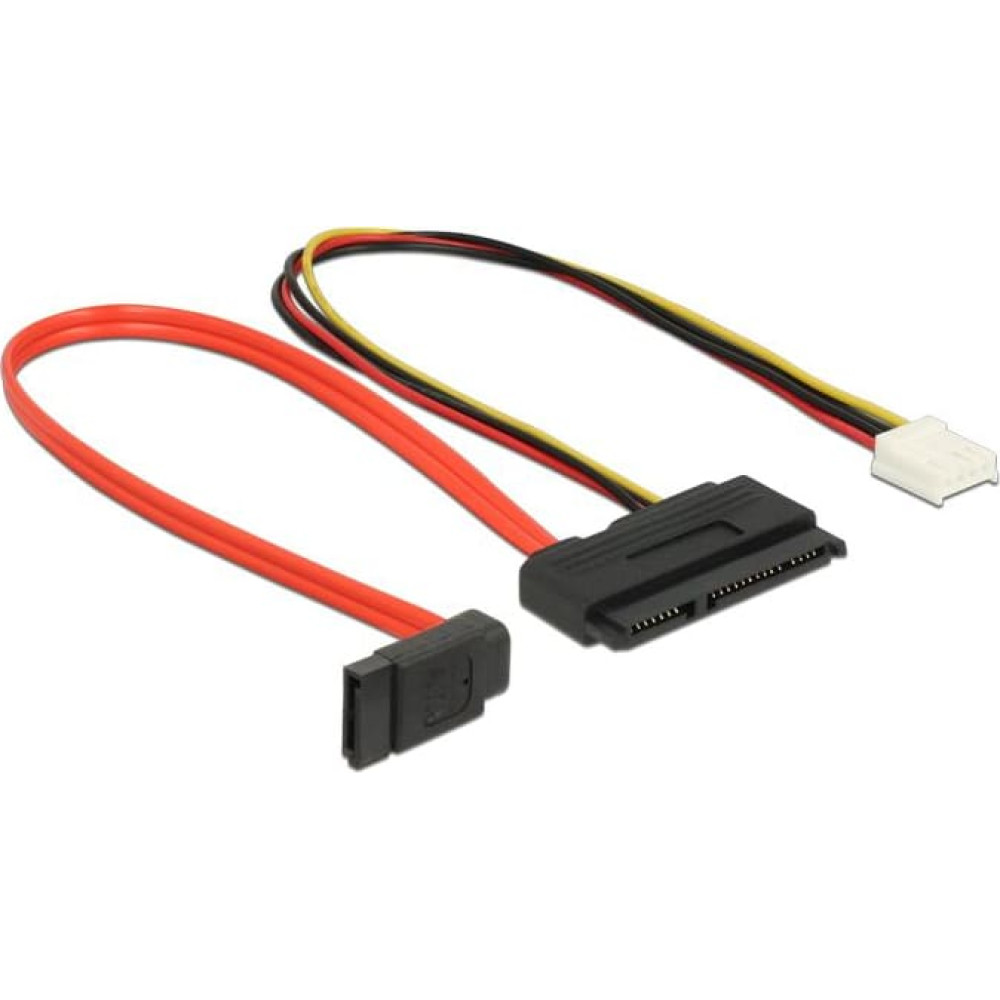

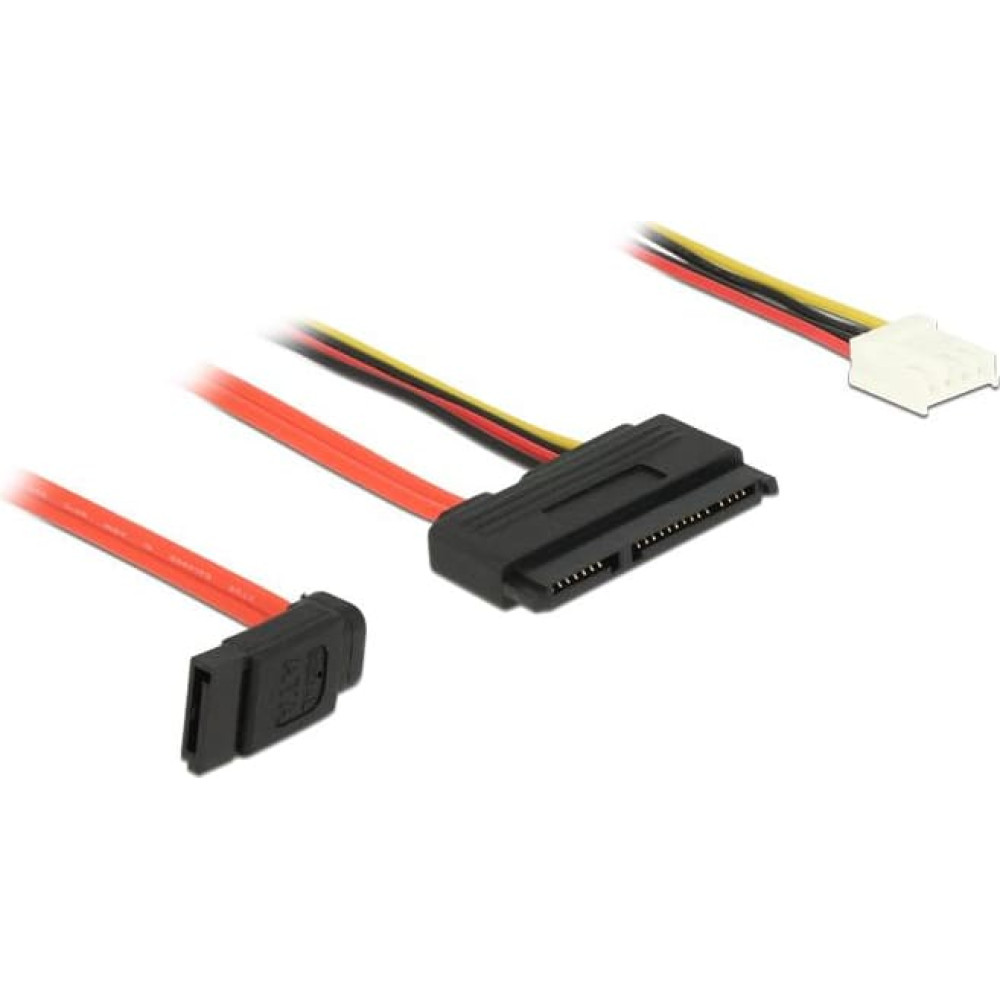

Delock Cable SATA 6 Gbs 7 pin receptacle + Floppy 4 pin power receptacle (5 V + 12 V) SATA 22 pin receptacle straight 30 cm

Product Code: 84852
Barcode 4043619848522

To purchase this product you must be registered in our system.




Description
This cable by Delock enables the connection of a device with 22 pin SATA interface over a free SATA port and a free 4 pin Floppy power interface of the motherboard.
System requirements:
• A free SATA interface
• A free Floppy power plug
Specification:
• Connector:
  SATA 6 Gb/s 7 pin receptacle upwards angled + Floppy 4 pin power receptacle >
  SATA 6 Gb/s 22 pin (7 pin data + 15 pin power) receptacle straight
• Compatible to motherboards of the Fujitsu D3003/3313 series and Gigabyte GA-H110TN
  Mini-ITX series
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Version with 4 power wires (yellow = 12 V, black = GND, red = 5 V)
• Voltage: 5 V + 12 V
• Cable gauge:
  30 AWG data line
  22 AWG power line
• Length without connector: ca. 30 cm
Package content:
• SATA cable
Data sheet:
http://www.delock.de/produkt/84852/pdf.html?sprache=en
