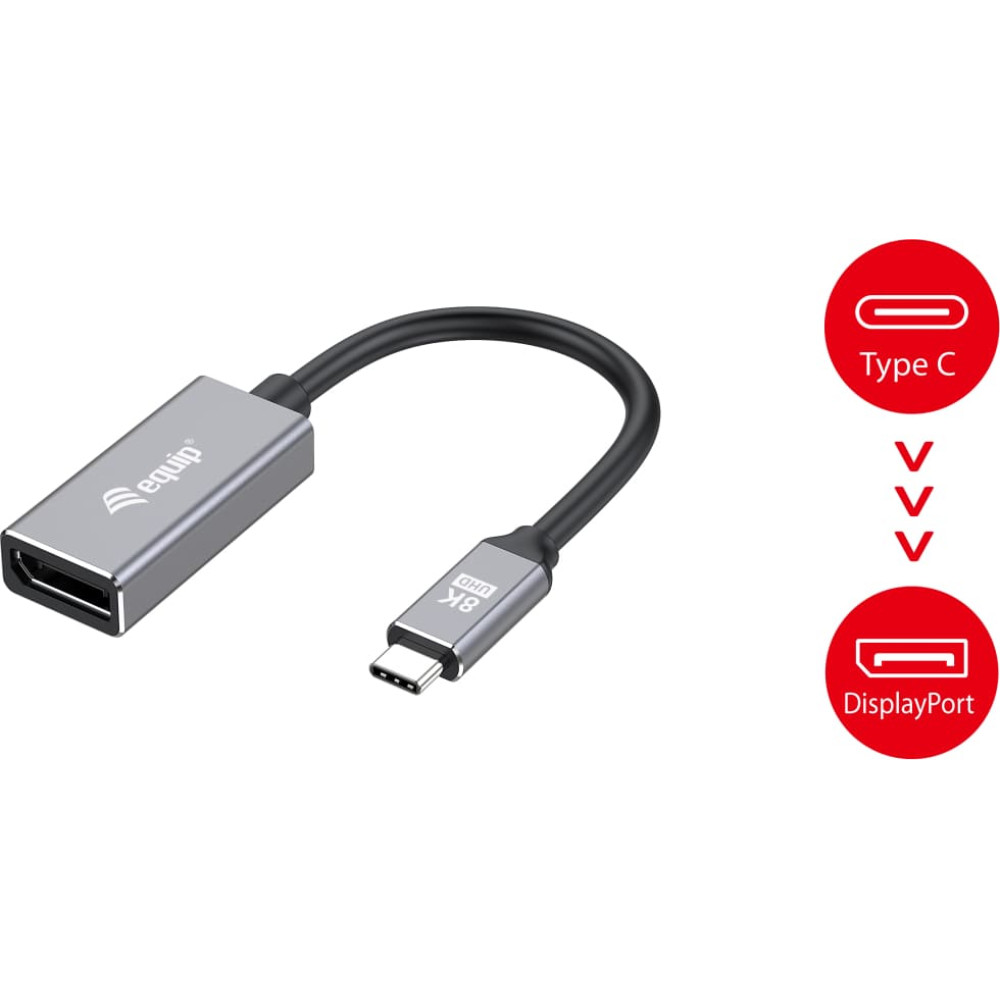

Equip Adapter USB-C -> DisplayPort 1.4 8K60Hz 0.15m gr
To purchase this product you must be registered in our system.
Specification
cable length: 0.15 m
cable type: Round cable
compliance certificates: RoHS, CE
connector 1: USB Type-C
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: DisplayPort
connector 2 form factor: Straight
connector 2 gender: Female
connector contacts plating: Gold
country of origin: China
data transfer rate: 32.4 Gbit/s
depth: 200 mm
displayport version: 1.4
hdcp: Yes
hdcp version: 2.2
height: 20 mm
maximum refresh rate: 240 Hz
maximum resolution: 7680 x 4320 pixels
package depth: 75 mm
package height: 148 mm
package type: Box
package weight: 560 g
package width: 23 mm
plug and play: Yes
power source: USB
product colour: Black, Grey
quantity per pack: 1 pc(s)
refresh rate at maximum resolution: 30 Hz
supported graphics resolutions: 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
weight: 30 g
width: 10 mm
Description

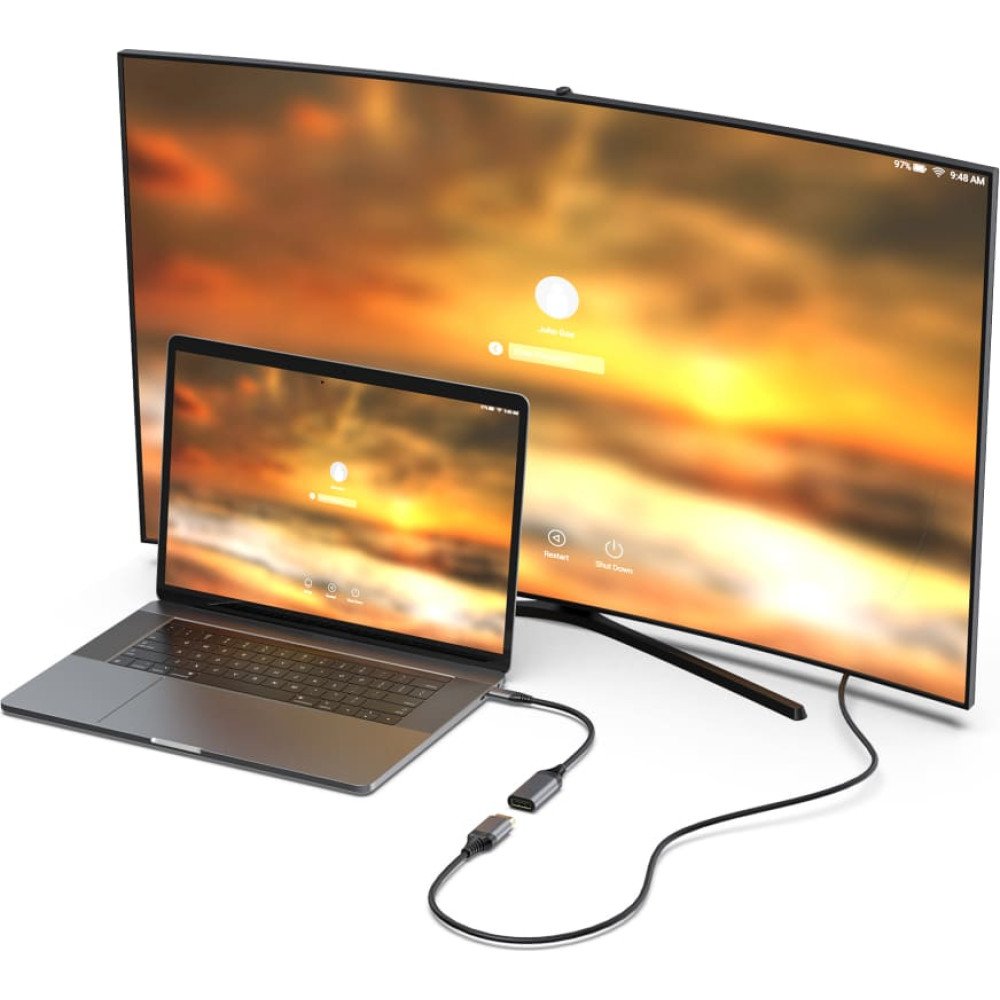

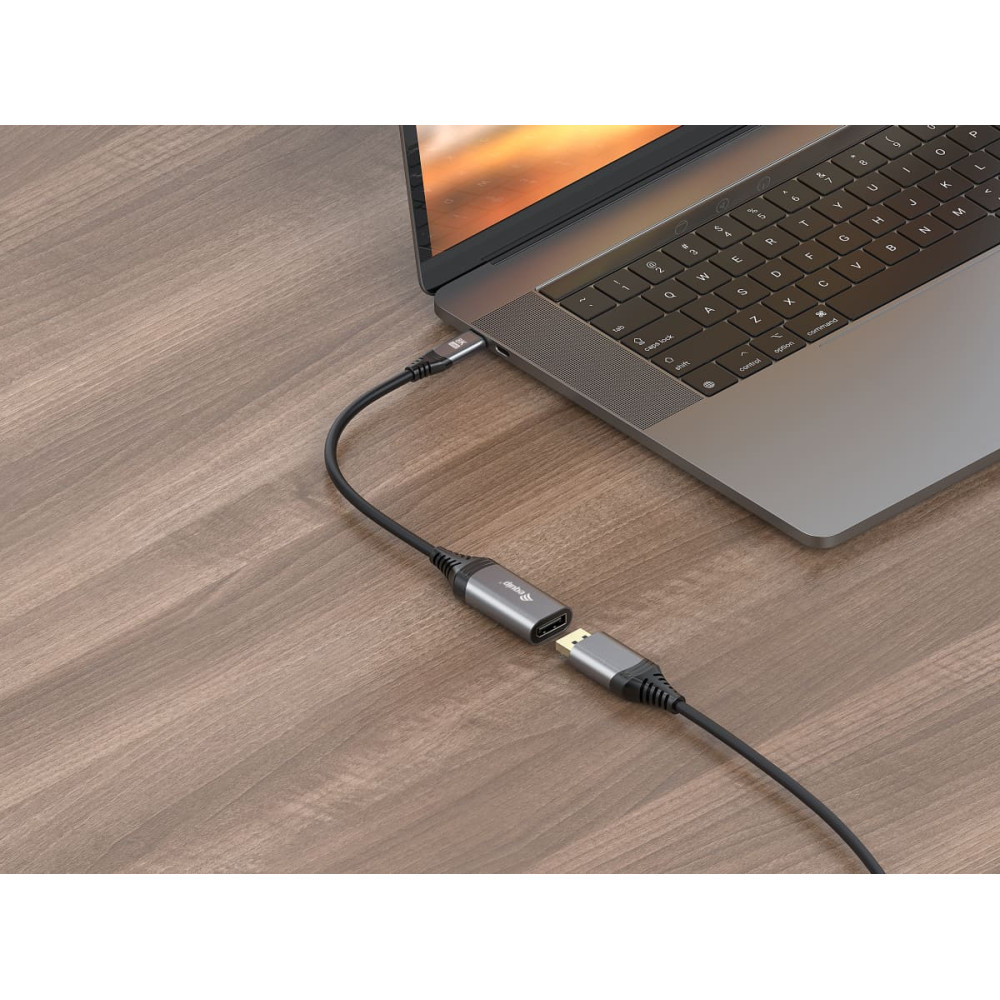

| The equip® USB-C to DisplayPort 1.4 adapter is a device that allows you to connect a USB-C device, such as a laptop or smartphone, to a display that supports DisplayPort 1.4. This adapter supports high resolution and refresh rates, with a maximum resolution of 8K/30Hz. The adapter can transmit both video and audio signals, and supports HDCP 2.2 content protection. It is a convenient solution for users who want to connect their USB-C devices to a DisplayPort monitor or TV, and is especially useful for tasks that require high resolution and fast refresh rates, such as gaming, video editing, and graphic design. By supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320/30Hz) resolution can be displayed. |
