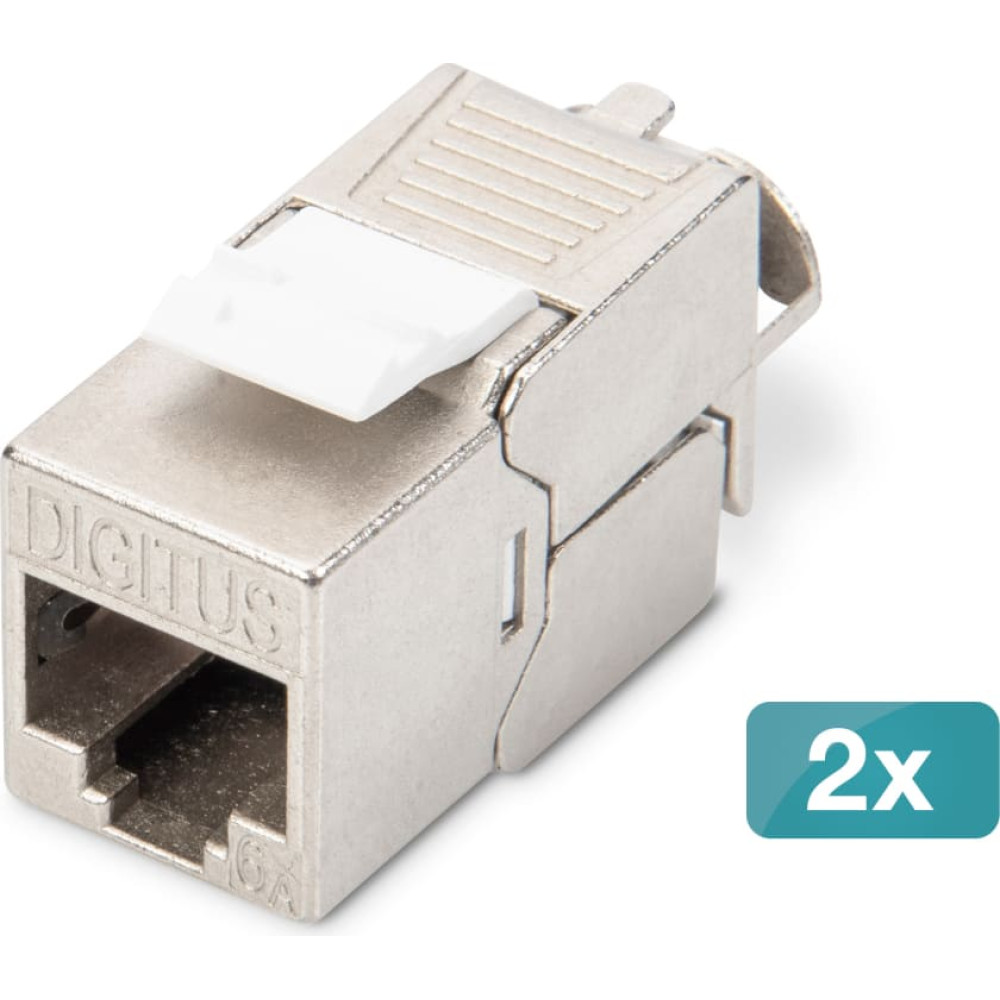

Digitus CAT 6A Keystone Module, shielded, toolfree - 2 pcs.

Product Code: DN-93615-2
Barcode 4016032490555

To purchase this product you must be registered in our system.



Specification
country of origin: CN
depth: 0.110
height: 0.010
height(cm): 2.1
length(cm): 9
volume(cm3): 170.1
weight(kg): 0.0246
width: 0.120
width(cm): 9

Description
CAT 6A Keystone Jack, shielded, 2 pcs. tool free connection

Quick and safe wire terminations without any special tool

360° shield contact
Suitable for field installation (tool free assembly)
Multi-design - suitable for distribution panel and junction box mounting
Cat. 6A with LSA insulation-displacement connector
Dust protection cap for RJ45 jack
GHMT certified
Supported PoE-Standards: IEEE 802.3 af/at/bt (PoE, PoE+ & 4PPoE)

The shielded cat. 6A keystone module set DN-93615 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design makes series installation possible in a 483 mm (19") 1U panel. Tool-free installation uses LSA rails color-coded in accordance with EIA/TIA 568 A&B. Its compact design also means that the module fits in design-compatible modular junction boxes.

Category: CAT 6A
Category 6A 10GBase-T, 500 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)

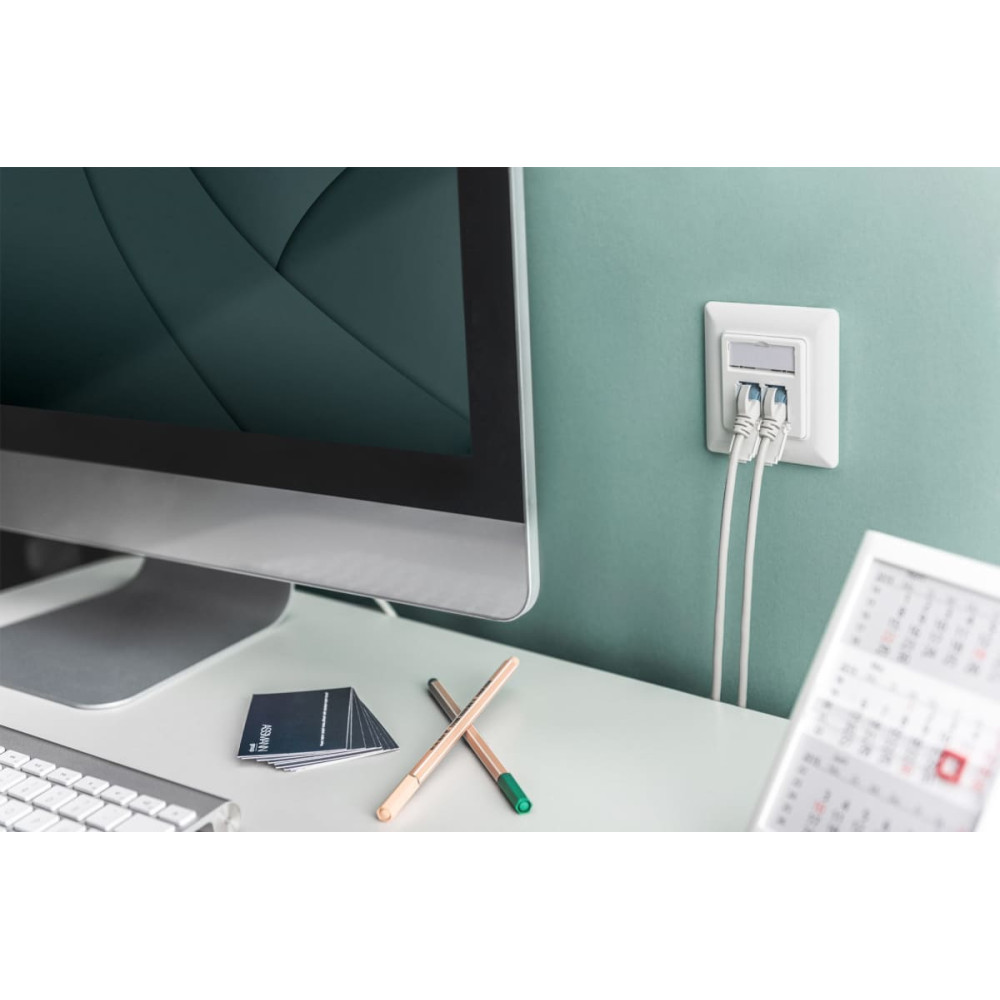

Suitable for modular patch panel and modular wall outlet installation.
RJ45-Jack, 8P8C

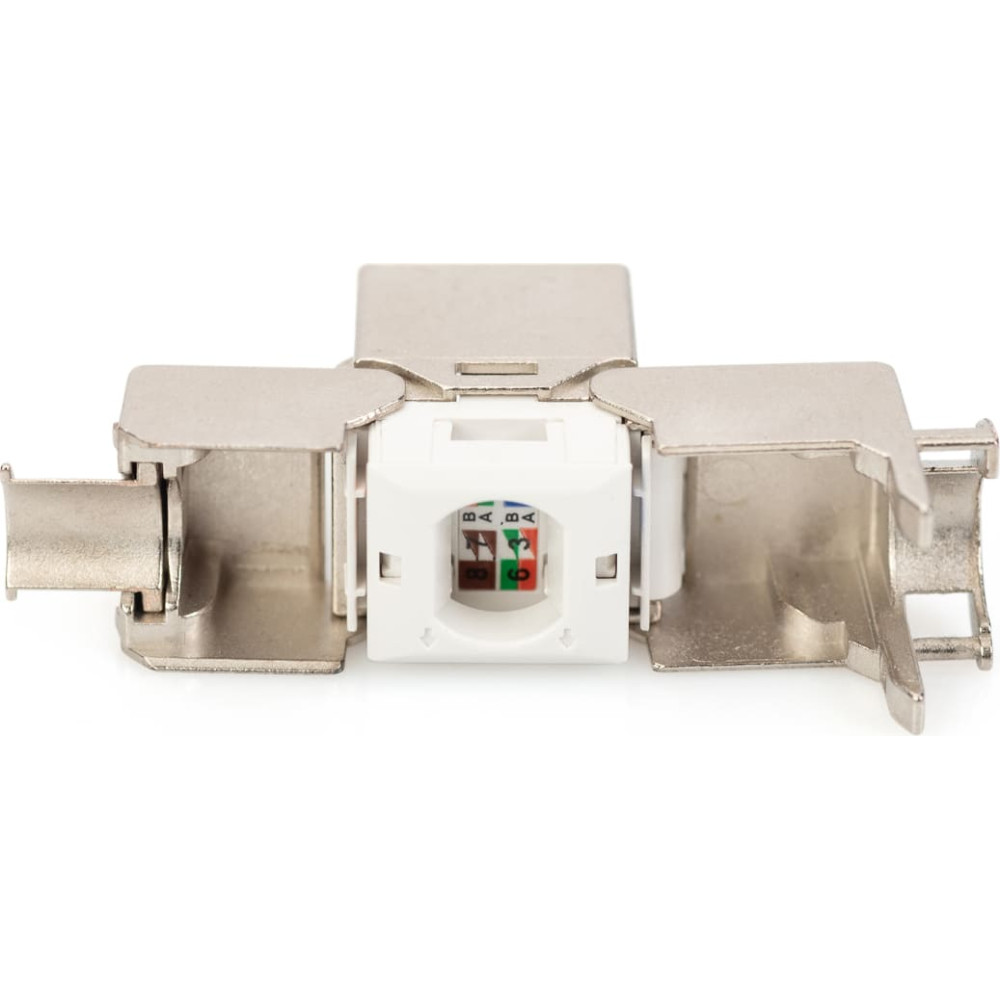

Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B

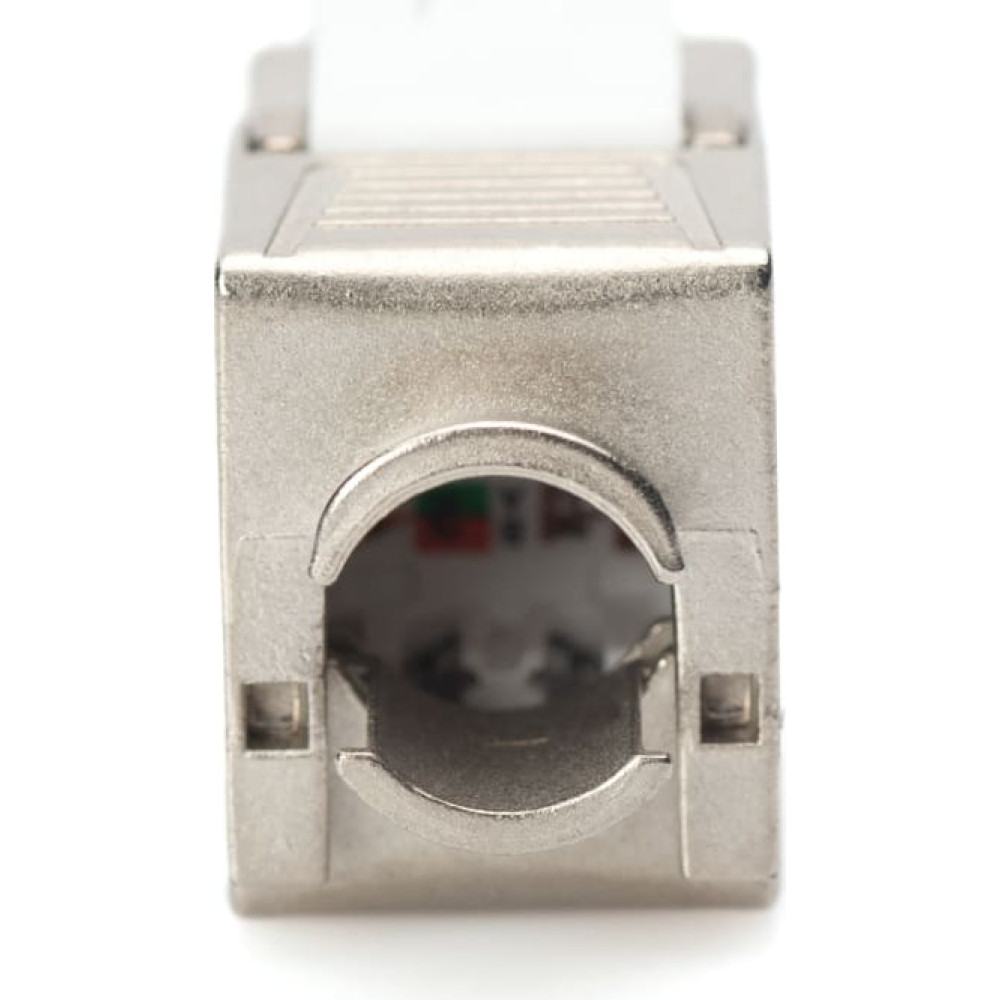

Cable grip and cable fixation using intelligent cable manager

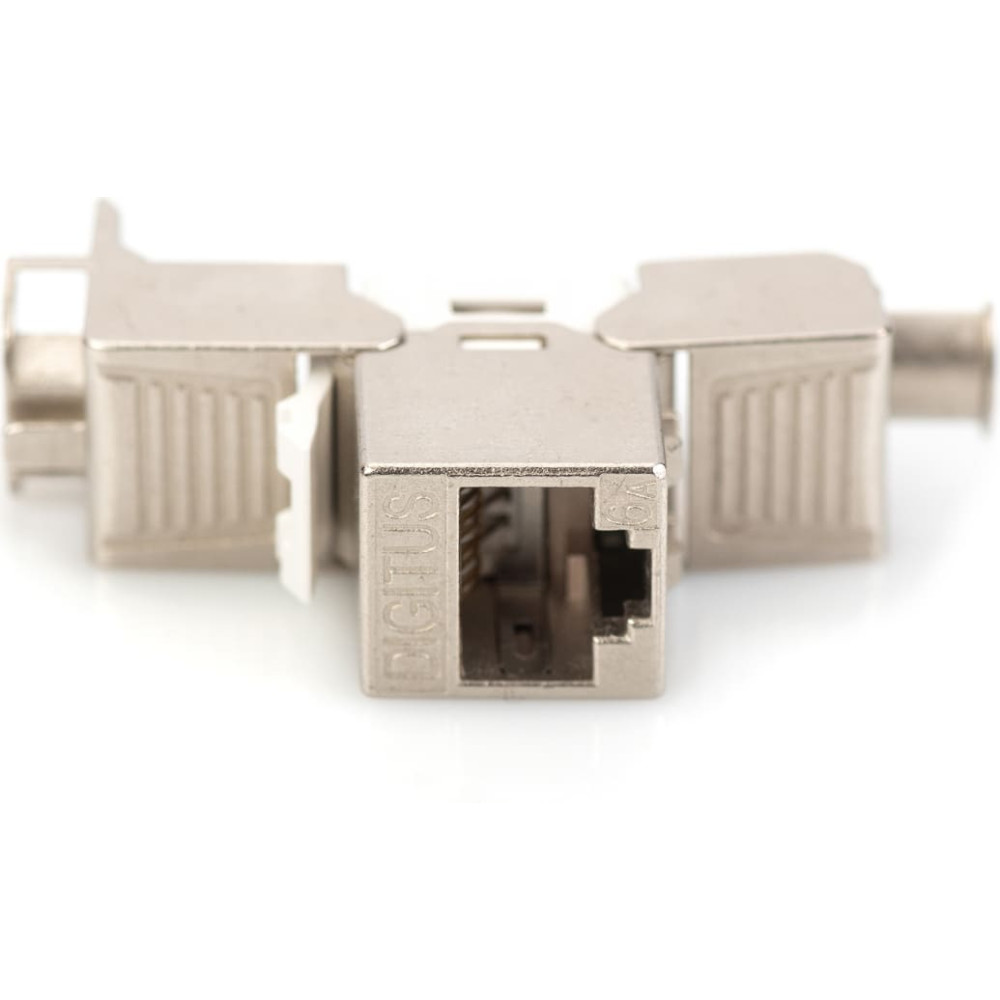

Tool-free mounting connection
360° shield contact
Case material: Zinc die-cast – nickel-plated
Contact material: Phosphor bronze
Contact coating: Nickel, gold-plated 0.5 µ
Insertion force: Max. 30N (as per IEC 60603-7-51)
Holding force: 7.7 kg between jack and plug
Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: >= 750 (ISO/IEC 11801, IEC 60603-7-51)
Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
Tested with AWG 22/1 solid installation cable
(DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
Intelligent cable manager (resealable)
CAT 6A Keystone Module-set: 2 pcs.
Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
Weight: 19.5 g
