Digitus Network cabinet Unique series - 800x800 mm (WxD)

Product Code: DN-19 26U-8/8-1
Barcode 4016032353515

To purchase this product you must be registered in our system.



Specification
country of origin: CN
depth: 0.400
height: 0.100
height(cm): 139.2
length(cm): 85
volume(cm3): 1005720
weight(kg): 82
width: 0.300
width(cm): 85

Description
26U network rack, Unique 1342x800x800 mm, color grey (RAL 7035)

The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.

High load capacity of the 483 mm (19") profile rails of up to 1200 kg
Swivel handle with profile half-cylinder lock incl. type 333 key on the front door
Vertical cable ducts with cable routing aids and cover installed in the front panel
Modular, openable base chassis with removable 19" blind panels
Flexible cable routing options thanks to generous cable inlets with brushes in the roof, base and rear
Roof is prepared to accommodate a fan unit and an attached, removable cover
Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the enclosure, as well as another at the rear of the base chassis. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm enclosure width), perfectly round off the versatile features of the network enclosure. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

Cabinet type: Network cabinet
Color: light grey, RAL 7035
Depth: 800 mm
Front door: Glass door, single opening
Load capacity: 1200 kg

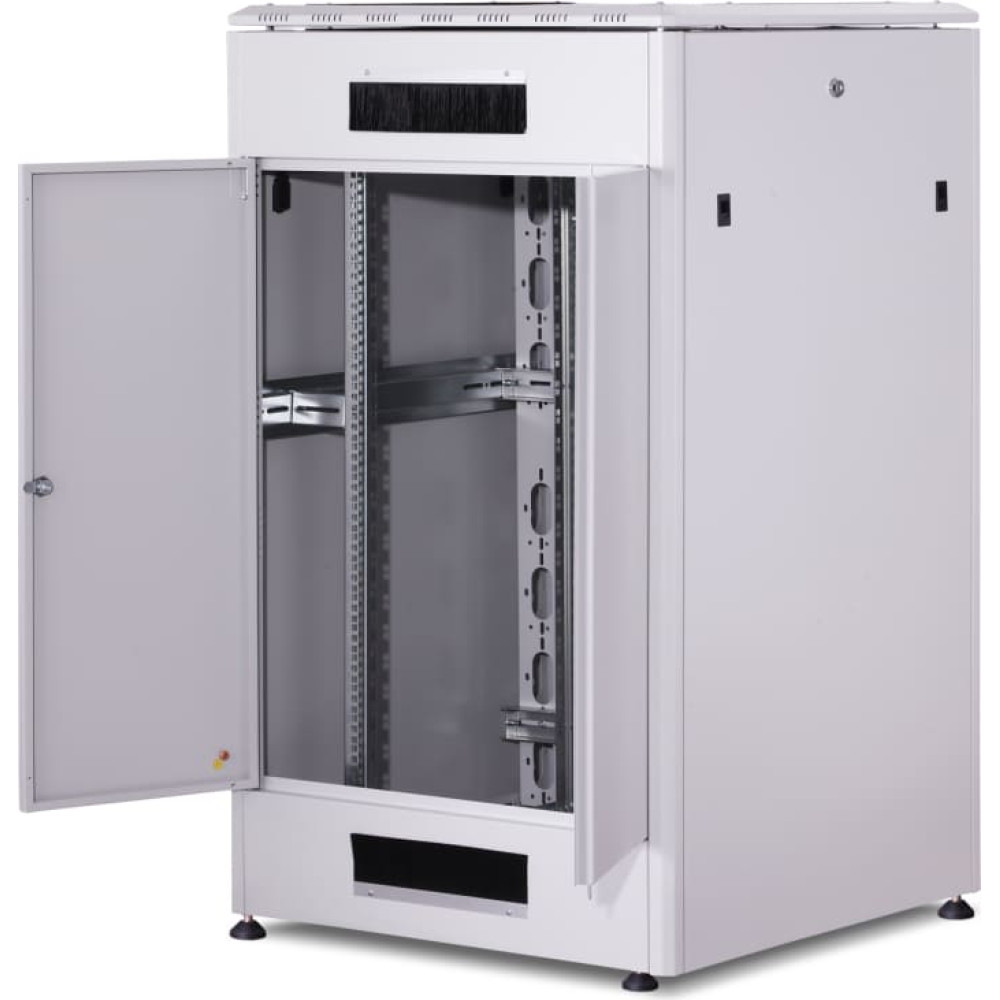

Rear door: Steel door and cable entry, double opening
Side panels: Both sides
Units: 26
Width: 800 mm
IP protection class: IP20
Mounted: true
Protection class IP20

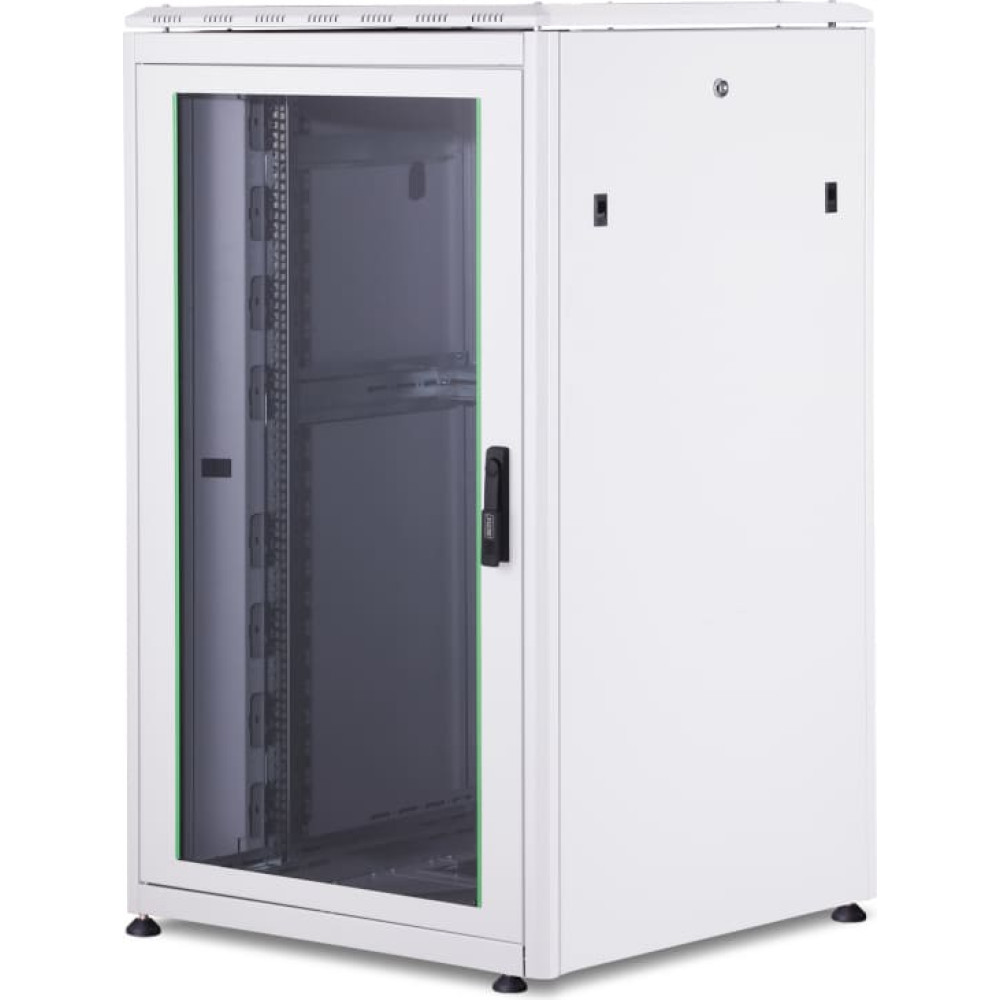

Front door made of complete steel frame with certified safety glass, one-piece
Swivel handle with profile half-cylinder lock incl. type 333 key on the front door
Steel rear door with round lock incl. key type 333, double-leaf
1-point locking on all doors
Removable side panels with type 333 sash lock and additional snap lock
Incl. 4 levelling feet M10, enclosed

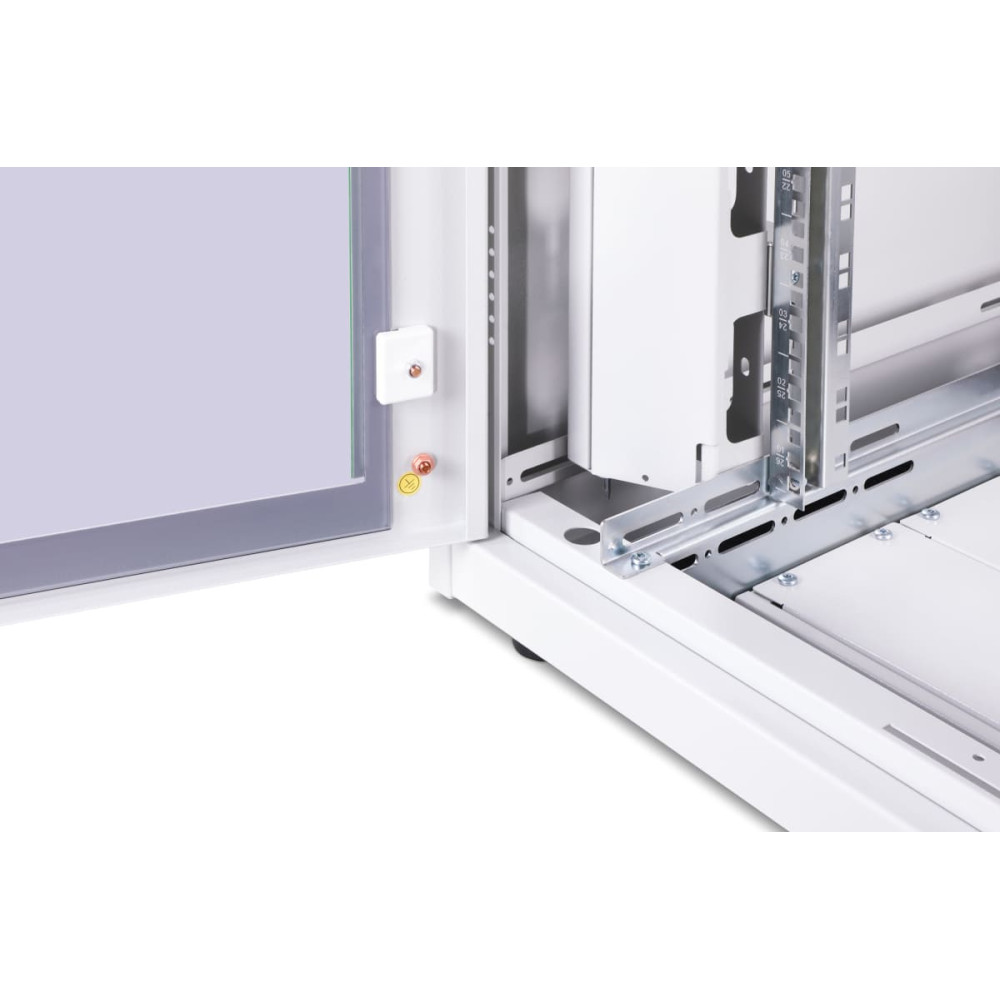

483 mm (19") profile rails mounted at the front and rear inside the enclosure, infinitely adjustable
483 mm (19") profile rails are galvanized and numbered in opposite directions to the height units
483 mm (19") profile rails are connected to depth struts for increased stability
High load capacity of the 483 mm (19") profile rails of up to 1200 kg
Installation depth for components min.-max.: 688-943 mm
Vertical cable ducts with cable routing aids and cover installed in the front panel
Modular, openable base chassis with removable 19" blind panels (450 x 537 mm)

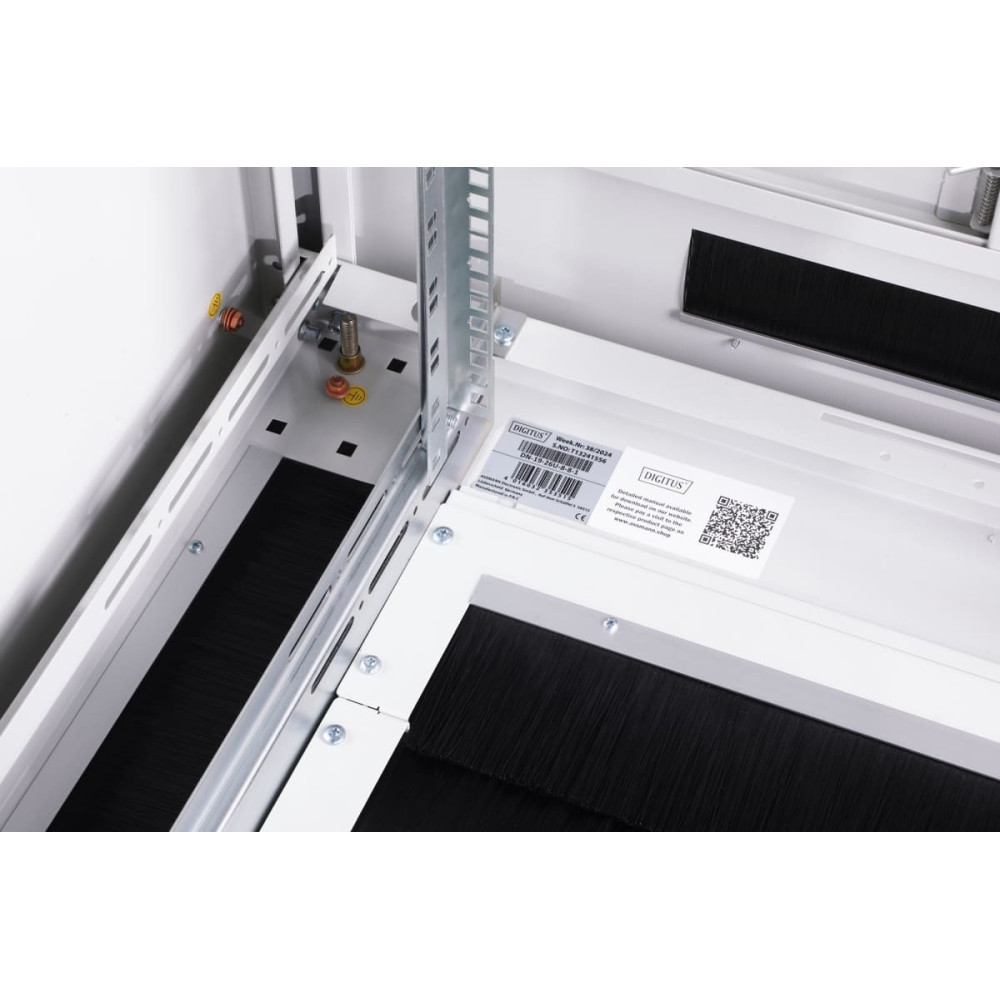

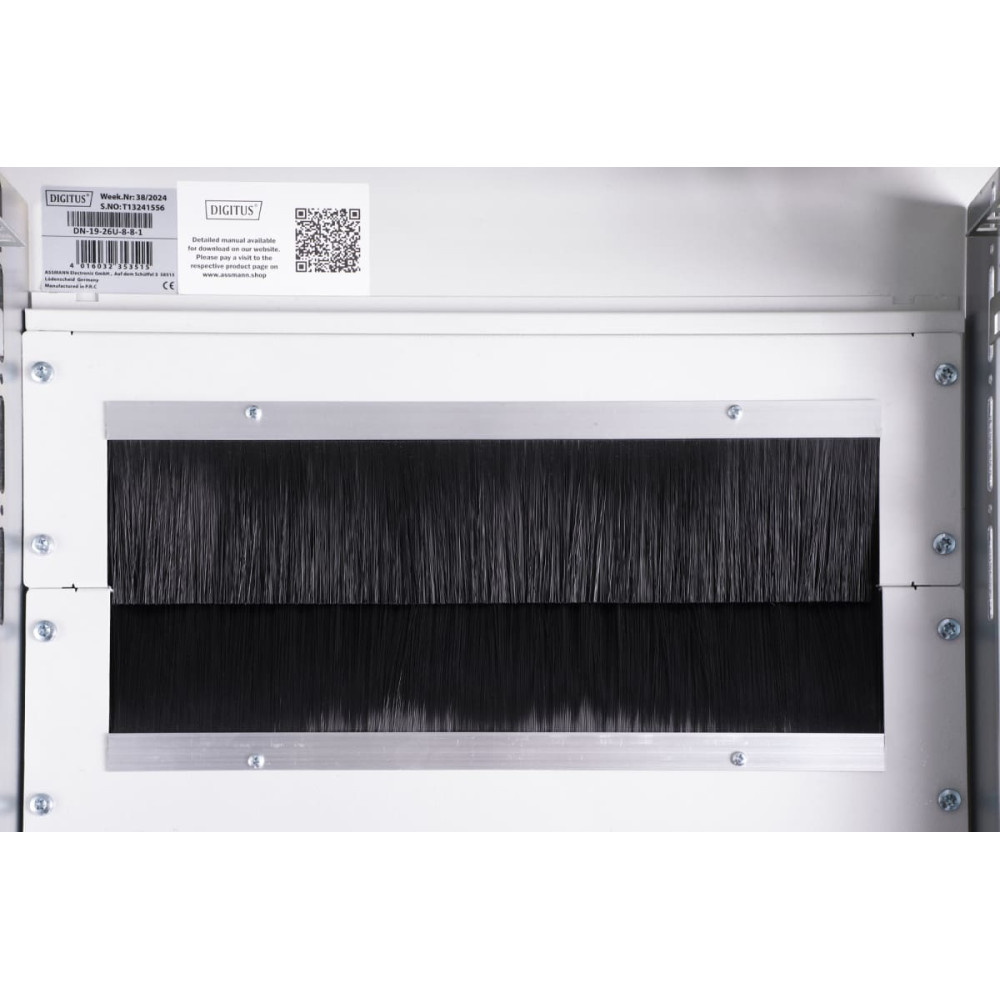

Cable inlets in the base: 400 x 170 mm (rear), 90 x 550 mm (side)
Cable inlets in the roof: 90 x 550 mm (lateral)
Roof is prepared to accommodate a fan unit and an attached, removable cover
Earthing points in the cabinet and on removable doors/walls
Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

Package content:
Earthing cable set
Installation set (screws, cage nuts, washers)
2 x key
4 x leveling foot, M10
