Specifikācija
ac outlet types: C13 coupler, C19 coupler
acoustic level: 1Meter Entfernung: 55.0 dBA
activity display: Ja
ambient temperature: 0-40°C
audible alarm modes: Battery replacement
audible alarm(s): Yes
auto-restart: Yes
automatic battery test: Yes
automatic voltage regulation (avr): Yes
backup time full/half-load: 4 / 11 min
battery capacity: 505 VAh
battery life (max): 5 year(s)
battery recharge time: 3 h
battery technology: Sealed Lead Acid (VRLA)
bypass: automatisch + manuell
cable length: 2.44 m
certification: CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
classification (iec 62040-3): VFI-SS-111
cold start: Yes
colour: black
compliance certificates: RoHS
connector type (input): IEC320 C20

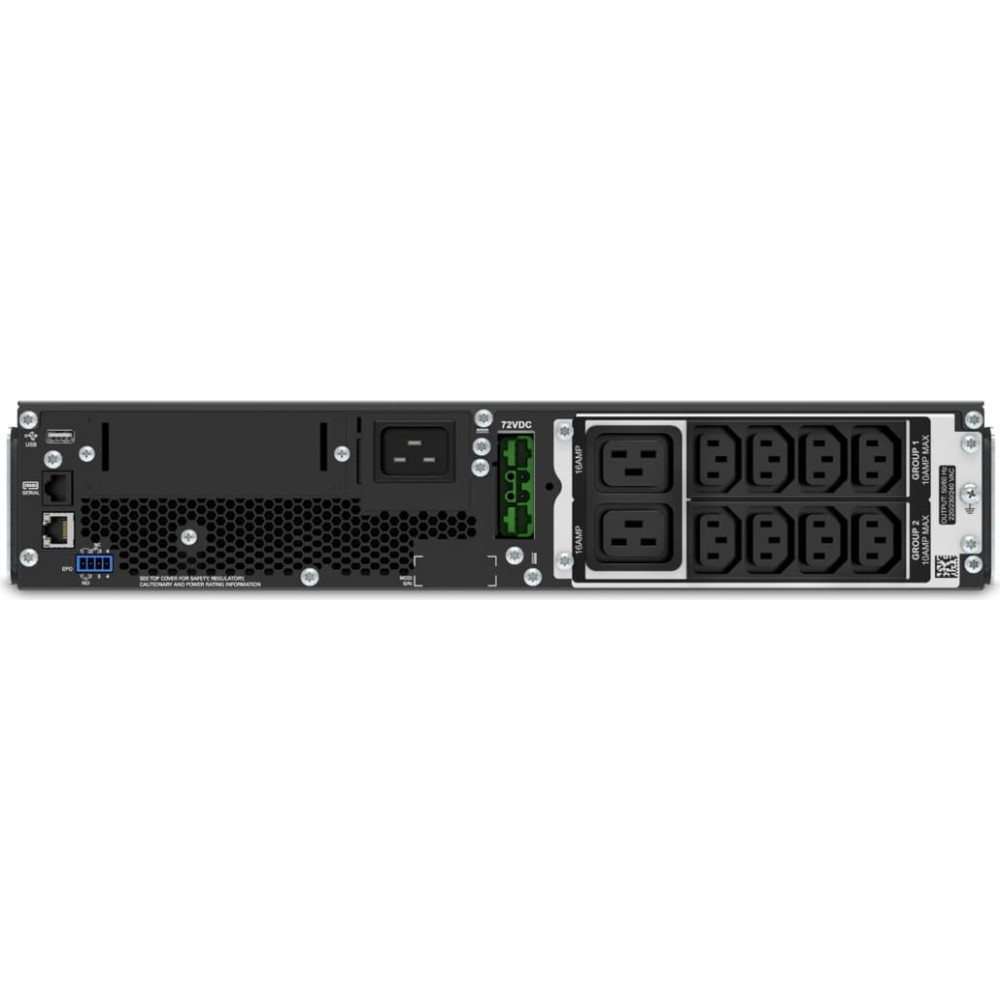

connector type (output): 8 x IEC320 C13; 2 x IEC320 C19
crest factor: 3:1
current catalog edition: 24.1
current catalog page: 10.09
delay expansion unit: 10x SRT96RMBP (19.29.3035)
depth: 635 mm
depth of packaging (single piece): 900 mm
dimensions (hxwxd): 85 x 432 x 635 mm; 2 U
display type: LCD
efficiency: 92%
emergency power off (epo): Yes
form factor: Rackmount
frequency: 50Hz
gross weight: 42
harmonized system (hs) code: 85078000
height: 85 mm
height of packaging (single piece): 250 mm
hot swap batteries: Ja, Frontseite
hot-swap battery: Yes
input frequency: 40 - 70 Hz
input operation voltage (max): 275 V
input operation voltage (min): 100 V
interface: RJ-45 seriell, SmartSlot, USB
internal cooling: Aktiv, Lüfter
international protection (ip) code: IP20
led indicators: Battery replacement
manufacturer: APC
mounting form: Rackmount
noise level: 55 dB
non-operating altitude: 0 - 15000 m
operating altitude: 0 - 3000 m
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): 0 - 40 °C
operating temperature max.: 40 °C
operating temperature min.: 0 °C
output (va/w): 3000 / 2700
output frequency: 50/60 Hz
output operation voltage (max): 240 V
output operation voltage (min): 220 V
output power: 2700 W
output power capacity: 3 kVA
output voltage: 230 V
output voltage total harmonic distortion (thd): 2%
package depth: 871 mm
package height: 246 mm
package weight: 39.3 kg
package weight (single piece): 42 kg
package width: 599 mm
phase in/output: 230V/230V / 50Hz
power plug: C20 coupler
power protection features: Overload
product colour: Black
product group: USV
product type: UPS Online, Rackmount
products per pallet: 6 pc(s)
quick installation guide: Yes
rack capacity: 2U
serial interface: Yes
serial interface type: RJ-45
smartslot: Yes
storage relative humidity (h-h): 0 - 95%
storage temperature (t-t): -15 - 45 °C
surge energy rating: 340 J
surge protection: Yes
sustainability certificates: Green Premium
total carbon footprint (kg of co2e): 4993.35

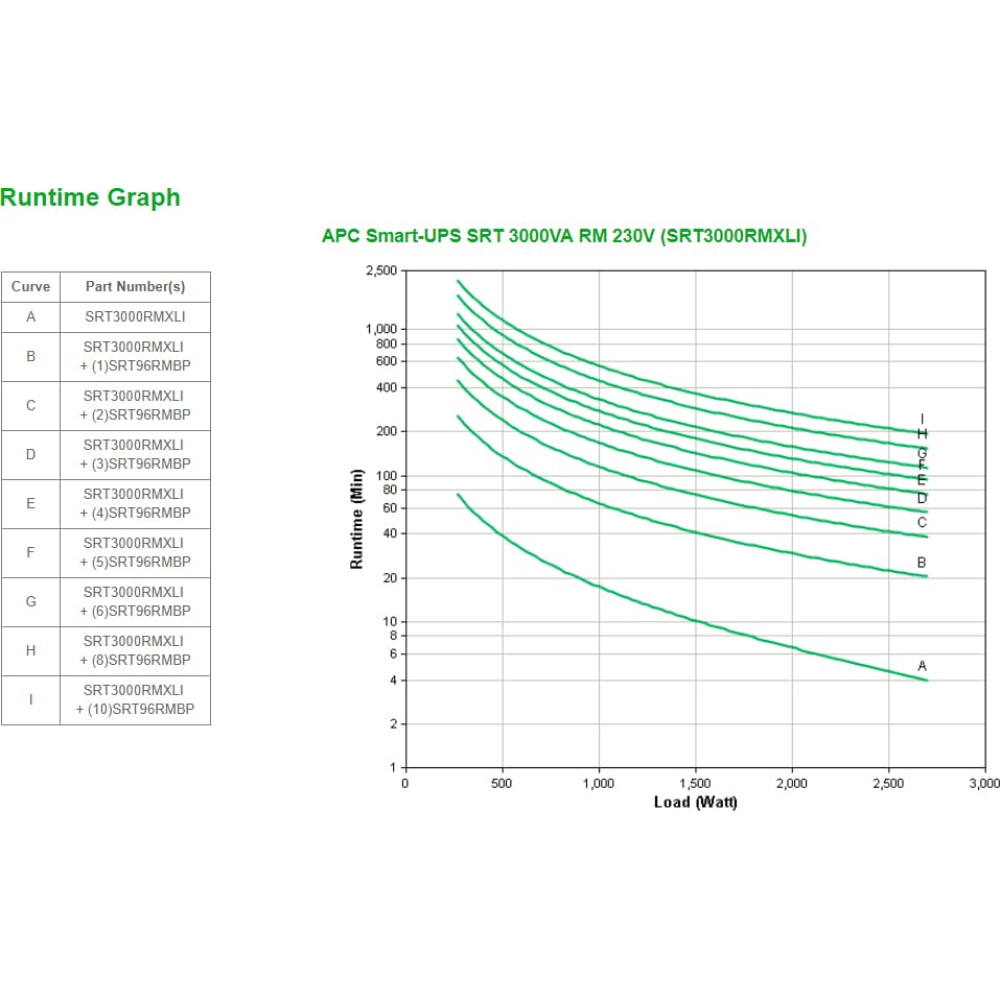

typical backup time at full load: 4 min
typical backup time at half load: 11.8 min
ups technology: Online
ups topology: Double-conversion (Online)
usb 2.0 interface: ja
usb port: Yes
voltage (input): 230 V
voltage (output): 230 V
waveform: Sine
weight: 31.3 kg
width: 432 mm
width of packaging (single piece): 600 mm
Preces apraksts
| APC Smart-UPS On-Line SRT. UPS topoloģija: Divkāršā-konversija (tiešsaiste), Izejas jaudas kapacitāte (VA): 3 kilovoltampērs, Izejas jauda: 2700 W. Maiņstrāvas izeju tipi: C13 uzmava, C19 uzmava, Jaudas spraudnis: C20 uzmava, Seriālā interfeisa tips: RJ-45. Baterijas tehnoloģija: Noslēgts svina skābju (VRLA), Akumulatora ietilpība: 505 volt-ampērstunda, Tipiskais dublējuma laiks pilnā ielādē: 4 min. Formas faktors: Montējams plauktā, Produkta krāsa: Melns, Statņa kapacitāte: 2U. Atbilstības sertifikāti: RoHS, Sertifikācija: CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA |
