Roline Gigabit Converter, RJ-45 to Mini GBIC

Produkta kods: 21.13.1067

Svītrkods: 7611990195275

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija

Preces apraksts

Līdzīgas preces

Specifikācija

colour: black

current catalog edition: 24.1

current catalog page: 1.05

depth: 23 mm

depth of packaging (single piece): 210 mm

fibre ports (mbps): 1000

gross weight: 0.48

height: 102 mm

height of packaging (single piece): 60 mm

manufacturer: ROLINE

package weight (single piece): 0.48 kg

product group: Network converters

product type: Network Media Converters

quantity of rj45 ports: 1

rj-45 port (mbps/s): 1000

scope of delivery: Konverter, Kurzanleitung, Netzteil

technical particularity: Fibre optic connection is realized by MiniGBIC Module

weight: 210.1 g

width: 75 mm

width of packaging (single piece): 160 mm

Preces apraksts

For adaptation of different cabling within a LAN FO converters can be used to obtain a functional network. Whether to implement fiber optic on a classic twisted pair network with a mini-GBIC or for the implementation of fiber optic to another fiber optic network with two mini-GBICs.
The ROLINE Gigabit converter offers both possibilities.

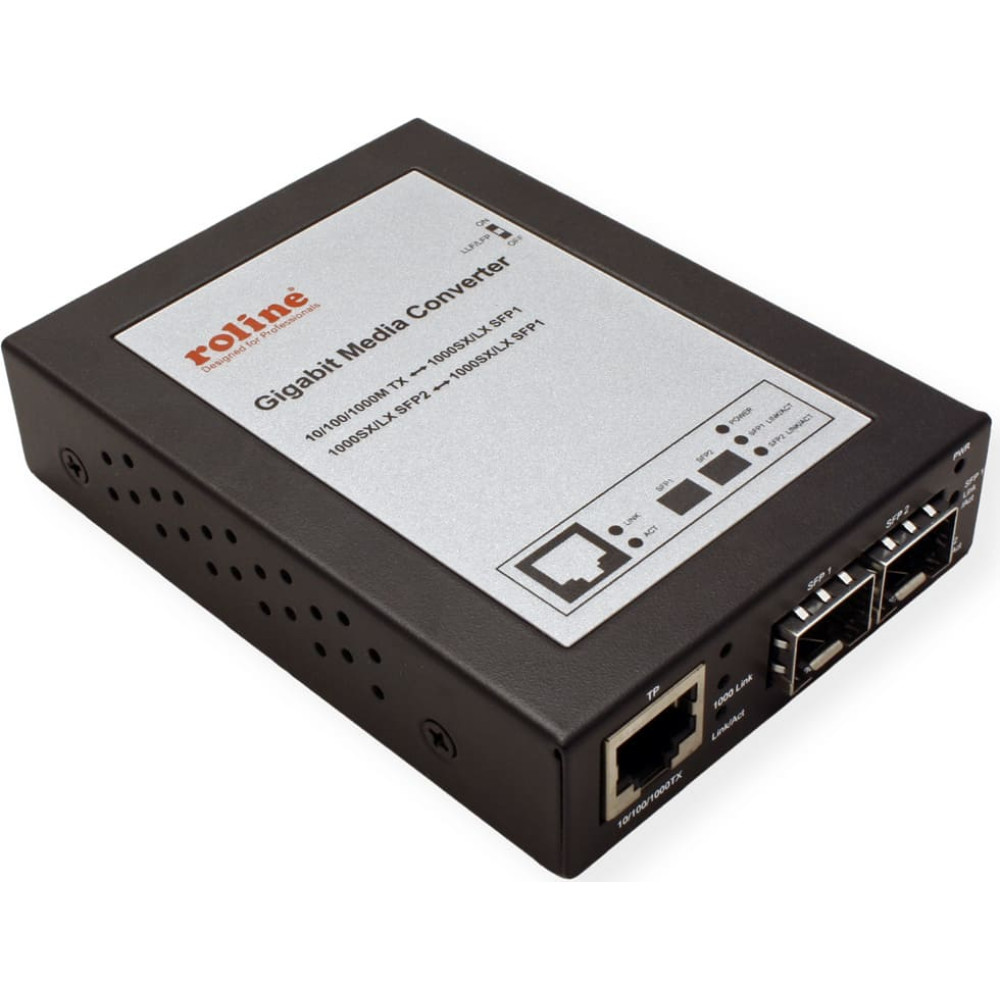

The ROLINE Gigabit converter is a Gigabit Ethernet TP port to fiber or a fiber port to a second fiber port. The fiber optic connectors can be freely selected by means of mini-GBIC Module

Compliant with IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Gigabit Ethernet Standards

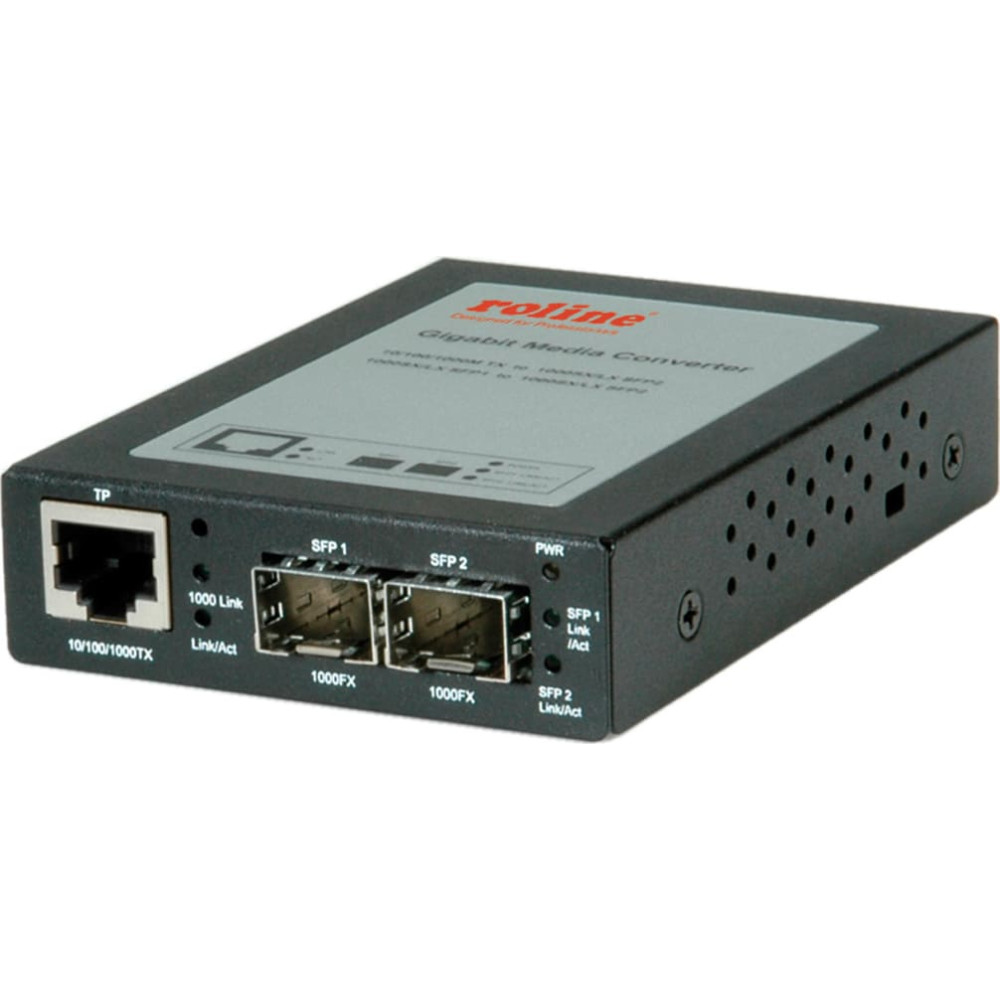

Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port, 2x Mini-GBIC slots on the fiber optic side

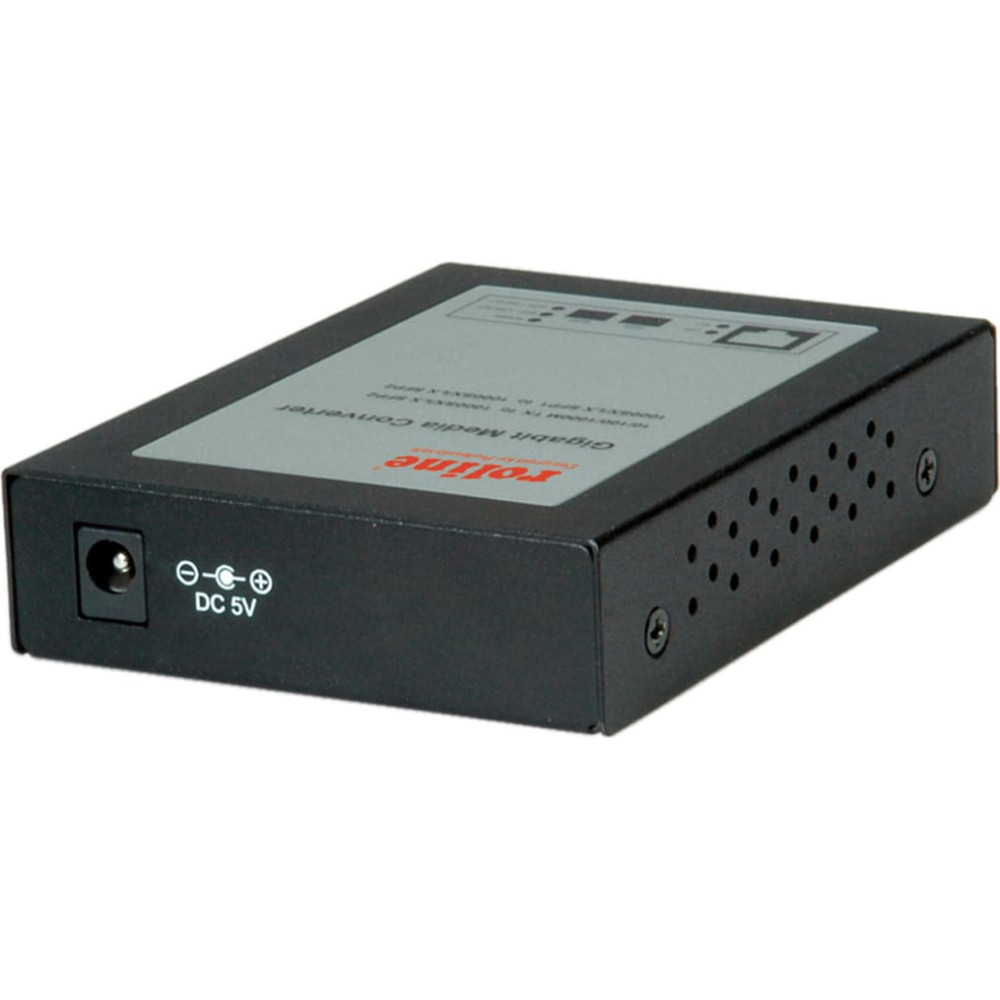

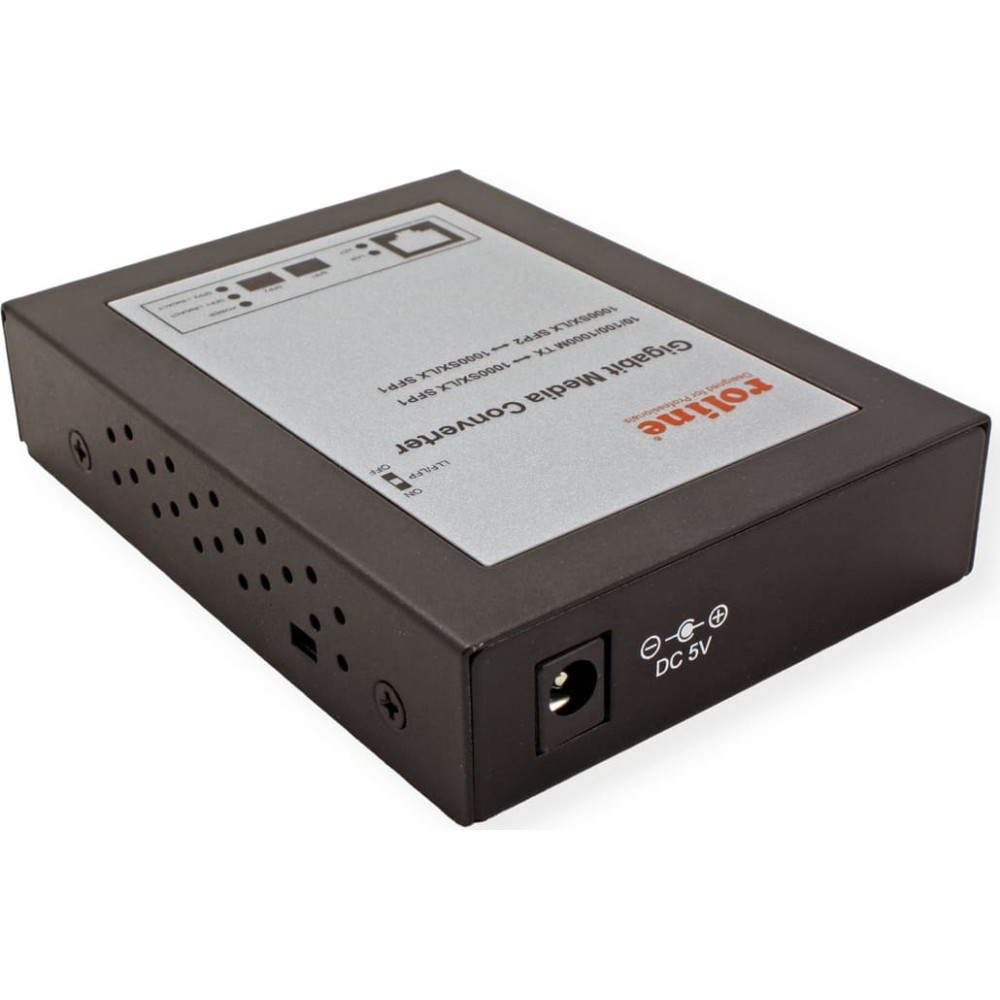

Power is supplied via an external power supply (included)
TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation
Each SFP slot supports both singlemode and multimode or mixed
Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)
Dimensions: 102 × 75 × 23 mm
