Specifikācija
certification: CE
compliance certificates: RoHS
copper ethernet cabling technology: 100BASE
country of origin: China
depth: 12 mm
digital diagnostics monitoring (ddm): Yes
fiber cable diameters supported (core/cladding): 9/125 µm
fiber optic connector: LC
harmonized system (hs) code: 85369010
height: 57 mm
hot-swap: Yes
interface type: SFP
master (outer) case gross weight: 6.67 kg
master (outer) case height: 268 mm
master (outer) case length: 375 mm
master (outer) case width: 310 mm
maximum current: 0.3 A
maximum data transfer rate: 155 Mbit/s
maximum transfer distance: 2000 m
maximum voltage: 3.47 V
multi-mode fiber (mmf) supported: No
operating relative humidity (h-h): 0 - 85%
operating temperature (t-t): 0 - 70 °C
package depth: 106 mm
package height: 20 mm
package type: Box
package weight: 39.5 g
package width: 65 mm
pallet gross length: 80 cm
pallet gross width: 120 cm
pallet height (air): 166.9 cm
power consumption (typical): 1 W
product colour: Silver
products per master (outer) case: 150 pc(s)
products per pallet: 35 pc(s)
quantity per pack: 1 pc(s)
rx power (max): -10 dBmW
rx power (min): -34 dBmW
rx wavelength (max): 1600 nm
rx wavelength (min): 1270 nm
safety: FCC Part 15 Class B EN55022 Class B(CISPR 22B)VCCI Class B
sfp transceiver standard: FX
sfp transceiver type: Fiber optic
single-mode fiber (smf) supported: Yes
storage temperature (t-t): -40 - 85 °C
tx power (max): 0 dBmW
tx power (min): -5 dBmW
tx wavelength (max): 1360 nm
tx wavelength (min): 1263 nm
user guide: Yes
weight: 21 g
width: 14 mm
Preces apraksts

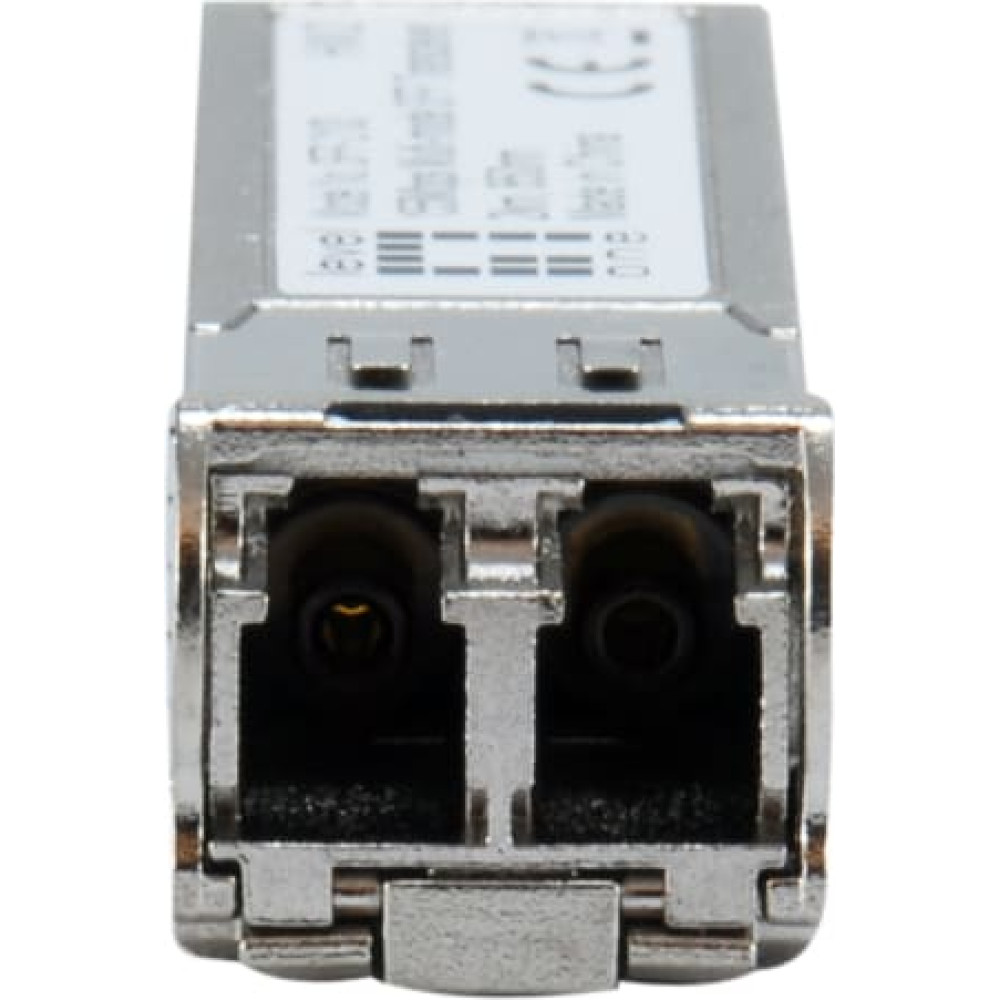

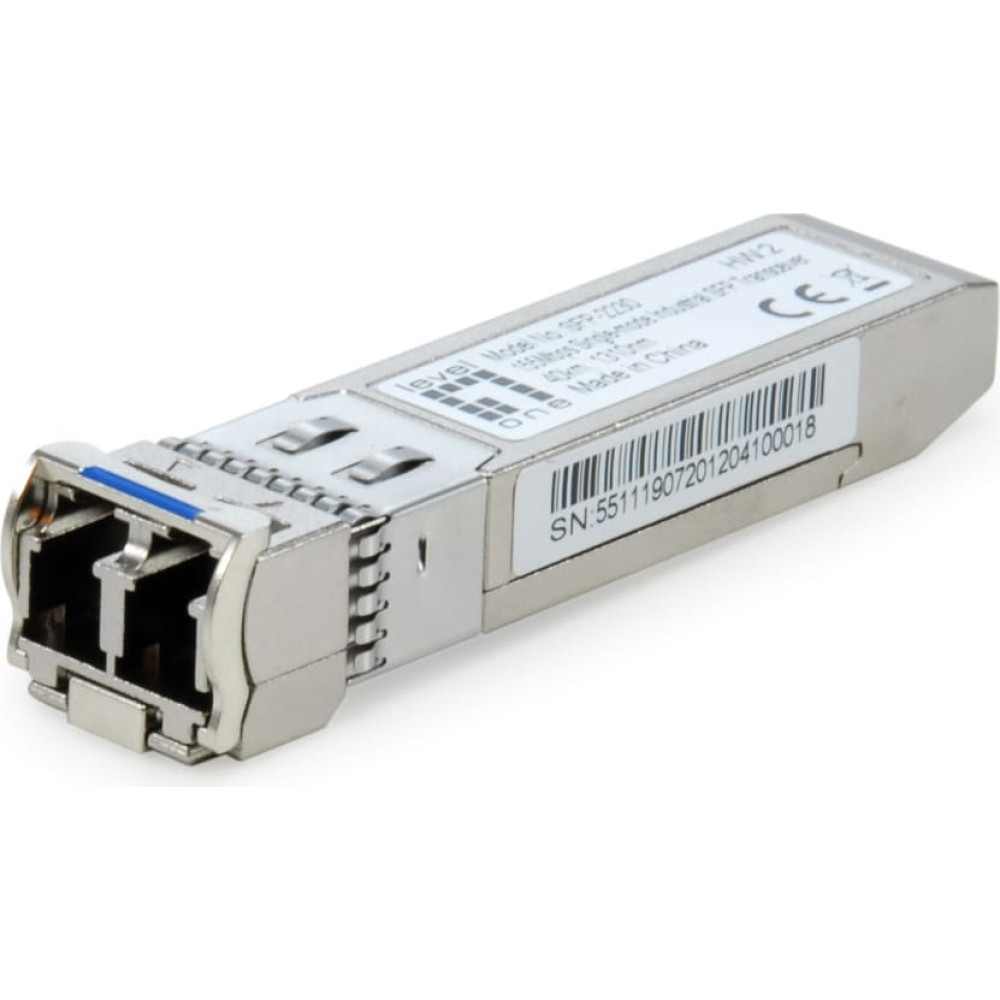

| LevelOne SFP-2230. SFP veids raiduztvērēja veids: Optiskā škiedra, Maksimālais datu pārraides ātrums: 155 Mbit/s, Interfeisa tips: SFP. Produkta krāsa: Sudrabs. Maksimālā jauda: 3,47 V, Maksimālā strāva: 0,3 A, Enerģija patēriņš: 1 W. Atbilstības sertifikāti: RoHS, Drošība: FCC Part 15 Class B EN55022 Class B(CISPR 22B)VCCI Class B, Sertifikācija: CE. Platums: 14 mm, Dziļums: 12 mm, Augstums: 57 mm |
