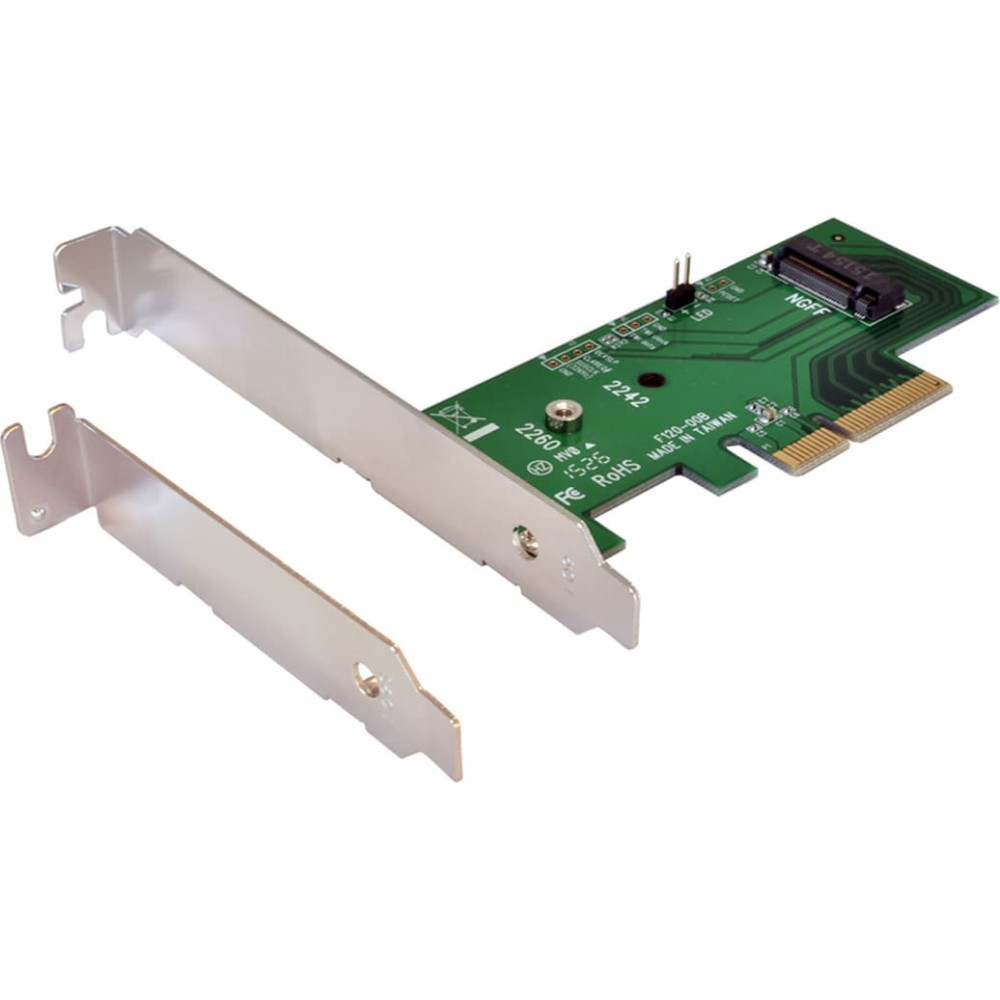

Exsys EX-3650 PCIe Controller zu M.2 NFGG Modul

Produkta kods: EX-3650
Svītrkods: 4718359036507

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
bus system: PCI Express
current catalog edition: 24.1
current catalog page: 8.03
data transfer rate: bis 6.0Gb/s
depth of packaging (single piece): 250 mm
esata interface: ja
gross weight: 0.132
height of packaging (single piece): 50 mm
installation guide / manual: ja
interface: 1 x 67 Pin M.2 NGFF M-Key Slot
manufacturer: EXSYS
package weight (single piece): 0.132 kg
product group: Schnittstellenkarten
product type: PCI-Express-Adapterkarte
scope of delivery: EX-3650, 1 x Befestigung Schraube für M.2 Module, Low Pro...
weight: 200 g
width of packaging (single piece): 170 mm

Preces apraksts

Mit dem EX-3650 Controller können Sie den Rechner mit einem M.2 NGFF Slot erweitern. Die Module M.2 NGFF 2280, 2260 und 2242 können eingesetzt werden. Der EX-3650 benötig einen PCI-Express x4 Slot.

  • M.2 NGFF PCIe SSD Konverter für Mother-Boards mit PCIe x4 Slot
  • Unterstützt M.2 NGFF 2280, 2260 und 2242 Platinen Type mit M-Key oder B+M-Key auf PCIe Basis
  • Unterstützt NVM Express (NVMe)
  • Kann als bootfähiges Drive installiert werden
  • Betriebssystem unabhängig und es benötigt keine Treiber
  • 1.5mm maximale höhe der Komponenten auf dem Modul
  • Zweiseitig bestückte Module einsetzbar
  • Unterstützt PCIe 1.0, 2.0 und 3.0 Mother-Board
  • Pin-Stecker für den Festplatten LED Anschluss
