Specifikācija
country of origin: HK
height(cm): 3.5
length(cm): 11
volume(cm3): 385
weight(kg): 0.3
width(cm): 10
Preces apraksts

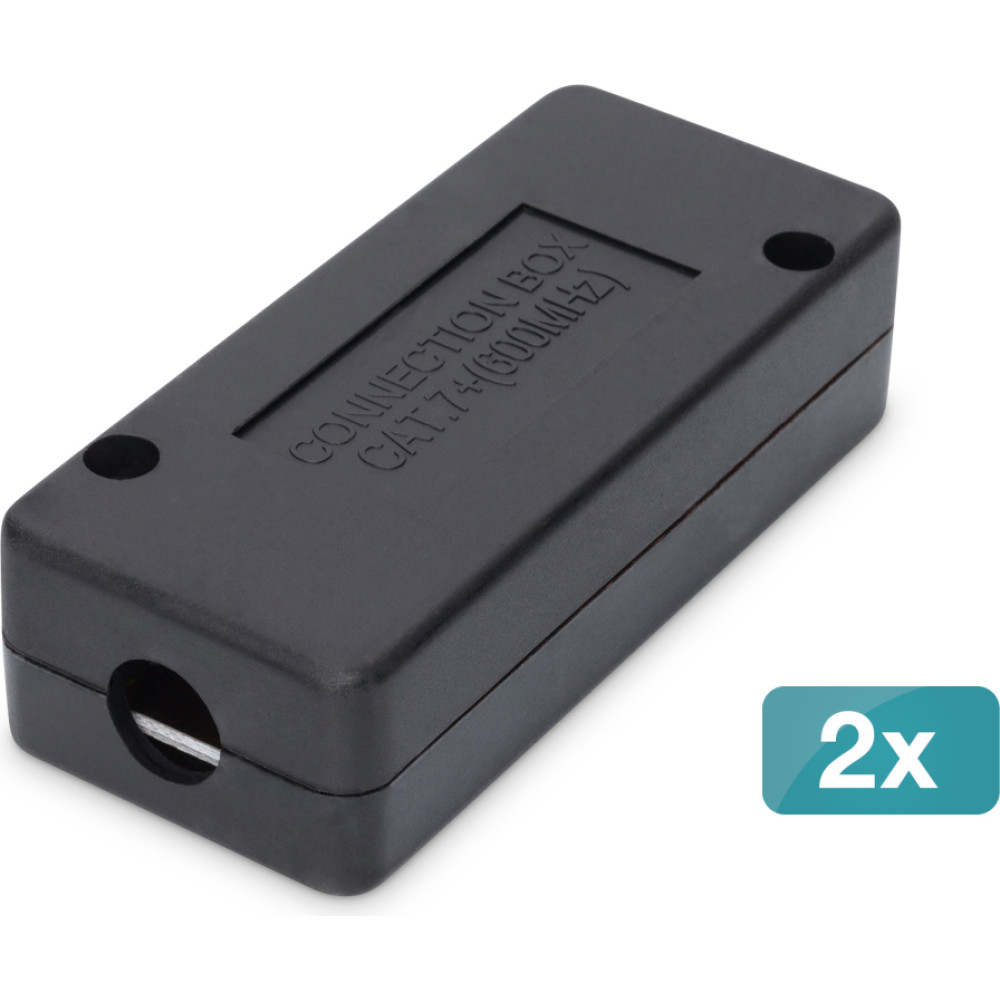

| Junction Box CAT 7, 600 MHz, LSA strips for AWG 22-26,fully shielded, comp. design,26x35x80mm The DIGITUS® Junction Box CAT 7 serves as a tool for connecting of shielded data cables. Use the Junction Box for an extension of your cabling or to replace broken cables by re-connecting without installing a whole new segment. For an easy and fast installation, the cable connector uses the established LSA technique with 45° tilt of the contacts. Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for installation in trunking, surface and flush mount Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B Suitable for connection of installation cables - extension of cables, replacing of defect cable links Integrated strain relief for installation cables Suitable for cables with AWG 22-26 diameter Technical properties: Housing material: ABS UL-94V-0 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 u gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) 2 pieces |
