Specifikācija
country of origin: CN
height(cm): 2.1
length(cm): 16
volume(cm3): 537.6
weight(kg): 0.24
width(cm): 16
Preces apraksts

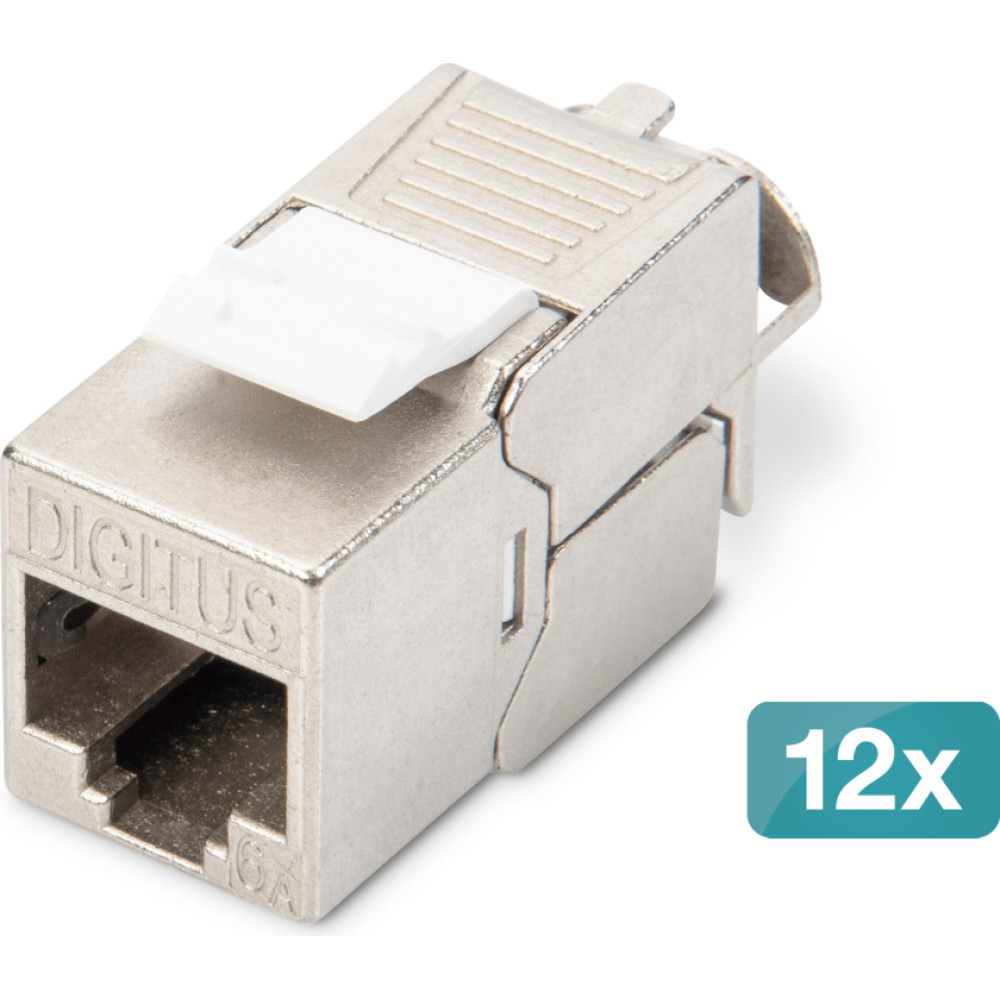

| DIGITUS CAT 6A Keystone Jack, shielded,Re-embedded 500MHz gem.,ISO/IEC 11801:2002 AM2:2009/09,in bulk Quick and easy installation without special tools 360° shield contacting Suitable for field assembly (tool-free installation) Design-compatible - suitable for mounting in distribution panels and junction boxes CAT 6A with LSA insulation displacement connectors Dust protection cap for RJ45 socket GHMT certified Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link) The shielded CAT 6A Keystone module set DN-93615 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes. Category: CAT 6A Category 6A 10GBase-T, 500 MHz ISO/IEC 11801 3rd Edition, EN 50173-1 Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link) Suitable for distribution panel and junction box installation RJ45 socket, 8P8C Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B Strain relief and cable fixing using cable ties Tool-free mounting connection 360° shield contacting Housing material: Zinc die-cast - nickel-plated Contact material: Phosphor bronze Coating Contacts: Nickel, gold-plated 0.5 u Insertion force: Max. 30N (according to IEC 60603-7-51) Holding force: 7.7 kg between socket and plug Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2) Mating cycles: >= 750 (ISO/IEC 11801, IEC 60603-7-51) Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire Tested with AWG 22/1 solid installation cable (DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable) Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B Intelligent cable manager (reclosable) CAT 6A Keystone module set: 12 pcs. Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm Weight: 19.5 g |
