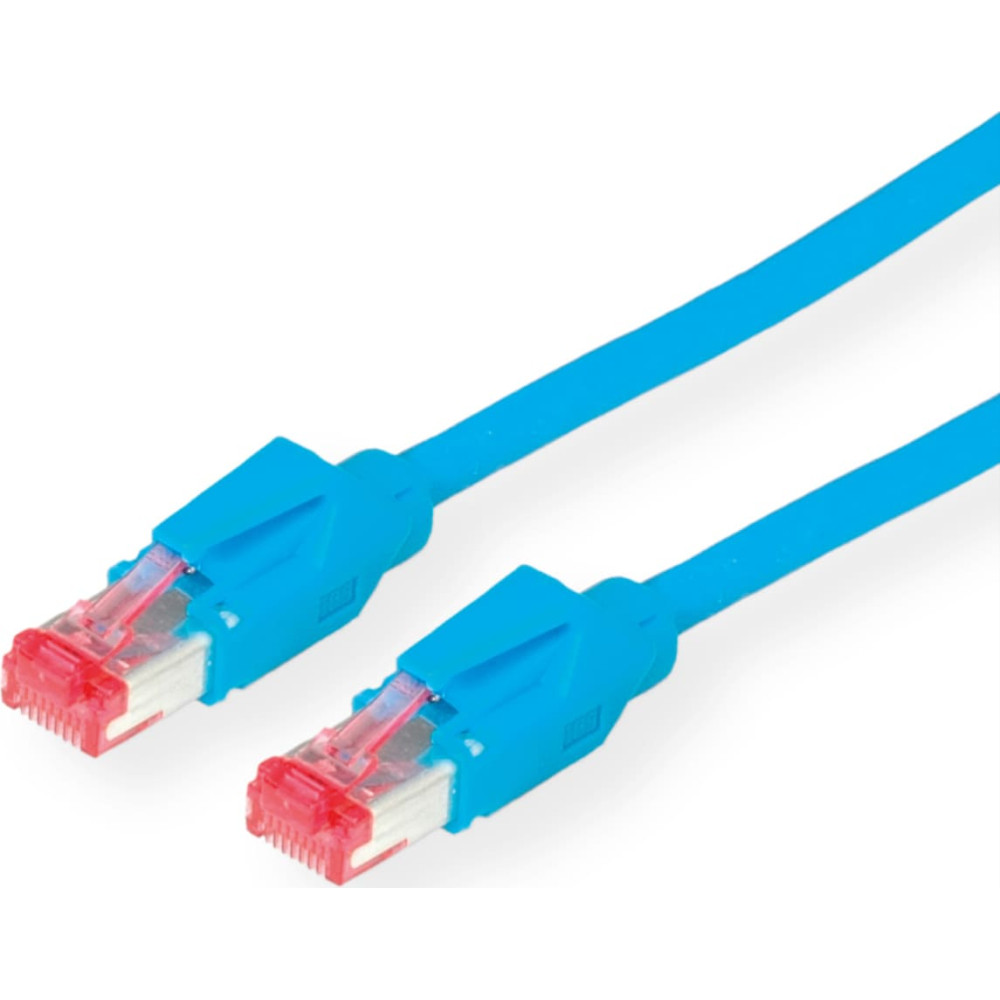

Sākums Kabeļi Tīkla RJ45 Tīkla RJ45 (6 kat) Dätwyler DÄTWYLER Patchkabel Kat.6 (Class E) S/FTP, CU 7702 flex LSOH, Hirose TM21, blau, 20 m
Dätwyler DÄTWYLER Patchkabel Kat.6 (Class E) S/FTP, CU 7702 flex LSOH, Hirose TM21, blau, 20 m

Dätwyler DÄTWYLER Patchkabel Kat.6 (Class E) S/FTP, CU 7702 flex LSOH, Hirose TM21, blau, 20 m

Produkta kods: 21.05.0204
Svītrkods: 7611990756124
Ražotājs: DÄTWYLER

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
anti-kink sleeve: aufgesteckt
assignment: 1:1
cable lsoh: ja
colour: blue
colour (spout): blau
conductor cross section (awg): AWG 26
conductor type: Litze
connector type rj45: HiRose TM21
crossed: nein
current catalog edition: 24.1
current catalog page: 1.44
depth of packaging (single piece): 230 mm
external cable diameter: 6,0 mm
garums: 20 m
gross weight: 0.757
height of packaging (single piece): 30 mm
impedance: 100 Ohm
locking lever: ja
manufacturer: Dätwyler
material (external cable mantle): Halogenfreier Compound
package weight (single piece): 0.757 kg
product group: Twisted Pair Kabel
product type: S/FTP Patchkabel
quantity of wires: 8
shield type: PiMF
side 1 connector gender: Männlich (Stecker)
side 1 connector type: RJ-45
side 2 connector gender: Männlich (Stecker)
side 2 connector type: RJ-45
transfer quality: Cat6 / Class E
width of packaging (single piece): 240 mm
Preces apraksts

DÄTWYLER CU 7702 flex LS0H, Hirose TM21, Kat.6, 1,2 GHz
Halogenfrei, Flammwidrig, Raucharm

  • Hochwertiges flexibles Patchkabel mit Paar- und Gesamtabschirmung auf Basis des DÄTWYLER CU 7702 (Kat.7)
  • Beidseitig konfektioniert mit Kat.6 Steckern (Hirose TM21 Stecker)
  • Knickschutz und Schutzlasche für Verriegelungsstift
  • 8 Adern TP-Kupfer-Litze, Paarschirm: kaschierte Alufolie, Gesamtabschirmung: verzinntes Kupfergeflecht
  • Kabelmantel: Flammwidriges, raucharmes, halogenfreies Polyolefin (FRNC/LSOH)
  • Außen-ø 6,0 mm Richtwert
  • Kat.6 / Class E nach ANSI / TIA
  • Kontaktbelegung 8 Adern 1:1 gemäss EIA/TIA 568

Channel von 100 m gemessen.
