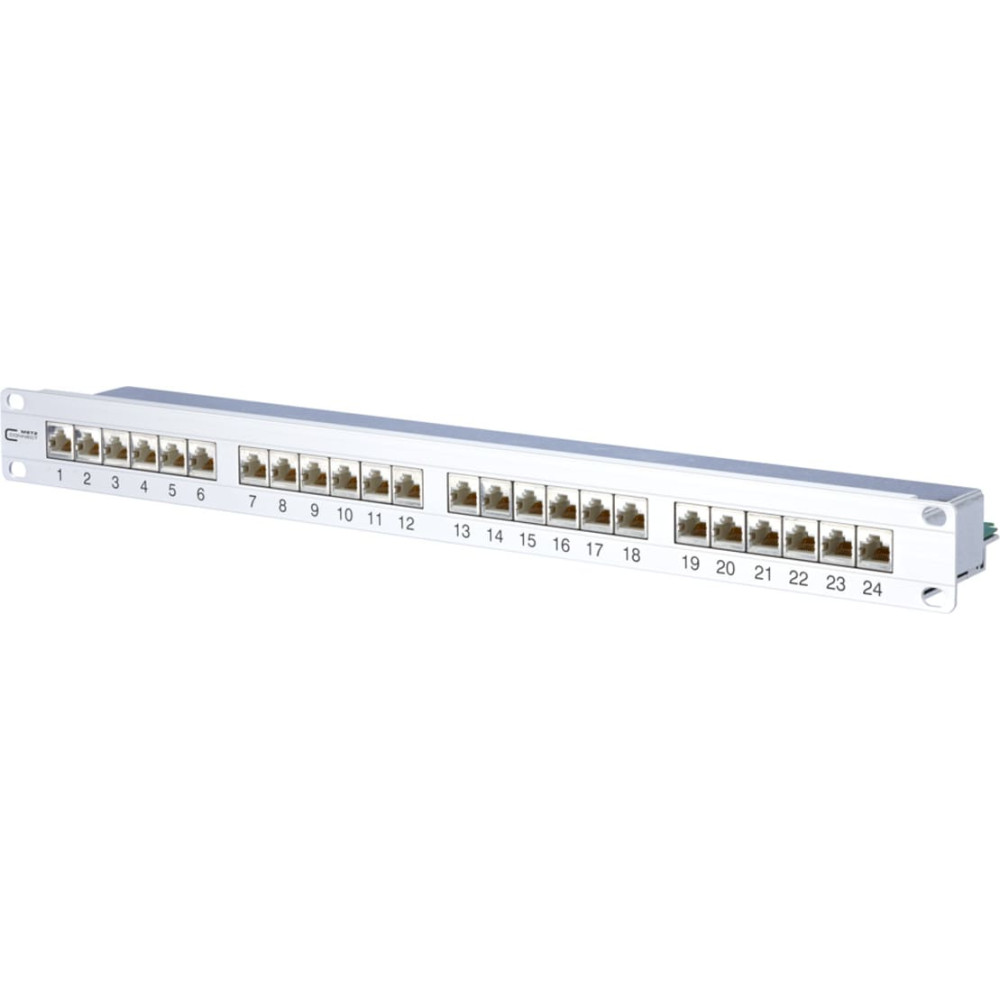

Metz Connect E-DAT C6A 24 port patch panel 1RU LSA

Produkta kods: 130855C-E

Svītrkods: 4250184118572

Ražotājs: METZ CONNECT

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija

assembly cable connection: Krone LSAplus

assignment: EIA/TIA 568A & 568B

cabinet system: 19"-Technique

colour: silver

connection direction: Straight

depth: 90.5 mm

depth of packaging (single piece): 500 mm

gross weight: 1.265

height: 44.45 mm

height of packaging (single piece): 50 mm

height units: 1 U

manufacturer: METZ CONNECT

material (casing): eloxiertes Aluminium

modular assembly: no

operating temperature max.: 70 °C

operating temperature min.: -40 °C

package weight (single piece): 1.265 kg

product group: Connection technology TP

product type: Patchpanel Cat.6A / Class EA

quantity of ports: 24

separate strain relief: yes

shield contacts: ja

shield type: Screened

transfer quality: Cat6A / Class EA

weight: 1120 g

width: 444 mm

width of packaging (single piece): 190 mm

Preces apraksts

Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
tested: component up to 600 MHz, link up to 800 MHz
suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
wire pairs can be led to the LSA terminal without untwisting the pair
connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 26/1-22/1) conductor colors marking to T568A
