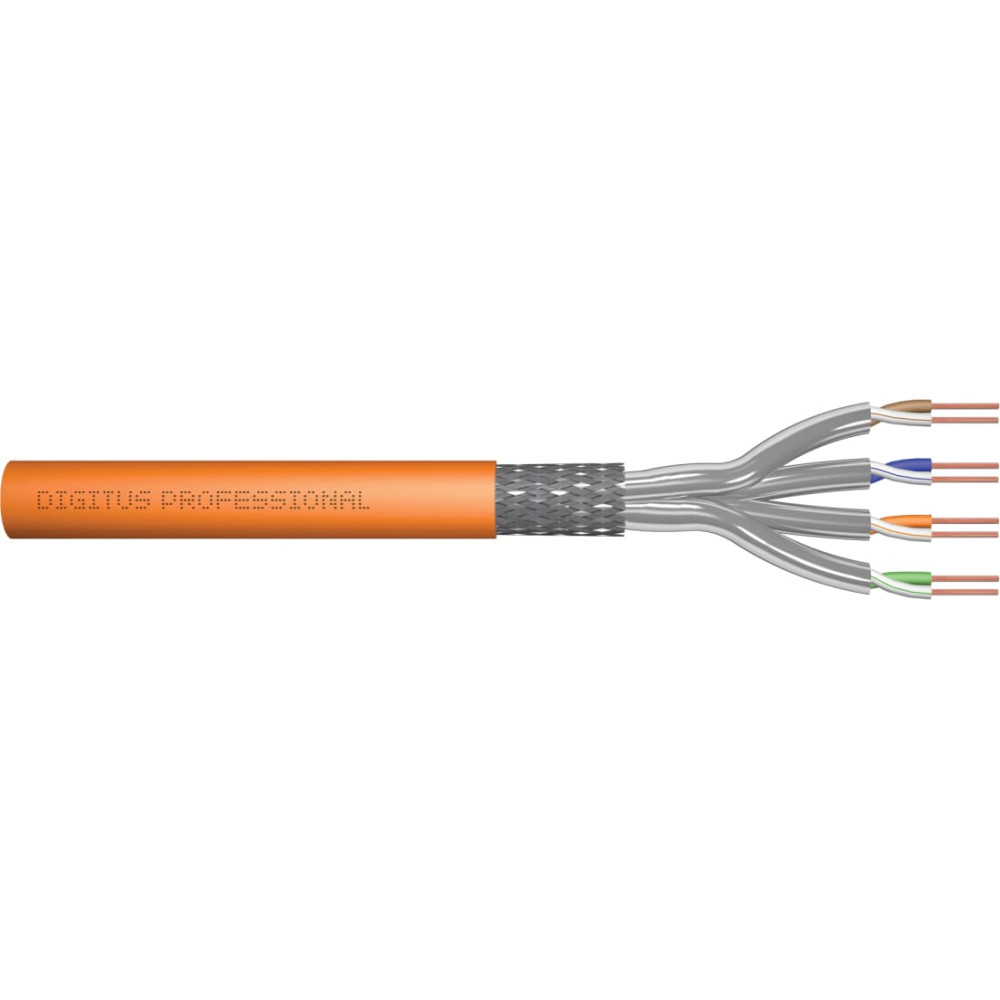

Digitus Cat.7 S/FTP installation cable, 1000 m, simplex, B2ca
To purchase this product you must be registered in our system.
Specification
country of origin: CN
height(cm): 35
length(cm): 55
volume(cm3): 105875
weight(kg): 47
width(cm): 55
Description
| CAT 7 S-FTP installation cable, 1200 MHz B2ca (EN 50575), AWG 23/1, 1000 m drum, Sx, orange Future-oriented standards and high-end quality for your network. 10GBit Ethernet 1200 MHz transmission frequency Permanent link certified PoE Power over Ethernet support CPR class B2ca (check DoP for further classification) The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values. Assortment: Twisted Pair Installation Cables Category: CAT 7 Shielding: S-FTP, pairs in metal foil and braid shielding CPR: B2ca Length: 1000 m Color: orange Jacket: LSOH Structure: 4 x 2 AWG 23/1, solid twisted pair Physical properties: Conductor: Bare copper wire, AWG 23/1 System(s) of assessment and verification of constancy of performance: System 3 Insulation: SFS-PE (foamed polyethylene jacket) Total number of insulated conductors: 8, twisted into 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Shielding of the individual pairs: aluminum-laminated polyester film, covers 100% Overall shielding: copper braiding Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH Outer sheath thickness (nominal): 0.50 mm (Eca); 0.52 mm (Dca); 0.60 mm (Cca); 0.60 (B2ca) Color: Orange (RAL 2008) Mechanical properties: Strain relief: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Transport and storage temperature range: -20 °C to +60 °C Operating temperature range: -20 °C to +50 °C Installation temperature range: 0 °C to +50 °C Outer diameter simplex (nominal): 7.0 mm (Eca); 7.2 mm (Dca); 7.5 mm (Cca); 7.5 mm (B2ca) Weight (kg/km): 49.5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca) Electrical properties: Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz Capacitance: 45 pF/m nominal @ 1 KHz Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance) Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance) Operating voltage: 72 Vdc max. Outer sheath: Dca-s2 d1 a1 according to EN 50575; LSZH Coupling attenuation: CA-Type 1b Phase delay: 450 nS/100 m max. Time delay: 10 nS/100 m max. Separation class: "d" according to EN 50174-2 NVP: 79% |
