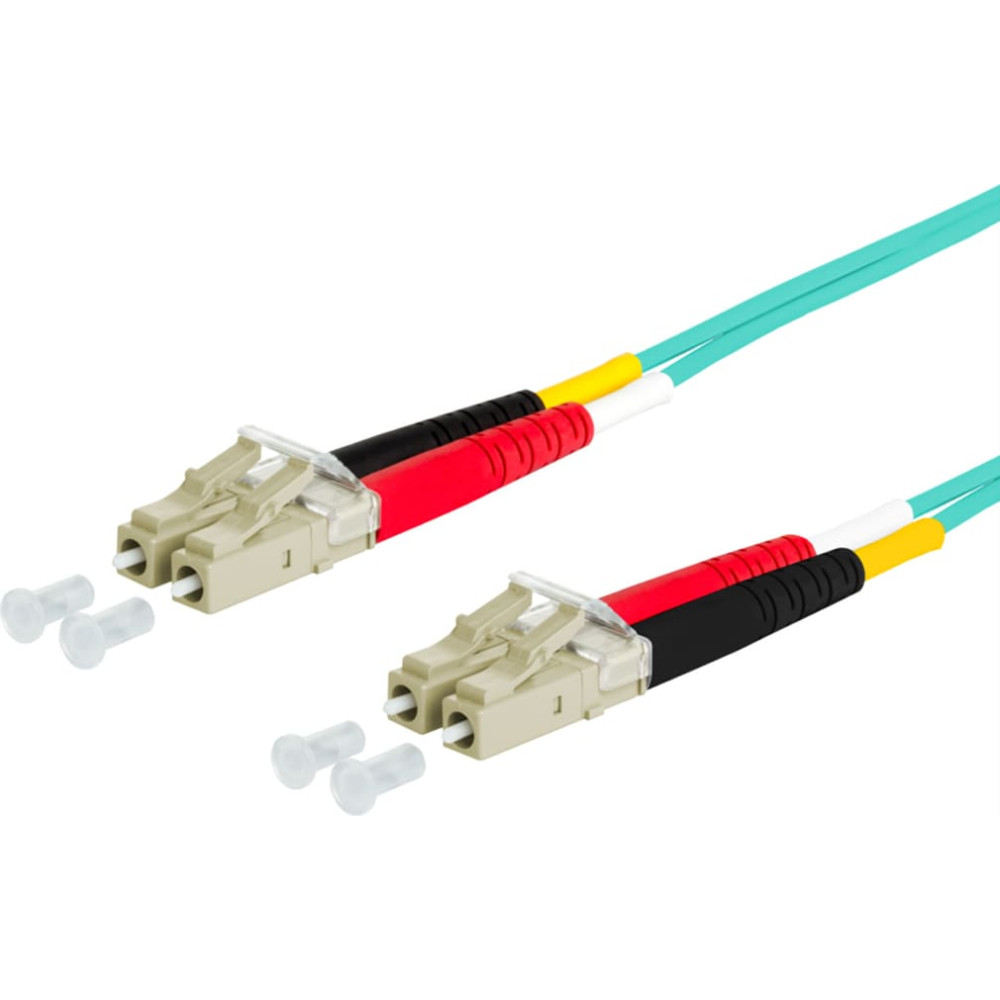

Metz Connect OpDAT patch cord, LC-D/LC-D OM3, 5 m

METZ CONNECT

Metz Connect OpDAT patch cord, LC-D/LC-D OM3, 5 m

Product Code: 151J1JOJO50E
Barcode 4250184148081

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
aramid strain relief: yes
bend insensitivity: yes
cable lsoh: yes
cable type: Duplex Cable
colour: turquoise
connection ports: LC / LC
crossed: yes
depth of packaging (single piece): 200 mm
external cable diameter: 2.0 x 4.2 mm
fibre section: Multi mode 50/125µm OM3
flame retardant according to iec 60332-1-2: yes
gross weight: 0.05
halogen free according to iec 60754-2: yes
height of packaging (single piece): 30 mm
length: 5 m
low smoke according to iec 61034-2: yes
manufacturer: METZ CONNECT
max. insertion loss: 0.4 dB
min. return loss: 35 dB
operating temperature max.: 60 °C
operating temperature min.: -10 °C
package weight (single piece): 0.05 kg
product group: Fibre optic cable
product type: Fibre Optic Jumper Cables OM3
side 1 connector type: LC
side 2 connector type: LC
storage temperature max.: 60 °C
storage temperature min.: -10 °C
weight: 46 g
width of packaging (single piece): 200 mm
Description

Multi mode patch cord I-V(ZN)H 50/125 OM3

  • laser-optimized, bending-resistant Multi mode fiber OM3, G50/125 µm according to IEC 60793-2-10 type A1a.2
  • outer diameter 2.0 x 4.2 mm
  • halogen-free LSHF-FR sheath with low smoke development, flame retardant
  • duplex cord as zipcord (figure 8) with two tight buffered cables and aramide strain relief
  • 100 % tested
